Quick Summary Coastal defense CCTV solutions combine dual-spectrum visible-thermal imaging, gyro stabilization, and marine-grade anti-corrosion housings to deliver 24/7 maritime surveillance across territorial waters, ports, and offshore installations. Standard security cameras fail within months in salt-laden coastal air; a purpose-built maritime CCTV system uses IP67/IP68 protection, 316 stainless steel housings, and AI analytics to detect vessels, swimmers, floating debris, and low-altitude UAVs at ranges from 1 km to over 18 km. |
Core Challenges for Coastal Defense CCTV Surveillance
Coastal and offshore sites are far harsher than inland deployments. The table below summarizes the main environmental challenges and the corresponding engineering response:
Core Challenge | Impact | Engineering Response |
Salt corrosion | Reduces service life of standard cameras and electronics by 5–10x versus inland deployment | 316 stainless steel and anti-corrosion polymer housings, passing 72-hour continuous salt spray testing |
Extreme weather | Typhoon-level wind, heavy rain, and sea fog cause blurred footage and unexpected shutdowns | Structures rated to 40m/s sustained wind; built-in electric defogging, heating, and automatic lens cleaning |
Wide temperature swings | Coastal summer heat and winter cold cause startup failures and gradual performance loss | Wide-temperature components and active thermal management for -40°C to +70°C operation |
Long-distance open water | Monitoring ranges from several km to 10+ km exceed standard camera capability | High-magnification optical zoom paired with high-sensitivity thermal sensors |
Complex target discrimination | Waves, seabirds, and floating debris trigger false alarms in manual monitoring | Dedicated maritime AI algorithms classify vessels, personnel, UAVs, and debris while filtering natural interference |

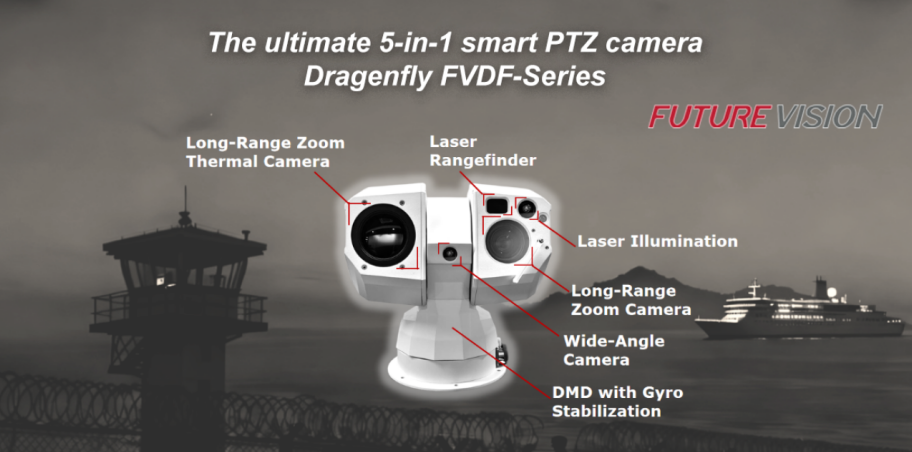

Dual-spectrum fusion — pairing visible-light and thermal sensors — is the core hardware configuration for coastal defense CCTV, delivering clear daylight identification and reliable penetration at night, in fog, and in low visibility.
• Visible light imaging: 2MP–8MP industrial CMOS sensors, 0.001Lux ultra-low-light sensitivity, 30×–100× optical zoom for long-distance offshore target detail.
• Thermal imaging: Uncooled VOx sensors (NETD ≤ 50mK) as standard, with optional cooled MWIR sensors for enhanced range — penetrates sea fog, rain, and total darkness.
• Optional laser ranging: Real-time offshore target ranging up to 10km for threat assessment and positioning.
Marine Environmental Protection Ratings
• Dustproof & waterproof: IP67/IP68 rating for long-term outdoor exposure and temporary submersion.
• Impact resistance: IK10 rating protects against storm-driven floating debris.
• Anti-corrosion: Certified marine salt spray testing for high-salinity, high-humidity deployment.
• Lightning & surge protection: Built-in 6000V surge protection with standardized grounding.
Mechanical Stabilization
• Full-angle PTZ: 360° horizontal rotation, -90° to +90° tilt, rotation speed ≥30°/s for blind-spot-free coastal perimeter cruising.
• Multi-axis gyro stabilization: 2/3-axis electronic stabilization offsets jitter from wind and vibration for stable long-range imaging.
• Automatic cleaning: Rain and salt spray inductive wipers remove lens dirt and salt deposits for unattended operation.
Monitoring Target | Effective Detection Distance | Recommended Configuration |
Large offshore vessels | 10–18km | Cooled thermal imaging + 60X ultra-high zoom PTZ camera |
Small fishing boats & speedboats | 6–10km | Uncooled 640×512 thermal imaging + 40X optical zoom |
Swimmers & small floating objects | 1–3km | Dual-spectrum high-sensitivity fusion camera |
Low-altitude UAVs | 3–5km | AI dual-spectrum camera with multi-target recognition |
A reliable coastal defense CCTV system is structured into four layers for end-to-end, 24/7 maritime monitoring:
• Sensor acquisition layer: Fixed bullet cameras deliver 24/7 wide-angle panoramic coverage along shorelines and port perimeters; dual-spectrum PTZ cameras on towers and cliffs handle long-distance cruise monitoring and automatic tracking.
• Transmission network layer: Gigabit fiber as the primary link, with industrial 5G automatic failover backup and solar-battery hybrid power for unattended islands and remote sites.
• Intelligent processing & storage layer: Edge AI filters invalid data at the camera, cutting bandwidth use by over 70%. On-site NVRs use RAID 5/6 redundant storage for 30–90 days of 4K video retention.
• Command & management layer: A GIS-integrated video management system (VMS) provides real-time preview, one-click PTZ control, virtual electronic fencing with border-crossing alarms, and multi-channel alert push (platform, SMS, terminal).
• Target classification: Classifies vessels, personnel, floating debris, and UAVs with over 95% recognition accuracy, filtering wave and seabird interference; supports counting, size evaluation, and speed calculation.
• Automatic tracking & border alarm: PTZ cameras auto-lock and track abnormal targets; customizable warning boundaries trigger instant alarms for illegal crossing, loitering, and abnormal vessel movement.
• Environment-adaptive enhancement: Built-in fog penetration, strong-light suppression, and wave-interference filtering dynamically optimize clarity in foggy, rainy, and backlit conditions.
• Coastal border defense: Long-range dual-spectrum PTZ cameras on towers deliver full-coverage territorial water cruising, providing early warning for illegal immigration, unauthorized fishing, and smuggling.
• Port & wharf security: Hybrid fixed and medium-zoom PTZ cameras cover perimeters, water areas, and navigation channels, combined with AI intrusion and illegal berthing detection.
• Offshore platform & island monitoring: Gyro-stabilized, anti-corrosion cameras with wind- and shock-resistant brackets monitor peripheral waters to prevent unauthorized approach to platforms and island facilities.
A pre-deployment site survey analyzes terrain, wind speed, salt fog concentration, and sightlines to optimize camera placement. Standard installation uses 316 stainless steel anti-corrosion brackets, UV-resistant armored waterproof cabling with sealed glands, and standardized lightning grounding (ground resistance ≤4Ω).
• Monthly: Clean lenses, inspect housing anti-corrosion condition, verify PTZ rotation flexibility.
• Quarterly: Test heating, defogging, and automatic cleaning functions; inspect network and power link stability.
• Annually: Complete parameter calibration, firmware updates, and AI algorithm optimization.
Component | Remarks |
Long-range dual-spectrum PTZ camera | AI analytics, gyro stabilization, full marine anti-corrosion protection for long-range coastal defense |
Fixed marine thermal camera | IP67 marine anti-corrosion rated, for fixed shoreline security surveillance |
16-channel industrial NVR storage server | RAID 5 redundant storage, 64TB capacity for maritime video |
VMS intelligent management platform | GIS integration and multi-terminal intelligent alarm push |
Installation, cabling & debugging | Mounting brackets, lightning protection, on-site cabling, power transformation, system debugging |
Q: How far can a coastal defense CCTV system detect a vessel?
Detection range depends on target size and camera configuration: large vessels can be detected at 10–18km with cooled thermal + 60X zoom PTZ, while small boats are typically detected at 6–10km with uncooled thermal + 40X zoom.
Q: Why do standard security cameras fail in coastal environments?
Standard cameras lack marine-grade anti-corrosion housings and salt-spray certification, reducing their service life by 5–10x compared with inland deployment due to salt fog corrosion.
Q: What protection rating should a coastal CCTV camera have?
IP67 or IP68 for dust/water ingress, IK10 for impact resistance, plus certified marine salt-spray testing and built-in surge protection rated to 6000V.
Q: Can these systems operate without grid power?
Yes. Remote islands and unattended coastal sites typically use solar-battery hybrid power systems combined with 5G wireless backup transmission.
