PTZ Camera Systems for Long-Range Surveillance, Mobile Deployment and Multi-Sensor Integration
A professional PTZ camera is more than a motorized CCTV device. It is a complete electro-optical platform that combines imaging sensors, optical zoom, pan-and-tilt movement, control electronics, environmental protection and network communication. Future Vision’s PTZ Camera category covers several engineering directions rather than one standardized housing: laser PTZ cameras for kilometer-level night observation, thermal positioning systems for target detection without visible light, multi-spectrum platforms that combine visible, thermal and laser channels, vehicle-mounted cameras for mobile operation, and separate pan-tilt mechanisms for customized payloads. This breadth is relevant to system integrators, distributors, defense and maritime contractors, industrial surveillance companies and OEM manufacturers building specialized observation products.
Start with the Surveillance Mission, Not the Largest Specification
PTZ procurement often begins with a request for the largest optical zoom or longest stated range. That approach can produce an oversized system that is difficult to stabilize, slow to deploy and expensive to maintain. The correct selection begins with target type, required detection or identification level, shortest and longest distance, available illumination, weather, mounting structure and operator workflow. A city-security camera monitoring a road requires different mechanics from a coastal unit observing vessels several kilometers away. A vehicle-mounted camera must tolerate vibration and power variation, while a fixed tower can support a heavier lens and platform. Future Vision’s product matrix allows these requirements to be separated before the optical and mechanical configuration is chosen.
Visible Optical Zoom for Recognition and Evidence

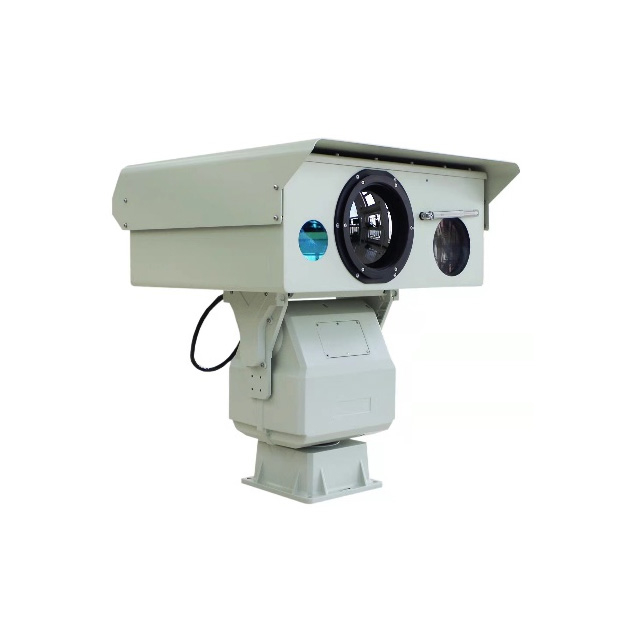

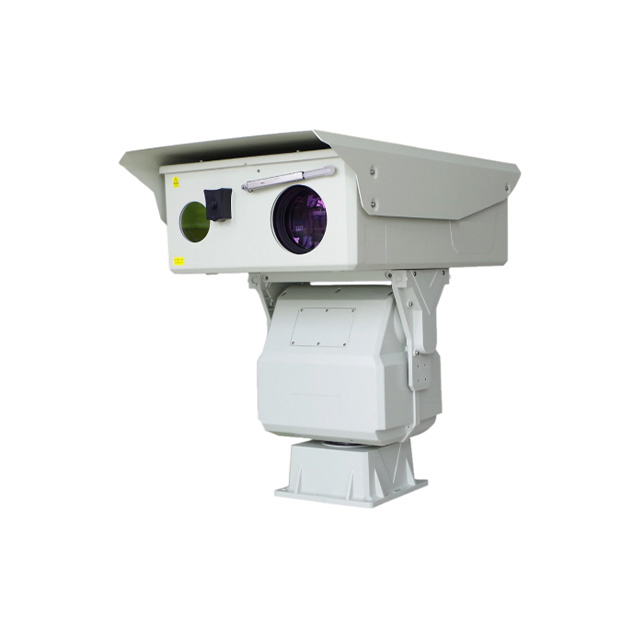

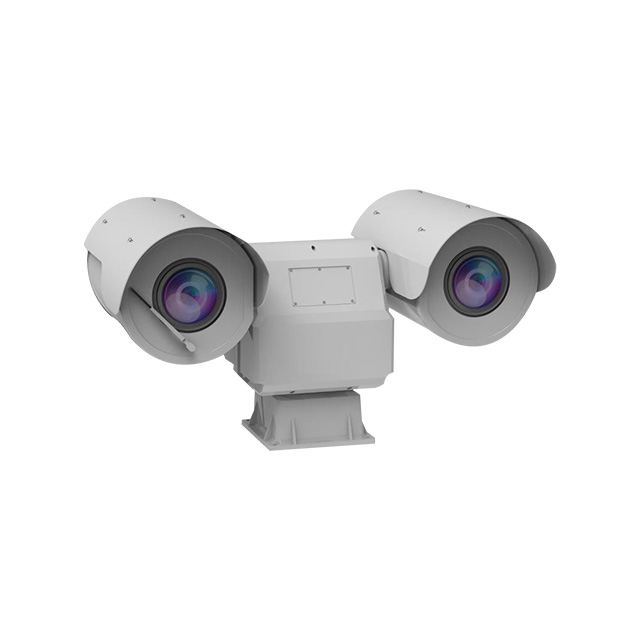

The visible channel supplies color, texture and familiar forensic detail. Future Vision PTZ products range from moderate 35X and 38X cameras to 45X and 48X vehicle systems, 86X and 90X multi-spectrum platforms, and 96X long-range laser models. The actual focal-length range matters more than the multiplier alone. A wider starting focal length improves target acquisition, while a longer telephoto endpoint places more pixels on a distant object. The 2MP 96X 8 km laser PTZ camera represents an ultra-long-range architecture designed around a low-light telephoto camera and synchronized near-infrared laser. The project team should calculate field of view at both ends and verify that the support structure can hold the target steady at maximum focal length.
Thermal Detection for Darkness and Low-Contrast Scenes

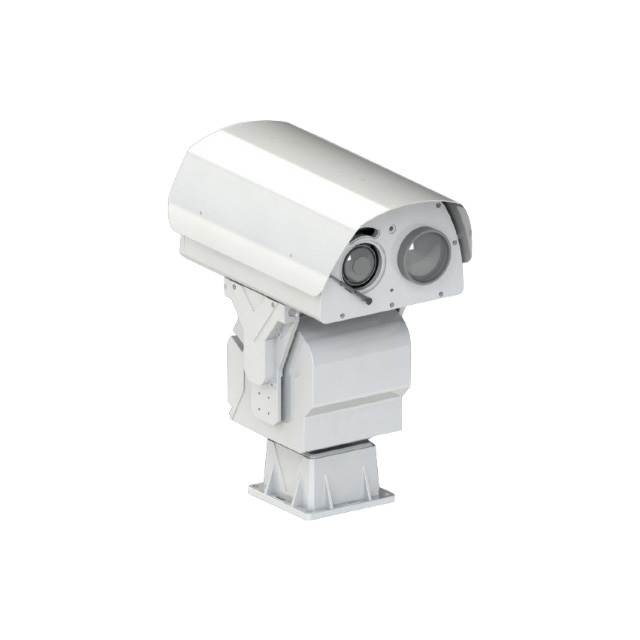

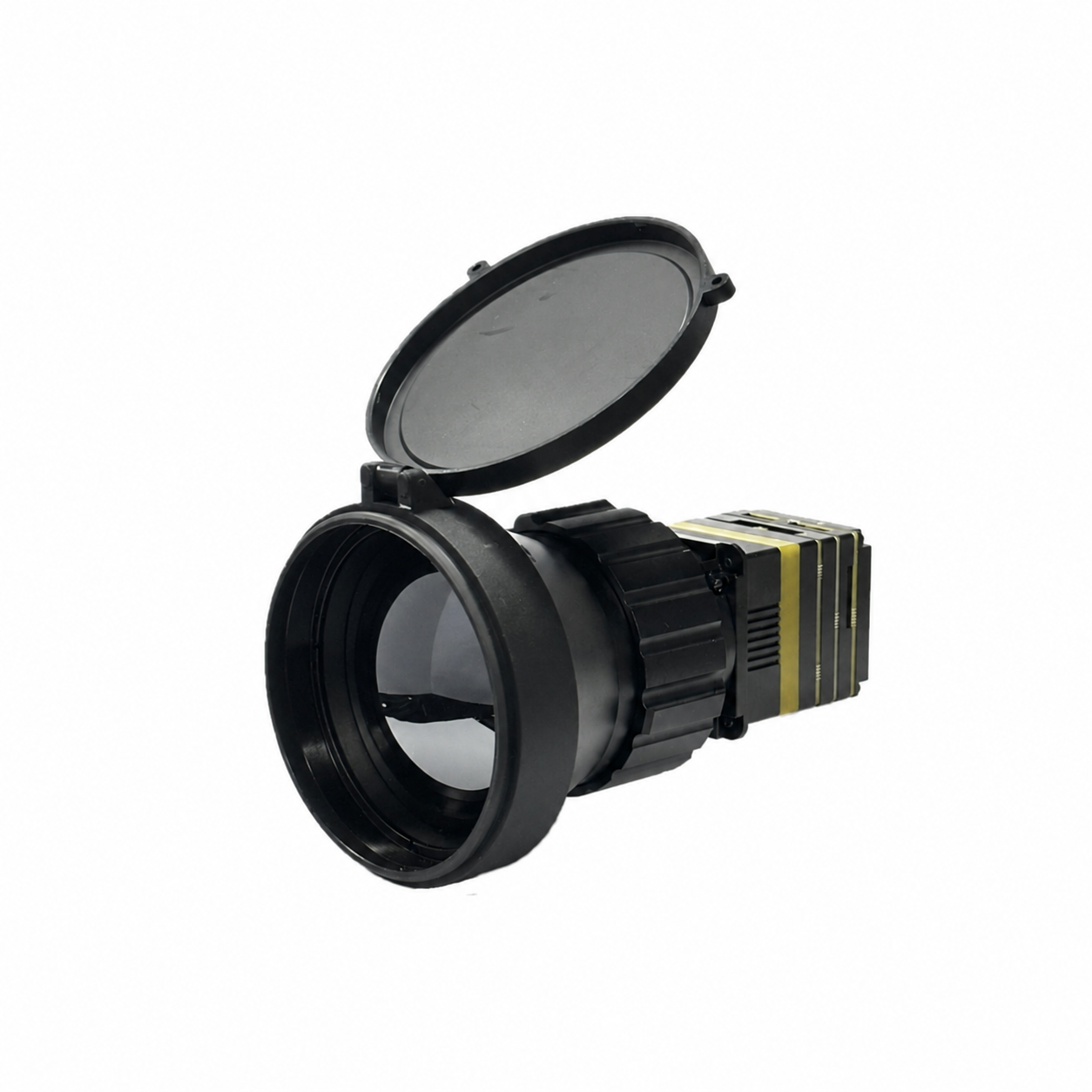

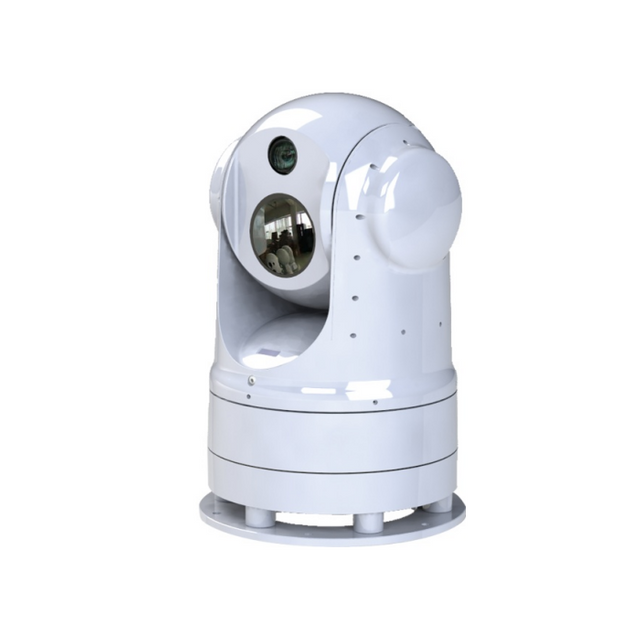

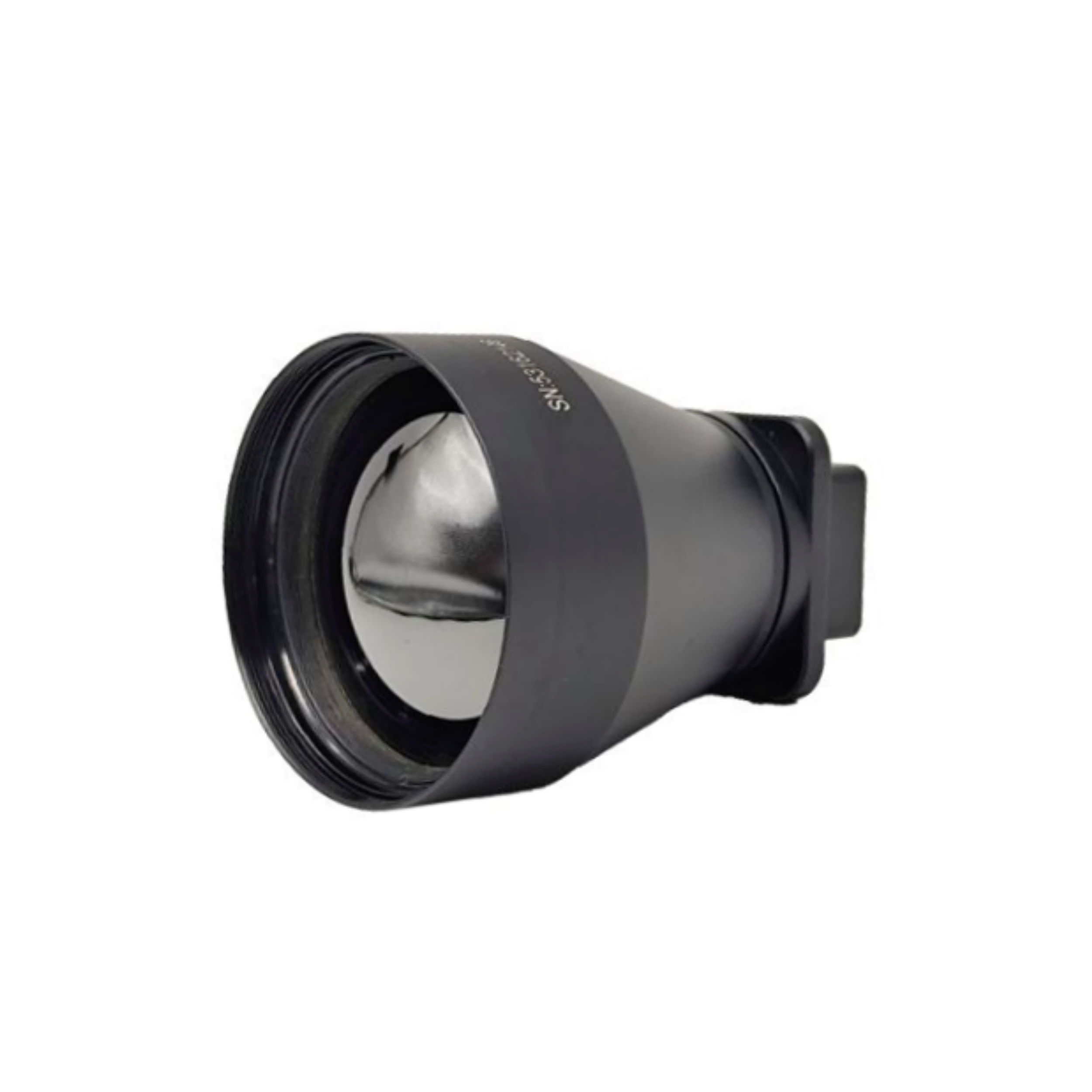

Thermal imaging detects infrared radiation emitted by the target and can reveal people, vehicles, animals or abnormal equipment temperatures without relying on visible illumination. It is particularly useful in perimeter, maritime and forest applications where the visible camera may lose contrast. The 2MP 45X marine thermal vehicle camera system combines a 2MP 45X visible channel with a 384×288 or 640-class thermal option, electric and automatic focus, gyroscope stabilization, navigation functions and a corrosion-resistant marine-oriented structure. Thermal imaging should be evaluated by detector resolution, pixel pitch, NETD, focal range and target geometry. A stated thermal range normally refers to a defined detection criterion and should not be interpreted as guaranteed identification distance.
Multi-Spectrum Sensor Fusion for Complex Sites

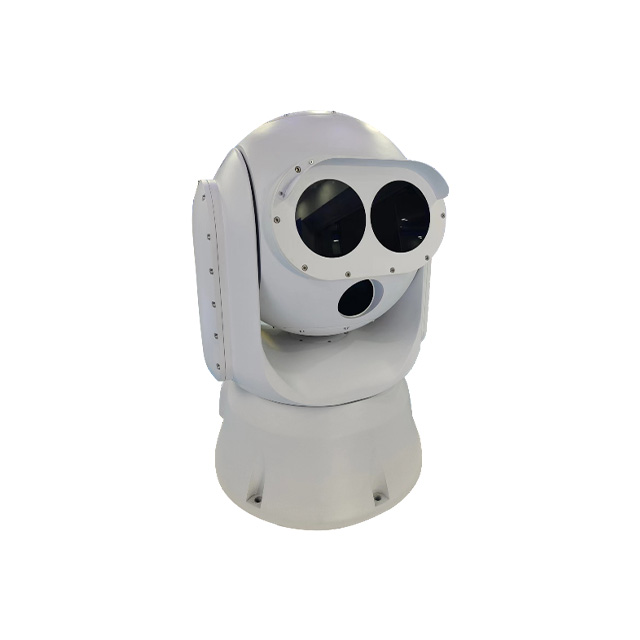

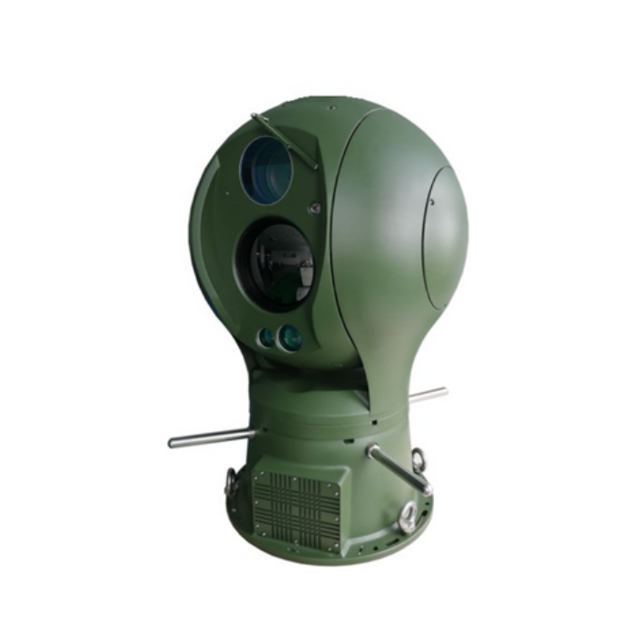

Large critical-infrastructure projects may require several sensing methods in one platform. The 4MP 86X laser and thermal multi-spectrum PTZ camera combines a 4MP 86X visible camera, a 640×512 thermal detector with a 30–300 mm motorized lens and a 4 km laser illuminator. This type of platform supports passive thermal detection, visible verification and active night illumination from the same positioning head. The main integration challenge is not simply adding sensors. The fields of view must be aligned, zoom positions must be mapped, and the operator or analytics software must know when to use each channel. Sensor fusion should shorten the detection-to-verification process rather than create three independent video feeds with no coordinated workflow.
Pan-Tilt Mechanics Determine Long-Range Usability

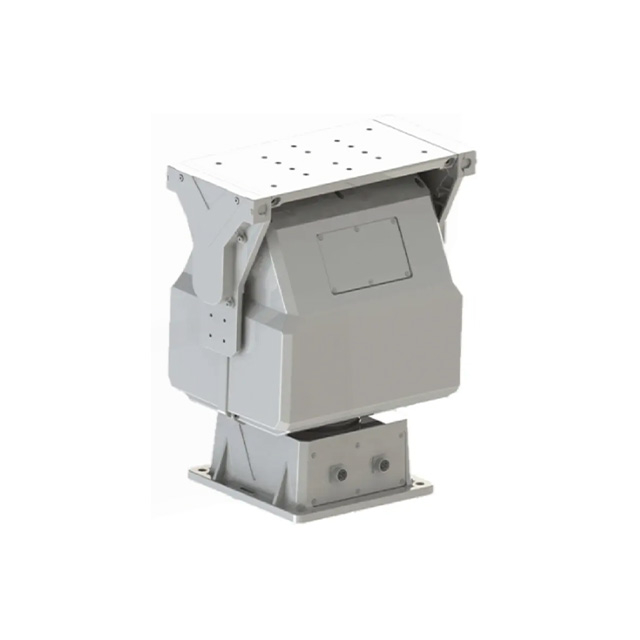

At high zoom, a small angular error can move the target out of the frame. Precision worm gearing, stepper or brushless motors, power-off self-locking and accurate preset return are therefore central performance factors. Future Vision positioning systems use continuous horizontal rotation, configurable vertical movement, preset points, cruise scanning and zoom-adaptive speed depending on the model. The platform should move rapidly during target acquisition but slow down smoothly at telephoto focal lengths. Integrators should test backlash, repeat positioning, low-speed tracking and recovery after power interruption. Mechanical stability usually affects long-range evidence more than adding digital zoom.
Laser and IR Illumination Selection

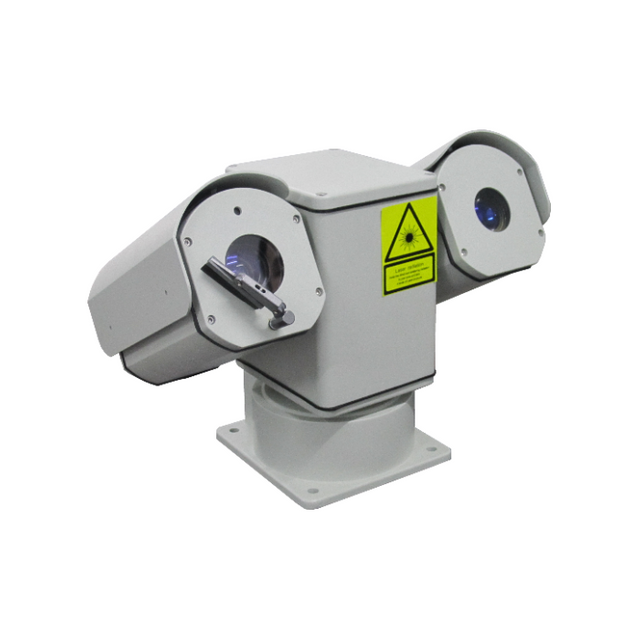

Active illumination extends the visible channel into night conditions. IR arrays are suitable for broad, moderate-distance coverage, while laser illumination can be concentrated for longer telephoto observation. Laser power must be matched to beam divergence, focal length and target distance. A narrow beam can miss a moving target if PTZ control is unstable. Fog, rain, dust and reflective objects can also reduce performance or create glare. Future Vision laser products use beam-angle and zoom-matching concepts to keep illumination synchronized with the lens. Safety requirements and installation height should be reviewed for every laser project, particularly near roads, populated areas or reflective water surfaces.
Vehicle, Marine and Mobile Requirements

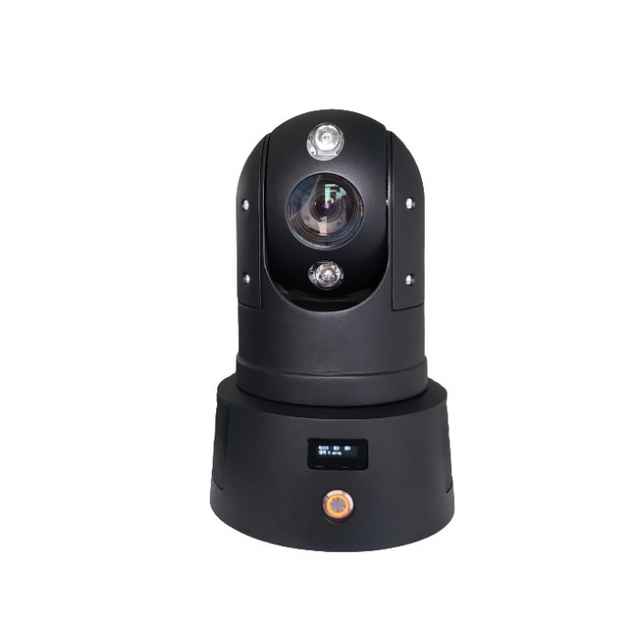

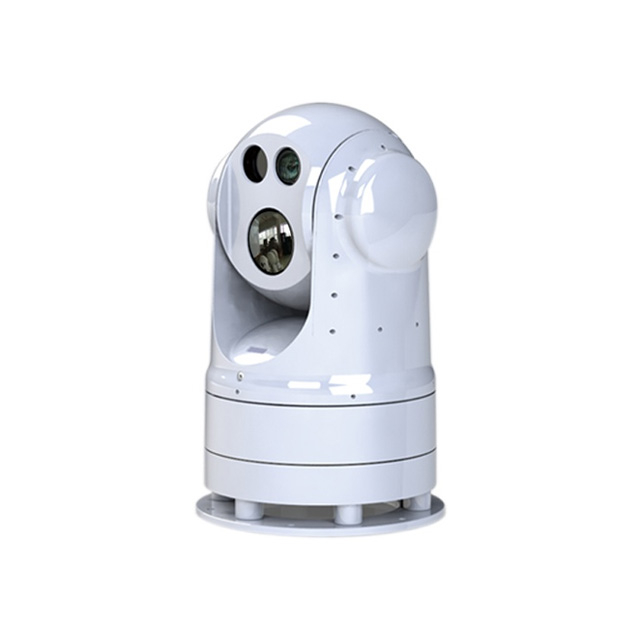

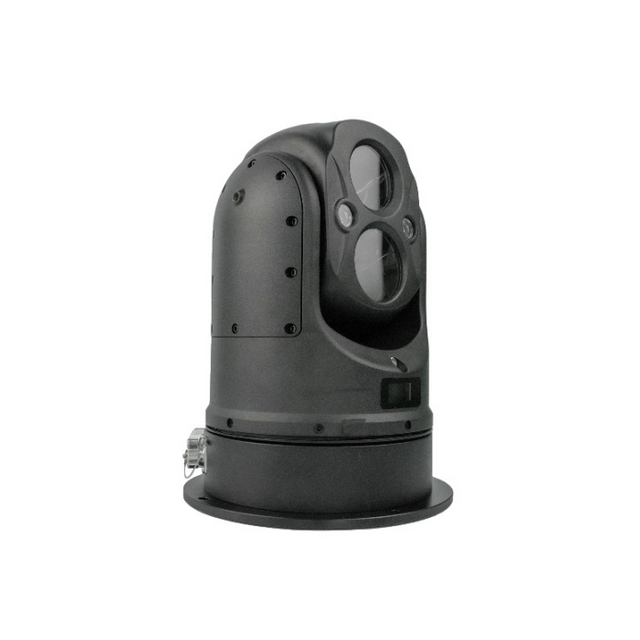

Mobile PTZ systems face vibration, shock, navigation, limited power and changing network coverage. Marine applications add salt spray, corrosion and continuous platform movement. Gyroscope stabilization and anti-shake lens functions can reduce image displacement, but they do not eliminate the need for a rigid mount and damped installation. Vehicle products may integrate GPS or BEIDOU positioning, 4G or 5G transmission, radar cueing and target tracking. The power system must support peak motor, heater, laser and processor demand without voltage drop. When a camera is installed on a patrol vehicle, vessel or temporary command platform, weight and center of gravity are also part of the optical design.
Network Architecture and Edge Functions
Representative Future Vision PTZ systems support H.265/H.264, ONVIF, RTSP, multiple streams, local storage and alarm interfaces. High-resolution visible, thermal and laser-enabled systems can produce several simultaneous streams. The network plan should define which stream is used for recording, control-room viewing, mobile access and analytics. Remote sites may require local storage to protect evidence during a communication failure. Smart functions such as line crossing, area intrusion, motion detection, target tracking and temperature alarms can reduce operator workload, but event behavior must be tested for each preset and sensor channel. Cybersecurity settings, user permissions and firmware-management processes should be included in the commissioning plan.
Weather, Corrosion and Thermal Management
Outdoor PTZ systems may operate from severe cold to high ambient temperature while carrying heat-generating processors, heaters and laser modules. Housings require correct sealing, drainage, anti-corrosion treatment and internal thermal control. Marine systems need particular attention to salt fog and material compatibility. A heavy long-range PTZ on a tower may experience substantial wind load; the pole and foundation should be designed for the complete camera dimensions and weight. Windows must remain optically clear, and different sensor channels may require different materials. Maintenance access for wipers, connectors and lens windows should be planned before installation.
Comparing a General PTZ, Positioner and Speed Dome

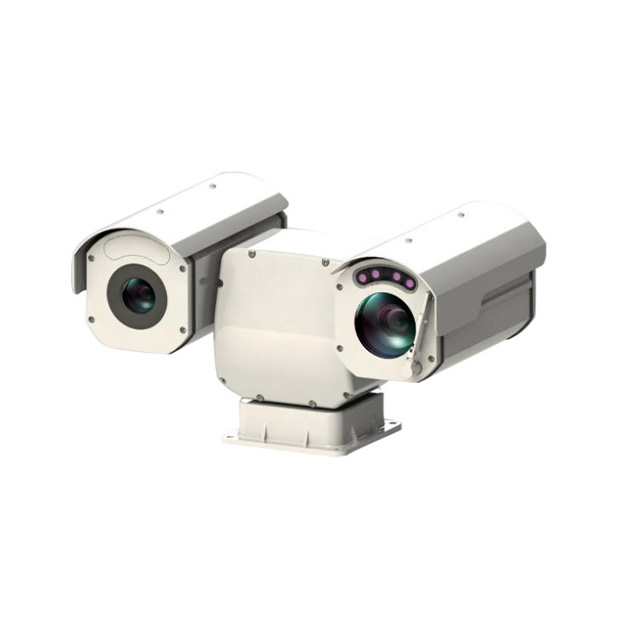

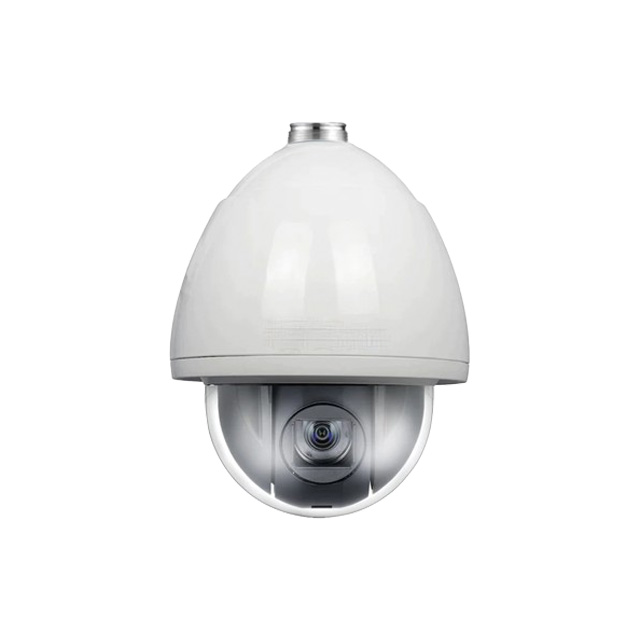

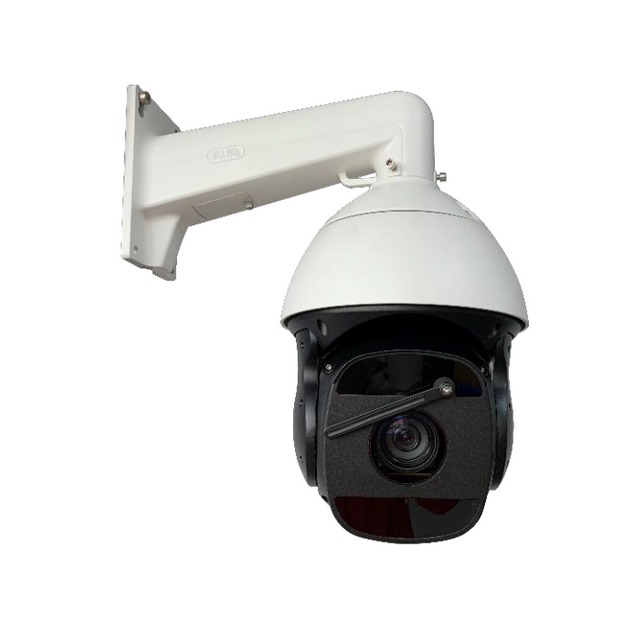

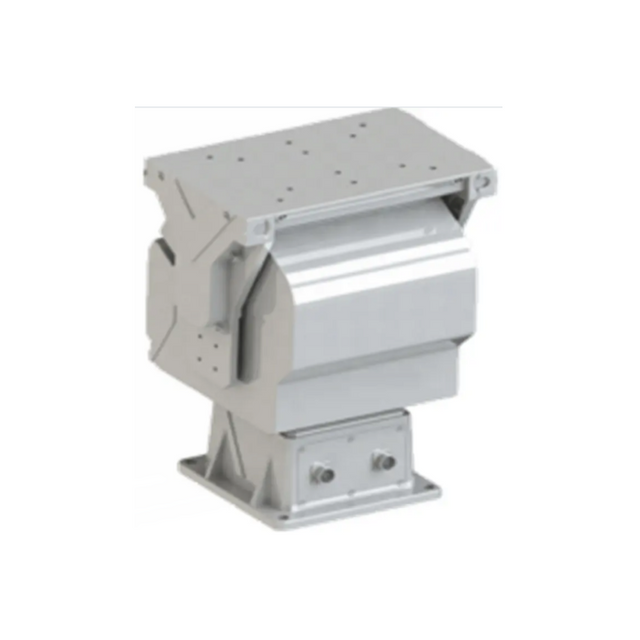

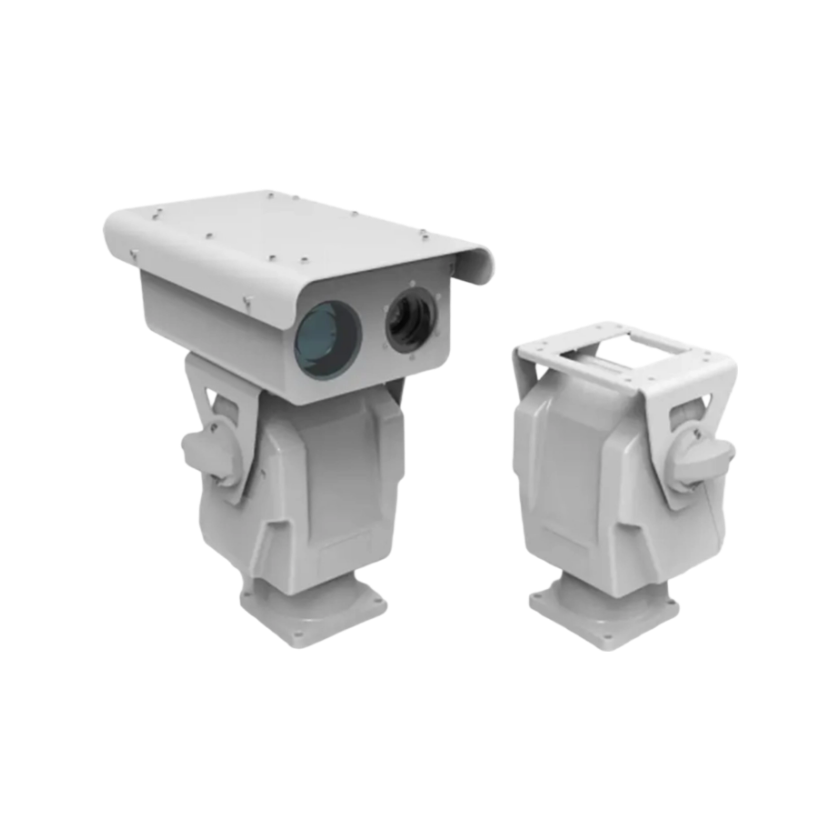

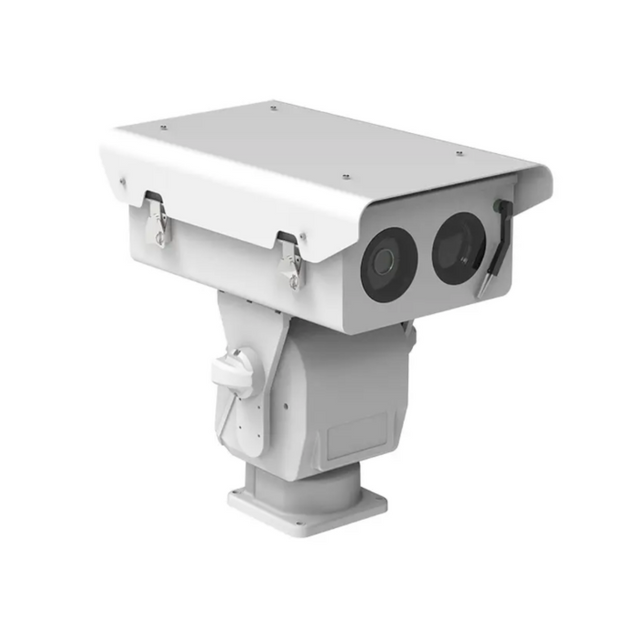

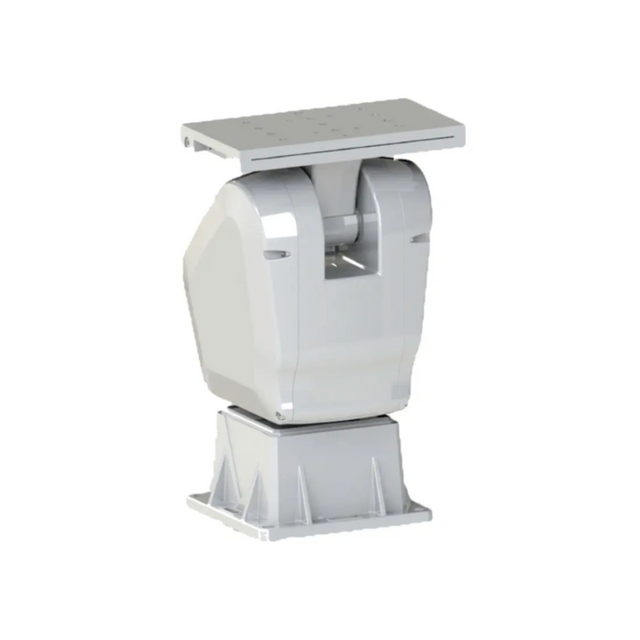

A compact speed dome integrates a relatively lightweight optical assembly under a dome and is suitable for urban or commercial security. A positioning camera uses a stronger pan-tilt platform and separate sensor housings, making it more suitable for larger lenses, thermal channels and industrial environments. A custom pan-tilt accessory allows the integrator to build a proprietary payload. Future Vision’s PTZ category includes all three directions. Buyers should consider payload mass, required zoom, sensor count, movement speed, mounting space and maintenance strategy. A larger positioner is justified when long lenses, strong wind resistance or multi-sensor alignment are required.
OEM and ODM Project Qualification
A useful inquiry should state visible resolution and focal range, thermal detector and lens, illumination distance, target size, mounting height, PTZ speed, preset accuracy, control protocol, network interface, power supply, temperature range, ingress protection and expected quantity. Customers should identify whether radar cueing, navigation, tracking, range finding, temperature measurement or wireless transmission is needed. Future Vision can then recommend a standard product or discuss customization. Mechanical drawings and interface documents should be reviewed before sampling. The sample must be tested with the intended VMS, mount and site distance rather than only on an indoor bench.
Commissioning and Lifecycle Support
Final acceptance should include wide and telephoto focus, day/night transition, thermal-to-visible handoff, illuminator alignment, preset repeatability, continuous rotation, alarm response, network recovery and temperature performance. A reference image can be stored for each critical preset so later maintenance teams can detect alignment changes. Long-range products should be inspected for window contamination and mechanical looseness. Spare parts, firmware versions and change-notification requirements should be documented for multi-year projects. This process protects the customer from a technically impressive sample that becomes difficult to support after deployment.
Building a PTZ System Around Operational Value
Future Vision’s PTZ Camera category supports applications from mobile patrol to kilometer-level border observation. The visible camera provides evidence, thermal imaging provides detection, laser or IR supports nighttime confirmation, and the pan-tilt mechanism connects those capabilities to the target. The best system is not automatically the platform with the largest zoom, longest laser distance or greatest number of sensors. It is the configuration that acquires the target quickly, keeps it stable, supplies the required information and integrates with the customer’s response workflow. Careful scene geometry, mechanical design and network planning turn the PTZ from a collection of specifications into a dependable surveillance tool.
