Speed Dome Cameras for Intelligent PTZ Surveillance and Wide-Area Security

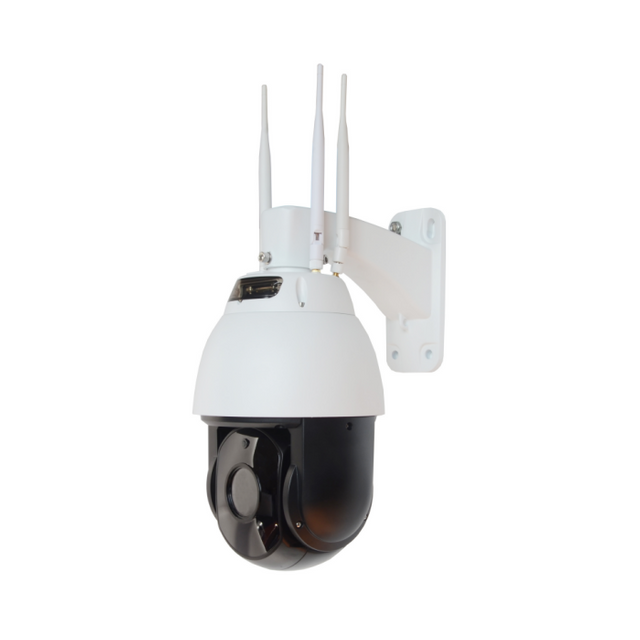

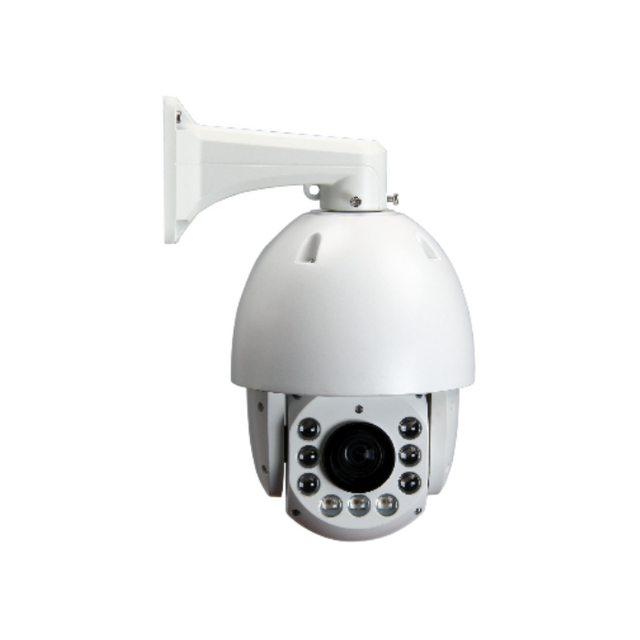

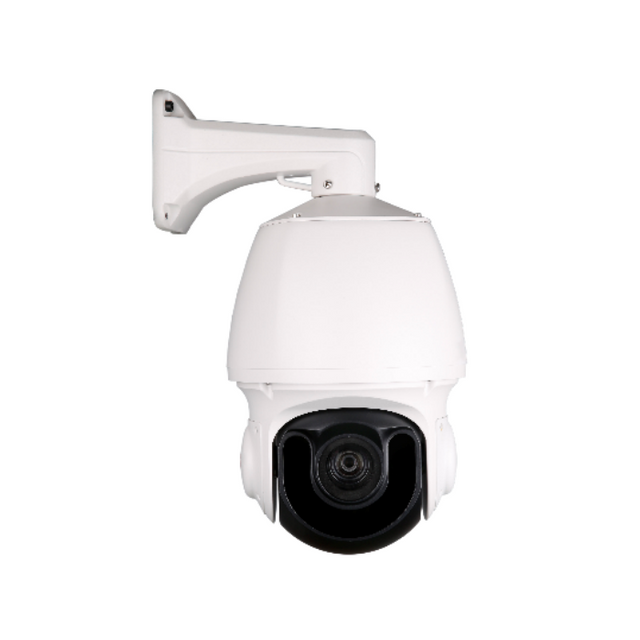

A speed dome camera combines a zoom imaging module, motorized pan-tilt mechanism, network electronics and protective dome housing in one controllable surveillance unit. It is used where a fixed camera cannot cover the complete area or where operators need to move quickly between overview, preset and telephoto inspection positions. Future Vision’s Speed Dome Camera category includes vandal-proof models, 2MP and 4MP IR cameras, 8MP 4K PTZ units, compact Wi-Fi and microphone designs, laser-illuminated cameras, thermal speed domes and NDAA-oriented options. This portfolio allows integrators to select by resolution, optical zoom, night-vision method, housing size and deployment environment.
When a Speed Dome Is Better Than Several Fixed Cameras
A fixed camera provides continuous coverage of one scene, while a speed dome can move among multiple areas and enlarge distant targets. PTZ cameras are useful at intersections, campuses, parking areas, industrial yards, transport stations and public spaces where an operator or analytic system can direct attention. They should not be used as the only camera when every area requires uninterrupted recording, because the unit records only the direction it is facing. A balanced design may combine fixed overview cameras with one speed dome for investigation. The PTZ can respond to alarms from fixed cameras, perimeter sensors or a VMS and then follow the target.
Vandal-Proof Design for Public and Accessible Locations

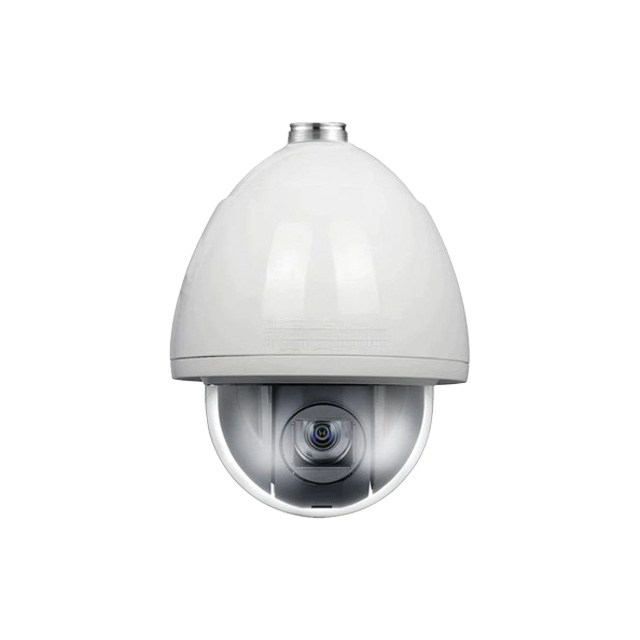

The 2MP 20X starlight vandal-proof speed dome camera provides 2MP video, 20X optical zoom, starlight imaging and a robust dome format. It lists 360-degree continuous horizontal rotation, multiple presets, smart functions, ONVIF and IP66 protection. Vandal-resistant construction is important in entrances, stations, retail areas, schools and parking facilities where the camera may be mounted within reach. The mechanical design protects the lens and motor while maintaining smooth movement. Buyers should distinguish vandal resistance from explosion protection; the latter addresses hazardous atmospheres and requires different enclosure construction and certification. Mounting height and bracket strength remain important even with a strong dome.
4K Resolution for Wide Scenes and Digital Review

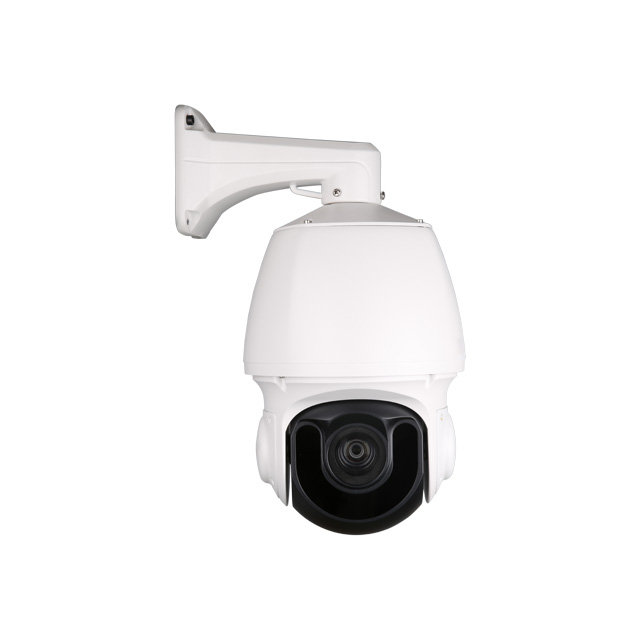

The 8MP 23X starlight IR network PTZ camera combines 8MP 3840×2160 video with 23X optical zoom, starlight capability and an IR distance listed at 200 m. A 4K speed dome is useful where the operator needs more crop margin or where analytics examine a broad scene. The higher resolution increases network, storage and decoding requirements. A project should calculate recorder throughput and retention before choosing 8MP across a large camera fleet. The optical zoom still matters because digital cropping cannot replace target detail that was never captured. Lens sharpness, focus speed, vibration and compression settings determine whether the 4K advantage remains visible at the control center.
Laser Illumination for Longer Night Observation

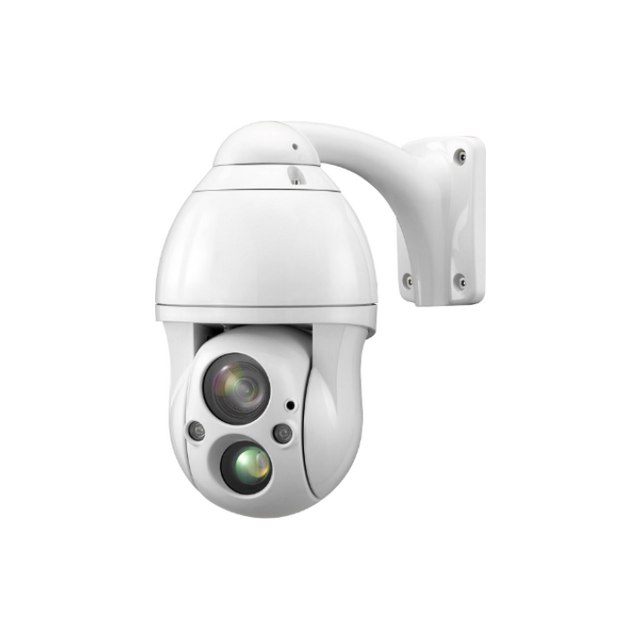

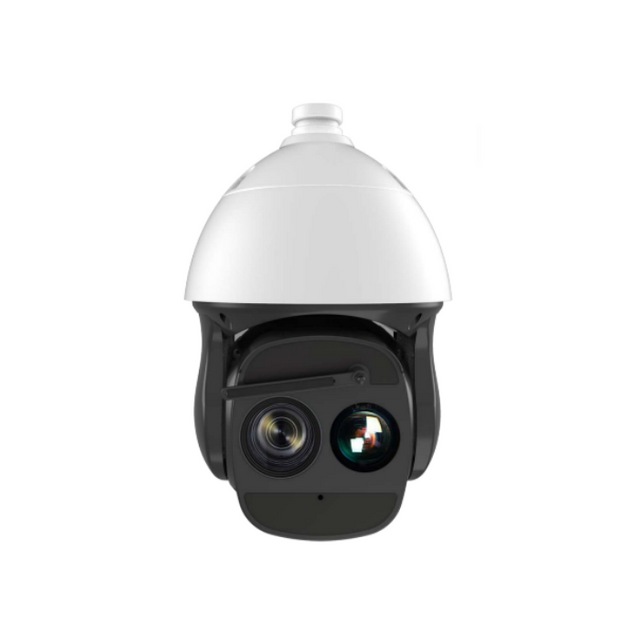

The 2MP 32X starlight 500 m laser network PTZ camera represents a 2MP 32X platform with 500 m laser illumination. Laser speed domes concentrate illumination into a narrower beam that can reach farther than many conventional IR arrays. They are appropriate for large perimeters, ports, reservoirs and remote infrastructure. Beam alignment should track the optical field of view so the target remains illuminated through zoom changes. The system must avoid overexposing foreground objects and should account for rain, fog and reflective surfaces. Eye-safety, local regulations and installation height should be considered during system design.
Optical Zoom and Focal-Length Selection

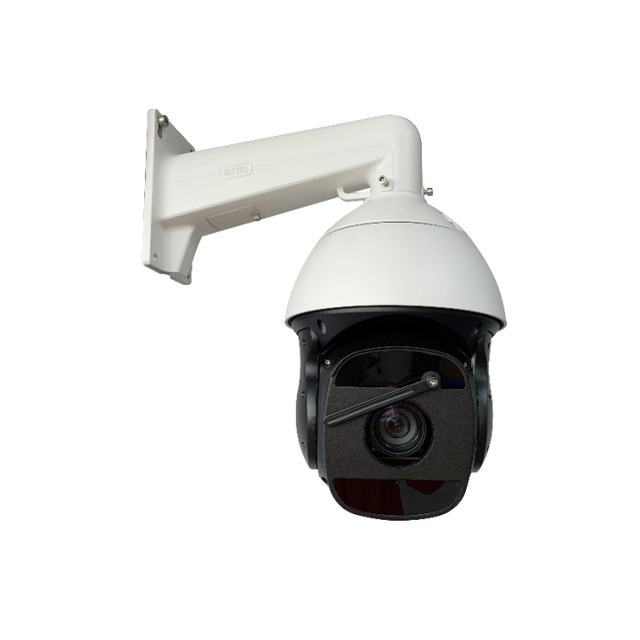

Future Vision’s speed dome range covers optical zoom values from approximately 20X to 48X in the listed mainstream models, with specialized products beyond that range in other PTZ categories. A 20X camera is suitable for compact environments and medium-distance observation. A 33X or 38X camera supports larger sites, while a 48X unit provides more telephoto reach. Zoom ratio should be reviewed with actual focal length and sensor size. A camera with a wider starting focal length may acquire targets more easily, while another with a longer telephoto endpoint may provide more pixels at distance. The project should calculate the required field of view rather than using zoom ratio as the only comparison.
PTZ Speed, Presets and Positioning Accuracy
The motor mechanism determines how effectively a speed dome can respond. High movement speed supports rapid repositioning, while low-speed smoothness is essential for tracking at telephoto focal lengths. Preset accuracy matters when the camera repeatedly returns to entrances, fence zones or process equipment. Future Vision products use precision motors and provide continuous horizontal rotation, preset points, scan routes and other PTZ functions depending on the model. The integrator should test movement under actual load, temperature and wind conditions. A camera that reaches the preset quickly but stops inaccurately may not place the target within the narrow telephoto field.
Night Vision: Starlight, IR, Laser and Thermal

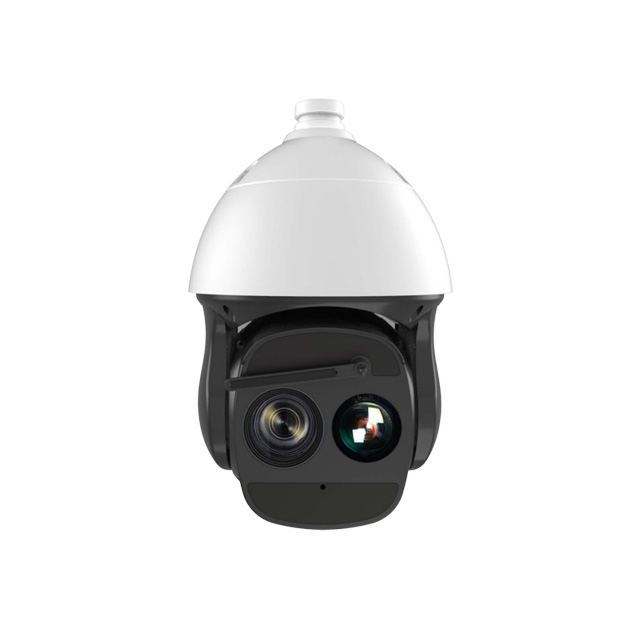

Different night technologies solve different problems. Starlight imaging uses a sensitive visible sensor and can retain color under low illumination. IR provides invisible or low-visible active illumination for moderate ranges. Laser extends a narrower beam farther. Thermal imaging detects heat without visible illumination and can locate targets through darkness. Future Vision’s speed dome family includes each of these directions. The buyer should consider required range, scene width, target type, weather and whether color evidence is necessary. A multi-spectrum design may combine thermal detection with visible confirmation, while a conventional urban installation may only need starlight and IR.
Smart Functions and VMS Compatibility
Representative Future Vision speed domes support motion detection, line crossing, area intrusion, video masking, multiple streams and local storage. ONVIF improves interoperability with common VMS platforms, but project-specific functions should still be tested. PTZ control, alarm events, audio, storage playback and time synchronization may behave differently across software systems. Open SDK support can help OEM customers extend functions or integrate the camera with a proprietary platform. Analytics should be configured for the camera’s movement; an alarm rule designed for a fixed scene may need to pause or reset when the PTZ changes position.
Housing Size, Mounting and Environmental Protection

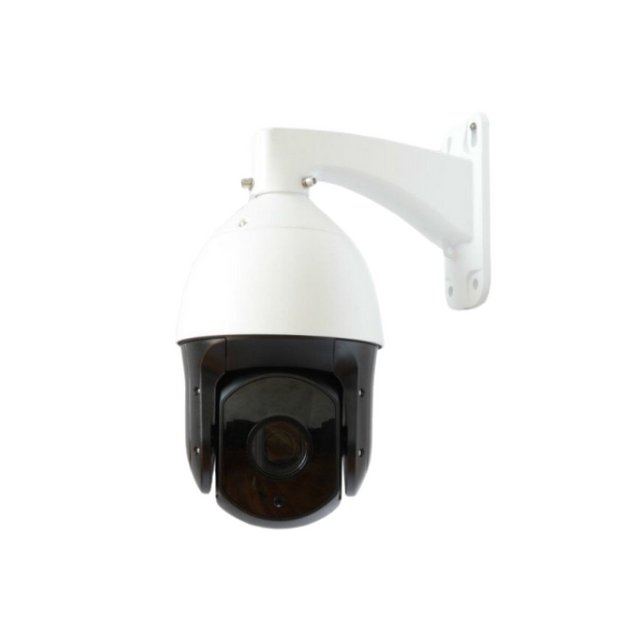

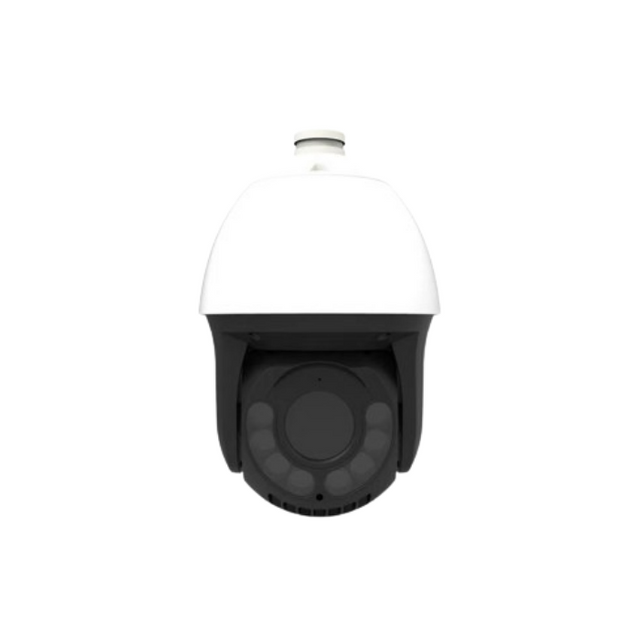

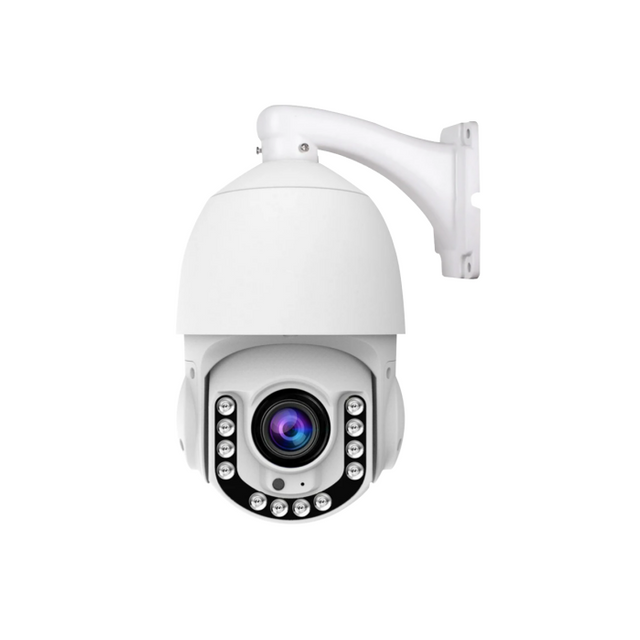

Compact 4-inch and 6-inch domes reduce visual impact and suit indoor or sheltered areas. Larger 7-inch and 8-inch products can accommodate stronger optics, longer-range illuminators and heavier mechanisms. Outdoor units require appropriate ingress protection, corrosion resistance and temperature range. A wall, pole or ceiling bracket must support the camera and resist vibration. Cable connections should be protected from moisture and strain. In snowy or dusty areas, heaters, wipers or defog functions may be important. The stated IP rating applies to the product configuration, but field installation quality determines whether water enters through connectors or mounting interfaces.
Bandwidth and Storage Planning
A speed dome may transmit several streams for recording, operator preview and mobile viewing. Bit rate depends on resolution, frame rate, codec, movement and scene complexity. PTZ motion can increase compression demand because the complete image changes. H.265 reduces storage compared with older codecs, but the project should still test the actual scene. A 4K fleet requires more recorder capacity and client decoding than a 2MP system. Local TF-card recording can provide resilience during network interruptions, while a central VMS manages long-term retention and alarms. The buyer should define the required recording quality for both wide and telephoto views.
Applications Across Commercial and Public Security
Speed domes are used in city surveillance, transport hubs, schools, hotels, factories, logistics centers, prisons, airports and government facilities. A compact 20X dome can cover a building entrance and parking area. A 38X IR unit can monitor a large industrial yard. An 8MP model can provide high-detail evidence in a public space. A laser or thermal speed dome fits longer-range critical infrastructure. The product should be matched to the environment and operator workflow. The largest camera is not always the best choice; a smaller dome may provide faster response, lower power and easier installation for a moderate scene.
Information Required for a Professional RFQ
The inquiry should specify resolution, optical zoom, minimum illumination, night-vision distance, housing size, vandal resistance, IP rating, PTZ speed, preset accuracy, audio and alarm needs, storage, protocol, power supply, mount type and annual quantity. Buyers should identify whether the camera will operate alone, connect to a third-party VMS or become part of an OEM product. NDAA, cybersecurity and regional compliance requirements should be stated early. Sample testing should include day and night imaging, focus after rapid zoom, preset repeatability, network recovery, continuous rotation and performance at the expected temperature.
Selecting a Scalable Speed Dome Platform
Future Vision’s speed dome category gives distributors and integrators a broad path from compact starlight models to 4K IR, laser, thermal and protected designs. The correct camera balances coverage, evidence quality, night range, mechanical response and total infrastructure cost. A well-planned system defines which areas require continuous fixed coverage and which require movable investigation. When the optical module, PTZ mechanism, illuminator, housing and network are selected together, a speed dome can become an effective wide-area surveillance tool rather than an oversized camera that is difficult to operate.
