Maintaining optical clarity during variable focal length adjustments presents a strict engineering challenge in dynamic environments. When optical systems shift their field of view, the physical distance between lens elements and the image sensor changes, disrupting the focal plane. Integrating standard camera hardware without specialized focus mechanisms causes severe operational inefficiencies. Systems suffer from focus hunting, high processing latency, and dropped frames. These failures lead to lost data in machine vision applications, compromised tracking in surveillance networks, and degraded visual fidelity in broadcast setups. Solving these focus-related challenges requires understanding the underlying mechanics within a zoom module. Engineers must evaluate how optical hardware interacts with image signal processing algorithms and motorized actuators. Navigating autofocus architectures enables teams to make informed procurement and integration decisions. Analyzing the exact methods used to maintain sharp resolution during rapid focal shifts eliminates latency, reduces mechanical wear, and ensures consistent optical performance across deployments.
Autofocus in a zoom module relies on a tight integration of lens mapping, motorized actuators, and image signal processing (ISP) algorithms like Contrast Detection (CDAF) or Phase Detection (PDAF).
Selecting between an OEM Zoom Block Module and a fully integrated IP Zoom Camera Module dictates the level of control engineers have over focus, zoom, and iris commands.
True focus tracking (parfocal design) minimizes the need for active autofocus during zoom operations, reducing mechanical wear, preserving optical resolution, and eliminating processing latency.
Evaluating autofocus performance requires testing under edge-case conditions, specifically low-light environments, high-speed focal shifts, and potential software-layer conflicts.
Understanding autofocus requires examining the physical properties of varifocal lenses. When a lens changes its focal length to magnify a subject, the internal optical elements physically move along the barrel. This movement alters the convergence point of the light rays entering the camera. Because the image sensor remains stationary, the focal plane shifts away from the sensor surface. Without immediate correction, the resulting image becomes heavily blurred. The primary function of the autofocus system is to execute rapid, precise realignment of the focusing lens group to bring the convergence point exactly back to the sensor plane.
This realignment must occur in milliseconds to prevent noticeable degradation in video feeds or machine vision analysis. The physics dictate that as focal length increases, the depth of field becomes shallower. A shallow depth of field means the margin for error in positioning the focus lens group shrinks drastically. Even a misalignment of a few micrometers will cause the subject to fall outside the acceptable circle of confusion, resulting in a soft image. Engineers must account for this tight tolerance when designing or selecting the motor drive systems.
The speed and accuracy of focal realignment depend heavily on the Image Signal Processor (ISP) and its underlying algorithms. Contrast Detection Autofocus (CDAF) is a traditional, highly accurate method that analyzes pixel data directly from the image sensor. The algorithm measures the intensity difference between adjacent pixels. When an image is perfectly sharp, the contrast between edges is at its absolute highest. Because CDAF does not inherently know whether the subject is in front of or behind the current focal plane, it must drive the lens motor back and forth to find the peak contrast value.
This iterative seeking process causes the visual phenomenon known as hunting, which introduces latency and temporary blurring during rapid movement. Phase Detection Autofocus (PDAF) solves the latency issue by utilizing specialized pixels embedded directly into the image sensor. These phase-detection pixels split incoming light into pairs of images and compare their alignment. By measuring the phase difference between these split light rays, the ISP calculates the exact physical distance and the precise direction the lens motor needs to move.
Because PDAF is predictive rather than iterative, it enables significantly faster motor movement. It eliminates the need to hunt for focus, making it the superior choice for tracking fast-moving subjects or executing rapid focal length adjustments. Many modern systems employ a hybrid approach, using PDAF for the initial rapid movement and CDAF for the final micro-adjustment to guarantee absolute sharpness.
Autofocus Technology | Mechanism of Action | Primary Advantage | Primary Disadvantage |
|---|---|---|---|
Contrast Detection (CDAF) | Measures pixel intensity differences to find peak sharpness. | Extremely high accuracy for stationary subjects. | Slow execution; prone to focus hunting. |
Phase Detection (PDAF) | Splits incoming light to measure phase alignment differences. | High-speed, predictive directional movement. | Requires specialized sensor pixels; struggles in low light. |
Hybrid Autofocus | Combines PDAF for speed and CDAF for final accuracy. | Balances rapid lock times with pinpoint sharpness. | Higher processing overhead for the ISP. |
Translating ISP calculations into physical lens movement requires highly responsive mechanical components. Stepper motors and piezoelectric actuators serve as the physical drivers for lens elements. Stepper motors provide granular control by moving in discrete, micro-stepped increments, allowing for exact positioning of the heavy glass elements. We often see bipolar stepper motors used in these applications because they offer higher torque at low speeds, ensuring the lens group stops exactly where the ISP commands.
Piezoelectric actuators utilize high-frequency vibrations to drive the lens groups. They offer near-silent operation and incredibly fast response times, which is critical for continuous autofocus applications. To synchronize these motors during a focal shift, engineers utilize lens mapping. Lens mapping consists of complex look-up tables (LUTs) programmed directly into the firmware. These tables pre-calculate the exact focus motor position required for every possible zoom motor state across various subject distances.
When a zoom command is initiated, the firmware references the look-up table to move the focus motor in tandem with the zoom motor, maintaining a sharp image throughout the transition. Advanced app integration allows system administrators to interface with these firmware tables. Through dedicated control software, engineers can fine-tune lens mapping parameters, adjust motorized automation curves, and modify AF sensitivity to match specific environmental conditions.
Selecting the correct hardware architecture fundamentally dictates how autofocus commands are processed and executed within the broader system. System integrators typically choose between raw modular blocks and fully enclosed network-ready units. The choice depends entirely on the required depth of hardware integration, the available engineering resources, and the final deployment environment. You must evaluate the physical constraints of your housing and the processing capabilities of your backend hardware before committing to an architecture.

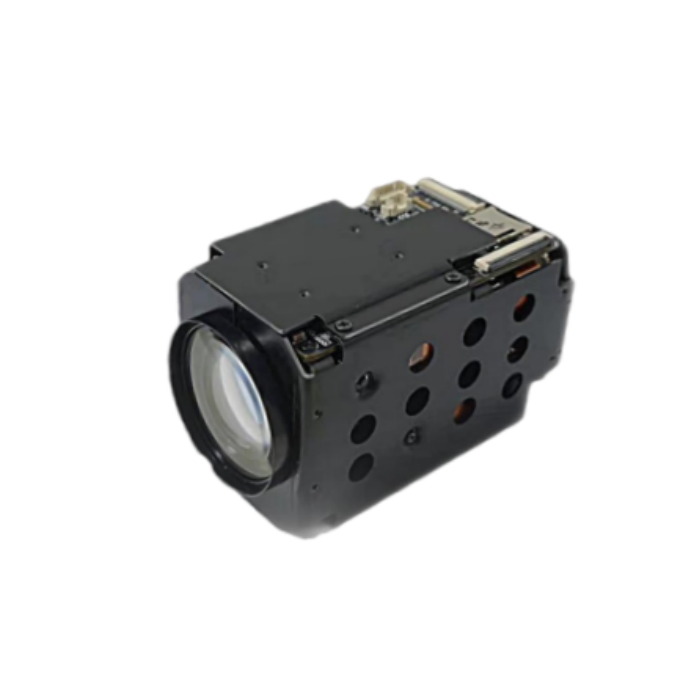

An OEM Zoom Block Module represents the foundational hardware for deep, proprietary integration. This architecture is best suited for engineering teams designing custom machine vision systems, specialized drones, or medical imaging devices where they provide their own housing, encoding hardware, and backend processing algorithms. These blocks output raw or uncompressed digital video and require custom control boards to manage power, video formatting, and focus algorithms.
Integrating these modules requires direct interfacing via high-speed protocols such as LVDS (Low-Voltage Differential Signaling) or MIPI CSI-2. These interfaces ensure zero-latency transmission of sensor data to the external ISP. Routing MIPI CSI-2 traces on a custom PCB requires strict impedance control and trace length matching to prevent signal degradation, which can directly impact the speed at which the ISP receives frame data for autofocus calculations.
During the development phase, engineering teams frequently rely on prototyping ecosystems. Utilizing Single Board Computers (SBCs) like the Raspberry Pi or NVIDIA Jetson, combined with custom adapter boards, allows developers to achieve native autofocus and aperture control in a lab environment. This prototyping stage is critical for writing custom scripts that manage the look-up tables and motor steps before scaling the design to mass production.
Conversely, an IP Zoom Camera Module is engineered for rapid deployment in network-based environments such as city-wide surveillance, industrial monitoring, and intelligent traffic systems. These modules integrate the lens, sensor, ISP, and network encoding hardware onto a single cohesive stack. They bypass the need for custom LVDS control boards by processing video and focus algorithms internally.
These modules receive zoom, focus, and iris commands directly via standard network ports. They utilize built-in encoding (H.264/H.265) and adhere to standard interoperability protocols like ONVIF. This allows any compatible Video Management System (VMS) to send a focus command over the network, which the module internal firmware immediately executes. The internal ISP handles all the heavy lifting for the autofocus algorithms, freeing up network bandwidth and backend server processing power.
From a physical form factor perspective, they are specifically designed for seamless integration into standard external structures. Integrators easily mount them inside weatherproof bullet camera housings or motorized PTZ (Pan-Tilt-Zoom) domes. This drastically reduces the time from procurement to active deployment, as the engineering team does not need to design custom PCBs or write low-level motor control firmware.
Maintaining a sharp image during a focal shift requires engineers to choose between optical engineering solutions and algorithmic processing solutions. The method chosen directly impacts the system processing overhead, mechanical longevity, and overall image fidelity during movement. Understanding the distinction between mechanical focus tracking and active algorithmic autofocus is essential for optimizing system performance in the field.
Parfocal lenses, often referred to as true tracking zoom lenses, provide a mechanical advantage by maintaining the focal plane mechanically throughout the entire zoom range. Inside a parfocal lens, the optical elements are divided into specific groups, including a variator group that changes the magnification and a compensator group that moves simultaneously to keep the focal plane locked on the sensor. This synchronized movement is typically achieved through a precisely machined internal cam barrel.
The cam barrel features complex, non-linear grooves. As the zoom motor rotates the barrel, pins attached to the lens groups ride inside these grooves, forcing the compensator group to adjust its position perfectly in tandem with the variator group. Once the initial subject is brought into focus, the mechanical design ensures it remains sharp regardless of how rapidly the magnification changes. There is zero reliance on active autofocus processing once the initial subject is locked.
The primary trade-off for this mechanical perfection is physical. Parfocal designs require highly complex optical formulas and precision machining, resulting in higher upfront costs, larger physical dimensions, and increased weight. However, the operational benefits are substantial. This ensures maximum optical resolution is maintained throughout the entire zoom range, completely eliminating the risk of algorithmic latency or focus hunting during critical surveillance or broadcast moments.
Standard varifocal modules take the opposite approach. They rely entirely on the AF algorithm to continuously correct the focal plane as the zoom motor moves. Because the lens lacks mechanical compensation, the ISP must constantly analyze the incoming frames, calculate the focal deviation, and command the focus motor to adjust. This is known as Continuous Autofocus (AF-C).
While varifocal designs are significantly lighter, smaller, and more cost-effective to manufacture, they introduce high processing overhead. The ISP must dedicate substantial computational resources to analyzing contrast or phase data in real-time. During rapid focal adjustments, the algorithm may struggle to keep pace with the physical movement of the zoom motor. This latency often results in dropped frames or temporary blurring.
In environments where capturing high-speed data is critical, relying solely on AF-C in a varifocal design introduces a point of failure. Engineers must mitigate this through careful motor calibration and algorithm tuning. You can optimize AF-C performance by restricting the focus search range in the firmware, preventing the lens from hunting through the entire focal spectrum when it only needs to make a minor adjustment.
When selecting an Optical Zoom Module, engineering teams must establish strict metrics to benchmark autofocus capabilities. Relying on basic specification sheets is insufficient for complex deployments. Integrators must evaluate how the hardware performs under stress, particularly regarding speed, environmental limitations, and command execution.
The most critical metric is the latency threshold for achieving a focus lock after a zoom command is executed. Acceptable latency varies by application. Machine vision systems inspecting parts on a high-speed conveyor belt may require sub-50-millisecond locks. General perimeter surveillance may tolerate delays of a few hundred milliseconds. Testing this requires setting up high-contrast targets at varying distances and measuring the exact time from the cessation of zoom motor movement to the confirmation of peak contrast by the ISP.
To mitigate focus hunting in complex scenes, such as environments with reflective surfaces, heavy precipitation, or multiple moving subjects, manufacturers implement hybrid AF systems. These systems combine the predictive speed of PDAF with the pinpoint accuracy of CDAF. The PDAF sensors rapidly drive the lens to the approximate focal plane, and the CDAF algorithm takes over for the final micro-adjustments, ensuring a rapid, hunt-free lock.
Autofocus algorithms require photons to function. In low-light environments, the lack of incoming light severely degrades CDAF performance, as the sensor cannot detect sufficient contrast between pixels. When evaluating performance, integrators must examine how the module compensates for photon starvation. The signal-to-noise ratio (SNR) drops significantly in the dark, causing the ISP to mistake digital noise for actual edge contrast, leading to erratic motor movements.
Solutions include utilizing larger sensor pixels that capture more light per photosite, or relying on active IR (Infrared) illumination. Modules equipped with IR-corrected lenses ensure that when the system switches to night mode and utilizes infrared light, the focal plane does not shift. Standard lenses experience a focal shift under IR light because infrared wavelengths refract differently than visible light. IR-corrected optics maintain sharp focus without requiring the AF algorithm to recalculate the scene.
The method used to transmit focus commands impacts overall responsiveness. Integrators must evaluate the latency of focus control via traditional serial protocols versus modern IP-based network commands. Serial protocols like VISCA or Pelco-D, transmitted over RS-485 or RS-232 connections, offer highly reliable, deterministic control with minimal overhead. This makes them ideal for direct hardware integration where microsecond timing matters.
Conversely, IP-based network commands offer massive scalability and remote management capabilities but can introduce network-induced jitter or latency. Ensuring the module possesses a highly optimized network stack is vital for preventing delayed focus reactions in IP deployments. When sending an ONVIF absolute focus command over a congested network, packet delay can cause the camera to overshoot the intended focal point if the internal motor control loop is not properly decoupled from the network interface.
Deploying motorized optical equipment in demanding environments introduces significant physical risks. Continuous autofocus operations in high-vibration environments, such as traffic monitoring on suspension bridges or drone-based aerial inspections, place immense stress on the internal actuators. The constant micro-movements required to maintain focus under vibration accelerate the wear on the stepper motor gears and guide rails.
Similarly, systems programmed for 24/7 automated patrol cycles experience rapid actuator degradation. To mitigate mechanical failure, integrators must prioritize hardware with high-MTBF (Mean Time Between Failures) stepper motors. Furthermore, software-level mitigation is required. Engineers should implement scheduled focus-recalibration routines within the system firmware.
These routines periodically reset the motors to their absolute zero positions, correcting any micro-drifts caused by vibration or thermal expansion. Thermal expansion is a major factor in outdoor deployments. As the temperature rises, the lens barrel expands, slightly altering the physical distance between lens elements. A recalibration routine ensures the look-up tables remain accurate despite these physical changes. By managing the mechanical workload through intelligent software design, the operational lifespan of the actuators is significantly extended.
A frequent point of failure in integrated systems occurs when software layers conflict with native hardware utilities. Third-party video conferencing applications, OS-level Video Management Systems (VMS), or external analytical platforms often feature their own software-based auto-adjustments. When these applications attempt to override the native hardware utilities, the system experiences severe focus hunting, unwanted locking, or complete unresponsiveness.
For example, if a VMS attempts to run a software-based contrast detection loop while the camera module is simultaneously executing its own internal PDAF algorithm, the two systems will fight for control of the lens motor. Mitigating these conflicts requires strict hierarchy management at the API level. Integrators must ensure the hardware possesses native AF lock capabilities that cannot be bypassed by external software.
During deployment, engineers must explicitly disable conflicting auto-adjustments in the application layer via API or SDK configurations. By forcing the external software to act strictly as a passive receiver of the video stream, the native hardware retains absolute control over the focus motors, ensuring stable, predictable optical performance.
Acquire hardware evaluation kits to physically test focus hunting and lock latency in your specific target lighting conditions.
Review the manufacturer API and SDK documentation to verify that zoom and focus commands can be integrated without software-layer conflicts.
Establish a testing protocol to measure actuator MTBF under continuous automated patrol cycles to guarantee long-term mechanical reliability.
Audit your deployment environment for vibration and thermal stress to determine if scheduled focus-recalibration routines are necessary.
Configure your VMS or application layer to act as a passive receiver, disabling any software-based autofocus overrides that conflict with the hardware.
A: Optical zoom physically moves internal glass lens elements to magnify a subject, which inherently shifts the focal plane and requires mechanical autofocus realignment via motors. Digital zoom merely crops and enlarges the center of the existing sensor image using software. Because digital zoom does not alter the physical focal plane, it requires no mechanical autofocus adjustments, though it significantly degrades image resolution.
A: OEM blocks utilize integrated firmware containing complex look-up tables. These tables map the precise focus motor positions required for specific zoom motor steps across various focal lengths. When a zoom command is executed, the firmware references these tables to move the focus motor synchronously with the zoom motor, ensuring the image remains sharp throughout the mechanical transition.
A: Yes, IP modules can process concurrent network commands for zoom, focus, and iris adjustments. They receive these instructions via standard protocols like ONVIF. However, the smoothness of simultaneous execution depends entirely on the module internal processing bandwidth and the physical architecture of the motors driving the lens elements.
A: Focus loss occurs because varifocal lenses physically shift the focal plane away from the image sensor as the magnification changes. This optical reality, combined with the inherent processing latency of algorithms like Contrast Detection Autofocus trying to recalculate sharpness in real-time, causes temporary blurring until the motors complete their realignment.
A: CDAF is an image processing algorithm that measures pixel contrast directly on the camera sensor. It operates on the principle that an image is sharpest when contrast is highest. The system drives the lens motor back and forth in an iterative process until it detects the absolute highest contrast value, indicating sharp focus.
A: No. True tracking zoom lenses, known as parfocal lenses, utilize mechanical compensator groups that physically maintain the focal plane on the sensor throughout the zoom range. Once the initial focus is set, they do not require active, continuous autofocus during the zoom operation, which saves processing power and maintains high resolution.
