Zoom Block Cameras For Long-Range, Ptz And Machine-Vision Integration
A zoom block camera is the optical and imaging engine inside many professional surveillance devices. It combines a motorized zoom lens, image sensor, image-processing electronics, focus control and communication interfaces in a compact module that can be integrated into a PTZ camera, positioning system, gimbal, robot, vehicle platform or customized observation device. For security contractors and equipment manufacturers, the main challenge is not simply finding a camera with a high zoom number. The module must maintain usable detail across a wide focal range, focus reliably after rapid zoom movement, handle difficult lighting, communicate with the host system and fit the mechanical and thermal limits of the final product. Future Vision supplies a broad zoom block camera portfolio designed for these integration-driven projects, with options covering different resolutions, optical zoom ratios, frame rates, shutter technologies and video outputs.
A Portfolio Built Around Real System Requirements
The Future Vision category includes compact and long-range modules with optical zoom ratios from approximately 10X to 100X. The range contains 2MP, 3MP, 4MP and 8MP configurations, as well as High FPS, Global Shutter, Super Starlight and NDAA-oriented models. This breadth allows a system integrator to begin with the application rather than forcing one camera architecture into every project. A compact 10X or 20X block may be suitable for a lightweight dome, access-control observation unit or robotic platform. A 55X, 69X, 80X, 96X or 100X module is more appropriate when the camera must observe distant targets from a fixed tower, mobile command vehicle, coastal station, airport perimeter or border-monitoring position. Resolution can then be selected according to the required evidence level, transmission capacity and analytics workload.
Optical Reach Is More Important Than Digital Magnification

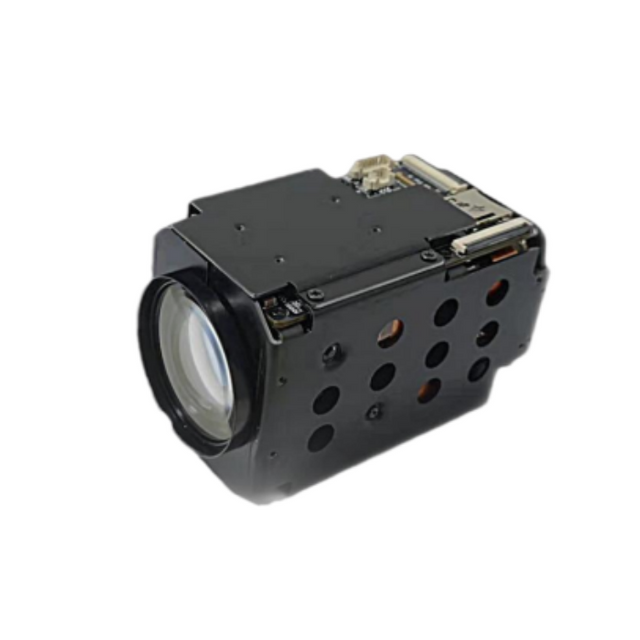

Long-range surveillance depends on focal length, sensor size, atmospheric visibility, stabilization and focus performance. Digital zoom only enlarges existing pixels; it cannot recover optical information that the lens did not capture. For this reason, buyers should compare the actual focal-length range and horizontal field of view rather than relying on a headline zoom ratio alone. Representative Future Vision models illustrate the difference clearly. A compact 25X module can cover a 6.4–160 mm optical range, while an 80X long-range unit can reach approximately 12.5–1000 mm and a 96X design can cover approximately 6–576 mm. The correct choice depends on the starting field of view as well as the telephoto endpoint. A camera that starts too narrow can make target acquisition difficult, while a lens with insufficient telephoto reach may not provide enough pixels on a distant object. For a product-level reference, review the 96X 3MP Global Shutter zoom block camera.
Resolution, Frame Rate And Shutter Type Should Be Matched To The Scene

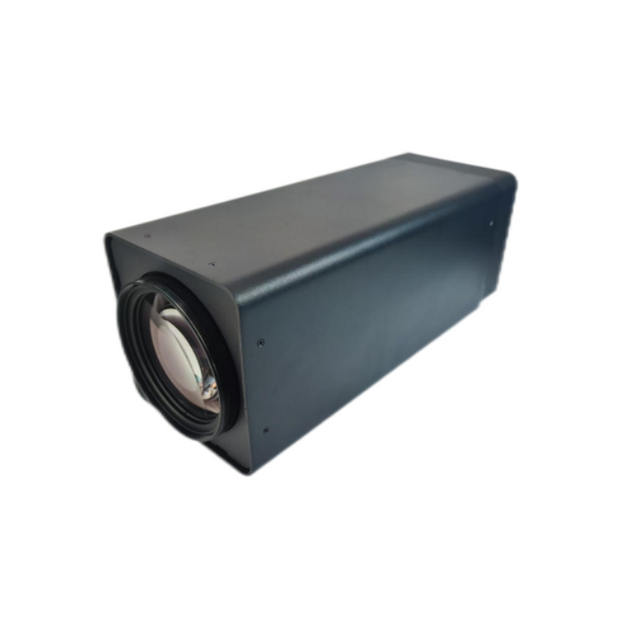

Resolution determines how much spatial information is available, but it is only one part of image quality. A 2MP module may be the best engineering choice for long-duration monitoring over bandwidth-limited networks, especially when low-light sensitivity and telephoto stability matter more than cropping flexibility. A 3MP or 4MP camera can provide additional detail for analytics and post-event review without the full storage demand of 4K. An 8MP zoom block camera is suitable when operators need 3840 × 2160 output, detailed digital cropping or high-value evidence from a wide scene. Frame rate becomes critical for traffic, moving machinery, drones and fast PTZ tracking. Future Vision therefore offers standard 25/30 fps models and selected 50/60 fps High FPS versions. Global Shutter options are available for applications where motion geometry must be preserved and rolling-shutter distortion would reduce measurement or recognition accuracy. Relevant product options include the 100X 4MP Super Starlight zoom block camera and the 100X 8MP Super Starlight zoom block camera.
Low-Light Performance Cannot Be Evaluated By One Number
Nighttime projects often fail because specifications are reviewed without considering the complete imaging chain. Illumination level, lens aperture, exposure time, gain, noise reduction, infrared wavelength, target contrast and platform vibration all affect the final picture. Future Vision Super Starlight models are designed for demanding low-light scenes and representative modules combine wide dynamic range, three-dimensional noise reduction, electronic or optical defog and configurable day/night operation. A buyer should still test the camera with the intended illuminator, protective window and enclosure. A long telephoto lens may require more light and more accurate focus than a short lens. Strong backlighting at ports, roads and industrial gates also makes WDR performance important. For projects involving haze, sea mist, rain or thermal gradients around the housing, defog and temperature-compensation functions deserve the same attention as nominal sensitivity.
Integration Options For Oem And Odm Camera Systems
A block camera must connect to the host product both mechanically and electronically. Future Vision models are available with network video and, depending on the configuration, output options such as LVDS, MIPI, HDMI, SDI or CVBS. Representative products support common control protocols including VISCA and Pelco, and network models can provide ONVIF compatibility and open SDK access. These options support integration into IP PTZ cameras, multi-sensor surveillance systems, video walls, autonomous equipment and embedded vision platforms. Engineers should confirm connector layout, pin definition, power input, serial control, boot behavior, focus command response, stream configuration and firmware requirements before finalizing the enclosure. They should also reserve sufficient space for lens travel, heat dissipation and cable bending. A technically successful sample test is more valuable than selecting a module solely from a catalog table.
Application-Based Selection For Professional Buyers
For city surveillance, the priority may be stable operation, low-light performance, network interoperability and reliable preset recall. Transportation projects often require higher frame rates, motion-friendly shutter behavior and rapid autofocus when a PTZ moves between lanes or platforms. Forest-fire observation and coastal surveillance place greater emphasis on long focal length, haze penetration, temperature stability and integration with a heavy-duty positioning system. Industrial inspection may require a global shutter, precise timing and a direct digital interface to a vision computer. Drone and robot manufacturers usually prioritize weight, power consumption, compact dimensions and low-latency control. Medical or laboratory imaging projects may focus on repeatable color, close focusing and clean digital output. These different priorities explain why Future Vision maintains multiple sensor, lens and interface combinations rather than one universal zoom module.
How To Compare Two Apparently Similar Block Cameras
A practical comparison should begin with the target and working distance. The next step is to calculate the required field of view and approximate pixel density at the target. Buyers can then compare optical focal range, resolution, sensor format, frame rate and shutter architecture. After that, evaluate minimum illumination, WDR, noise reduction, defog, autofocus behavior and stabilization compatibility. The system-level review should include output interface, protocol, codec, stream count, storage support, smart analytics, operating temperature, size and mass. Finally, confirm commercial factors such as sample availability, firmware customization, connector adaptation, private-label requirements, batch consistency and lifecycle support. This process prevents over-specification. A larger zoom ratio or higher resolution is not automatically better if it increases weight, bandwidth, power draw or mechanical complexity without improving the required observation task.
B2B Procurement, Customization And Project Support
Distributors, security camera manufacturers, PTZ suppliers and surveillance system integrators often need more than a standard module. They may require a specific video interface, protocol mapping, startup preset, logo, housing adaptation, cable set, firmware function or packaging arrangement. Future Vision supports OEM and ODM cooperation and can help customers narrow the selection based on installation distance, target size, lighting conditions, platform type and host interface. For tender-driven projects, the purchasing team should provide the required resolution, optical range, frame rate, shutter type, video output, control protocol, operating environment and annual quantity at the quotation stage. Supplying a complete engineering requirement reduces sampling cycles and helps prevent incompatibility between the camera module, PTZ controller, encoder and enclosure.
Designing A Reliable Long-Range Camera Around The Module
The zoom block camera is central, but the surrounding design determines whether its performance reaches the field. A long-range PTZ needs rigid lens support, low-backlash movement, vibration control and accurate preset positioning. The enclosure window must be optically flat, clean and large enough to avoid vignetting through the full zoom range. Thermal design should prevent internal heat from shifting focus or increasing sensor noise. Power regulation must handle motor and processor load without introducing image interference. Network configuration should allocate suitable bit rate and keyframe settings for the available link. Installers also need a commissioning procedure that checks wide-angle acquisition, telephoto focus, day/night switching, preset repeatability and stream stability. By combining the appropriate Future Vision module with disciplined system design, manufacturers can build a more dependable long-range surveillance product instead of relying on headline specifications alone.
