Thermal Cameras For Perimeter Detection, Industrial Monitoring And Multi-Sensor Surveillance
A thermal camera forms an image from infrared energy emitted by objects rather than relying on visible illumination. This makes it valuable in darkness, smoke, light fog, backlit scenes and environments where a target’s temperature pattern is more informative than its color. Future Vision supplies a broad uncooled thermal camera portfolio that includes fixed-lens cores, network modules, UVC cores and long-range continuous-zoom units. The category covers 384 × 288 and 640 × 512 detector formats, fixed focal lengths such as 19 mm, 25 mm, 50 mm and 75 mm, and zoom lenses extending from compact 3X designs to 5X, 9X and 10X systems with telephoto endpoints up to 300 mm. This range supports security integrators, PTZ manufacturers, industrial automation companies, robot developers and OEM thermal-imaging equipment suppliers.
Thermal Imaging Solves A Different Problem From Visible Cctv

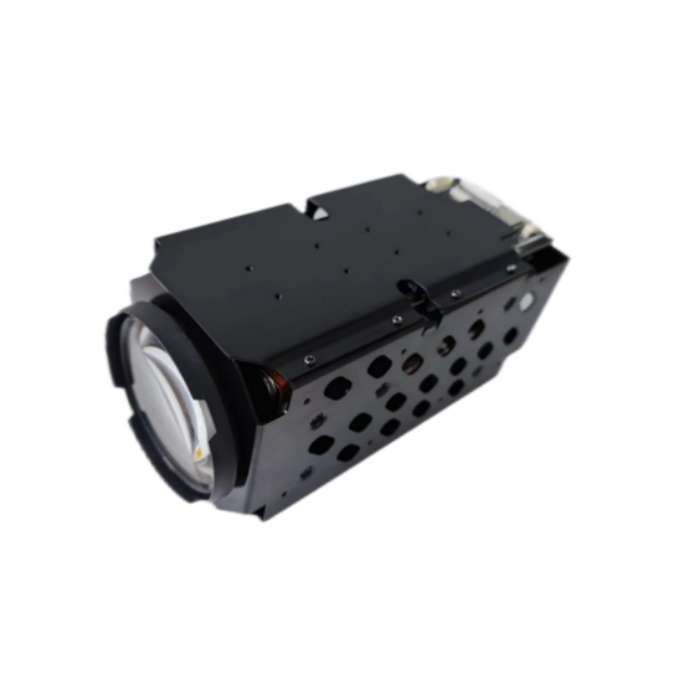

A visible camera provides color, texture and familiar identification detail, but its performance depends on light and contrast. A thermal camera can reveal a person, vehicle, animal, fire source or overheated component because the target differs in temperature from the background. It is therefore effective for initial detection and situational awareness. It does not automatically provide the same facial or license-plate information as a visible camera. Professional systems often combine both technologies: thermal imaging locates the event, while a visible zoom block camera supplies color confirmation and fine visual detail. Buyers should define whether the mission is detection, recognition, identification, temperature measurement or process monitoring. That objective determines detector resolution, lens, calibration, analytics and whether a dual-sensor PTZ is required.
384 × 288 Or 640 × 512 Detector Format
Detector resolution controls the number of thermal sampling points in the image. A 384 × 288 core can be compact, economical and sufficient for many industrial, robotic and short-to-medium-distance security tasks. A 640 × 512 module provides more spatial information, supporting wider coverage, longer-distance target separation and stronger digital analysis. Resolution must be considered with pixel pitch and lens focal length. Representative Future Vision long-range modules use a 640 × 512, 12 μm uncooled detector, while representative compact 384 × 288 cores use a 17 μm architecture. A higher-resolution detector does not eliminate the need for the correct lens. A 640 sensor with an unsuitable wide field of view may place fewer pixels on a distant person than a lower-resolution camera with a properly selected telephoto lens.
Lens Choice Defines Detection Geometry

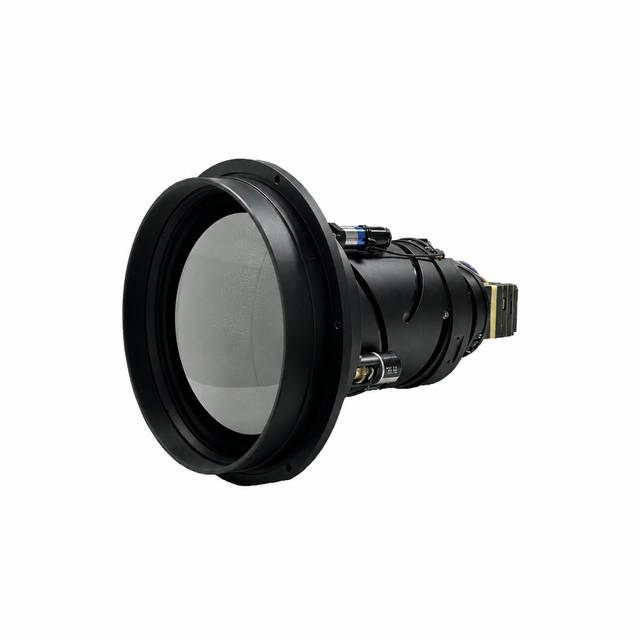

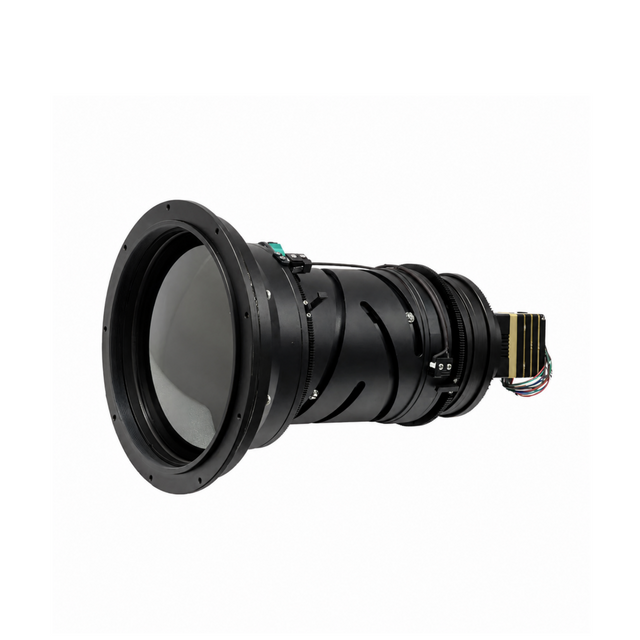

Future Vision’s thermal range includes fixed and zoom optical designs. Fixed 19 mm and 25 mm lenses cover broader areas and are suitable for perimeter segments, industrial equipment, robot navigation and general situational awareness. A 50 mm or 75 mm lens narrows the view and increases target size at longer distances. Continuous-zoom modules add operational flexibility. Listed examples include 25–75 mm 3X, 20–100 mm 5X, 30–150 mm 5X, 15–75 mm 5X, 25–225 mm 9X, 15–150 mm 10X and 30–300 mm 10X configurations. The widest setting helps an operator search; the telephoto setting supports classification or inspection. Selection should be based on field-of-view calculations and expected target dimensions rather than the zoom multiple alone. For a product-level reference, review the 640×512 thermal camera with a 30–150 mm lens.
Sensitivity, Netd And Image Processing
Thermal sensitivity is commonly expressed as NETD, indicating how small a temperature difference the detector can distinguish under defined conditions. Representative Future Vision 640 × 512 zoom modules specify NETD values of 35 mK or lower. Lower NETD can help reveal subtle contrast in low-temperature-difference scenes, but the final image also depends on calibration, non-uniformity correction, lens transmission, image processing and environmental conditions. Functions such as detail enhancement, noise reduction, bad-pixel correction, filtering and palette selection help operators interpret the scene. Multiple palettes do not change the measured energy; they present it differently for the task. Security operators may prefer white-hot or black-hot, while maintenance teams may use color palettes to highlight relative temperature patterns. The configuration should remain consistent when analytics or temperature thresholds are applied.
Long-Range Thermal Zoom And Platform Stability

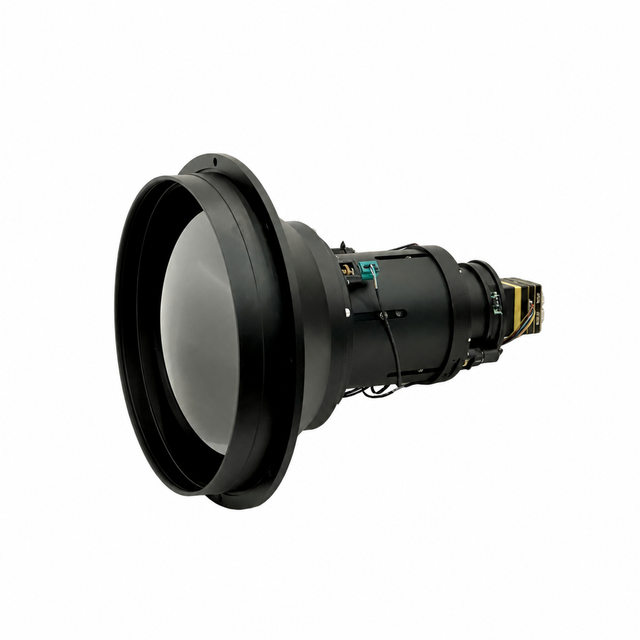

A 30–300 mm 10X thermal lens can support very long-distance observation, but it requires a substantial mechanical platform. At the telephoto end, the field of view becomes narrow and even small vibration can move the target across the image. The positioning system must offer accurate presets, smooth low-speed movement and sufficient structural rigidity. Autofocus performance and thermal drift also matter through the full zoom range. Representative Future Vision zoom modules provide electronic focus or autofocus functions and are intended for integration into long-range IP thermal cameras and dual-sensor PTZ systems. Integrators should test the module inside the final enclosure because protective windows, internal heat and mounting tolerances influence performance. Site conditions such as humidity, rain and thermal crossover near sunrise or sunset can also reduce target contrast.
Network Video, Onvif And Edge Integration
Representative Future Vision IP thermal modules provide H.265/H.264 network video, ONVIF compatibility, development access and multiple image-control functions. This supports integration with video management systems, NVRs, command centers and edge-analysis platforms. Some models include serial communication, alarm interfaces, audio functions and local or network storage support. UVC thermal cores provide another integration path for embedded computers and USB-oriented equipment. The best interface depends on system architecture. IP is suitable for distributed surveillance and standard VMS integration. UVC can simplify connection to an industrial PC, robot controller or custom application. Before production, engineers should verify frame rate, latency, stream stability, command protocol, SDK support and how calibration or palette commands are managed by the host software.
Security And Perimeter Applications
Thermal cameras are widely used for perimeter detection because they can locate warm targets without adding visible lighting. A 19 mm or 25 mm lens may cover a relatively broad fence section, while a 50 mm or 75 mm fixed lens can observe a narrower, more distant approach. Continuous zoom is useful for border, coastal, airport, port and energy-site systems where an operator first searches a large area and then inspects a detected target. Analytics may detect line crossing, intrusion or unusual movement, but performance should be validated against local terrain, vegetation, animals and weather. Thermal imaging can reduce false negatives in darkness, yet false alarms may still occur from hot surfaces, moving foliage or environmental changes. Proper camera height, field of view and alarm-zone design are essential. For a product-level reference, review the 640×512 long-range thermal core with a 50 mm lens.
Fire Prevention And Industrial Condition Monitoring
Thermal imaging can reveal abnormal heat before smoke or visible damage appears. Representative Future Vision thermal cores support temperature-measurement and alarm functions, making them relevant to electrical rooms, battery areas, warehouses, recycling sites, furnaces, mechanical equipment and process lines. The engineering team should determine whether the application requires relative temperature trending or traceable radiometric measurement. Emissivity, reflection, distance, atmosphere and lens cleanliness influence temperature accuracy. A shiny metal surface may not read like a painted enclosure. For safety-critical alarms, thresholds should be validated against the actual material and operating condition. The camera can be connected to alarms, PLC logic or a monitoring platform, but the system should include procedures for verification and maintenance rather than relying on one automatic temperature value.
Mobile, Robotic And Specialized Uses
Compact thermal cores can be integrated into robots, unmanned ground vehicles, drones, handheld instruments and machine-vision devices. These platforms emphasize size, power consumption, interface latency and resistance to vibration. A UVC core may connect directly to an embedded computer, while an IP core can fit a networked robotic architecture. Lens selection depends on navigation range and payload mission. A broad lens supports obstacle awareness; a telephoto lens supports remote inspection. In marine and coastal environments, thermal imaging can detect warm objects against water under limited lighting, although humidity and weather affect range. In industrial automation, a fixed camera can monitor a repeatable process, while electronic focus or zoom is useful when the working distance changes. Future Vision customers should provide mechanical and electrical constraints before selecting a core. For a product-level reference, review the 640×512 thermal camera core with a 19 mm lens.
B2B Selection And Request-For-Quotation Data
A thermal-camera RFQ should state detector resolution, pixel pitch if specified, target size, minimum and maximum distance, required field of view, fixed or zoom lens, temperature-measurement range, interface, frame rate, environmental conditions, power limit and expected quantity. Security projects should define detection and recognition objectives separately. Industrial projects should identify the material, temperature range, accuracy expectation and alarm workflow. OEM customers should share housing drawings, interface requirements and software platform. Future Vision supports OEM and ODM discussions for thermal modules, cores and visible-thermal systems. Sample evaluation should include the actual window material, operating temperature, target, software and installation distance. A generic indoor demonstration cannot replace field validation for long-range or radiometric work.
Building A Complete Thermal Solution
The thermal detector, lens and electronics must be matched to the mission. A 384 × 288 UVC core can be appropriate for a compact embedded device; a 640 × 512 IP core can provide more detail for a networked observation system; a fixed 75 mm module can monitor a defined distant zone; and a 30–300 mm zoom unit can serve a heavy-duty long-range platform. Future Vision’s category provides these different building blocks rather than treating all thermal cameras as interchangeable. The customer’s task is to define target geometry, temperature behavior, interface and environment precisely. When those factors are combined with correct installation, calibration and software integration, thermal imaging can add reliable detection and condition-monitoring capability that visible video alone cannot provide.
