Camera accessories solve the practical connection problems that appear when a zoom block camera, thermal module or embedded imaging board must work with a different host system. Future Vision’s Camera Accessory category currently focuses on compact interface converter boards, including LVDS-to-SDI, LVDS-to-CVBS/HDMI, LVDS-to-CVBS, LVDS-to-MIPI and a 36-pin RJ45 and power converter. These products are relevant to camera manufacturers, PTZ developers, robotics companies, machine-vision integrators and security equipment distributors that need to adapt video output, serial control, network connection or power routing without redesigning the complete camera module. The correct accessory should be selected from the source interface, target interface, resolution, frame rate, control protocol, board size and host power architecture.
A camera module may deliver excellent imaging but use an interface that does not match the customer’s display, recorder, processor or cable system. Replacing the complete module can increase cost and force new optical validation. A converter board provides a smaller integration layer between the camera and host. This approach is useful during prototyping, platform upgrades and low-to-medium-volume customization. It also requires disciplined engineering. The accessory must support the video format, electrical levels, serial commands and environmental range of the final product. Future Vision customers should provide the exact camera module and host interface when requesting a converter.

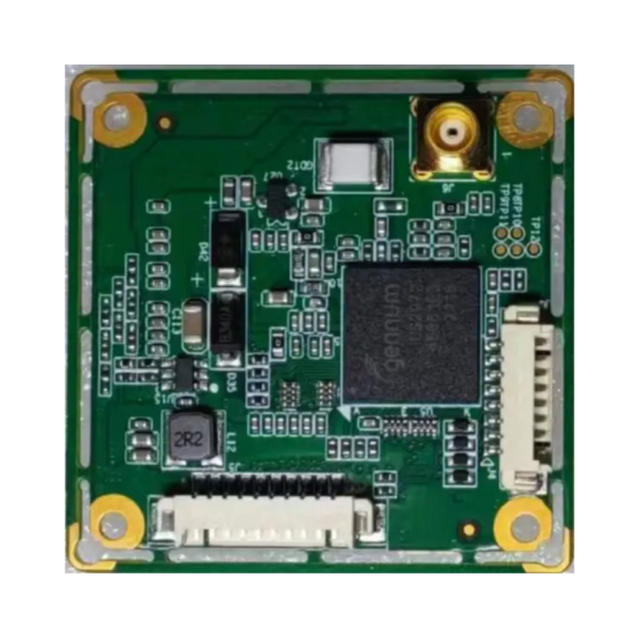

The LVDS-SDI camera converter board accepts an LVDS camera input, automatically identifies supported Full HD video formats and outputs 1920×1080 SDI at 25/30 fps or 50/60 fps. The board supports RS232 and VISCA, uses a 10-pin LVDS connection and measures approximately 42×42×1.6 mm. SDI is useful in broadcast-style monitoring, professional control rooms and camera systems that require low-latency video over coaxial infrastructure. The integrator should confirm cable length, connector design and whether the selected camera format is supported before finalizing the enclosure.

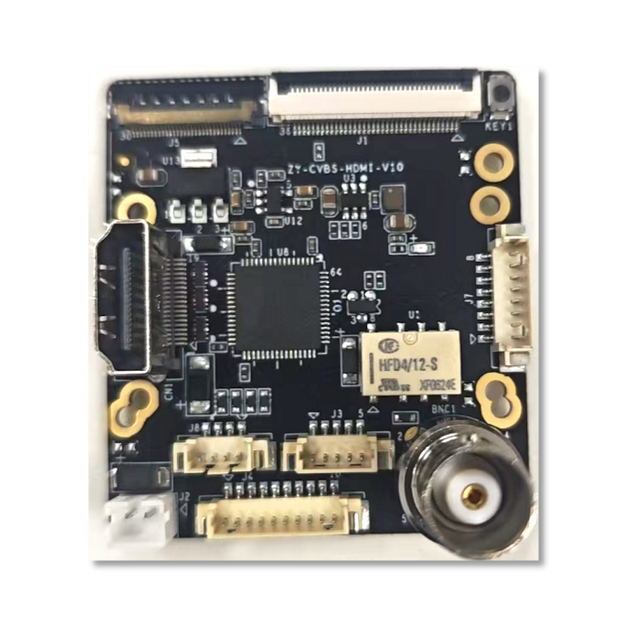

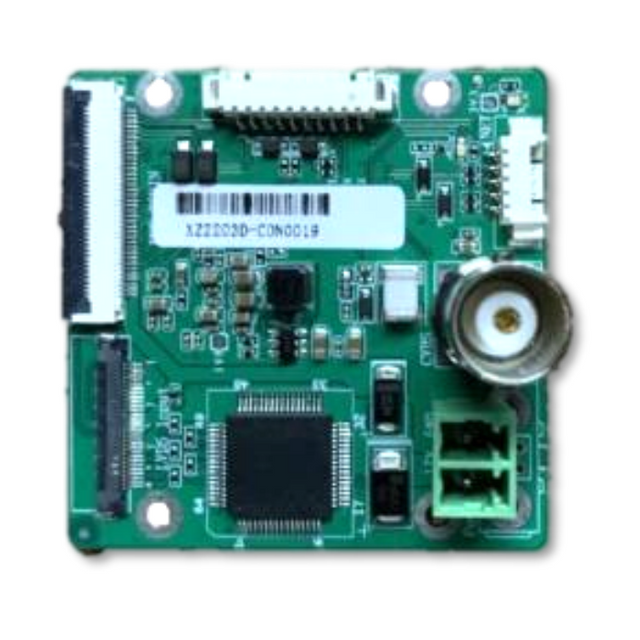

The LVDS-CVBS and HDMI converter board converts an LVDS source to HDMI and, in supported configurations, analog CVBS output. It provides RS422 and RS485 communication, BNC connectivity, one alarm channel and one audio channel in a board approximately 45×50×1.6 mm. HDMI is convenient for local monitors, development benches and embedded displays. CVBS supports certain legacy systems and service interfaces. The customer should decide whether both outputs are required in the production product or whether one is only needed for commissioning, because output choice affects connectors, enclosure space and electromagnetic compatibility.

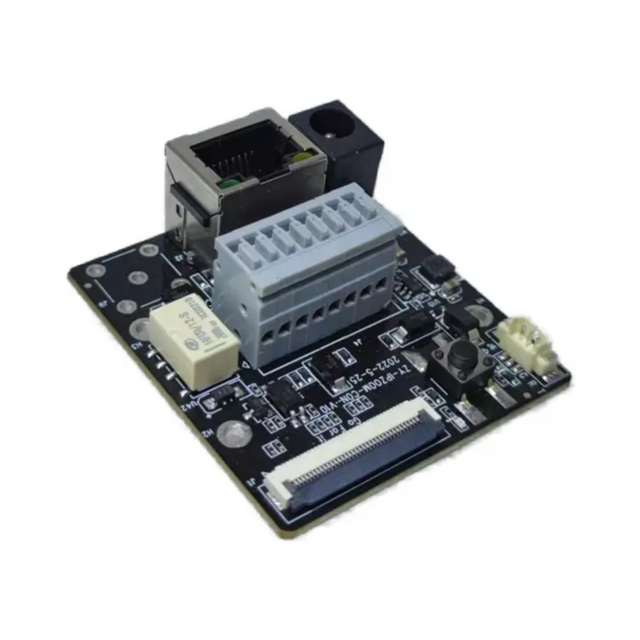

The 36-pin RJ45 and power converter board adapts a 36-pin camera connection to RJ45 and power functions. The page lists 1920×1080 video support, RS232, RS485, factory-reset functionality, DC12V±10% input, approximately 2 W consumption and a 50×45×1.6 mm board. This accessory can simplify wiring between a camera module and network-oriented product architecture. The engineering team should confirm pin assignment, power direction, grounding and whether the RJ45 connection carries Ethernet, power or another mapped signal according to the exact camera design.
LVDS is frequently used inside cameras because it can carry high-speed digital video with relatively low noise over short internal connections. It is not automatically compatible with SDI, HDMI, CVBS, MIPI or Ethernet. The connector may also look similar while using a different pinout. An accessory should therefore be matched to the exact module model and video timing. The buyer should not assume that every LVDS camera works with every LVDS converter. Resolution, frame rate, lane arrangement, clocking and control communication must be verified.
Camera modules often use VISCA, RS232, RS422 or RS485 for zoom, focus and menu control. A converter board may pass or adapt these signals, but the host software must send the correct command format. The SDI accessory supports RS232 and VISCA, while the HDMI/CVBS board lists RS422 and RS485. The accessory does not automatically translate every protocol. During integration, the customer should test camera address, baud rate, zoom response, autofocus, preset functions and power-cycle recovery. Video output without reliable lens control is insufficient for a PTZ or industrial camera product.
Future Vision accessories use compact PCB formats around 38–50 mm with 1.6 mm thickness and small mounting holes. The mechanical designer should reserve clearance for connectors, cable bending and heat dissipation rather than using board dimensions alone. Coaxial, HDMI, BNC and RJ45 connectors can require more enclosure space than the PCB. Cables should not load the camera module connector or obstruct lens movement. The mounting method should prevent vibration and avoid short circuits against a metal housing.
Representative converter boards use DC12V±10% and consume relatively little power, but the system supply must also support the camera module, lens motors, illuminators and network electronics. Ground loops between camera, converter, monitor and recorder can create noise or unreliable communication. The design should define signal ground, chassis ground and shield termination. Surge protection may be required for cables leaving the enclosure. The customer should test startup current and behavior when the host powers the camera and converter in different sequences.
Converter boards are listed for approximately -30°C to +60°C and humidity below 95% without condensation. The final camera enclosure determines actual environmental protection. A bare board is not weatherproof. Internal temperature may exceed ambient when installed near processors, heaters or IR lamps. The developer should test video stability and serial control at temperature limits. Conformal coating, connector retention and vibration testing may be required for vehicle, industrial or outdoor PTZ products.
Accessories are useful during prototype development because they expose video to standard monitors and recorders. HDMI can provide immediate local verification, SDI can test professional transport, and CVBS may support service tools. A systematic test should begin with power, then video format, then serial control and finally long-duration operation. Engineers should document pinouts and cable assemblies. Many apparent converter failures are caused by incompatible camera timing, reversed connectors, incorrect voltage or missing control configuration rather than defective boards.

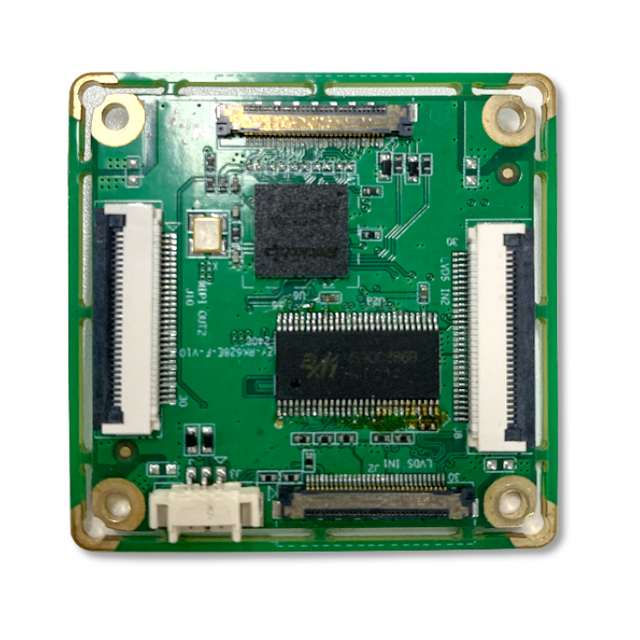

Speed domes can use an SDI converter for low-latency output. Industrial inspection systems can use HDMI for a local operator display. Legacy surveillance equipment may require CVBS. Robot and embedded platforms may use MIPI or network adaptation. An RJ45 and power board can simplify internal camera wiring. Future Vision’s accessory range supports these different development paths without changing the optical camera module. The product should be selected according to the final host architecture, not simply the most familiar connector.
A standard converter board shortens development time and reduces engineering risk for moderate volumes. A custom PCB can integrate conversion, power and host processing into one board but requires hardware design, firmware, certification and production testing. OEM customers should compare schedule, volume, enclosure size and required functions. A Future Vision standard accessory can also serve as a reference design during early development before a custom board is created. For many specialized camera products, retaining a proven standalone converter is more economical than full redesign.
The inquiry should identify the camera module model, source connector and pinout, resolution, frame rate, required output, serial protocol, power input, board-size limit, cable length, environment and quantity. The customer should state whether audio, alarm, reset or VISCA functions are required. Sample approval should use the final camera module and host device. Future Vision can then confirm whether an existing LVDS-SDI, HDMI/CVBS, MIPI or RJ45 accessory is suitable.
Production testing should verify power, video lock, frame rate, color stability, serial control, connector retention and long-duration operation. Cable assemblies should be keyed and labeled to prevent reverse insertion. An end-of-line fixture can automate basic checks. Firmware or camera-module changes should trigger compatibility review, because a timing change can affect conversion even when the connector remains the same. Maintaining an approved module-converter combination helps prevent batch-level integration failures.
Camera accessories are small components with a large effect on product compatibility. Future Vision’s converter boards allow OEM customers to connect LVDS camera modules to professional video, local display, legacy analog, embedded or network-oriented systems. Successful use depends on electrical matching, protocol control, mechanical layout and validation with the exact module. When those factors are documented, the accessory can reduce redesign time and help one camera platform serve several B2B applications.
