Explosion-Proof Cameras and CCTV Enclosures for Hazardous Industrial Environments
Explosion-proof surveillance equipment is designed for locations where combustible gas, vapor or dust may be present. Future Vision’s Explosion-proof Camera category includes stainless-steel housings and junction boxes, fixed and zoom bullet cameras, vandal-resistant speed domes, IR and laser PTZ cameras, thermal systems, wiper and water-spray configurations and NDAA-oriented models. The category serves oil and gas, petrochemical, mining, pharmaceutical, grain processing, storage, marine and other hazardous-area projects. Product selection must begin with the site classification and required certification. Optical resolution and zoom are important, but they cannot replace correct explosion-protection approval and installation practice.
Explosion Protection Is a Safety System
An explosion-proof camera is constructed so that internal ignition does not propagate into the surrounding hazardous atmosphere, subject to the certified protection concept and conditions. Future Vision products list certifications such as Ex d or Ex db for gas and Ex tD or Ex tb for dust, with temperature-class and ambient-range limits. The buyer must confirm that the exact model certificate matches the gas group, dust group, zone and temperature class of the site. A similar-looking enclosure without the required certification is not an acceptable substitute. Cable glands, junction boxes and mounting hardware are also part of the installation system.

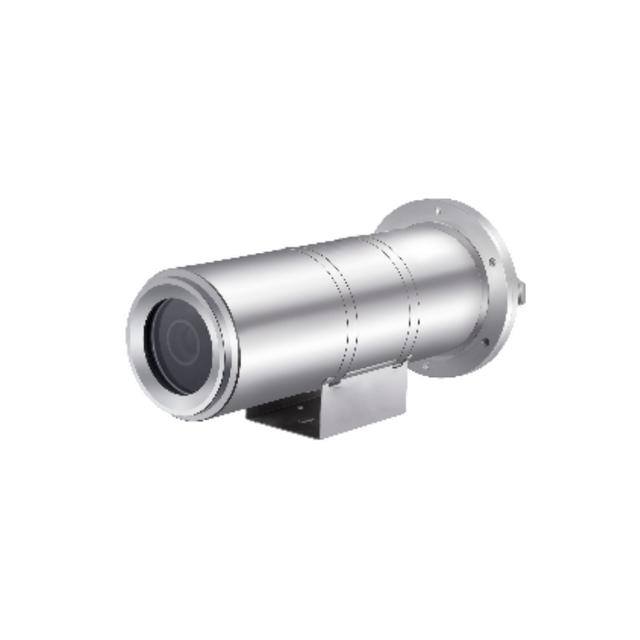

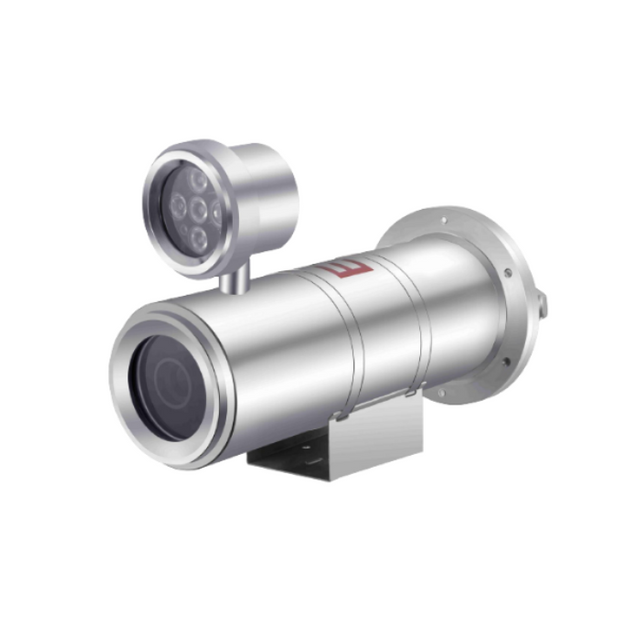

Stainless-Steel Housing for Corrosive Sites
The 304/316L stainless-steel explosion-proof bullet camera housing is a 304/316L stainless-steel bullet housing with an IP68 rating and listed gas and dust explosion-protection markings. The product uses special optical glass and supports multiple installation methods. A housing option is useful when the integrator needs to install a selected camera module inside a certified enclosure. 316L stainless steel offers stronger resistance in many chloride and chemical environments, while 304 may be sufficient for less aggressive conditions. Material selection should reflect the actual chemical exposure and maintenance plan.

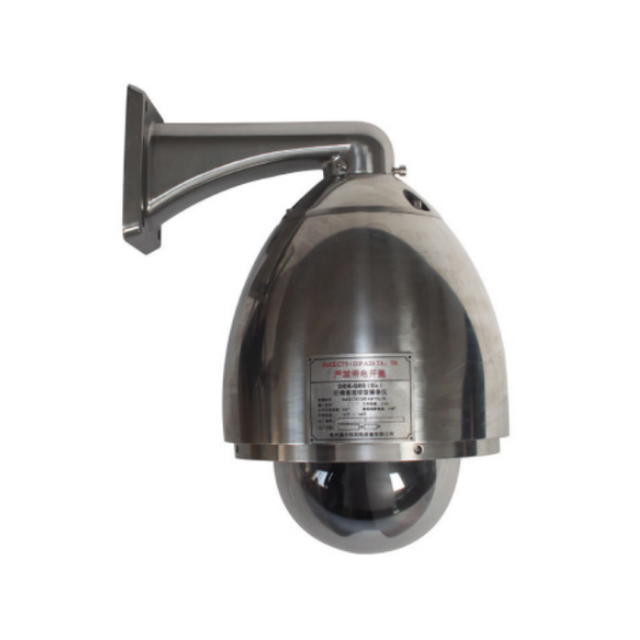

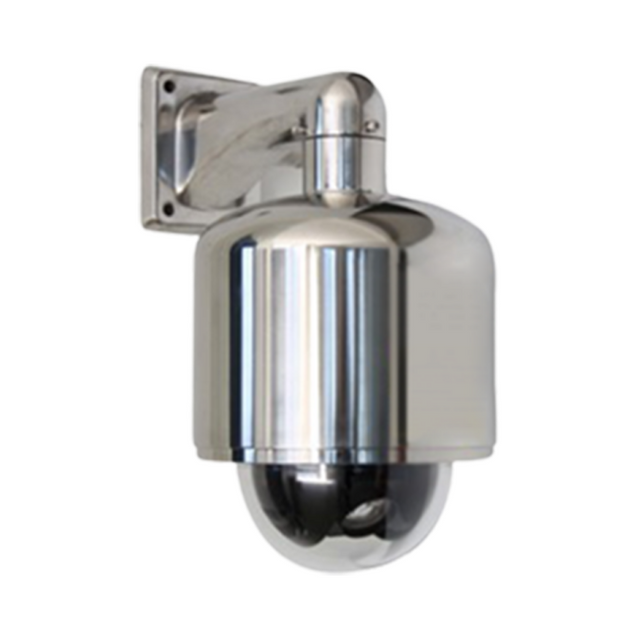

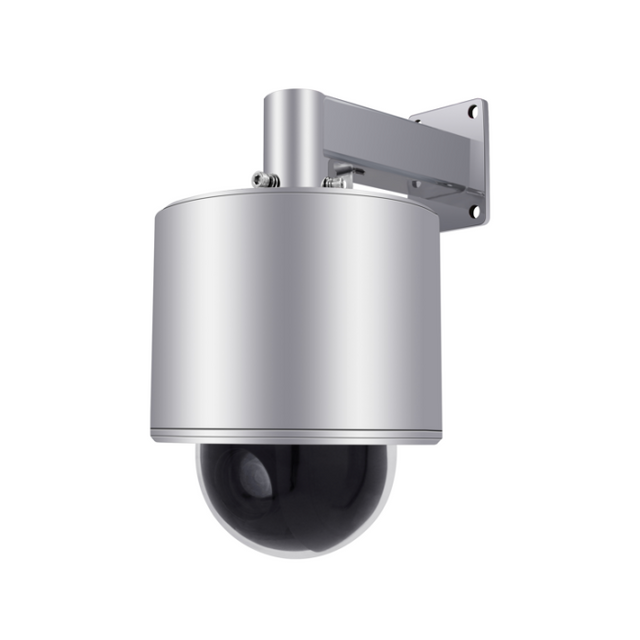

4K Explosion-Proof Speed Dome Option
The 8MP 23X explosion-proof vandal-proof speed dome camera combines 8MP 3840×2160 video, 23X optical zoom, starlight imaging, precision PTZ movement, smart analytics and IP68 protection. It is relevant when hazardous industrial sites need high-resolution movable observation rather than a fixed housing. The 4K stream increases storage and decoder demand, so the network should be planned accordingly. The explosion-proof and vandal-resistant dome structure must preserve smooth movement and optical clarity. The exact certificate should be reviewed with the project documentation before installation.

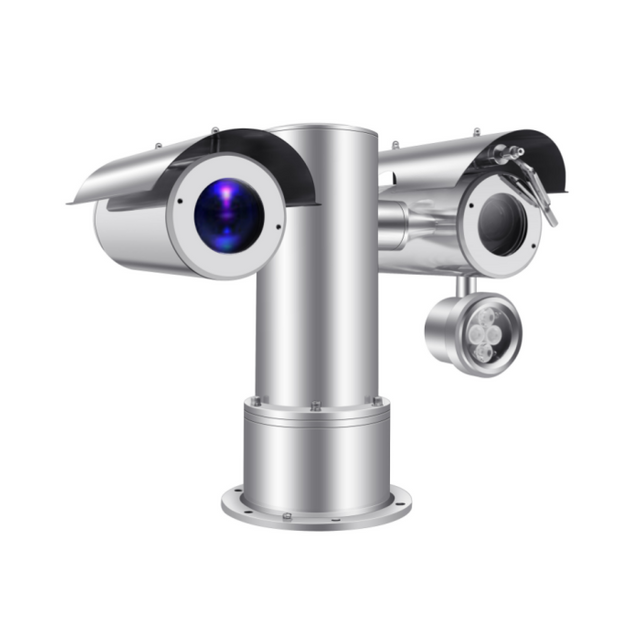

Laser Wiper PTZ for Long-Range Hazardous Areas
The 2MP 38X explosion-proof laser wiper PTZ camera provides a 2MP 38X visible channel, 500 m laser illumination, starlight low-light performance, wiper, smart detection and explosion-proof certification. This configuration is useful for tank farms, chemical yards and offshore facilities where operators need remote inspection across a large area. The laser beam and camera field must remain aligned, while the wiper helps maintain the window in rain or contamination. Laser safety and hazardous-area electrical installation requirements both apply. The product should be tested at the actual distance and environmental conditions.

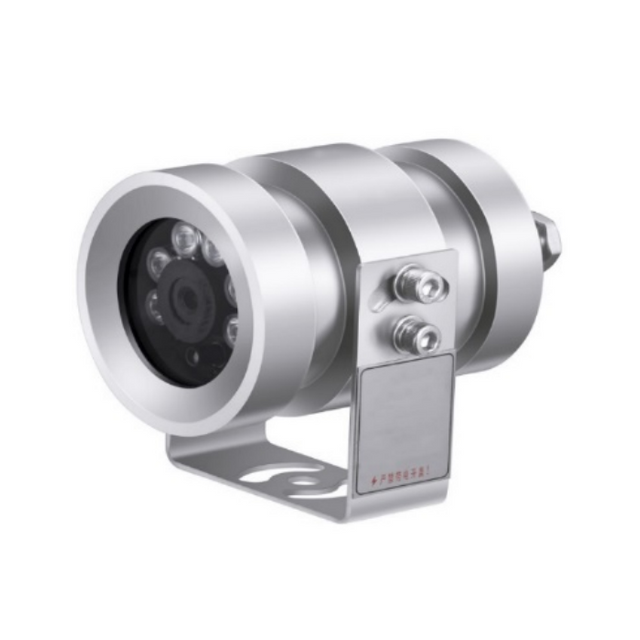

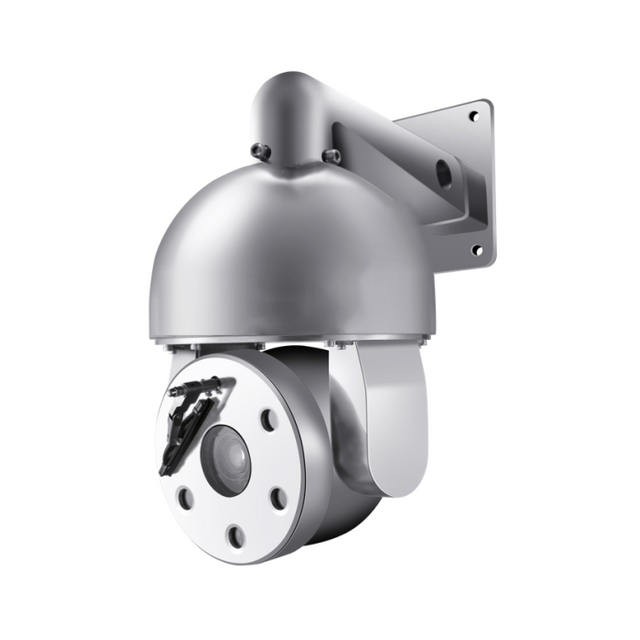

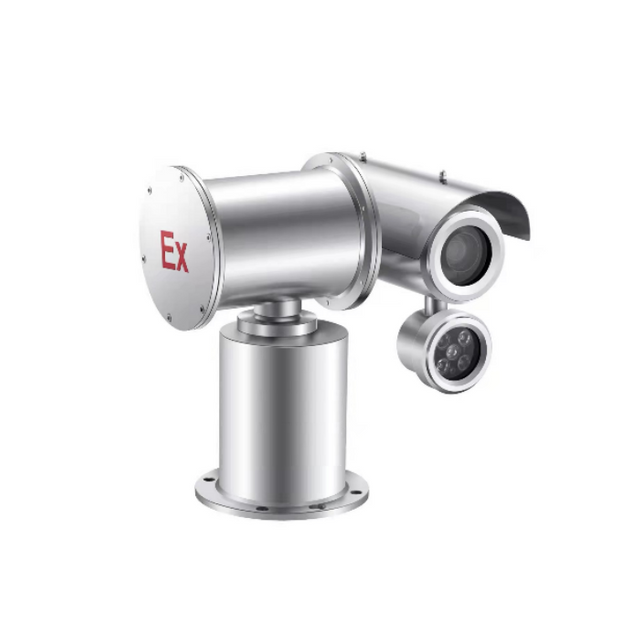

Bullet, Speed Dome and PTZ Form Factors
A fixed bullet camera continuously monitors one direction and is suitable for gates, process equipment and defined corridors. A speed dome provides rapid pan, tilt and zoom within a protected dome. A heavy-duty PTZ carries larger lenses, thermal sensors, laser illuminators or water-spray systems. The choice depends on coverage, target distance, payload and maintenance access. A fixed camera may be the most reliable option for a critical process, while a PTZ adds flexible investigation. Hazardous sites often combine both: fixed cameras for continuous evidence and a movable unit for verification.

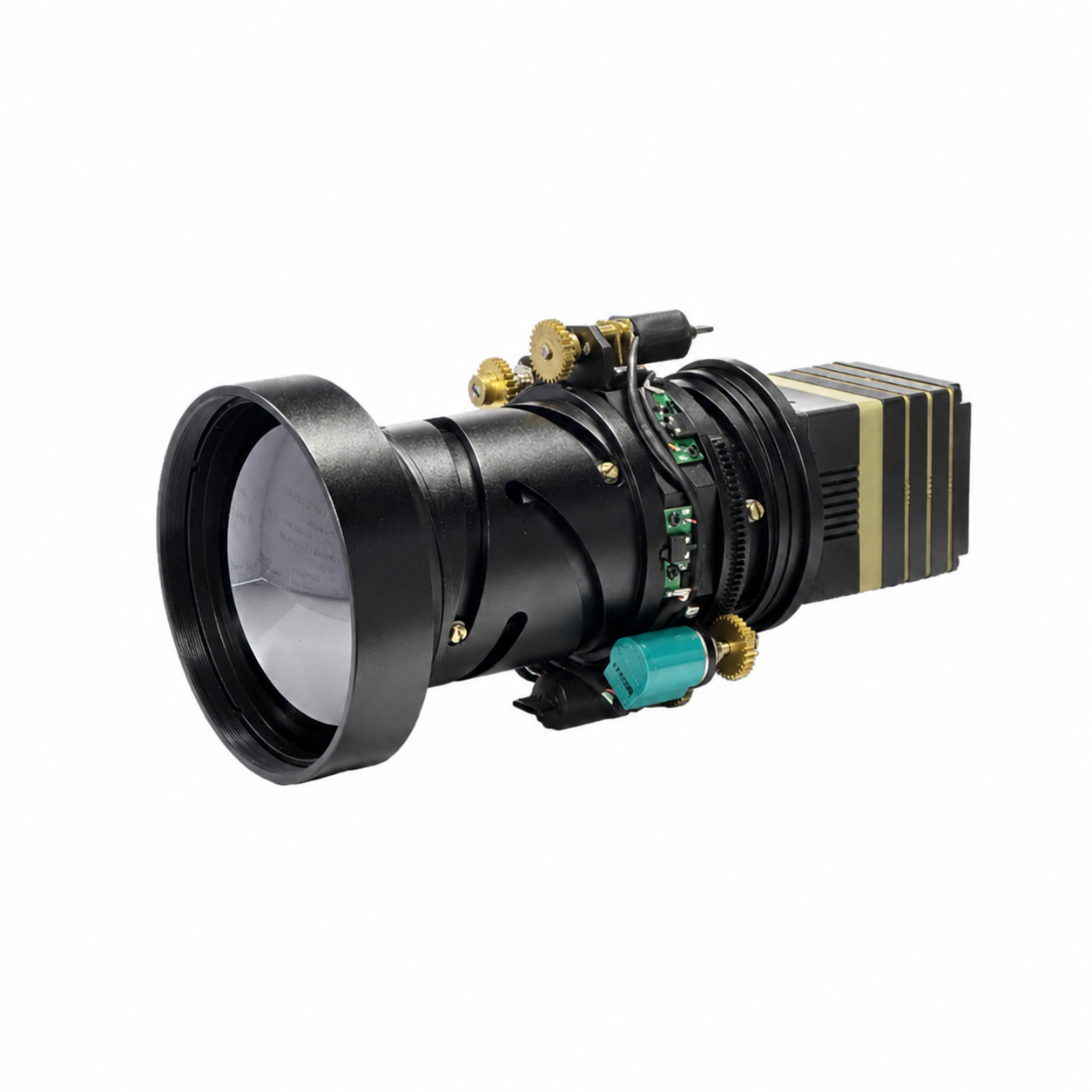

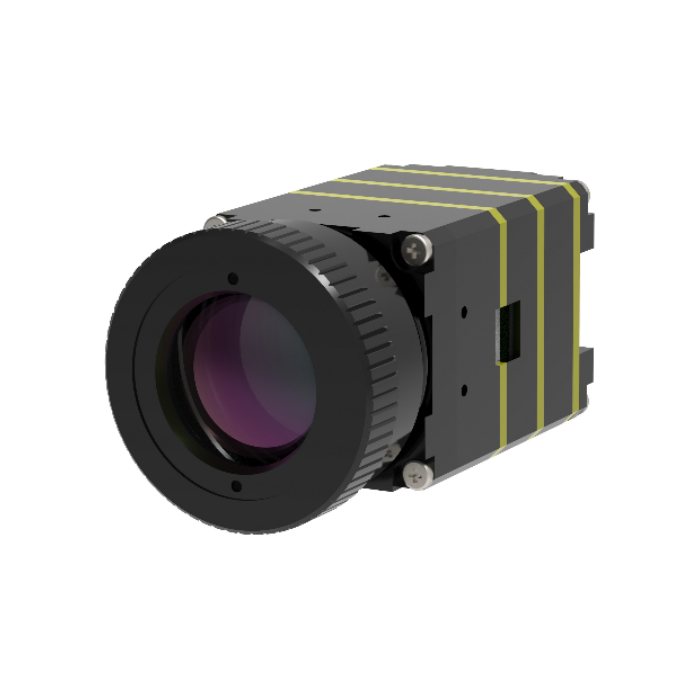

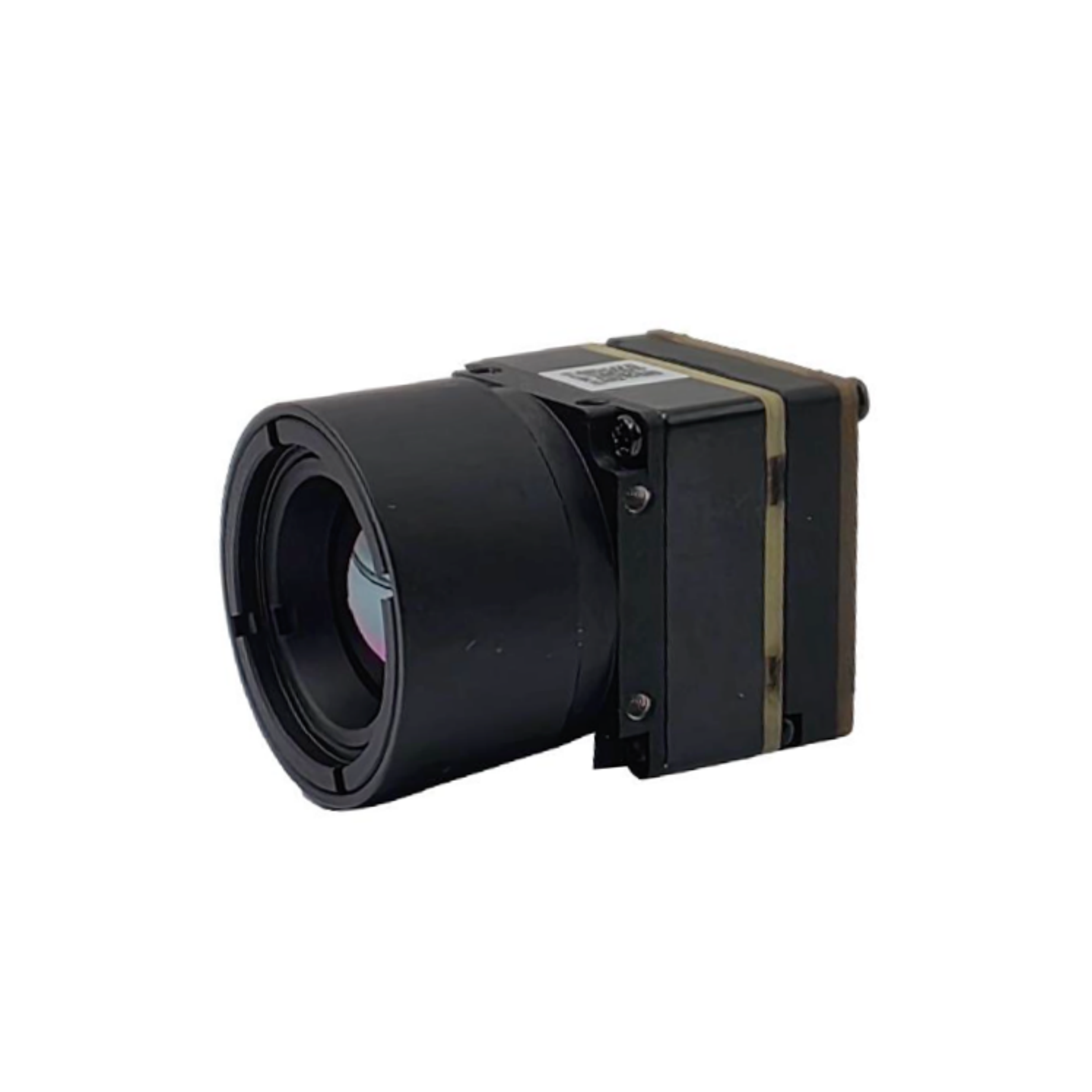

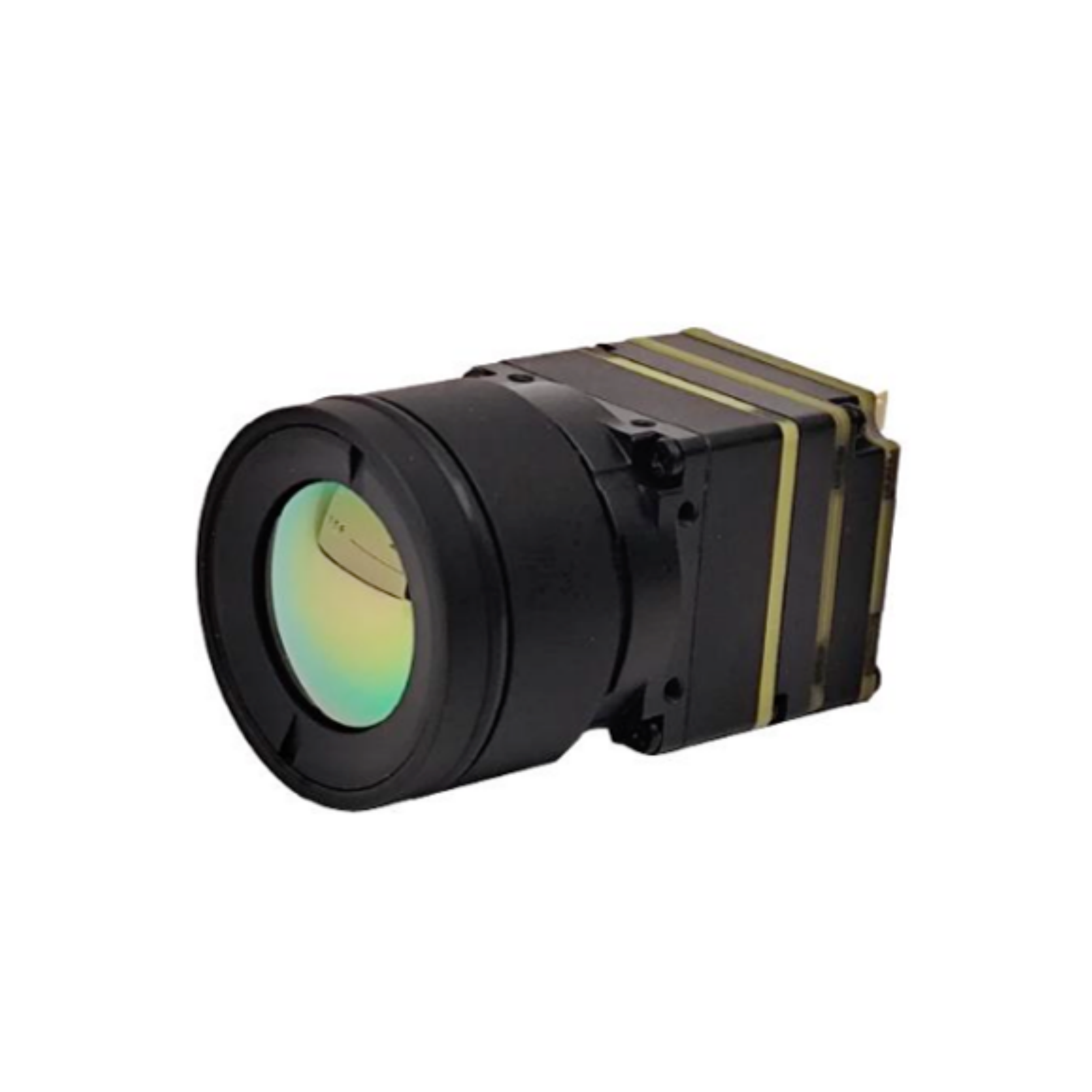

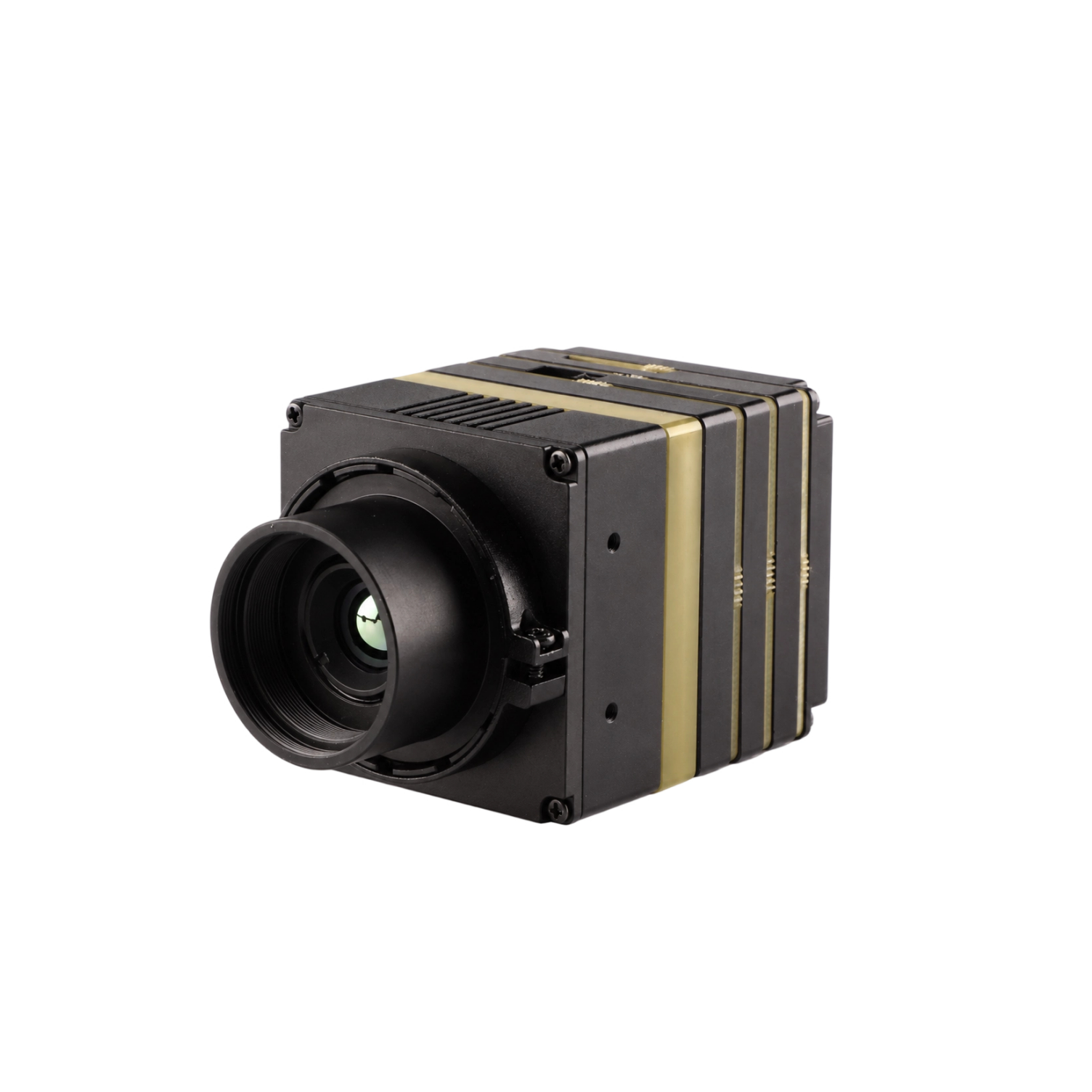

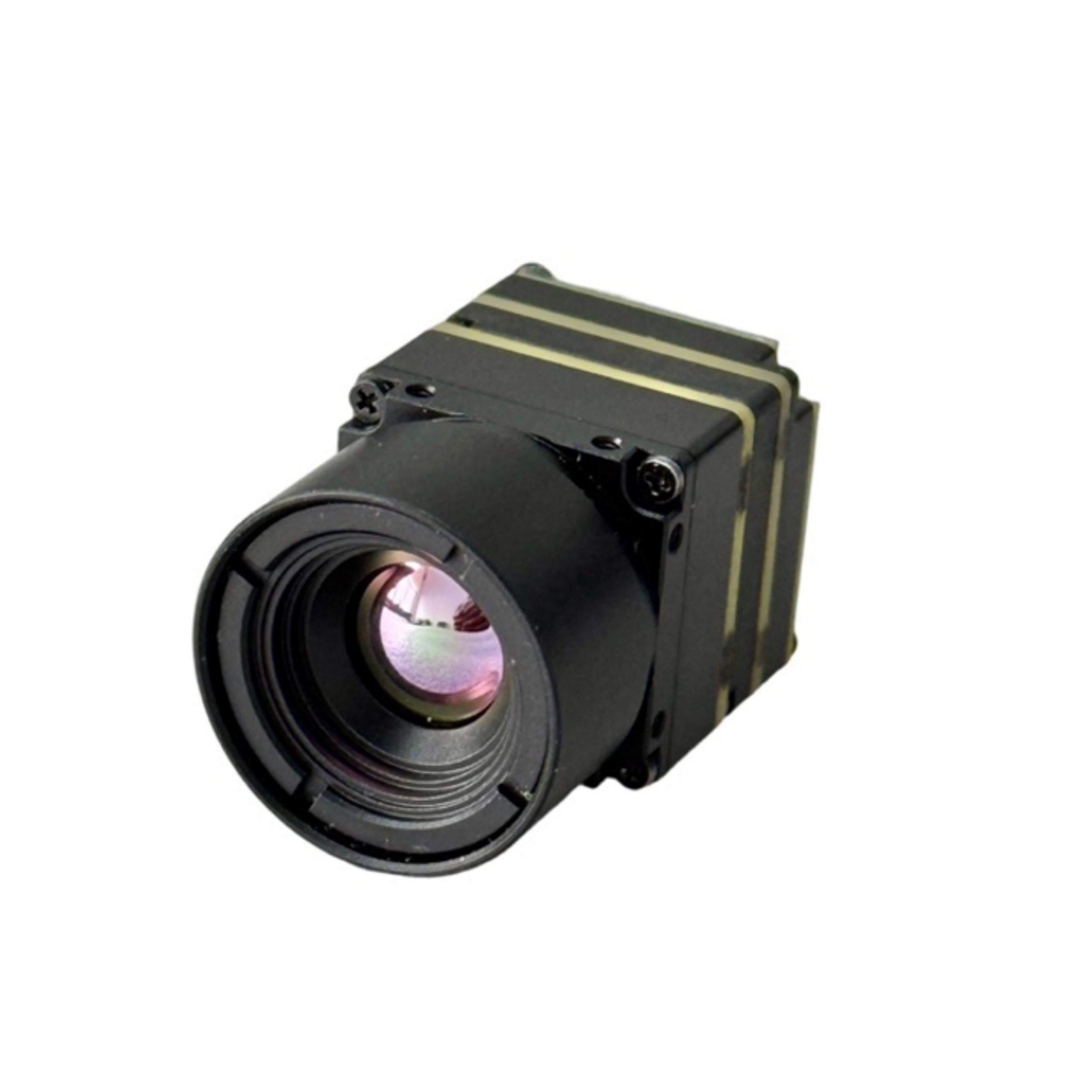

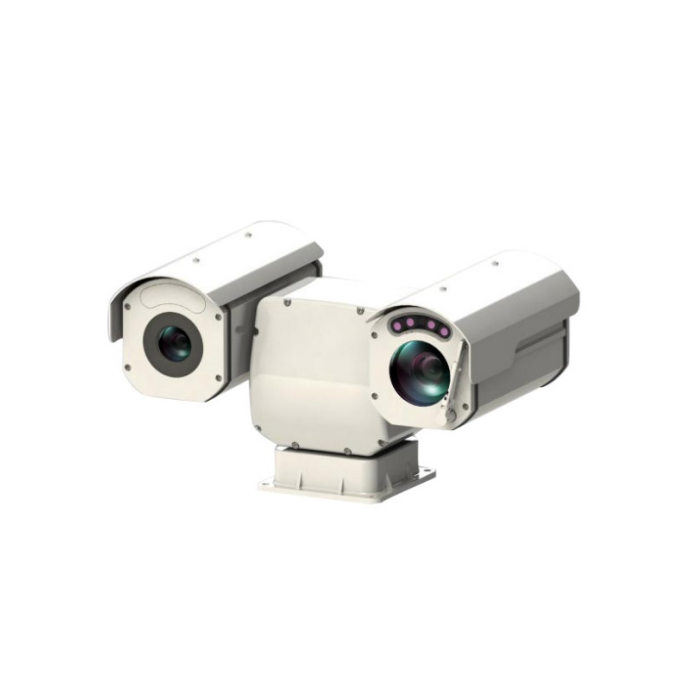

IR, Laser and Thermal Options
IR illumination supports visible monochrome video in darkness. Laser provides longer, narrower active illumination. Thermal detects temperature contrast without visible light and can support fire prevention or equipment monitoring. Each technology changes enclosure, power and optical-window requirements. A thermal channel needs an infrared-transmitting window, while visible and laser channels use different optical materials and coatings. Multi-window housings must maintain sealing and alignment. The customer should define the required night range and physical phenomenon before choosing a sensor combination.

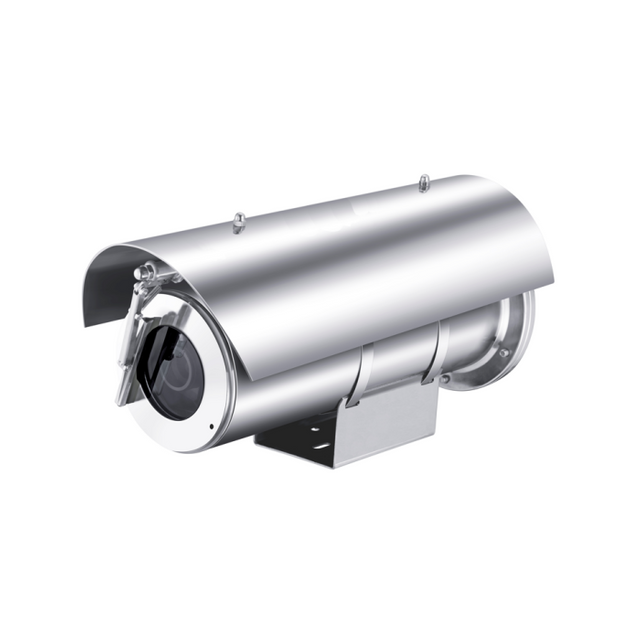

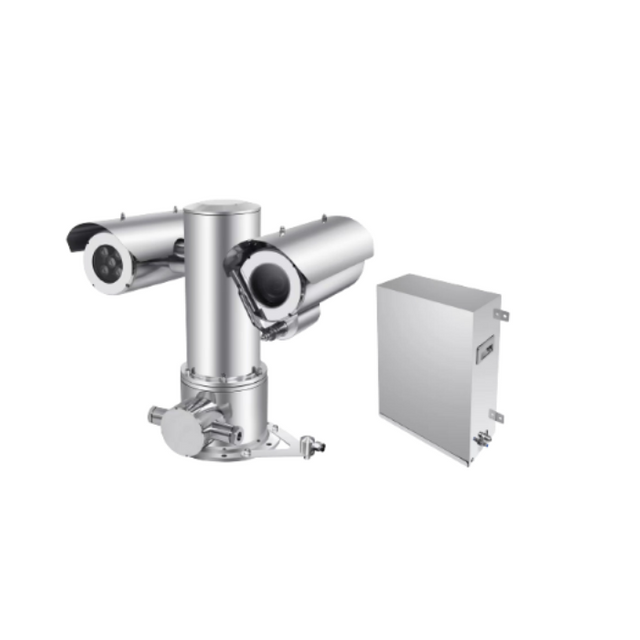

Wiper and Water-Spray Configurations
Industrial dust, salt, rain and process residue can cover the camera window. A wiper removes loose contamination, while a water-spray system can support more demanding cleaning. These mechanisms add moving parts and fluid or electrical interfaces that must remain compatible with the hazardous-area certification. The maintenance team should verify blade condition and fluid supply. A dirty window can reduce laser and IR performance dramatically and can create reflected glare. Cleaning design should be considered during camera selection, not added after installation.
Resolution and Zoom Selection
Future Vision’s explosion-proof portfolio includes fixed 2MP and 3MP cameras, 2MP zoom products, 4MP PTZs and 8MP speed domes. Resolution should be selected from target pixel requirements and network capacity. A 2MP 38X camera may provide more useful distant detail than an 8MP 23X camera because of optical reach. An 8MP unit may be better for wide-scene evidence. The lens, sensor and installation distance should be compared together. In hazardous facilities, network bandwidth may be limited by long cable routes and industrial infrastructure.
Temperature Class and Ambient Range
Explosion-protection markings include a maximum surface temperature or temperature class. The equipment must not exceed the permitted value in the specified ambient range. Internal heaters, laser modules and processors add heat. The project engineer should check the certificate, power configuration and installation location. Direct sunlight and high process temperature can raise enclosure temperature beyond general weather data. A product rated for one ambient range should not be assumed suitable for a hotter zone. Thermal calculations and shading may be required.

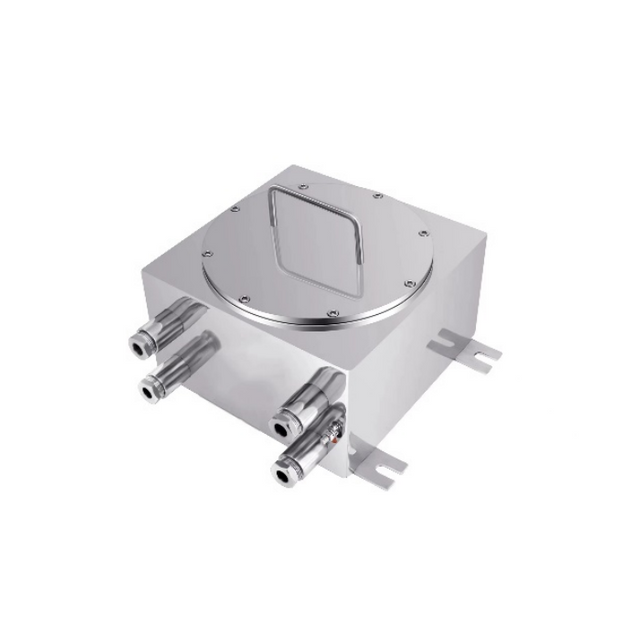

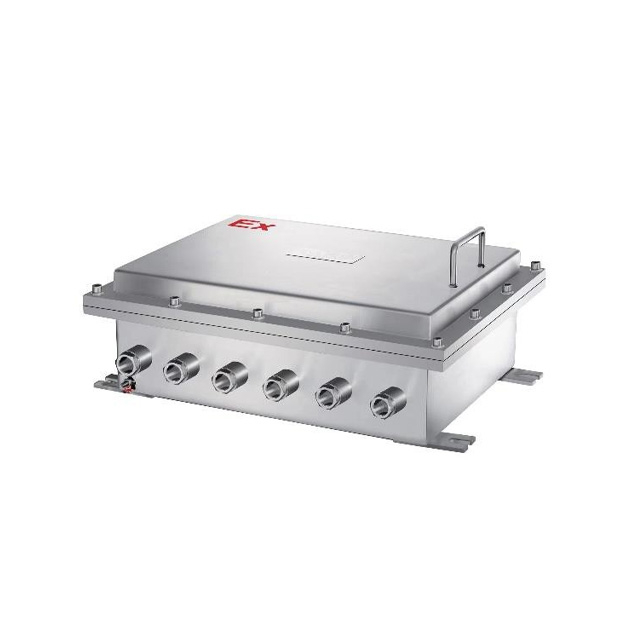

Cable Entries, Junction Boxes and Grounding
Certified cable glands and junction boxes preserve the explosion-protection path. The the stainless-steel housing product family category family includes stainless-steel junction-box options because cable termination is a common weak point. The installer should use the specified thread and sealing method, maintain earth continuity and avoid unauthorized drilling. Fiber, Ethernet, power and alarm cables may require different glands. Documentation should show the approved entry arrangement. A certified camera can become non-compliant if installed with unsuitable accessories.
Network and Cybersecurity Requirements

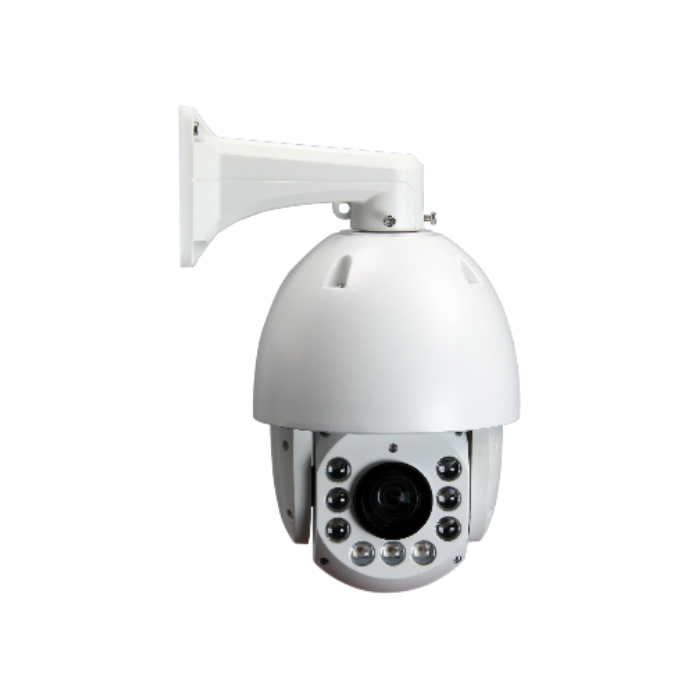

Hazardous-area cameras still operate on modern IP networks and may support H.265, ONVIF, analytics, local storage and remote control. Critical infrastructure customers should manage passwords, network segmentation, firmware and remote access. NDAA-oriented models may be required for certain public or government projects. Procurement should separate explosion certification from cybersecurity and supply-chain requirements; one does not prove the other. The exact configured model and firmware should be recorded in the project file.
Applications Across Hazardous Industries
Oil refineries and tank farms need perimeter, process and loading-area observation. Chemical plants require corrosion-resistant enclosures and safe electrical installation. Mines and grain facilities may have combustible dust. Pharmaceutical and storage sites may need cleanable surfaces and temperature monitoring. Offshore platforms add salt fog and wind. The sensor and housing should match both the explosive atmosphere and the surveillance task. Future Vision’s broad category allows customers to select a housing-only solution or a complete bullet, speed dome or PTZ camera.
RFQ and Certification Review
A complete inquiry should state the hazardous zone, gas or dust group, temperature class, ambient range, required certification, housing material, camera type, resolution, zoom, illumination, wiper or spray need, network, power, cable entry and quantity. The buyer should request the certificate and compare model numbers exactly. If a tender requires NDAA or another procurement declaration, that should be added separately. Sample testing should verify image performance, movement, window cleaning and network functions without modifying the certified construction.
Lifecycle and Maintenance Planning
Hazardous-area equipment requires controlled inspection and repair. Seals, flame paths, fasteners, windows, wipers and cable glands should be checked according to site procedures. Unauthorized opening or replacement parts can affect certification. Spare units may be preferable to field repair for critical areas. Future Vision and the integrator should agree on documentation, serial tracking and change notification. A long-term maintenance plan protects both safety and surveillance availability.
Selecting Safety and Imaging as One Package
Explosion-proof camera procurement succeeds only when safety classification, mechanical protection and optical performance are addressed together. Future Vision offers stainless housings, bullet cameras, 4K speed domes and specialized laser, IR and thermal PTZ systems. The correct product is the one whose certificate matches the site and whose imaging configuration meets the operational distance. Treating explosion protection as a label or choosing optics without installation review creates unnecessary risk. A disciplined specification process produces a camera that can be deployed and maintained responsibly in hazardous industrial environments.
