Quick Summary Forest fire detection CCTV systems use dual-spectrum thermal and visible-light cameras with edge AI to identify smoke, flame, and hidden hotspots 10–30 minutes before a wildfire spreads. Deployed across observation towers, ridges, and valleys in a three-tier layout, these camera systems cover vast wildland areas with minimal infrastructure, filtering false alarms from clouds, birds, and sunlight reflection while supporting solar power for remote, off-grid mountain sites. |
Core Benefits of Forest Fire Detection CCTV Systems
Traditional forest fire prevention relies on manual patrols and watchtower monitoring — low efficiency, high labor cost, and significant blind spots. Modern forest fire detection cameras use edge AI and long-range PTZ surveillance for automatic early warning and fire point positioning.
• Early wildfire detection: Identifies faint smoldering smoke, tiny open flames, and hidden high-temperature hotspots before fire spreads.
• All-weather surveillance: Stable monitoring in fog, haze, rain, strong light, and darkness.
• Precise GIS positioning: Automatically calculates fire point longitude, latitude, distance, and spread trend.
• Low false alarm rate: Filters interference from clouds, birds, sunlight reflection, and rock heat.
• Unattended remote monitoring: Solar power and microwave transmission support unmanned mountain areas.
• Quick emergency linkage: Syncs alarm data to forest rangers, command centers, and firefighting systems.
Camera Model | Core Parameters | Monitoring Range | Application |
Long-range dual-spectrum PTZ | 640×512 thermal, 4K visible, 30–50x optical zoom, IP68, -40°C to +60°C | 8–15km | High-altitude observation towers, main ridge command points |
270° panoramic multi-sensor | 4×4MP wide-angle, full-valley overview, haze penetration | 3–6km | Secondary ridges, cross-valley sheltered areas |
Solar-powered dual-spectrum bullet | Low-power module, off-grid solar, rain/fog resistant | 1–3km | Valleys, forest roads, woodland residential borders |
AI visible light PTZ | 4K, 30x zoom, built-in smoke recognition | 2–4km | Scenic forests, areas with stable grid power |

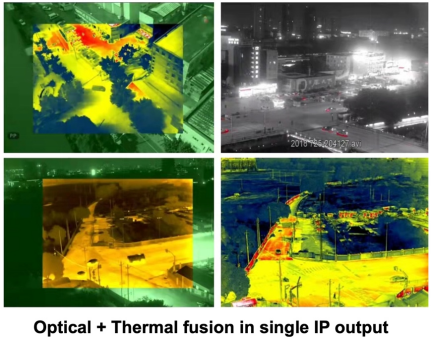

Mandatory technical features across all forest fire CCTV cameras include dual-spectrum fusion, AI anti-interference algorithms, IP68 extreme-environment resistance, H.265/H.266 smart compression, automatic lens cleaning and defrosting, and lightning/surge protection for tower installation.
Three-Tier Deployment Layout
• Tier 1 — Core observation towers: Long-range dual-spectrum PTZ cameras on unobstructed peaks, each covering an 8–12km radius, with grid power plus backup batteries for 24/7 operation.
• Tier 2 — Secondary ridge nodes: Panoramic multi-sensor cameras compensate for terrain-shelter blind spots, focusing on dense forest depressions and valleys prone to hidden smoldering fires.
• Tier 3 — Valley & border nodes: Solar-powered dual-spectrum fixed cameras in low-lying valleys, forest roads, and village-forest junctions monitor human-induced fire risks such as illegal burning and camping.
All cameras run edge-side AI computing for real-time fire identification without relying on backend servers, enabling ultra-fast alarm response.
• Smoke and flame hierarchical identification (smoldering smoke, thick smoke, open flames)
• Thermal hotspot temperature detection, including invisible underground hidden fires
• Multi-camera cross-verification, reducing false alarm rate by over 80%
• Automatic GIS fire point positioning and spread trend prediction
• Human fire hazard behavior detection (unauthorized burning, wild camping, restricted area intrusion)
The system escalates through three alarm levels: Level 1 (suspected — faint smoke/hotspot pushed to ranger mobile app for verification), Level 2 (confirmed — dual-spectrum verification triggers platform alert and SMS), and Level 3 (emergency — confirmed open flame triggers full-system linkage and firefighting dispatch reminder).

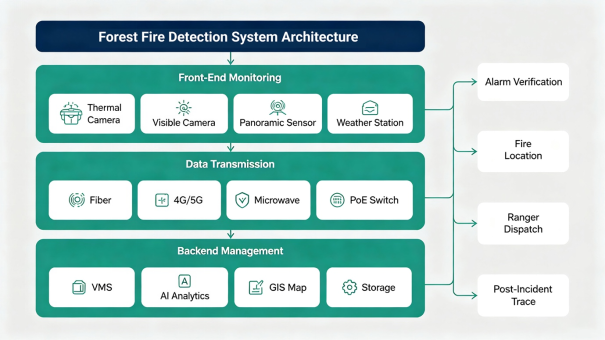

• Power supply: Grid + backup battery for core towers; off-grid solar systems supporting 7–15 days of rainy-day standby for remote nodes.
• Transmission: Fiber for near-grid points, 4G/5G industrial routers for medium-distance areas, and wireless microwave bridges for point-to-point links up to 20km.
• Storage & management: A forest fire VMS platform integrated with a GIS map, redundant NVR storage retaining 90+ days of video, and multi-terminal access (control room, PC, mobile app, patrol tablets).
• Cross-system linkage: Connects with weather stations, mountain broadcast speakers, UAV patrol systems, and emergency command platforms.
• Ultra-early warning: detects hidden fire risks 10–30 minutes before large wildfire outbreaks
• All-weather adaptation: thermal imaging works in night, fog, and low-light conditions
• Low O&M cost: few equipment points, large coverage area, unattended operation
• Ultra-low false alarm rate: dual-spectrum cross-verification plus AI anti-interference
• Strong scalability: supports future UAV linkage and weather data integration
• High reliability: lightning protection, anti-corrosion, wide temperature adaptation
National forest farms, nature reserves, alpine grasslands, scenic woodlands, ecological protection zones, and rural woodland boundary fire prevention projects.
All forest fire surveillance cameras operate across -40°C to +60°C, with IP68 waterproof, dustproof, and anti-corrosion protection. The system supports automatic online health detection, remote calibration, and scheduled automatic lens cleaning, keeping daily maintenance and long-term operating costs low.
Q: How early can a forest fire CCTV system detect a wildfire?
The system is designed to detect hidden fire risks 10–30 minutes before a large wildfire outbreak, using dual-spectrum thermal and visible-light detection combined with edge AI.
Q: What is the coverage radius of a single observation tower?
A core observation tower with a long-range dual-spectrum PTZ camera typically covers an 8–12km radius, depending on terrain and target size.
Q: How does the system reduce false alarms from clouds or birds?
AI anti-interference algorithms combined with multi-camera cross-verification filter natural interference such as clouds, birds, and sunlight reflection, reducing false alarm rate by over 80%.
Q: Can forest fire cameras operate without grid power?
Yes. Remote mountain nodes typically use off-grid solar power systems supporting 7–15 days of rainy-day standby, paired with wireless microwave or 4G/5G transmission.
