Quick Summary Stadium CCTV solutions layer panoramic, PTZ, fixed, and thermal cameras to achieve 100% coverage of stands, playing fields, entrances, and perimeter zones while meeting FIFA, UEFA, and SGSA security standards. AI analytics for crowd density, facial recognition, and object detection cut incident response time by up to 70%, and H.265/H.266 compression reduces storage and bandwidth costs by over 50%. |
System Objectives
• Full field coverage: Eliminate blind spots in stands, playing fields, entrances, and perimeter areas.
• Crowd management: Monitor density, detect conflicts, and prevent overcrowding.
• Player & staff safety: Secure locker rooms, tunnels, and restricted zones.
• Incident response: Enable rapid identification and resolution of security events.
• Operational efficiency: Integrate with access control, fire, and broadcast systems.
• Forensic evidence: Provide high-quality video for post-incident analysis.
Layer | Camera Type | Coverage Purpose |
Strategic | Panoramic/360° cameras | Full stadium overview, crowd flow analysis |
Tactical | High-zoom PTZ cameras | Targeted tracking, close-up identification |
Operational | Fixed bullet/dome cameras | Critical points: entrances, corridors, VIP areas |
Specialized | Thermal/low-light cameras | Night surveillance, perimeter intrusion detection |
Camera Type | Resolution | Key Features | Best Application |
Panoramic multisensor | 12MP–32MP | 180°/270°/360° view, dewarping, multi-streaming | Stadium roof, upper stands for overall coverage |
High-speed PTZ | 4K/8MP | 30x–45x optical zoom, 360° rotation, 0.1° precision | Field tracking, player close-ups, incident investigation |
Ultra HD fixed dome | 4K/8MP | WDR (120dB+), IP67, vandal-proof (IK10) | Concession areas, concourses, stairwells |
Wide dynamic bullet | 4MP–8MP | Anti-glare, backlight compensation, long-range IR (50m+) | Entrances, exits, perimeter fencing |
Thermal imaging | 640×512 | Heat signature detection, no visible light required | Night perimeter, crowd temperature screening |
AI-embedded | 4MP+ | Built-in people counting, crowd density, object detection | All areas requiring real-time analytics |
Critical technical requirements: minimum 4MP for general areas (8MP/4K for identification zones), 30fps standard (60fps for slow-motion sports analysis), 120dB+ WDR for high-contrast lighting, 0.001 lux low-light performance, H.265/H.266 compression, IP66+/IK10 protection, and PoE++ (802.3bt) power for PTZ cameras with heaters and blowers.
Strategic Camera Placement
• 4–6 PTZ cameras on roof girders or upper stands (10–15m height) with 30x+ optical zoom and preset positions for goalmouths and penalty areas
• 2 panoramic cameras at opposite ends for full field overview
• Anti-collision mounts for field perimeter cameras
• Upper stand: 1 panoramic camera per 50m section
• Lower stand: fixed dome cameras every 10–15m, 3m above seating level
• Concourse & walkways: bullet cameras every 10m covering entry/exit points
• Stairwells: one camera per landing, facing downward to capture faces
• Concessions & restrooms: dome cameras covering queues and entry/exit
Location | Camera Type | Requirements |
Entrances/exits | Wide dynamic bullet | Capture clear facial images, integrate with ticket scanners |
VIP/locker rooms | Vandal-proof dome | 24/7 recording, access control integration |
Media/broadcast areas | PTZ + fixed | Monitor equipment and personnel movement |
Parking lots | LPR + panoramic | License plate recognition, vehicle movement tracking |
Perimeter fencing | Thermal + bullet | 24/7 intrusion detection, 50m IR range |
Power/utility rooms | Fixed dome | Environmental monitoring, equipment security |
Camera views should overlap by 15–20% to eliminate blind spots and enable cross-camera target tracking.
• Crowd density monitoring: Alerts when zones exceed safe capacity thresholds.
• Facial recognition: Identifies VIPs, banned individuals, or security personnel.
• Object detection: Flags prohibited items (weapons, flares, alcohol).
• People counting: Tracks entry/exit flow for crowd management.
• Abnormal behavior detection: Identifies fights, falls, or unauthorized access.
• License plate recognition: Manages parking and identifies suspicious vehicles.
Real-time alert workflow: camera detects an anomaly → AI sends an alert with video clip and location to the control center → operators verify and dispatch a response → the system logs the incident with timestamp and camera ID for forensic review.
• Network: Dual 10Gbps fiber backbone, PoE++ switches (802.3bt), VLAN segmentation, and redundant network paths.
• Storage: NVR cluster with RAID 5/6 redundancy; a 4MP camera at 15fps (H.265) uses roughly 1TB per 30 days. Recommended: 90-day retention for general areas, 1-year for critical zones.
• Control center: Multi-monitor video wall, unified VMS with centralized PTZ control and AI dashboard, and a 24/7 operator station with incident logging.
System | Integration Benefit |
Access control | Camera triggers on unauthorized access; visual verification of cardholders |
Fire alarm | Cameras auto-point to alarm location; live video to firefighters |
Public address | Broadcast warnings directly to zones with incidents |
Ticketing system | Correlate attendance data with crowd density analytics |
Broadcast | Share video feeds for instant replay and event coverage |
A mobile command center extends this via 4G/5G wireless connectivity and a tablet app for PTZ control, alert management, and incident reporting.
Phased deployment: (1) perimeter and critical infrastructure cameras, (2) spectator area and field coverage, (3) AI analytics and cross-system integration, (4) user training and optimization.
• Daily: System health check, storage capacity monitoring.
• Weekly: Camera lens cleaning, firmware updates.
• Monthly: PTZ mechanism calibration, cable inspection.
• Quarterly: Full system performance evaluation, backup testing.
• Annually: Camera replacement on a 5-year lifecycle.
FIFA Stadium Guidelines, UEFA Security Regulations, the SGSA Guide to Safety at Sports Grounds (UK), GDPR compliance for facial recognition and personal data, and local building codes for electrical safety and mounting requirements.
• Enhanced security: proactive threat detection reduces response time by 70%
• Operational efficiency: AI analytics reduce staff requirements by 40%
• Improved fan experience: faster incident resolution minimizes disruptions
• Cost savings: H.265 compression reduces storage/bandwidth costs by 50%+
• Scalability: modular design allows expansion for larger events or venue upgrades
Q: What resolution is required for stadium entrance cameras?
Entrance and identification zones require a minimum of 8MP/4K resolution to capture clear facial images for ticket scanner integration.
Q: How much camera overlap is needed to avoid blind spots?
A 15–20% overlap between adjacent camera fields of view is recommended to eliminate blind spots and support cross-camera target tracking.
Q: What frame rate is needed for sports analysis?
30fps is standard for smooth motion capture; sports venues requiring slow-motion incident review should use 60fps.
Q: How long should stadium surveillance video be retained?
A 90-day retention period is typical for general areas, extending to 1 year for critical zones such as entrances and VIP areas.

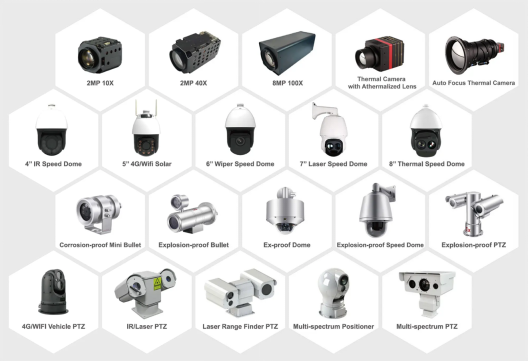

Future Vision Technology is a China-based manufacturer with 18 years of experience in PTZ, speed dome, and zoom block cameras, supporting global partners through OEM/ODM services. View Speed Dome Camera Range
