Quick Summary Sea port CCTV surveillance links shoreline sensors, mobile patrol vessels, and AI analytics to a centralized Port Operations Control Center (OCC). Purpose-built cameras use 316L stainless steel or corrosion-resistant polymer housings, IP67/IP68/IP69K ratings, and 20–40x optical zoom paired with thermal imaging to overcome the salt fog, glare, and long-distance monitoring challenges that cause standard commercial cameras to fail within months of coastal deployment. |
System Objectives & Challenges

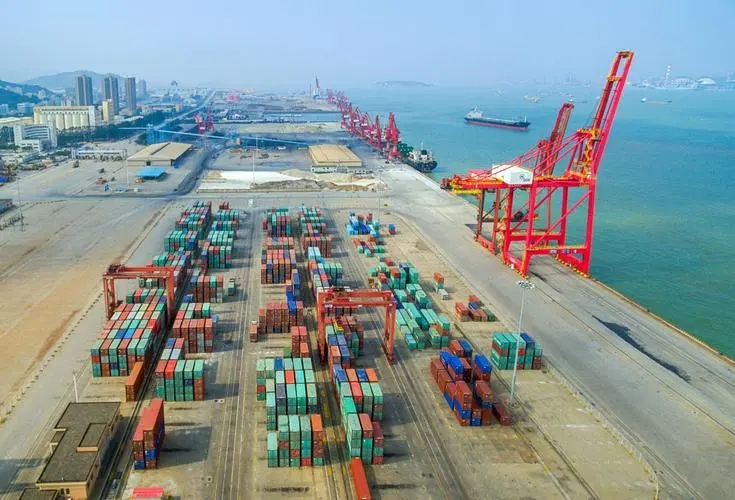

Harbor infrastructure demands industrial-grade engineering. Standard outdoor commercial cameras corrode and fail rapidly in coastal deployment.
Challenge | Impact | Mitigation |
Salt fog corrosion | Rapid equipment degradation | 316L stainless steel or corrosion-resistant polymer housings, NEMA 4X compliance |
Extreme weather | Signal loss, lens obstruction | IP67/IP68/IP69K rating, heated optics, anti-condensation, wiper systems |
Long distances | Limited visibility | 20–40x optical zoom, laser IR illumination (up to 3km), thermal imaging (5–10km detection) |
Low light/night | Poor image quality | Starlight sensors (0.001–0.006 lux), dual-sensor (visible + thermal) cameras |
Vessel movement | Tracking difficulties | Gyro-stabilization, auto-tracking PTZ, AIS/radar integration |
Dock vibration & tampering | Equipment malfunction | IK10 vandal resistance |
Network latency | Delayed response | Fiber-optic backbone, edge processing AI, Hi-PoE power/network integration |

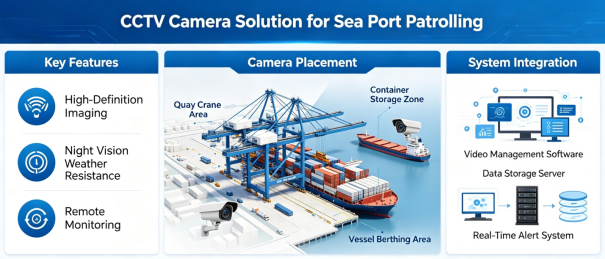

Comprehensive port security relies on three overlapping layers: long-range shoreline monitoring (EO/IR thermal PTZ cameras with radar & AIS cross-cueing), mobile patrol (rugged mobile IP cameras with real-time cellular/satellite streaming), and land perimeter (fixed AI analytics domes with container code OCR and license tracking).
• EO/IR dual systems: Dual-spectrum setups pair high-zoom optical lenses for day tracking with long-wave thermal imaging, piercing pitch darkness, dense sea fog, heavy rain, and solar water reflection.
• Radar & AIS cross-cueing: Shore-based marine radar or AIS tracks incoming vessel coordinates. If an unregistered watercraft crosses a digital geofence, the VMS automatically targets and zooms a long-range PTZ camera onto the threat.
• Safe docking verification: High-magnification sensors evaluate ship mooring maneuvers to prevent pier collisions and document cargo unloading.
B. Mobile Patrol Vessels & Security Vehicles
• Dynamic image stabilization: Cameras on patrol boats require electronic image stabilization (EIS) to keep video steady through pitching and rolling.
• Tactical night vision: Low-light, high-definition sensors detect small watercraft, floating debris, or unauthorized swimmers near anchorages.
• Data uplinks: Rugged mobile NVRs record locally while streaming critical incident feeds to the OCC via 5G or satellite bands.
• Access control points: High-resolution cameras read container codes (ISO 6346 OCR) and vehicle license plates, pairing logistical data with video timestamps.
• Intrusion alerts: Smart perimeter fence analytics isolate real human scaling hazards from birds, debris, or wind movement.
Detection | Purpose | Key Features |
Vessel detection & classification | Identify and categorize ships | Detects tankers, cargo ships, fishing boats, small craft; distinguishes threats from legitimate traffic |
Loitering detection | Alert on suspicious vessel behavior | Triggers alarm for vessels lingering in restricted zones ≥15–30 minutes |
Perimeter intrusion | Detect unauthorized entry | Virtual tripwire, zone crossing alerts for land and water boundaries |
Object left/removed | Identify abandoned items | Alerts on unexpected objects in critical areas or missing equipment |
Speed violation | Monitor vessel speed limits | Triggers for vessels exceeding port speed regulations |
License plate & vessel ID | Identify vehicles and ships | Reads license plates, IMO numbers, and hull markings |

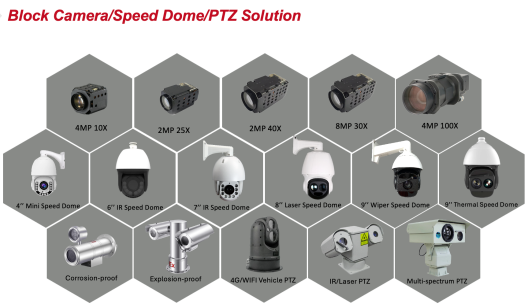

Camera Type | Best For | Key Specifications |
Long-range PTZ dome | Port approaches, open waters, perimeter | 20–40x optical zoom (≥100mm focal length); 3–5NM visible range, 5–10km thermal; IP67/IP68, C5-M corrosion protection; 4K/8MP, H.265+/H.266 |

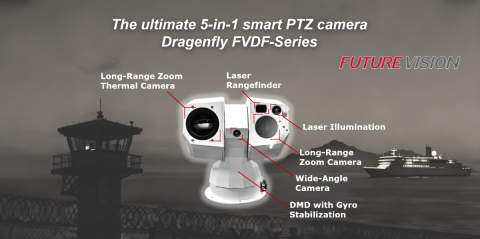

Dual-sensor (visible + thermal) | All-weather, day/night monitoring | Uncooled thermal sensor (320×240–640×512), NETD ≤50mK; starlight visible sensor (0.001 lux); laser IR illuminator up to 3km |
Gyro-stabilized marine camera | Moving platforms, high-vibration areas | 2-axis or 3-axis stabilization compensating for vessel/structure movement |
Fixed starlight cameras | Berths, terminals, access points | 2–8MP, 0.006 lux color imaging at night, WDR 120dB+, anti-corrosion housing, PoE powered |
Explosion-proof cameras | Fuel depots, chemical terminals | ATEX/IECEx certification, 316L stainless steel construction, IP68, IK10 |
Minimum requirements: 4MP (1440p) for long-range, 2MP (1080p) for fixed positions; 20x optical zoom minimum (30x+ recommended for port approaches); starlight (≤0.006 lux) or thermal for 24/7 operation; IP66+ minimum protection (IP67/IP68 preferred), C5-M corrosion rating; PoE+/Hi-PoE (60W) power; -40°C to +60°C operating temperature; wind resistance ≥150km/h.
FAQ
Q: Why do standard cameras fail quickly at sea ports?
Standard outdoor commercial cameras lack marine-grade corrosion protection and typically corrode and fail within months when exposed to sustained salt fog and humidity.
Q: What zoom range is recommended for port approach monitoring?
20x optical zoom is the minimum, with 30x or higher recommended for port approach and open-water surveillance.
Q: How does radar/AIS integration improve port security?
Radar or AIS tracks vessel coordinates continuously; if an unregistered vessel crosses a digital geofence, the video management system automatically slews a long-range PTZ camera onto the target for visual confirmation.
Q: What camera type suits fuel depots or chemical terminals within a port?
ATEX/IECEx-certified explosion-proof cameras with 316L stainless steel construction and IP68/IK10 ratings are required for these hazardous-area zones.
