Quick Summary Electronic Image Stabilization (EIS) and Optical Image Stabilization (OIS) are the two primary stabilization technologies for CCTV cameras. EIS is a software-driven, cost-effective method that crops and shifts pixels after capture, well suited to dynamic, well-lit scenes. OIS is a hardware-based method that physically shifts the lens or sensor before light hits the sensor, delivering superior image quality in low-light and long-range scenarios, at higher cost and complexity. The right choice depends on lighting conditions, budget, and how critical image clarity is to the application. |

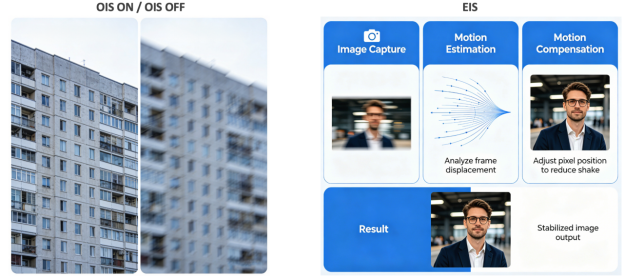

EIS is a software-centric technology that relies on algorithmic processing to mitigate image shake. It uses built-in gyroscopes and accelerometers to detect camera movement, then analyzes pixel differences between consecutive frames. By cropping the frame edges and shifting or rotating the remaining pixels, EIS compensates for detected motion, creating the illusion of a stable image. This post-capture correction requires no additional mechanical components, making it cost-effective.
OIS operates on a hardware-based principle, integrating precision mechanical components — movable lens elements or image sensors — within the camera. When gyroscopes detect vibration or movement, a microprocessor calculates the required compensation and actuates motors to shift the lens or sensor in the opposite direction of the shake. This real-time adjustment stabilizes the light path before it reaches the image sensor, directly addressing the source of the shake.
Performance Comparison
EIS excels at handling small, high-frequency vibrations, such as those from wind or minor structural tremors, and its fast algorithmic response suits dynamic monitoring like tracking moving objects or mobile CCTV units. However, the cropping process reduces effective field of view, and in cases of severe or rapid movement the algorithm may struggle to keep up, causing visible distortion or reduced resolution. EIS also relies on sufficient lighting — in low light, increased frame noise can hinder accurate motion detection and compensation.
OIS delivers superior performance in low-light and long-range surveillance. By stabilizing the light path before it reaches the sensor, OIS allows longer exposure times without motion blur, producing sharper, more detailed images even in dim conditions. It is particularly effective against large-amplitude shakes, such as those from heavy machinery vibration or camera misalignment. However, the mechanical components add cost and complexity, and the physical movement of lenses or sensors introduces slight latency, which may cause minor delays in extreme high-speed motion.
EIS requires minimal hardware investment, leveraging the camera's existing processing capabilities and sensors — an ideal choice for large-scale deployments such as urban surveillance networks or small business monitoring, where cost efficiency is a priority. EIS-enabled cameras are also typically more compact and lightweight, simplifying installation and reducing maintenance.
OIS carries a higher price tag due to specialized motors, gyroscopes, and lens assemblies, making it more suitable for high-end applications where image quality is paramount — for example, critical infrastructure sites such as power plants or airports, where clear footage is essential for security and incident investigation. OIS cameras may also require more careful installation and calibration to ensure the mechanical components function correctly over time.
Feature | Optical (OIS) | Electronic (EIS) |
Mechanism | Physical movement of lens or sensor | Digital cropping and frame shifting |
When It Happens | Before light hits the sensor | After the image is captured |
Image Quality | No loss of resolution or quality | Often a slight loss of resolution/field of view |
Best For | Low-light imaging and telephoto/long-range zoom | Dynamic scenes and smoothing out rapid movement |
Cost & Power | More expensive, consumes more power | Cost-effective and power-efficient |
EIS and OIS offer distinct advantages, and the choice depends on specific surveillance requirements, budget, and environmental conditions. EIS provides a cost-effective, software-driven solution ideal for dynamic, well-lit environments where moderate stabilization is sufficient. OIS, with its hardware-based stabilization, delivers exceptional image quality in low-light and long-range scenarios, making it the preferred choice for critical applications — such as industrial and infrastructure sites — where clarity and detail are non-negotiable.
Q: Which stabilization type is better for a low-light industrial site?
OIS is generally preferred for low-light and long-range scenarios, since it stabilizes the light path before it reaches the sensor and allows longer exposure times without motion blur.
Q: Does EIS reduce the camera's field of view?
Yes. EIS works by cropping the frame edges to compensate for motion, which reduces the effective field of view compared with the original capture.
Q: Is OIS more expensive than EIS?
Yes. OIS requires precision mechanical components — motors, gyroscopes, and movable lens assemblies — which increase manufacturing cost compared with the software-only approach used by EIS.
Q: Which technology suits critical infrastructure like power plants or airports?
OIS is generally the preferred choice for critical infrastructure sites, since image clarity in low light and at long range is often essential for security and incident investigation.
