Integrating third-party optics into established surveillance networks introduces vulnerabilities in telemetry, focus accuracy, and protocol handshakes. System integrators and field engineers must bridge the gap between high-performance OEM zoom hardware and proprietary Video Management Systems (VMS). You cannot sacrifice motorized control reliability or introduce network latency on the job site. This guide provides a technical evaluation framework for integrating an OEM zoom module with a hikvision camera network. We compare native protocol adoption against universal standards. You will learn how to ensure stable, scalable deployments across desktop and mobile environments, avoiding common pitfalls like unprompted auto-zoom errors and PTZ latency.
Native protocol integration offers superior telemetry and feature support but restricts hardware flexibility compared to ONVIF standards.
Successful deployment of an OEM zoom block requires precise alignment of power budgets (IP PoE vs. legacy HDCVI), motorized focus calibration, and VMS compatibility (e.g., iVMS-4200 for Windows/Mac).
Unprompted auto-zoom errors and PTZ latency are the most common integration failures, typically stemming from firmware mismatches, browser plugin deprecations, or conflicting VMS event triggers.
Establishing a technical baseline prevents deployment failures. You must define the exact physical and network requirements before introducing third-party hardware into a proprietary ecosystem. Hardware compatibility extends beyond simple network connectivity. It requires precise alignment of optical capabilities, power delivery, and software communication. We see many field technicians fail because they assume any IP camera will work seamlessly with their existing NVR without verifying the underlying protocols.
You must differentiate between true motorized optical zoom and digital magnification. Optical zoom physically moves glass lens elements to adjust the focal length. This maintains full sensor resolution at maximum magnification. Digital zoom merely crops the center of the image sensor and enlarges the pixels. This process degrades image quality significantly and renders license plates unreadable at a distance.
Establish minimum focal length ratios based on your deployment environment. Perimeter security often requires 25x to 36x optical zoom to identify targets at long distances. Specialized applications might demand up to 96x magnification. Low-light performance metrics are equally critical. Evaluate the lux rating of the image sensor. Super starlight sensors combined with wide apertures capture usable color footage in near-total darkness without relying on infrared illumination.
Optical vs. Digital Zoom Characteristics | ||
Feature | Optical Zoom | Digital Zoom |
|---|---|---|
Mechanism | Physical glass movement | Software cropping and scaling |
Resolution | Maintains full megapixel count | Reduces effective resolution |
Low Light Performance | Depends on aperture (f-stop) | Amplifies sensor noise |
Field Application | Long-range perimeter identification | Post-incident forensic review |
Seamless integration requires strict adherence to communication standards. The module must communicate flawlessly with centralized management software like iVMS-4200. It must also support legacy mobile applications like iVMS-4500 and third-party Network Video Recorders (NVRs). If the VMS cannot parse the telemetry data from the camera, you lose the ability to control the motorized lens.
Define your bandwidth and latency thresholds early. Real-time Pan-Tilt-Zoom (PTZ) command execution requires low network latency. A delay exceeding 250 milliseconds makes manual tracking of moving targets nearly impossible. Ensure your network infrastructure supports the required bitrate for high-resolution video streams while prioritizing PTZ control packets.
Verify the NVR firmware supports third-party protocol integration.
Allocate sufficient bandwidth on the network switch for continuous video streaming.
Test PTZ command latency using a direct laptop connection before mounting the hardware.
Confirm the VMS software version matches the operating system requirements.
Selecting the right communication pathway dictates the feature set available to operators. You must choose between proprietary integration and universal interoperability. This decision impacts how the hardware behaves on the network and what analytics you can deploy across the site.

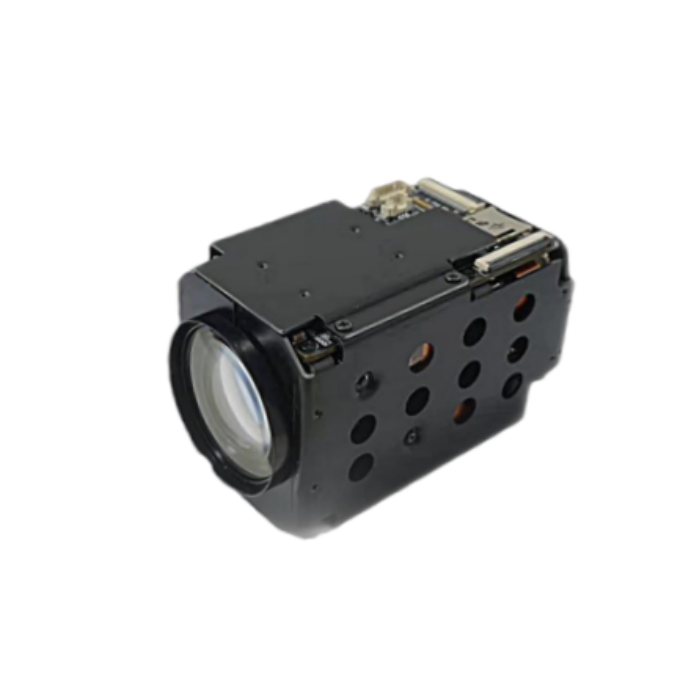

Deploying a HIK Protocol Camera Module offers distinct operational advantages. Native integration ensures immediate plug-and-play functionality with proprietary NVRs. The VMS automatically recognizes the device, assigns an IP address, and populates the camera tree. You bypass the tedious manual configuration required for third-party devices.
Native protocols unlock advanced edge analytics. Features like line crossing detection, intrusion detection, and facial recognition process directly on the camera hardware. The module sends only the metadata to the NVR, reducing server load. However, this approach creates vendor lock-in. Sourcing highly specialized OEM modules that natively support proprietary protocols limits future hardware flexibility. If a specific project requires a unique focal length not available in the native ecosystem, you hit a roadblock.
Universal standards provide an alternative integration path. An ONVIF Zoom Block Camera guarantees baseline compatibility across different VMS platforms. Profile S governs basic video streaming and PTZ control. Profile T introduces advanced video compression and extended event management.
This approach broadens hardware compatibility. You can select optics from various manufacturers based on specific project requirements. The trade-off involves losing proprietary edge-analytics features. Event management mapping often requires manual configuration. Motion detection triggers may not pass seamlessly from the ONVIF module to a proprietary NVR without specific payload adjustments. You will spend more time configuring port mapping and IP addresses during the initial setup phase.
Protocol Comparison: Native vs. ONVIF | ||
Feature | Native Protocol | ONVIF Profile S / T |
|---|---|---|
PTZ Command Latency | Ultra-low (<100ms) | Variable (150ms - 300ms) |
Edge Analytics Support | Full (Line crossing, intrusion) | Limited (Basic motion only) |
Hardware Flexibility | Restricted to specific vendors | High (Universal compatibility) |
Setup Complexity | Plug-and-play | Requires manual IP and port mapping |
NVR Compatibility | Native NVRs only | Any ONVIF-compliant NVR |
Physical and electronic specifications dictate the success of the physical installation. You must evaluate the internal components before committing to a specific hardware platform. A module that looks great on a spec sheet might fail miserably in a harsh outdoor environment if the internal components lack durability.
The durability of internal stepper motors determines the lifespan of the optics. High-precision stepper motors ensure accurate preset recall. When an operator clicks a saved preset, the camera must return to the exact focal length and focus point every time. Cheap motors drift over time, requiring constant manual recalibration. This drift renders automated patrol routes useless.
Evaluate the autofocus algorithms. Contrast detection relies on analyzing image sharpness frame by frame. It struggles in low-light conditions and often hunts for focus. Phase detection uses dedicated sensor pixels to measure the distance to the subject. This results in faster, more accurate focus locks, especially in challenging lighting. We always recommend phase detection for environments with variable illumination.
Infrastructure compatibility relies on matching power delivery methods. Modern IP PoE network modules receive data and power over a single Cat5e or Cat6 cable. Legacy HDCVI analog motorized modules require separate coaxial cables for video and discrete wiring for RS485 PTZ control. Mixing these technologies requires active baluns and media converters, which introduce failure points.
Calculate your power budgets carefully. Standard PoE (802.3af) delivers up to 15.4 watts per port. This is sufficient for a basic fixed-lens camera. A motorized OEM CCTV Camera Module requires more power to drive the lens elements. If you install the module in an outdoor enclosure with integrated heaters and blowers, you must use PoE+ (802.3at), which delivers up to 30 watts. Review the pinout configurations on the module's wiring harness to ensure compatibility with your network interfaces.
PoE Power Budget Requirements | ||
Standard | Maximum Wattage | Typical Application |
|---|---|---|
802.3af (PoE) | 15.4W | Fixed lens indoor cameras |
802.3at (PoE+) | 30W | Motorized zoom modules, basic PTZ |
802.3bt (PoE++) | 60W - 90W | Heavy-duty PTZ with heaters/blowers |
Physical integration presents unique challenges. You must match the bare module dimensions to existing dome, bullet, or fixed point-to-point zoom turret housings. Measure the internal clearance carefully. The lens barrel extends significantly at maximum optical zoom. If the lens hits the dome bubble, the motor will burn out.
Assess thermal management. High-performance image sensors generate substantial heat. The enclosure must dissipate this heat to prevent thermal noise from degrading the video feed. Ensure any retrofitted enclosures maintain strict weatherproofing standards. IP66 ratings protect against heavy seas or powerful jets of water. IP67 ratings allow for temporary submersion. Use silica gel packets inside the housing to prevent condensation on the lens during temperature swings.
Bringing a third-party module online requires a structured approach. Haphazard network configurations lead to IP conflicts and dropped video streams. Follow a strict sequence to ensure the device communicates properly with the VMS.
Start with the standard boot sequence. Power on the camera and connect it to a dedicated PoE switch port. Do not connect it directly to the NVR yet. Use the Search Active Devices Protocol (SADP) tool on a connected laptop to locate the device on the network. This prevents IP address conflicts with existing hardware.
Launch the SADP tool on a laptop connected to the same physical switch as the camera.
Locate the inactive IP address associated with the new module in the device list.
Activate the device by creating a strong alphanumeric password.
Assign a static IP address outside of your router's DHCP pool to prevent future conflicts.
Configure the correct subnet mask and default gateway for your specific network topology.
Input this new IP address into your web browser's address bar to establish the initial HTTP handshake.
Log into the web interface. Modern firmware utilizes HTML5, allowing seamless video playback in Chrome, Edge, or Safari. Older firmware may require Internet Explorer and specific ActiveX plugins. Navigate to the network settings and verify the RTSP and HTTP ports. Ensure these ports are not blocked by the site's firewall.
Open iVMS-4200. Navigate to Device Management and click Add Device. Input the static IP address, the designated port, the username, and the password. Mac users managing small-scale deployments must ensure they download the specific macOS version of iVMS-4200, as feature parity differs slightly from the Windows build. Configure the essential VMS modules. Set up the live view grid, allocate storage for playback, and integrate the camera into your e-maps for centralized monitoring. Configure the secondary stream for mobile viewing to conserve bandwidth when accessing the system remotely.
Test the manual zoom and focus commands via the web interface first, then verify them within the VMS. This isolates any software communication errors. Move the lens from its widest angle to full telephoto. The autofocus should track the subject continuously.
Frame specific areas of interest and save them as numbered presets in the VMS.
Combine these presets into a patrol route with defined dwell times at each location.
Link motion detection triggers to specific presets to automate surveillance responses.
Adjust the focus limit settings to prevent the camera from focusing on dirt or rain on the enclosure glass.
Configure privacy masks that scale dynamically with the optical zoom to block out sensitive areas.
High-quality optics hold value beyond standard security perimeters. You can leverage these modules for specialized communication tasks. Field engineers often adapt surveillance hardware for industrial monitoring or broadcast applications.
Engineers frequently ask how to use a high-quality IP camera for teleconferencing software. These platforms do not natively accept RTSP network video streams. You must bridge the gap between the IP protocol and standard webcam protocols.
You need specific hardware to accomplish this. Output the video feed from the NVR or a dedicated hardware decoder via HDMI. Connect this HDMI cable to a UVC USB capture card. Plug the capture card into your computer. The operating system will recognize the capture card as a standard USB webcam. You can now select the camera feed within your teleconferencing software. Use the VMS or a physical joystick controller to manage the optical zoom during the meeting. This setup provides massive optical zoom capabilities for large boardrooms or remote site inspections.
Integration rarely proceeds without minor hardware or software conflicts. Identifying the root cause of erratic behavior saves hours of diagnostic time. We see the same three issues repeatedly in the field.
A camera zooming in by itself is a documented integration failure. This erratic behavior stems from conflicting VMS commands, faulty browser plugins, or physical motor faults. The camera receives a phantom PTZ command and executes it without operator input.
Begin mitigation by isolating the device. Disconnect the camera from the NVR and the VMS. Access the camera directly via a clean web browser. If the unprompted zooming stops, the issue lies within the VMS event triggers or a rogue macro. Test the PTZ controls via the mobile phone app. If the camera behaves normally on mobile but erratically on desktop, you must reinstall the desktop VMS software and clear all saved patrol routes.
Sluggish zoom response frustrates operators. When you click the zoom button, the lens should move immediately. Latency usually indicates network bottlenecks, bitrate misconfigurations, or ONVIF translation delays.
Check your network switches. Ensure they are not dropping packets due to bandwidth saturation. Log into the camera's web interface and adjust the video parameters. Lower the bitrate slightly. Ensure the iframe interval matches the frame rate. If you are using an ONVIF connection, verify that the NVR is polling the camera using the correct profile. Switching from Profile S to Profile T often improves command response times. Consider switching the transmission protocol from TCP to UDP. UDP drops packets but maintains real-time speed, which improves PTZ control responsiveness.
Updating OEM module firmware within a proprietary environment carries significant risk. Never flash generic firmware onto a specialized OEM block. The hardware components differ, and incorrect firmware will brick the device or disable the motorized lens.
Always maintain tested firmware baselines. If a new module arrives with newer firmware that breaks VMS compatibility, you must perform a safe rollback. Obtain the exact previous firmware version from the manufacturer. Apply the downgrade via the web interface while hardwired directly to the camera. Never perform firmware flashes over a wireless bridge or an unstable VPN connection.
Deploying a single module differs vastly from managing hundreds of cameras across an enterprise network. You must plan for long-term operational realities. Hardware degrades, and network topologies evolve.
Motorized components degrade over time. The lifecycle of an OEM motorized block depends heavily on its deployment environment. Cameras running continuous patrol routes wear out their stepper motors faster than fixed-position cameras. Schedule regular maintenance windows to clean enclosures and inspect wiring harnesses for corrosion. Check the diagnostic logs for motor step errors, which indicate failing internal components.
Managing mixed-protocol environments across multiple enterprise sites requires strict documentation. Maintain a centralized database detailing every camera's IP address, firmware version, protocol type, and physical location. Standardize your configuration templates. Ensure every ONVIF module uses the exact same bitrate, frame rate, and event trigger settings to guarantee predictable performance across the entire network.
Audit your existing network infrastructure to ensure your PoE switches deliver the required wattage for motorized lens operation.
Procure a single evaluation unit and test it thoroughly against your specific VMS version before committing to a bulk order.
Use the SADP tool to assign static IP addresses outside your DHCP pool to prevent network conflicts.
Validate motorized focus stability by testing the camera in both high-contrast daylight and low-light conditions.
A: Contrast detection autofocus struggles in low-light environments because the image lacks sharp edges. The camera hunts for focus and fails. Switching to a module with phase detection autofocus or increasing ambient illumination resolves this issue.
A: Yes, provided the NVR and the camera both fully support ONVIF Profile S. The NVR translates the physical joystick movements into standardized ONVIF PTZ commands and sends them over the network to the camera.
A: Optical zoom physically moves glass lenses to magnify the subject without losing resolution. Digital zoom crops the center of the image and enlarges the pixels, resulting in a blurry, pixelated image.
A: The camera is likely on a different physical network segment, or the PoE switch is not providing enough power to boot the device. Connect your laptop directly to the same switch as the camera and verify the port lights are active.
A: Downgrading carries risks and can brick the device if interrupted. Only perform a downgrade if the current firmware breaks critical functionality. Always use the exact binary file provided by the original equipment manufacturer and maintain a hardwired connection during the process.
