Static surveillance leaves critical blind spots in high-stakes environments, driving the operational requirement for dynamic, responsive tracking systems. Transitioning from fixed surveillance to active monitoring requires integrating a standard or modular cctv camera with Pan-Tilt-Zoom (PTZ) mechanics, control protocols, and Video Management Systems (VMS). Misalignment in hardware protocols or software APIs leads to control latency, dropped feeds, and wasted infrastructure spend. This guide breaks down the technical pathways for integrating camera modules into PTZ frameworks. You must evaluate hardware compatibility, control interfaces, and the mitigation of common deployment risks to ensure mechanical and digital synchronization. We will look at exact wiring standards, protocol handshakes, and network configurations needed to make these systems work in the field.
Protocol Standardization is Critical: Successful PTZ integration relies on universal communication protocols (like ONVIF Profile S/T or Pelco-D/P) to ensure the camera module, motor housing, and VMS communicate without proprietary lock-in.
Modular Architecture Drives Flexibility: Utilizing an IP CCTV Camera Module or a specialized Zoom Block CCTV Camera allows integrators to customize optical performance independently of the mechanical PTZ housing.
Control Latency Defines ROI: The effectiveness of a PTZ CCTV Camera is dictated by the latency between the control interface (joystick, VMS, mobile app, or automated trigger) and the mechanical response; network architecture must prioritize low-latency routing.
Automation Multiplies Value: Modern integrations move beyond manual joystick control, linking PTZ movements to external alarm triggers, motion sensors, and AI-driven auto-tracking.
Understanding the physical and data layers required to transform a static imaging sensor into a fully controllable, multi-axis surveillance tool determines your deployment success. A PTZ system combines a complex robotic housing with an optical sensor. The synchronization between mechanical movement and video encoding dictates how well the unit tracks targets.

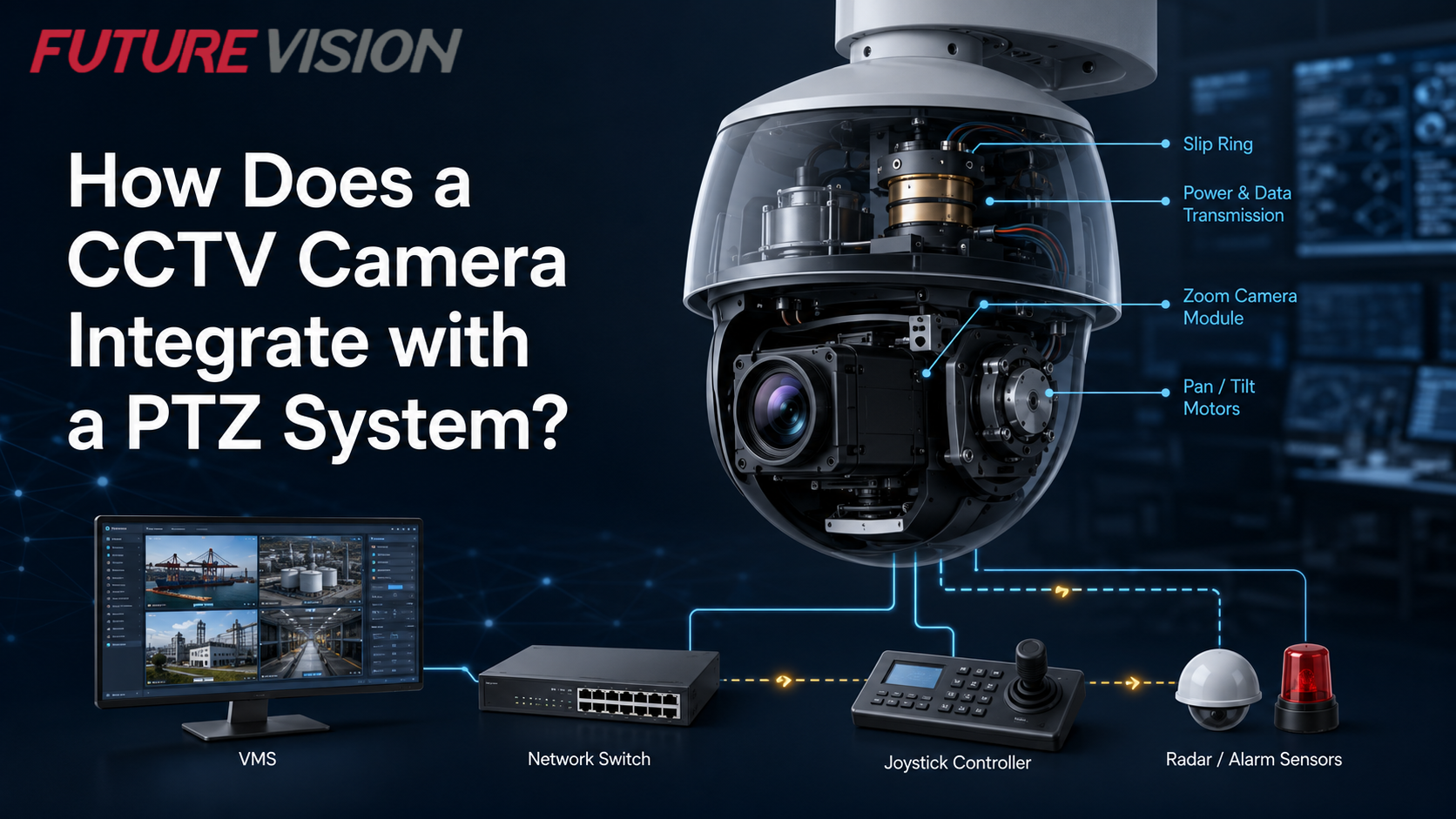

The architecture of a dynamic camera system relies on three distinct subsystems working together. A bottleneck in any of these components degrades your entire surveillance operation.
The Imaging Engine: At the core lies the IP CCTV Camera Module. This component captures photons, converts them into digital signals, and applies image signal processing (ISP). It handles low-light enhancement, wide dynamic range (WDR), and network transmission of the encoded video stream. It acts as the brain of the optical system, managing exposure times and gain control dynamically as the camera pans across varying lighting conditions.
Optical Zoom Mechanics: To achieve lossless magnification, a Zoom Block CCTV Camera integrates motorized varifocal lenses directly with the image sensor. Unlike digital zoom, which crops and enlarges pixels, the zoom block physically moves glass elements to change the focal length. This requires precise autofocus algorithms that continuously calculate contrast and phase detection to keep the image sharp while the lens elements move. The f-stop adjusts automatically to maintain light intake as the focal length increases.
Electro-Mechanical Housing: The physical movement is driven by stepper motors and drive belts housed within the dome or positioning unit. A major component here is the slip ring. This electromechanical device allows the transmission of power and electrical signals from a stationary structure to a rotating one. High-quality slip rings utilize gold-on-gold contacts. They ensure high-frequency video data and control signals pass through without interference, enabling the camera to pan continuously 360 degrees without tangling internal wiring.
When assembling these components in the field, technicians follow a specific sequence to ensure mechanical alignment and data integrity.
Mount the base plate securely to the parapet or pole using heavy-duty anchors to prevent vibration transfer.
Seat the slip ring assembly into the base, ensuring the data ribbon cables remain untwisted and free of tension.
Connect the internal power harness to the stepper motors responsible for the pan and tilt axes.
Slot the camera module into the central carriage, securing it with vibration-dampening screws to prevent micro-jitters at high zoom levels.
Terminate the RJ45 or RS-485 connections from the module to the external pigtail whip.
Seal the environmental dome or housing, applying dielectric grease to the O-rings to prevent moisture ingress.
Delivering power to a motorized camera requires significantly more capacity than a static dome. You must evaluate Power over Ethernet (PoE) capabilities against separate high-voltage power supplies. Standard PoE (802.3af) maxes out at 15.4W at the switch port, delivering around 12.95W to the device due to cable dissipation. This is insufficient for mechanical movement. Modern systems rely on PoE++ (IEEE 802.3bt Type 3 or Type 4), which delivers up to 60W or 90W over a single standard Ethernet cable. You must use solid copper CAT6 or CAT6A cable for PoE++ runs to minimize voltage drop and heat generation within the cable bundle.
This high power budget drives the stepper motors and environmental controls. Outdoor units frequently incorporate internal heaters to prevent lens icing and blowers to manage condensation. In extreme environments, relying solely on PoE++ might fall short. You may need dedicated 24V AC or 12V DC power lines pulled alongside the data cables to ensure continuous motor operation during peak heating or cooling cycles.
Power Standard | Maximum Wattage | Cable Requirement | Typical Application |
|---|---|---|---|
PoE (802.3af) | 15.4W | CAT5e | Static IP cameras, basic indoor domes. |
PoE+ (802.3at) | 30W | CAT5e / CAT6 | Indoor PTZ units, outdoor static cameras with heaters. |
PoE++ (802.3bt Type 3/4) | 60W - 90W | CAT6 / CAT6A | Heavy-duty outdoor PTZ systems, multi-sensor arrays. |
24V AC (Hardwired) | 100W+ | 18/2 AWG Copper | Extreme weather positioning systems, long-range IR illuminators. |
The methods by which control inputs translate into mechanical movement dictate system responsiveness. Bridging the gap between the operator's command and the camera's physical execution requires specific hardware interfaces and standardized communication protocols. We see many installations fail because the data layer cannot keep up with the mechanical capabilities of the hardware.
Historically, camera telemetry was handled separately from video transmission. Today, network integration unifies these streams. Understanding both approaches helps you retrofit older sites and design new deployments.
Integration Type | Wiring Infrastructure | Primary Protocols | Strengths | Limitations |
|---|---|---|---|---|
Legacy / Analog Integration | Coaxial (Video) + RS-485 (Data) | Pelco-D, Pelco-P, VISCA | Highly reliable over long distances; zero network latency. | Requires multiple cable pulls; difficult to scale; limited metadata support. |
IP-Based Integration | Single CAT5e/CAT6 Ethernet | ONVIF Profile S/T, HTTP API | Unified power, video, and control; easily scalable; supports advanced analytics. | Susceptible to network congestion; requires proper switch configuration. |
Legacy integrations utilize RS-485 wiring operating on a daisy-chain topology. You must wire the transmit (TX) and receive (RX) lines correctly, matching TX+ to RX+ and TX- to RX- between the controller and the camera. The controller sends hexadecimal commands using Pelco-D or Pelco-P protocols. You assign each camera on the chain a unique physical address via DIP switches located on the camera's control board. You must also match the baud rate (typically 2400, 4800, or 9600 bps) and parity settings (None, Even, Odd) across all devices. If the baud rate is mismatched, the camera will ignore all telemetry commands. While reliable over distances up to 4000 feet using 24 AWG twisted pair cable, this method isolates the control infrastructure from modern IT networks.
IP-based integration leverages ONVIF profiles over standard Ethernet. ONVIF Profile S standardizes video streaming and basic PTZ control. Profile T adds support for advanced video encoding (H.265) and bidirectional audio. This unified approach allows a single cable to carry PoE power, 4K video streams, and complex XML/SOAP-based telemetry commands simultaneously. You configure IP addresses, subnet masks, and gateway settings to ensure the camera communicates with the recording server. The VMS uses Web Services Discovery (WS-Discovery) to locate the camera on the network and pull its XML capability file.
Video Management Systems (VMS) and Network Video Recorders (NVR) act as the central nervous system for surveillance deployments. These platforms ingest PTZ APIs to allow unified control, recording, and integration into broader centralized safety setups from a single dashboard. When you add a PTZ CCTV Camera to a VMS, the software queries the camera for its capabilities, including maximum pan speed, tilt limits, and optical zoom range.
Within the VMS interface, operators configure preset tours and guard patrols. A preset is a specific combination of pan, tilt, and zoom coordinates saved in the camera's memory. A guard patrol links multiple presets together, instructing the camera to move between them at defined intervals. The VMS also establishes the home position. This is a default preset the camera returns to after a period of manual inactivity. It ensures critical areas are never left unmonitored due to operator error. You can also configure privacy masks within the VMS, which dynamically block out specific areas like residential windows as the camera pans across them.
Operators interact with the camera through various interfaces. Each suits different operational environments.
Network Joysticks: In dedicated control rooms, network joysticks provide tactile, proportional control. These devices connect directly to a local area network (LAN) or an NVR via a single Ethernet cable. Operators assign camera IDs within the joystick interface, allowing them to switch instantly between dozens of cameras. Proportional control means the further you push the joystick, the faster the camera moves.
Short-Range Alternatives: For localized, line-of-sight control in smaller deployments like conference rooms, IR remotes offer a simplified solution. They require direct line-of-sight to the camera's IR receiver and lack the precision needed for long-distance tracking.
Mobile and Desktop Software: Modern deployments leverage smartphone apps and dedicated desktop software to execute pan, tilt, and zoom commands remotely over the internet. Exposing a camera directly to the internet creates a severe security risk. You must route remote access through secure P2P cloud integration provided by the manufacturer, or preferably, a dedicated Virtual Private Network (VPN) that encrypts the control traffic.
Moving from manual operation to automated, event-driven surveillance maximizes the utility of motorized cameras. Relying solely on human operators to detect and track targets is inefficient and prone to fatigue. Advanced integration links camera movements directly to environmental stimuli, creating a reactive security perimeter.
The most direct form of automation involves wiring hard I/O (Input/Output) alarm relays directly to the camera or the NVR. When an external sensor triggers, it closes a circuit. The camera is programmed to recognize this circuit closure and instantly execute a movement to pre-defined coordinates.
You will typically encounter two types of relay states: Normally Open (NO) and Normally Closed (NC). For example, a magnetic door contact is usually wired as NC. If a perimeter gate is forced open, the circuit breaks. The access control system sends a dry contact signal to the camera's alarm input block. The camera immediately overrides any current patrol, pans to the gate preset, zooms in to capture license plates, and increases the recording frame rate. This mechanical handshake ensures visual verification of security events with zero operator latency.
High-security environments utilize slew-to-cue functionality by integrating PTZ systems with ground radar or thermal tripwires. Ground radar continuously scans wide open areas, tracking the GPS coordinates and velocity of moving objects. The integration software translates these radar coordinates into pan, tilt, and zoom telemetry.
When the radar detects an intruder, it commands the camera to automatically slew to the exact location and track the target dynamically. This integration is highly effective in environments like airports, solar farms, and critical infrastructure perimeters. In these locations, lighting is poor and the coverage area is too vast for standard video analytics to operate reliably. The radar provides the exact vector, and the camera provides the visual identification.
Auto-tracking relies on video analytics to lock onto and follow human or vehicular targets. You must evaluate the processing load and determine where the analytics should reside: on the edge or on the server.
Edge-based AI processes the video directly on the camera module's internal Neural Processing Unit (NPU). This reduces network bandwidth and server load, as the camera handles its own tracking algorithms. Server-based VMS analytics pull the video stream to a centralized server equipped with powerful GPUs. The server analyzes the footage and sends PTZ commands back to the camera.
While server-based analytics are generally more powerful and capable of tracking multiple targets simultaneously, they introduce network latency. If the network is congested, the delay between the server analyzing the frame and the camera receiving the movement command causes the target to slip out of the field of view. Edge-based tracking eliminates this round-trip delay, resulting in smoother mechanical tracking.
Designing a dynamic surveillance network requires balancing performance requirements against physical and digital infrastructure limitations. You must navigate technical trade-offs to ensure the system scales effectively without degrading core functionality. Adding more cameras to a network changes the bandwidth dynamics entirely.
High-resolution streams, particularly 4K video encoded in H.264 or H.265, require significant network bandwidth. Pushing multiple 4K streams across a congested network introduces packet loss and latency. In a PTZ deployment, latency ruins the user experience. If an operator pushes the joystick and the video feed lags by even 500 milliseconds, they will overcompensate. This results in erratic camera movements and missed targets.
The solution is dual-stream configuration. You configure the camera to output a high-resolution Main Stream (e.g., 4K at 30fps) directly to the NVR for archival recording. Simultaneously, it outputs a lower-resolution Sub Stream (e.g., 1080p or 720p at 15fps) to the operator's live-view monitor and joystick controller. This ensures the control interface remains highly responsive and free of lag, while the recorded evidence retains maximum forensic detail.
You face a choice between custom-building a solution or deploying off-the-shelf units. Integrating a standalone zoom block into a custom ruggedized housing is necessary for extreme environments. For instance, marine deployments require 316L stainless steel housings pressurized with dry nitrogen to prevent salt corrosion and internal condensation. In these cases, purchasing a bare camera module and integrating it with specialized third-party motors and housings is the only viable path.
Off-the-shelf, pre-integrated units offer guaranteed compatibility between the sensor, lens, and motors. They require less bench-testing and deploy faster. This makes them suitable for standard commercial, retail, and municipal applications where environmental extremes are not a primary concern. You save labor hours on the installation, but you lose the ability to swap out individual components if the optical requirements change.
Scaling from a single unit to a multi-site deployment requires careful assessment of network switch capacity and VMS architecture. Motorized cameras draw more power and generate variable bitrates depending on the amount of motion in the scene. When a camera pans rapidly, the video encoder must process entirely new frames, causing bandwidth spikes.
Audit the PoE budget of all edge switches to ensure they can power all connected units simultaneously during peak motor draw.
Upgrade the core network backbone to handle aggregate bandwidth spikes without dropping packets.
Factor in VMS licensing, as enterprise platforms require specific, higher-tier channel licenses for cameras with mechanical telemetry features.
Implement multicast routing on the network switches if multiple operators need to view the same live stream simultaneously.
Deploying motorized surveillance introduces variables not present in static camera installations. Recognizing the most common failure points allows you to apply specific mitigation strategies prior to deployment. Field failures usually stem from software mismatches or environmental degradation.
The most persistent integration risk is partial ONVIF compliance. In this scenario, the camera successfully connects to the VMS, and the video streams perfectly. The technician believes the integration is complete. However, when attempting to use PTZ controls, call presets, or initiate guard tours, the commands fail. This occurs because the camera's firmware does not fully support the specific XML API calls the VMS is sending.
Strict adherence to ONVIF conformance lists is mandatory. You must verify both the camera firmware and the VMS version on the official ONVIF product database. Pre-deployment bench testing is essential. Connect the camera to the exact VMS environment in a lab setting. Test all mechanical functions, preset calls, and alarm triggers before mounting the unit on a 30-foot pole.
Unlike static domes, motorized units possess moving parts susceptible to physical degradation. Slip rings wear out, stepper motors burn out if obstructed, and drive belts snap in freezing temperatures. High-vibration environments, such as bridges or heavy industrial sites, accelerate this wear.
Specify hardware with appropriate environmental ratings. Ensure the housing carries an IP66 or IP67 rating against dust and water ingress, and an IK10 rating for vandal resistance. For high-vibration areas, select cameras with Electronic Image Stabilization (EIS) and heavy-duty, vibration-dampening mounting brackets. Implement preventative maintenance schedules that include inspecting housing seals, cleaning dome bubbles, and testing motor limits annually.
Motorized cameras are network-connected computers running embedded Linux. If left unsecured, they act as easy entry points for malicious actors to pivot into the broader corporate network. This risk amplifies when cameras are configured for remote smartphone app access using default credentials or unencrypted P2P cloud services.
Harden the camera immediately upon unboxing. Disable all unused network ports, such as Telnet or FTP. Enforce HTTPS/TLS encryption for all web interface access. Avoid default P2P cloud settings. Route remote access through a secure VPN. Segment all surveillance traffic onto a dedicated Virtual Local Area Network (VLAN) isolated from the main corporate data network. Utilize 802.1X port-based authentication to prevent unauthorized devices from connecting to the switch.
Integrate your optical hardware, telemetry protocols, and network infrastructure properly to build a responsive surveillance system. Verify your power delivery and network bandwidth before mounting any hardware. Follow these immediate steps to finalize your deployment:
Audit your network switches to confirm they support PoE++ and have sufficient total power budgets for all planned motorized units.
Download the latest firmware for your cameras and VMS, cross-referencing them on the official ONVIF conformance database.
Wire a test alarm input to the camera on a test bench to verify the mechanical handshake and preset recall speed.
Configure a dual-stream setup in your VMS to guarantee low-latency joystick control while preserving high-resolution recording.
A: A static camera monitors a fixed field of view, requiring manual repositioning to change its angle. A PTZ camera includes mechanical and optical components allowing operators to pan, tilt, and zoom dynamically. This provides vast area coverage and active target tracking from a single installation point.
A: A Zoom Block integrates the image sensor, digital signal processor, and a motorized optical zoom lens into a single, pre-calibrated unit. It is specifically designed to be housed within PTZ domes or positioning systems, providing lossless optical magnification and rapid autofocus capabilities during mechanical movement.
A: Modern IP-based PTZ cameras primarily rely on ONVIF, specifically Profile S and Profile T, for standardized video streaming and telemetry control across different VMS platforms. Legacy or hybrid systems may still utilize serial protocols like Pelco-D or Pelco-P transmitted over RS-485 wiring.
A: Yes. Through hardwired I/O relay ports or software-based VMS integrations, a PTZ camera can be programmed to automatically pan and zoom to a specific door, gate, or perimeter zone the moment an access control alarm or motion detector is triggered.
A: Network joysticks connect to the same local area network or directly to an NVR via a standard Ethernet cable. The controller is then configured with the camera's specific IP address, port number, and communication protocol to send precise telemetry commands.
A: Yes. Most modern IP-based PTZ systems offer dedicated smartphone apps and desktop software, allowing users to manipulate the camera over the internet. This requires a secure network connection, typically achieved via a VPN or an encrypted P2P cloud service provided by the manufacturer.
A: Control latency is typically caused by network congestion, insufficient bandwidth, or processing delays within the VMS. Utilizing a dual-stream configuration, where a secondary, lower-resolution video stream is used for live viewing and control, can significantly reduce this lag and restore responsiveness.
