Quick Summary Railway CCTV surveillance requires industrial-grade, vibration-resistant, all-weather cameras to cover track intrusion, platform safety, tunnel hazards, and equipment security across a four-layer architecture: video acquisition, network transmission, data storage, and platform management. Built for -40°C to +60°C operation with IP67 protection and anti-electromagnetic-interference design, the system supports 24/7 monitoring, AI-based hazard detection, and full video traceability for accident investigation. |
A railway CCTV surveillance system uses a scientific, hierarchical, and modular architecture divided into four core layers, ensuring operational stability, clear logical layout, and scalable upgrades.
• Track special bullet cameras: Anti-vibration structure, IP67 rating, and strong light suppression. Fixed along railway tracks to monitor train operating status, line obstacles, and foreign object intrusion.

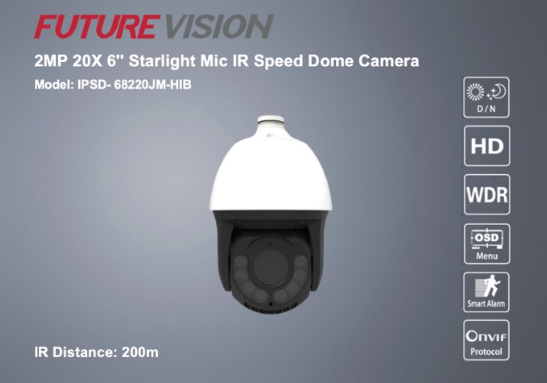

• 360° PTZ infrared dome cameras: Panoramic monitoring for stations and freight yards, with remote zoom and full rotation for large-area patrol and passenger flow monitoring.

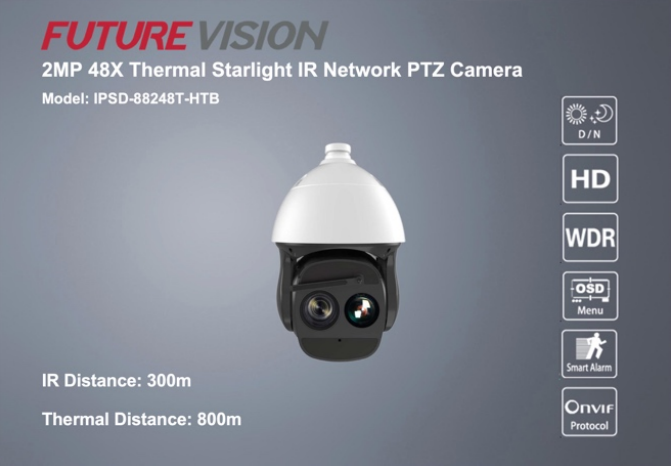

• Low-light & thermal imaging cameras: For tunnels, viaducts, and shaded sections, supporting 24-hour blind-spot-free monitoring and identifying waterlogging, smoke, and fire hazards.
• Explosion-proof CCTV cameras: For flammable/explosive scenarios such as locomotive maintenance workshops and fuel depots, meeting industrial safety specifications.
2. Network Transmission Layer
Industrial-grade, anti-interference transmission hardware is optimized for high-speed rail operation and complex electromagnetic environments. Main line sections use optical fiber and industrial PoE switches for stable, high-speed wired transmission; remote segments use 4G/5G wireless modules. Built-in lightning protection and anti-interference components resist electromagnetic interference from high-speed trains.
Industrial NVRs and high-performance disk array storage support long-term local storage with flexible cloud expansion and customizable retention. The system enables fast video retrieval by time, location, and event, with automatic backup and fault recovery.
An intelligent video management platform provides unified centralized management of all front-end devices, covering real-time preview, historical playback, device status monitoring, and multi-level authority control. It can link with railway alarm, broadcasting, and signal systems to build a closed-loop “monitoring-warning-disposal” mechanism.
• All-weather real-time monitoring: 24/7 HD video across -40°C to +60°C, stable in high temperature, severe cold, rain, snow, and fog.
• Intelligent event identification & early warning: AI algorithms detect track foreign object intrusion, illegal pedestrian crossing, platform overcrowding, safety line violations, tunnel smoke/fire, and stranded personnel, with instant alerts to management terminals.
• Train operation & passenger safety monitoring: Captures real-time train operating status and identifies abnormal behaviors such as illegal window opening and external climbing; supports passenger flow statistics and crowd congestion warnings at stations.
• Video traceability & data archiving: Classified storage and fast retrieval by time, location, and event for accident investigation and safety violation verification.
• High environmental adaptability: IP67 waterproof/dustproof rating plus anti-vibration and anti-electromagnetic-interference structures for reliable operation near high-speed trains.
• Railway stations: Waiting halls, passenger platforms, ticket lobbies, and internal passages, for full passenger safety supervision.
• Railway lines: Urban and inter-city tracks, viaducts, culverts, and level crossings, focusing on line safety and foreign object intrusion prevention.
• Railway tunnels: Full-coverage low-light monitoring, tunnel fire hazard detection, and stranded personnel early warning.
• Workshops & yards: Locomotive maintenance workshops, freight marshalling yards, substations, and signal rooms.
• Industrial-grade reliability: Scenario-customized industrial hardware with excellent environmental adaptability and low failure rate.
• AI-powered intelligent monitoring: Upgrades passive video recording to active intelligent safety early warning.
• Compatibility & scalability: Open, standardized interfaces support integration with mainstream railway security subsystems and future upgrades.
• Low O&M cost: Modular design simplifies deployment and maintenance, supporting remote fault diagnosis and device management.
Q: What protection rating do railway CCTV cameras require?
IP67 waterproof and dustproof rating is standard, combined with anti-vibration and anti-electromagnetic-interference structures to withstand conditions near high-speed trains.
Q: How does the system detect tunnel hazards?
Low-light and thermal imaging cameras deployed in tunnels support 24-hour blind-spot-free monitoring and can identify waterlogging, smoke, and fire hazards.
Q: What operating temperature range do railway cameras support?
Industrial-grade railway CCTV cameras typically operate across -40°C to +60°C, remaining stable in extreme heat, severe cold, rain, snow, and fog.
Q: Why are explosion-proof cameras used in railway systems?
Locomotive maintenance workshops and fuel depots are flammable/explosive environments requiring explosion-proof cameras that meet industrial safety specifications.
