Quick Summary Thermal distance is the long-range passive detection range of a thermal camera, capturing natural long-wave infrared (LWIR) heat radiation with no light source needed — typically hundreds of meters up to several kilometers. IR distance is the short-range active monitoring range of a camera with built-in IR LED illuminators, relying on near-infrared (NIR) reflected light — typically 30–300 meters and sensitive to weather and ambient light. Understanding this distinction is essential when specifying cameras for long-range perimeter, border, or industrial monitoring versus short-range detail capture. |
Thermal Distance (Thermal Imaging Detection Distance): the maximum effective detection, recognition, and identification range of a passive thermal camera. Thermal cameras capture long-wave infrared (LWIR) heat radiation naturally emitted by all objects based on temperature differences — no extra light or illumination is required. The camera does not emit any infrared light; it passively senses inherent heat and converts heat contrast into a visible thermal image. Thermal distance is determined by the lens focal length, thermal sensor resolution, atmospheric heat transmittance, and the temperature difference between target and background.
IR Distance (Active Infrared Illumination Distance): the maximum clear monitoring range of a regular day-night surveillance camera with active IR LED illuminators. This camera type relies on near-infrared (NIR) active supplementary lighting: built-in IR LEDs illuminate the scene, and the sensor captures the reflected infrared light to form a night-vision image. This is an active reflective imaging mode, entirely dependent on the power and irradiation angle of the IR illuminators, with no ability to capture natural heat radiation.

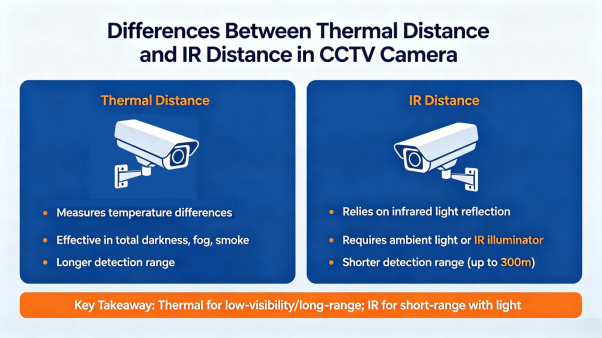

The essential difference lies in whether the camera needs to emit infrared light. Thermal distance is passive detection, independent of any light source; IR distance is active supplementary-light imaging, with monitoring distance entirely restricted by the performance of the camera's IR illuminators. Without IR LED illumination at night, a regular IR camera cannot form an effective image at all, while a thermal camera works normally in total darkness without any auxiliary lighting.
• Thermal distance: extremely long effective range. Entry-level thermal cameras can detect human targets at hundreds of meters, while professional long-range thermal models achieve effective detection up to 1–5 kilometers or more. Longer lens focal length extends thermal detection distance further, suiting large-area perimeter security, border defense, and forest fire prevention.
• IR distance: relatively short and limited. Most commercial cameras with built-in IR LEDs have an effective IR distance of only 30–150 meters; even high-power enhanced IR illuminators rarely exceed 300 meters with clear imaging. Beyond this range, IR light attenuates sharply and the image becomes blurry, overexposed, or invisible — suited to short/medium-range monitoring such as communities, workshops, and small indoor/outdoor areas.
• Thermal distance stability: strong anti-interference ability. Thermal LWIR has strong penetration through smoke, light fog, haze, and dust, and thermal detection distance is almost unaffected by bad weather or complex environmental conditions. Thermal cameras are also unaffected by strong-light/dark-light switching, delivering all-weather stable distance performance.
• IR distance vulnerability: poor environmental adaptability. Active IR light is easily scattered and absorbed by fog, smoke, dust, and heavy rain, greatly shortening effective distance and producing fogging or blurring in the night-vision image. Strong ambient light can also interfere with IR supplementary light, reducing actual usable monitoring distance.
Thermal distance focuses on heat-difference detection: it can identify hidden targets blocked by obstacles (such as people hiding in bushes), but thermal cameras cannot penetrate glass, and the image shows only thermal outlines without color or texture detail. IR distance focuses on reflection imaging: it presents clear target details, colors, and textures, and can shoot through glass normally, but cannot detect hidden targets without a direct line of sight, and both imaging effect and distance are greatly affected by the external environment.
Comparison Item | Thermal Distance | IR Distance |
Imaging Mode | Passive — captures natural heat radiation (LWIR) | Active — IR LED fill light + reflected light (NIR) |
Light Dependence | No light needed; works in total darkness | Dependent on built-in IR illuminator power |
Effective Range | Hundreds of meters to several kilometers | 30–300 meters (short-range only) |
Bad-Weather Resistance | Strong — anti-fog, smoke, dust | Weak — distance drops sharply in bad weather |
Core Application | Long-range perimeter, border, fire detection | Short-range daily surveillance, detail recording |
• Border defense & long-range perimeter security: thermal cameras with a thermal distance of 1–3 kilometers, deployed at remote border areas or large industrial parks with multi-kilometer perimeters, passively detect people, vehicles, or intruders day and night, even in light fog, smoke, or dust, without relying on auxiliary lighting.
• Forest fire prevention: watchtower-mounted thermal cameras with a thermal distance of 500 meters to 1 kilometer can capture the weak heat radiation of incipient fires or smoldering points in advance, covering a large forest area for early warning.
• Maritime search and rescue: thermal cameras on rescue ships or helicopters with a thermal distance of 1–2 kilometers detect the heat of people in water or stranded vessels at night or in heavy fog, when visible light and ordinary IR cameras fail.
• Industrial temperature monitoring: thermal cameras with a thermal distance of 300–500 meters monitor high-temperature equipment (boilers, pipelines, transformers) at power plants or chemical plants, detecting abnormal temperature rise in real time to warn of overheating or leakage before accidents occur.
• Community and residential surveillance: day-night cameras with an IR distance of 30–50 meters clearly capture faces and license plates at entrances and courtyards — low cost and suited to large-scale deployment.
• Indoor and workshop monitoring: IR cameras with a distance of 50–100 meters capture equipment operation, personnel activity, and goods movement when lights are off, aiding post-event investigation.
• Store and commercial venue security: IR cameras with a distance of 30–80 meters at entrances, registers, and cargo areas record customer/staff behavior at night, providing evidence for security incidents.
• Short-range roadside monitoring: IR cameras with a distance of 50–150 meters monitor traffic violations and pedestrian activity on urban roads at night, capturing clear plates and appearance in dense road sections.
Q: Which is better for a mining or power plant perimeter: thermal distance or IR distance?
Thermal distance is generally the better fit for long-range perimeter and border monitoring at industrial sites, since it works passively at ranges from hundreds of meters to several kilometers and is largely unaffected by fog, smoke, or dust.
Q: Can IR cameras detect a person hidden behind an obstacle?
No. IR distance relies on reflected light and requires a direct line of sight, so it cannot detect targets hidden behind obstacles the way a thermal camera can.
Q: Can thermal cameras see through glass?
No. Thermal cameras cannot penetrate glass; IR (reflected-light) cameras can shoot through glass normally.
Q: Why does IR distance drop so much in bad weather?
Active IR light is scattered and absorbed by fog, smoke, dust, and heavy rain, which sharply reduces the effective illumination range and causes blurring or fogging in the image.
