Uncooled vs Cooled Thermal Detectors: Core Differences for Industrial Buyers
Quick Summary Thermal detectors — the core sensing component of any thermal imaging system — are classified into uncooled and cooled types based on whether cryogenic cooling is required. Uncooled thermal detectors work at room temperature and prioritize cost, portability, and reliability, making them the standard choice for industrial and civil monitoring. Cooled thermal detectors require cryogenic refrigeration (down to 77K) and deliver far higher sensitivity and range, but at significantly higher cost, size, and maintenance burden — reserved for military, aerospace, and precision scientific use. |
A thermal detector converts infrared thermal radiation emitted by any object into an electrical signal that can be processed into a visible thermal image. Detectors are divided into two categories based on whether cryogenic cooling is required during operation:
• Uncooled thermal detectors
• Cooled thermal detectors

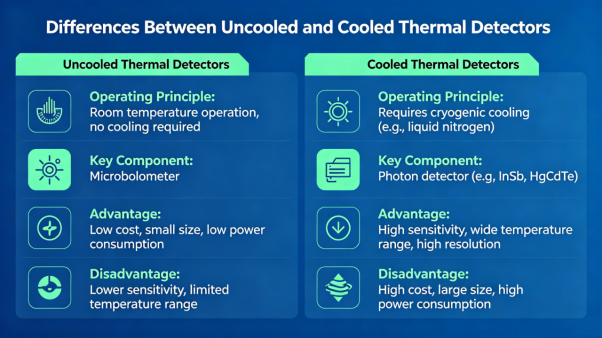

The two differ fundamentally in working mechanism, hardware complexity, detection performance, size and power draw, manufacturing cost, and target applications.
Uncooled thermal detectors are thermal-effect sensing devices that operate at room ambient temperature, with no cryogenic cooling. The sensing element is typically a vanadium oxide (VOx) or amorphous silicon microbolometer array. When infrared radiation strikes a pixel, the pixel’s temperature rises slightly, producing a measurable change in resistance, voltage, or current. This relies purely on the material’s physical thermal response — not quantum photoelectric conversion.
Cooled thermal detectors are quantum photoelectric sensing devices, built from high-performance semiconductor materials such as indium antimonide (InSb) or mercury cadmium telluride (HgCdTe). They convert infrared photons directly into electrical charge. To maintain photoelectric efficiency and eliminate internal thermal interference, the detector must be cooled to an extremely low temperature — typically 77K (liquid nitrogen level) or lower.
• Uncooled detectors have a simplified structure. Most units include only a small Peltier module for temperature stabilization — no cryogenic refrigeration or vacuum packaging. This gives a compact design with fewer moving parts and strong resistance to vibration and shock.
• Cooled detectors require a sealed vacuum Dewar flask, a closed-cycle cryogenic refrigerator or liquid nitrogen system, and precision temperature-control electronics. The added complexity increases assembly precision requirements and creates more components that require regular professional maintenance and calibration.
Performance is measured primarily by NETD (Noise Equivalent Temperature Difference), response speed, and imaging clarity.
• Uncooled detectors typically achieve a NETD of 30–80 mK, sufficient for detecting clear temperature differences but limited for capturing subtle anomalies. Response speed is slower, which can cause image trailing on fast-moving targets.
• Cooled detectors suppress thermal noise through cryogenic cooling, achieving NETD below 25 mK, and as low as 1 mK in high-end models. This enables detection of extremely subtle temperature differences, faster response with no trailing on high-speed targets, higher resolution and contrast, and longer effective detection range.
• Small, lightweight, easy to integrate into handheld and wearable devices
• Very low power consumption, supportable by ordinary batteries
• Mature, low-cost manufacturing process
• Long service life with minimal maintenance
• Larger, heavier; generally limited to fixed, vehicle-mounted, or airborne platforms
• High power consumption due to the refrigeration and temperature-control system
• Complex assembly and expensive materials drive up unit cost
• Precision refrigeration components have limited service life and require regular professional maintenance
• Uncooled detectors primarily operate in the Long-Wave Infrared (LWIR) band, 7.5–14 μm — well suited to conventional ground-temperature detection with limited sensitivity to humidity and everyday environmental interference.
• Cooled detectors mainly operate in the Mid-Wave Infrared (MWIR) band, approximately 3–5 μm, with some high-end models covering multiple bands. MWIR offers better penetration through high-temperature, smoke, and haze conditions, making it suitable for long-range detection and precision scientific measurement.
Parameter | Uncooled Thermal Detector | Cooled Thermal Detector |
Working Principle | Thermal effect (microbolometer, room temperature) | Quantum photoelectric effect (semiconductor, cryogenic) |
Cooling Requirement | None — simple temperature stabilization only | Must be cooled to 77K or lower |
Temperature Sensitivity (NETD) | 30–80 mK | ≤25 mK |
Response Speed | Slower, can trail on fast targets | Ultra-fast, no trailing |
Size & Weight | Small, lightweight | Large, heavy |
Cost & Maintenance | Low cost, minimal maintenance, long service life | High cost, high maintenance, limited component life |
Primary Band | LWIR | MWIR or LWIR |
Application Focus | Civil and industrial monitoring, cost-sensitive scenarios | Military, aerospace, high-precision scientific use |
Uncooled thermal detectors are used across civil and general industrial monitoring: building electrical/mechanical fault detection, energy-loss inspection, forest fire prevention, pedestrian night-vision assistance, firefighting and smoke-penetration rescue, security monitoring, automotive night-vision assistance, and routine industrial temperature measurement.
Cooled thermal detectors are reserved for high-precision, long-range, high-end applications: military long-range surveillance and reconnaissance, airborne and spaceborne remote sensing, scientific-grade thermal measurement, aerospace equipment testing, high-precision industrial non-destructive testing, and long-range early warning and tracking.
Q: Do industrial plants (mining, chemical, power generation) need cooled thermal detectors?
In most cases, no. Uncooled detectors provide sufficient sensitivity for equipment fault detection, fire prevention, and perimeter monitoring at a much lower total cost of ownership. Cooled detectors are typically justified only for long-range, high-precision, or military-grade requirements.
Q: What does NETD measure, and why does it matter?
NETD (Noise Equivalent Temperature Difference) measures the smallest temperature difference a detector can reliably distinguish from noise. A lower NETD value means higher sensitivity to subtle thermal anomalies.
Q: Why are cooled detectors more expensive to operate?
The cryogenic refrigeration system, vacuum Dewar flask, and precision components require regular professional maintenance and have a limited service life, increasing both upfront and lifecycle cost compared with uncooled detectors.
Q: Can uncooled detectors detect flames or overheating equipment?
Yes, for typical fault-detection thresholds. However, for very high-temperature or long-range flame/fault detection requiring finer sensitivity, MWIR-based cooled detectors offer superior performance.
In summary, the choice between uncooled and cooled thermal detectors is a trade-off between performance and cost/portability. Uncooled detectors meet the needs of most conventional industrial and civil applications; cooled detectors are reserved for high-end scenarios that require maximum sensitivity and detection range. Procurement teams should base their selection on required detection accuracy, environmental conditions, and budget.
