Procuring high-resolution imaging hardware is only the first step in deploying a modern security architecture; the true bottleneck lies in system interoperability. Modern surveillance requires more than just 4K resolution—it demands seamless communication across the entire security ecosystem. A standalone digital camera cannot trigger alarms, synchronize with access control, or feed searchable data into a Video Management System (VMS) without the correct physical ports and software protocols. Misjudging interface requirements leads to vendor lock-in, stranded assets, and costly middleware workarounds. To build a scalable, automated security environment, technical buyers must evaluate cameras based on their hardware I/O, network protocols, and API accessibility. This guide breaks down the mandatory interfaces required for seamless integration.
Hardware Connectivity Dictates Capability: Power over Ethernet (PoE) and physical Alarm I/O ports are non-negotiable for synchronized building automation, active deterrence, and access control.
Software Standards Prevent Lock-in: Open Network Video Interface Forum (ONVIF) profiles and Real-Time Streaming Protocol (RTSP) support are mandatory for VMS and NVR interoperability, ensuring advanced search and alert functionalities.

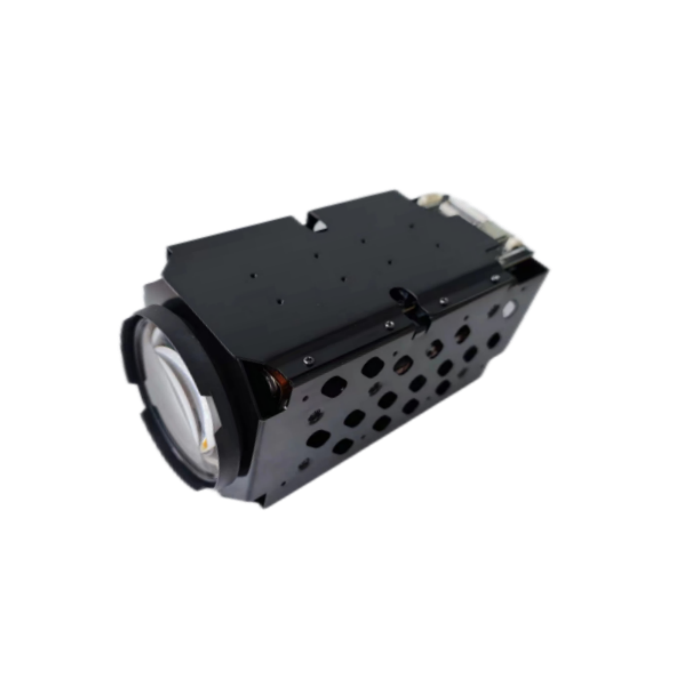

Specialized Modules Require Specific Serial Interfaces: Advanced hardware, such as a Digital Zoom Block Camera, relies on legacy serial communication (RS-485/RS-232) or specialized control protocols (VISCA) for precise mechanical operation.
Security vs. Accessibility: Every open interface, wireless connection, or API introduces a potential attack vector; integration planning must balance connectivity with strict network segmentation and port security.
Surveillance hardware no longer operates in isolation. The industry has shifted from passive recording devices to active network sensors. Success is measured by low-latency video transmission, reliable event triggering, and centralized management. Person-activated alerts and vehicle classification must flow instantly to operators. Without standardized interfaces, these advanced capabilities remain trapped inside the camera housing. Proprietary bottlenecks prevent security teams from achieving true situational awareness. Integrating these sensors requires a clear understanding of both physical connections and software handshakes.
Field technicians often encounter sites where high-end cameras function merely as basic video feeds. This happens when the integration layer is ignored during procurement. A camera might feature onboard license plate recognition, but if it lacks the API or ONVIF profile to push that text data to the head-end server, the feature is useless. The hardware must act as a node on the network, capable of receiving instructions and transmitting complex datasets simultaneously.
Any viable surveillance deployment must meet a strict integration baseline. The hardware must support simultaneous video streaming across multiple channels. It must transmit structured metadata alongside the video feed. This metadata powers analytics and smart search functionalities within the VMS. Furthermore, bidirectional communication is mandatory. The system must receive commands from the central server while simultaneously pushing system alerts outward.
Meeting this baseline ensures the hardware scales alongside evolving security demands without requiring constant physical upgrades. You need devices that support firmware updates over the network, remote reboot capabilities, and dynamic stream configuration. When a security operations center needs to pull a high-resolution feed during an active incident, the camera must respond instantly without dropping the continuous low-resolution recording stream.
Physical ports dictate what a Digital Surveillance Camera can actually do in the field. You cannot fix missing hardware with a software update. Evaluating the physical I/O panel is the first step in hardware selection.
The RJ45 Ethernet port remains the backbone of physical security integration. Consolidating power and data transmission simplifies installation and reduces cabling infrastructure. You must evaluate the specific Power over Ethernet (PoE) requirements of your hardware. Standard fixed cameras typically operate on PoE, drawing minimal power. Devices with motorized lenses or integrated infrared illuminators require PoE+, which delivers higher wattage. Heavy-duty Pan-Tilt-Zoom (PTZ) units with integrated heaters and blowers demand PoE++ to function reliably in extreme weather.
Bandwidth capacity is equally important. Multi-megapixel streams generate substantial network traffic. While standard 10/100 Mbps Ethernet ports suffice for single 1080p streams, high-density deployments pushing multiple 4K channels require Gigabit Ethernet interfaces. This ensures smooth transmission without frame drops during peak network loads. Cable selection also matters. Pulling Cat6a instead of Cat5e ensures the physical infrastructure supports future bandwidth requirements.
PoE Standard | IEEE Specification | Maximum Power Delivered | Typical Camera Application |
|---|---|---|---|
PoE | 802.3af | 15.4W | Standard indoor fixed dome or bullet cameras. |
PoE+ | 802.3at | 30W | Outdoor cameras with IR illuminators or motorized varifocal lenses. |
PoE++ (Type 3) | 802.3bt | 60W | Standard PTZ cameras, multi-sensor panoramic units. |
PoE++ (Type 4) | 802.3bt | 90W | Heavy-duty PTZ cameras with active heating/cooling systems. |
Physical cabling is sometimes geographically impossible. Remote perimeter monitoring, construction sites, and temporary event security require alternative connectivity. Enterprise-grade Wi-Fi interfaces allow integration into existing wireless mesh networks. For truly isolated locations, 4G/5G LTE modules are necessary. These cellular interfaces must support secure VPN tunneling. This ensures the remote video feed routes securely back to the central VMS without exposing the stream to the public internet.
Antenna configuration and signal stability dictate the reliability of these edge deployments. High-gain directional antennas are often required to maintain a stable connection over long distances. You must also account for cellular data caps and bandwidth throttling. Edge storage becomes critical here, allowing the camera to record high-resolution video locally while transmitting a low-bitrate stream over the cellular network.
Digital input and output relays bridge the gap between video surveillance and physical security hardware. These dry contact terminals allow you to hardwire cameras directly to access control panels, door sensors, and external sirens. When a door is forced open, the physical sensor sends a signal to the camera's alarm input. The camera then tags the video timeline and alerts the VMS.
These interfaces also drive active deterrence. Relay outputs can trigger external floodlights when motion is detected in a restricted zone. Line-in and line-out audio interfaces connect the surveillance system to environmental controls. Operators can broadcast pre-recorded audio warnings or initiate live two-way communication upon detecting unauthorized access. Wiring these terminals requires basic low-voltage knowledge, ensuring the correct voltage is applied to the relay to avoid frying the camera's internal board.
Despite the dominance of IP networks, serial communication interfaces remain vital for mechanical telemetry. RS-485 and RS-232 ports transmit precise control data to motorized components. This is especially true for specialized imaging equipment. A Digital Zoom Block Camera relies heavily on these serial connections. It uses VISCA or Pelco-D/P protocols to interface with custom housings, legacy keyboard controllers, and specialized positioning systems.
Serial interfaces provide the low-latency, deterministic control required for smooth optical zoom and precise pan-tilt tracking. When terminating RS-485 connections, technicians must pay attention to polarity and baud rates. A mismatched baud rate between the controller and the camera will result in erratic movement or complete loss of telemetry.
Many facilities operate hybrid environments, transitioning slowly from analog infrastructure to full IP networks. BNC coaxial outputs allow modern IP cameras to interface with legacy analog monitors and matrix switchers. This allows organizations to upgrade their capture hardware while retaining functioning legacy viewing stations.
Additionally, HDMI and SDI micro-interfaces provide direct, uncompressed local video output. These ports are utilized for specialized broadcast-security crossovers or zero-latency public view monitors at retail entrances. Running an HDMI cable directly from the camera to a display monitor bypasses the network entirely, eliminating latency and reducing the load on the local switch.
Hardware ports are useless without standardized software protocols. The software layer dictates how devices discover each other, negotiate stream parameters, and transmit data.
The Open Network Video Interface Forum (ONVIF) dictates how security devices communicate. Relying on proprietary protocols restricts your hardware choices. You must verify specific ONVIF profile compliance for enterprise integration. Simply stating a camera is compatible is meaningless without specifying the profile.
ONVIF Profile | Primary Function | Integration Requirement |
|---|---|---|
Profile S | Basic video streaming and PTZ control. | Mandatory for any IP camera connecting to a VMS. |
Profile G | Edge storage and retrieval. | Required for pulling SD card footage after network drops. |
Profile T | Advanced streaming (H.265) and motion alarms. | Necessary for bandwidth optimization and basic event triggers. |
Profile M | Metadata and analytics transmission. | Critical for AI object classification and smart search. |
RTSP remains the universal fallback for video integration. While ONVIF handles device management and discovery, RTSP handles the actual delivery of the raw video stream. If a third-party application, custom dashboard, or legacy NVR cannot negotiate an ONVIF connection, an RTSP URL provides direct access to the feed.
Understanding how to construct and secure RTSP streams is a fundamental requirement for custom viewing applications. A typical RTSP string includes the IP address, port, stream number, and authentication credentials. Leaving RTSP streams unauthenticated is a massive security flaw. Always enforce strong passwords and route RTSP traffic over a secure tunnel to encrypt the video payload.
Modern security architectures rely heavily on custom software integration. RESTful APIs allow developers to programmatically control camera settings, retrieve system logs, and trigger specific actions. Webhooks provide a push-based mechanism for real-time alerts. Instead of the VMS constantly polling the camera for motion events, the camera uses webhooks to instantly push motion or person-activated alerts directly to mobile apps or centralized dashboards.
For deep hardware integration, manufacturers provide Software Development Kits (SDKs). A bare-board Network Digital Camera Module relies entirely on these SDKs. Engineers use the SDK to integrate the imaging module into OEM hardware, drones, or proprietary edge-AI appliances. This bypasses standard VMS interfaces entirely, allowing developers to write custom logic for how the image sensor processes light, handles autofocus, and outputs raw frames.
Different deployment scenarios demand different interface priorities. You must align the camera's capabilities with the specific system it will connect to.
The recording backend dictates your interface priorities. Basic Network Video Recorders (NVRs) often utilize plug-and-play proprietary interfaces. These are easy to install but frequently lock users into a single manufacturer's app ecosystem. If you mix camera brands on a proprietary NVR, you often lose access to advanced analytics and motion detection.
Enterprise VMS platforms operate differently. Systems rely strictly on open standards. Proper ONVIF and API interfaces ensure a camera can be discovered, authenticated, and managed seamlessly across the network. Mapping features to outcomes is critical here. If you want centralized firmware updates and unified alarm management, your hardware must support the specific integration drivers required by your chosen VMS. Always check the VMS manufacturer's supported device list before purchasing hardware.
Security hardware must communicate with the physical building. Connecting surveillance to lighting, electronic locks, and HVAC systems requires both hardware and software handshakes. Dry contact relays provide the physical link to access control panels. When a badge is swiped, the panel triggers the camera relay to bookmark the video feed.
Software API triggers handle more complex logic. An unauthorized access attempt can trigger an API call that locks adjacent doors, activates perimeter lighting, and pulls the relevant camera feed to the operator's primary monitor. This creates a smarter, more refined security posture that reacts autonomously to physical threats. Technicians must ensure the camera's API supports HTTP POST requests to send these triggers to the access control server.
Artificial intelligence is shifting processing from central servers to the camera itself. This requires specific interfaces to handle metadata. A modern camera generates bounding boxes, vehicle license plate data, and object classification tags. This metadata must be pushed alongside the video stream to cloud servers or local AI nodes.
ONVIF Profile M and custom APIs facilitate this data transfer. When metadata streams interface correctly with the VMS, raw video transforms into a searchable database. Operators can filter hours of footage for specific vehicle colors or people wearing specific clothing in seconds. Without the correct metadata interfaces, this analytical power is lost. The VMS will just record dumb video, drastically increasing post-incident investigation times.
Integration is rarely flawless. Field deployments require balancing performance, security, and compatibility.
Purchasing hardware without verifying open standard support introduces severe operational risk. Cameras lacking ONVIF compliance force reliance on a single vendor's ecosystem. This vendor lock-in eliminates competitive bidding for future expansions. If the manufacturer discontinues the product line or alters their software licensing, your existing hardware becomes obsolete. Prioritizing open APIs and standard protocols guarantees long-term system viability. You maintain the freedom to swap out the VMS or the cameras independently as technology evolves.
Physical network interfaces face hard limitations when pushing massive data loads. Transmitting multiple uncompressed 4K or 8K streams will saturate standard network switches. Multi-streaming is the necessary compromise. Cameras must interface with the network using distinct stream profiles.
A high-resolution main stream is routed to the NVR for archival recording. Simultaneously, a lower-resolution sub-stream is routed to mobile devices and analytics engines. A third stream might be configured specifically for a public view monitor. This interface strategy preserves network bandwidth while maintaining high-quality forensic evidence. Technicians must configure the bitrates, frame rates, and compression formats for each stream independently.
Every open interface is a potential attack vector. Physical ports, unencrypted software APIs, and vulnerable Wi-Fi connections expose the network to unauthorized access. An exposed Ethernet cable on an exterior wall can provide direct access to the internal security VLAN if port security is ignored.
Mitigation requires strict port security. Unused physical ports and software services like Telnet or SSH must be disabled in the camera's firmware. Implement IEEE 802.1X network access control to authenticate devices before granting network access. Enforce HTTPS/TLS encryption for all API calls and web interface logins. Balancing physical connectivity with rigid network segmentation is the only way to secure the surveillance perimeter. Place all cameras on an isolated VLAN with strict firewall rules preventing outbound internet access unless explicitly required for cloud integration.
A surveillance device is only as effective as its ability to communicate with the broader security environment. Prioritizing open software standards like ONVIF and robust hardware I/O such as PoE and alarm relays is mandatory. This approach future-proofs your deployment and enables advanced automation across access control and VMS platforms.
Audit your existing VMS or NVR documentation to confirm supported protocols and smart search capabilities before buying new hardware.
Define your physical integration needs, mapping out requirements for audio deterrence, lighting relays, and PTZ serial control.
Filter your camera shortlists strictly by verified ONVIF Profile compliance and public API availability.
Request detailed API documentation from shortlisted vendors to verify compatibility with your custom dashboards.
Procure a single test unit to conduct a proof-of-concept integration, verifying metadata transmission and alarm triggering on your live network.
A: ONVIF is a standardized protocol used for device discovery, configuration, and management across different manufacturers. It allows a VMS to control PTZ movements and change camera settings. RTSP is specifically responsible for establishing and controlling the actual media session. RTSP delivers the raw video and audio feed, while ONVIF manages the device itself.
A: RS-485 provides highly reliable, low-latency deterministic control for mechanical movements. While IP networks handle video transmission, legacy infrastructure or specialized heavy-duty positioning systems often rely on RS-485 using Pelco-D/P protocols. This ensures precise, uninterrupted mechanical control even if the IP network experiences high latency or packet loss.
A: Yes, if the camera features digital relay outputs. You can wire the camera's output terminal to the door lock's control board or the main access control panel. Using the camera's software, you can configure an API trigger or motion event to close the relay, which subsequently releases or secures the magnetic lock.
A: Standard PoE delivers up to 15.4 watts of power, sufficient for basic fixed cameras. PoE++ delivers up to 60 or 90 watts depending on the type. This massive power increase is required to operate advanced mechanical devices, integrated infrared illuminators, and internal heaters or blowers necessary for extreme weather deployments.
A: Secure outdoor ports by implementing IEEE 802.1X network access control on your network switch. This requires the device to cryptographically authenticate before the switch allows data transmission. Additionally, place all exterior cameras on a heavily restricted, isolated VLAN that cannot communicate with your internal corporate data network.
A: A Software Development Kit provides the necessary code libraries and documentation for developers to build custom applications. For bare-board modules, an SDK allows engineers to deeply integrate the imaging hardware into proprietary devices, such as drones or custom AI appliances, bypassing standard consumer interfaces entirely.
