An IR camera (short for Infrared Camera) is a camera that sees heat instead of visible light.
It is a specialized optoelectronic device that detects infrared radiation (invisible to the human eye) emitted or reflected by objects, converting it into visible thermal or night-vision images. Unlike visible-light cameras (including most CCTV cameras), IR cameras operate independently of ambient light, enabling surveillance, detection, and analysis in low-light, no-light, or harsh environmental conditions (e.g., fog, smoke, dust). Below is a technical yet accessible overview of their core mechanisms, components, and professional applications.
1. Core Concepts & Working Mechanisms
1.1 Infrared Spectrum Basics
Infrared radiation spans the wavelength range of 0.75–1000 μm (between visible light and microwave radiation), divided into four key bands for practical use:
· Near-Infrared (NIR): 0.75–1.4 μm – Closest to visible light; often used for night vision (requires active illumination).
· Short-Wave Infrared (SWIR): 1.4–3 μm – Penetrates fog, smoke, and light rain; suitable for long-distance detection.
· Mid-Wave Infrared (MWIR): 3–8 μm – Captures thermal radiation from objects at moderate temperatures (e.g., machinery, humans); used in professional thermal imaging.
· Long-Wave Infrared (LWIR): 8–14 μm – Detects thermal radiation from low-temperature objects (e.g., buildings, landscapes); ideal for 24/7 surveillance and outdoor applications.
1.2 Two Core Working Modes
IR cameras operate in two fundamental modes, each tailored to specific scenarios:

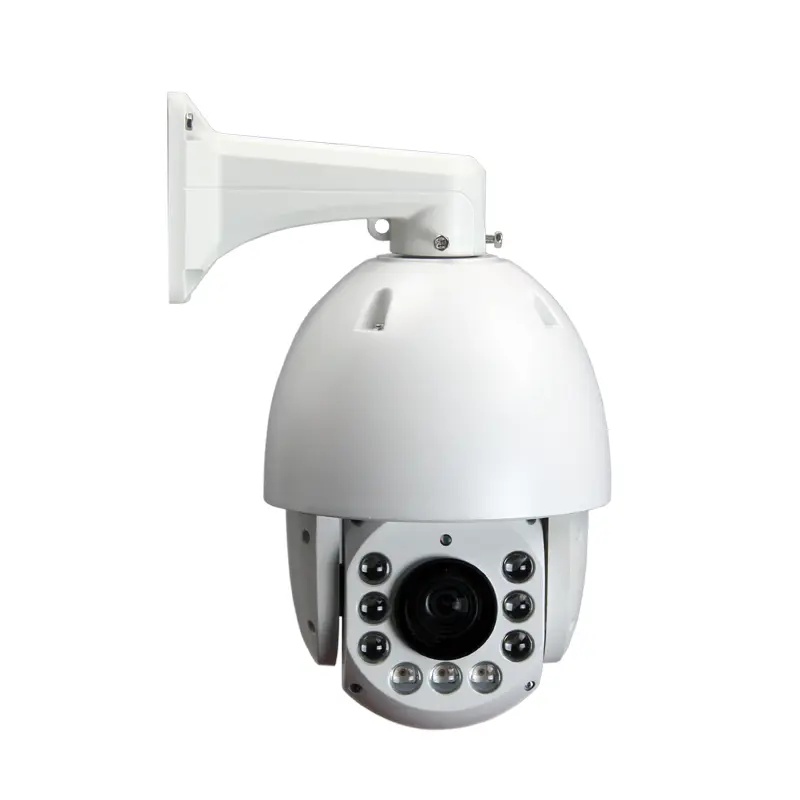

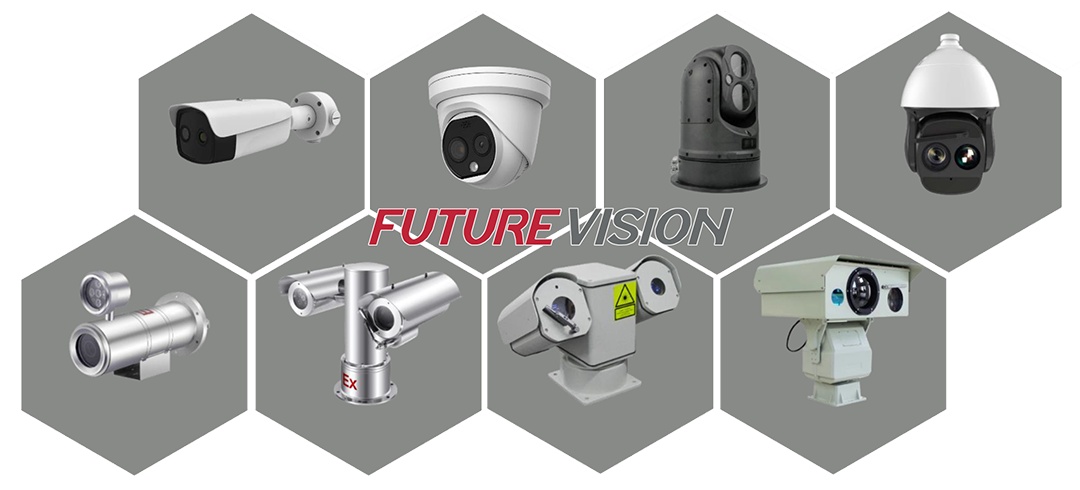

Active IR Imaging
· Principle: Emits artificial infrared radiation (via LEDs, laser diodes, or IR lamps) toward the target area; the camera’s sensor captures the reflected IR light to form a visible image.
· Key Components: IR illuminator (wavelength: 850nm/940nm – 850nm offers better range, 940nm is invisible to the naked eye), CCD/CMOS sensor (optimized for IR sensitivity).
· Advantages: Low cost, high image sharpness, suitable for short-to-medium range monitoring (10–100m).
· Limitations: Dependent on illuminator range; performance degrades in heavy fog/dust.
Passive IR Imaging (Thermal Imaging)
· Principle: Captures natural thermal radiation emitted by all objects with a temperature above absolute zero (-273.15°C); converts temperature differences into grayscale or color-coded thermal images (warmer objects appear brighter or in red/yellow; cooler objects in blue/purple).
· Key Components: Thermal sensor (e.g., microbolometer), IR optical system, signal processing unit.
· Advantages: Truly independent of ambient light; penetrates fog, smoke, and vegetation; detects temperature anomalies.
· Limitations: Higher cost; lower spatial resolution compared to active IR cameras; cannot "see through" metal or thick glass (these materials block IR radiation).
2. Core Components & Technical Specifications
The performance of an IR camera is determined by its key components, with technical parameters directly influencing detection capability and image quality:
2.1 IR Sensor (Core Component)
Types of Sensors:

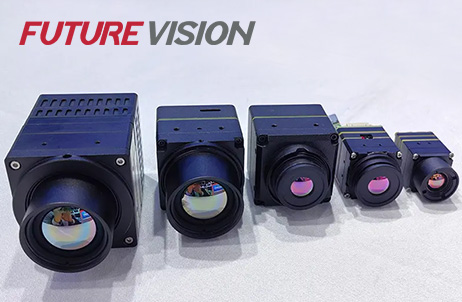

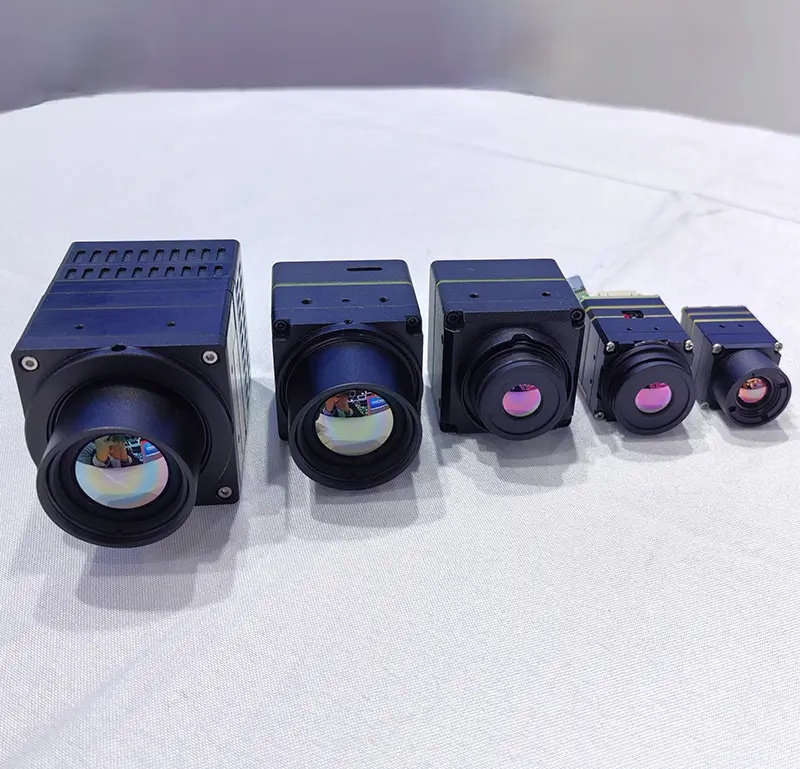

· Microbolometer: Most common in commercial passive IR cameras (LWIR band); uncooled sensor (low power consumption, compact size) that detects temperature changes by measuring resistance variations in vanadium oxide (VOx) or amorphous silicon (a-Si) materials. Typical resolution: 160x120 to 1280x720 pixels.
· Cooled Sensors (InSb, HgCdTe): Used in high-end MWIR/LWIR cameras (military, aerospace); cooled to -196°C (liquid nitrogen) or -77°C (Stirling cooler) to reduce thermal noise. Offers ultra-high sensitivity (NETD <10 mK) and long detection ranges (up to several kilometers).
· CCD/CMOS for Active IR: Modified visible-light sensors with enhanced IR response (e.g., back-illuminated CMOS for NIR band).
2.2 IR Optical System
2.2.1 Lens Materials
Traditional glass blocks IR radiation. IR lenses use specialized materials:
· Germanium (Ge): Ideal for LWIR/MWIR (high transmittance, durable); widely used in professional thermal cameras.
· Zinc Selenide (ZnSe): Transmits SWIR/MWIR/LWIR; suitable for multi-band cameras.
· Sapphire (Al₂O₃): High hardness, transmits NIR/SWIR; used in harsh industrial environments.
· Lens Parameters: Focal length (e.g., 10mm/25mm for wide/narrow field of view), f-number (lower values: f/1.0–f/1.2 enhance light-gathering capacity for low-light conditions).
2.3 Signal Processing Module
2.3.1 Thermal Image Enhancement:
· Noise reduction (3DNR for active IR; thermal noise suppression for passive IR).
· Digital Detail Enhancement (DDE): Improves edge sharpness of thermal images.
· Temperature Calibration: Ensures accurate temperature measurement (±2% or ±2°C error margin for professional models).
2.3.2 AI-Powered Analytics: Integrated with edge chips (e.g., NVIDIA Jetson, Texas Instruments TDA4VM) for:
· Thermal anomaly detection (e.g., overheating equipment, fire hazards).
· Human/vehicle classification in low-visibility conditions.
· Temperature threshold alerts (e.g., body temperature screening ≥37.5°C).
3. Professional Classification Standards
IR cameras are categorized by technical characteristics and application scenarios, following industry-recognized standards:
3.1 By Working Mode
· Active IR Cameras: Subdivided by illuminator type (LED IR, laser IR) and range (short-range: medium-range: 50–200m, long-range: >200m).
· Passive IR Cameras (Thermal Imagers): Classified by sensor resolution (QVGA: 320x240, VGA: 640x480, HD: 1280x720) and NETD (Noise Equivalent Temperature Difference) – a key sensitivity metric (e.g., K, K).
3.2 By Spectral Range
· NIR Cameras (0.75–1.4 μm): Used for night vision, facial recognition in low light.
· SWIR Cameras (1.4–3 μm): Industrial inspection (e.g., PCB soldering, food sorting), long-distance surveillance in fog.
· MWIR Cameras (3–8 μm): Military target detection, high-temperature industrial monitoring (e.g., furnace inspection).
· LWIR Cameras (8–14 μm): 24/7 security, building thermal insulation inspection, wildlife monitoring.
3.3 By Environmental Adaptability
3.3.1 IP Rating: Same as CCTV cameras (IP66/IP67 for outdoor use; IP68 for underwater applications).
3.3.2 Temperature Range: Industrial models operate in -40°C to +85°C; military-grade models withstand -55°C to +125°C.
3.3.3 Specialized Types:
· Explosion-proof (ATEX/IECEx certified) for oil refineries, mines.
· Anti-corrosive (titanium alloy housing) for coastal or chemical plants.
· Ruggedized (shockproof, vibration-resistant) for military or outdoor field use.
3.4 By Power Supply
· PoE (Power over Ethernet): IEEE 802.3af/at/bt – suitable for IP-based IR cameras (simplifies wiring).
· DC 12V/AC 24V: Traditional power supply for analog or standalone IR cameras.
· Solar-powered: For remote areas (paired with Li-ion batteries for 24/7 operation).
4. Key Industry Standards & Compliance
Professional IR camera systems must adhere to global technical and regulatory standards:
4.1 Technical Standards
· Sensor Performance: ISO 18434-1:2014 (testing methods for thermal imaging cameras); IEEE 11073 (medical IR camera interoperability).
· Video Compression: H.265 (HEVC) and H.266 (VVC) – reduce bandwidth for IR video streaming (critical for high-resolution thermal images).
· Network Protocols: ONVIF (compatibility with CCTV NVRs); RTSP/RTMP (live streaming of IR footage).
4.2 Privacy & Regulatory Compliance
· GDPR (EU): Prohibits unauthorized use of thermal IR cameras to invade privacy (e.g., monitoring private spaces, detecting body heat through clothing – a common misconception; most LWIR cameras cannot penetrate clothing).
· Medical Compliance: FDA (US) Class II certification for IR cameras used in body temperature screening; ISO 13485 for medical device quality management.
· Industrial Compliance: IEC 61010 for electrical safety of industrial IR inspection cameras.

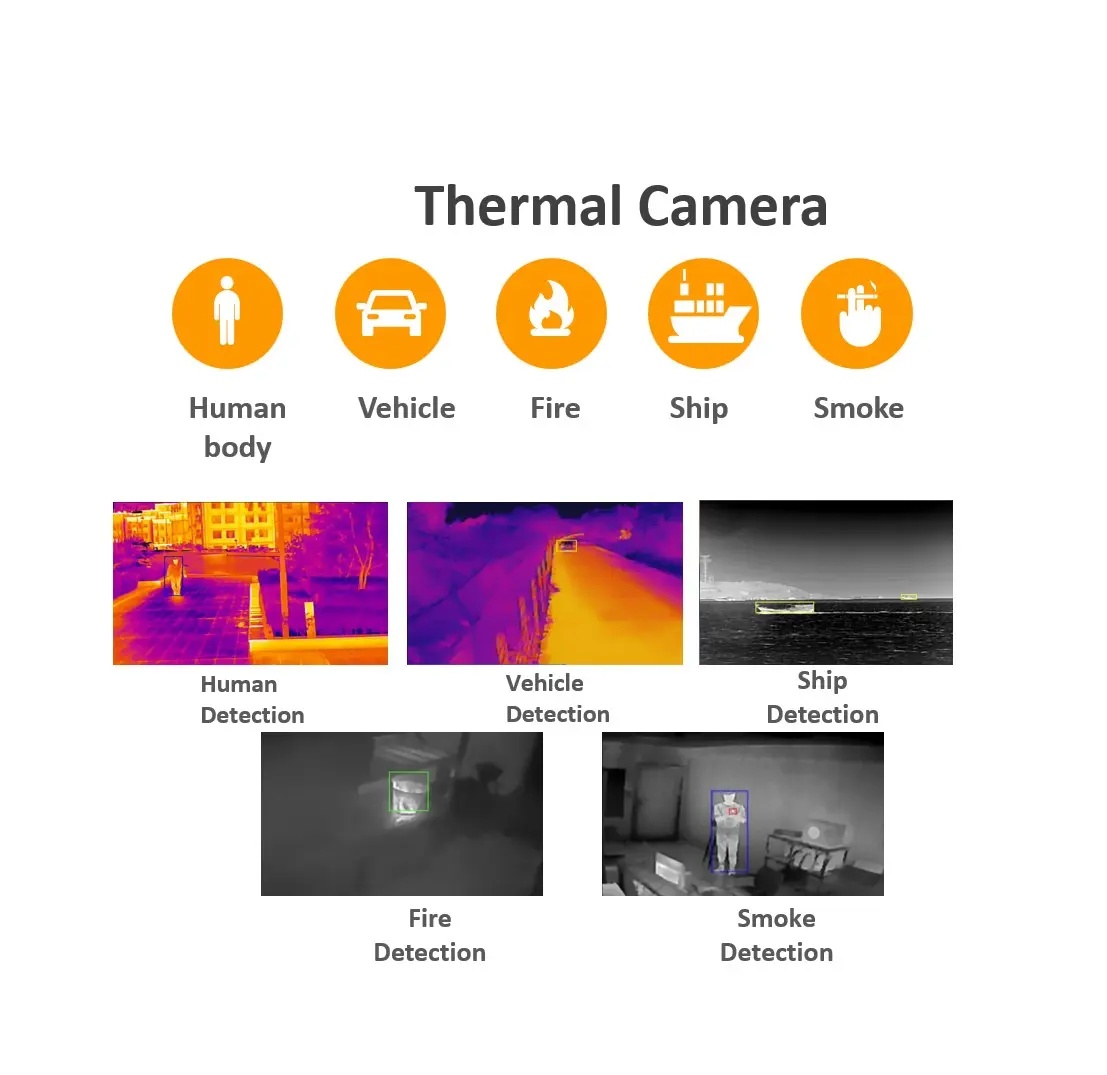

5. Professional Application
IR cameras solve unique monitoring challenges across industries by leveraging their ability to operate in low-visibility or extreme conditions:
5.1 Security & Surveillance
· Perimeter Protection: LWIR thermal cameras (detection range 500–1000m) monitor fences, borders, or industrial campuses at night or in fog; AI analytics trigger alerts for intrusions.
· Law Enforcement: SWIR cameras with laser illuminators (range >2km) track suspects in dark environments; thermal cameras detect hidden objects (e.g., weapons, drugs) in vehicles.
· Home Security: Wireless active IR cameras (850nm LEDs) enable night vision for residential monitoring; paired with mobile apps for remote access.
5.2 Industrial Maintenance & Inspection
· Electrical Systems: Thermal cameras (NETD mK) detect overheating in power lines, transformers, or circuit breakers (predictive maintenance to prevent failures).
· Mechanical Equipment: MWIR cameras monitor bearing temperatures, engine hotspots, or furnace liners (e.g., in steel mills) – temperature accuracy ±1°C.
· Building Diagnostics: LWIR cameras identify heat loss (insulation gaps), water leaks, or electrical faults (e.g., overloaded circuits) without destructive testing.
5.3 Healthcare & Life Sciences
· Temperature Screening: NIR/LWIR cameras (accuracy ±0.3°C) detect fever symptoms (COVID-19 or influenza) in public spaces (airports, hospitals) – compliant with FDA/CE standards.
· Medical Imaging: SWIR cameras assist in dermatology (detecting skin lesions) or ophthalmology (retinal imaging); thermal cameras monitor blood flow in limbs (e.g., for diabetes patients).
5.4 Transportation & Aerospace
· Aviation: MWIR cameras integrated into aircraft cockpits (Enhanced Vision Systems, EVS) improve visibility during takeoff/landing in fog or low light.
· Automotive: NIR cameras (Night Vision Assist) detect pedestrians or animals on dark roads; thermal cameras warn drivers of collision risks.
· Marine: LWIR cameras help ships navigate in fog or detect icebergs; SWIR cameras identify other vessels in low-visibility conditions.
6. Performance Metrics for Professional Selection
When choosing an IR camera, focus on these critical technical indicators:
· NETD (Passive IR): 0 mK (high sensitivity for low-temperature differences); <50 mK (entry-level professional use).
· Spatial Resolution: For thermal cameras – pixels per degree (ppd) or IFOV (Instantaneous Field of View); lower IFOV (e.g., 0.5 mrad) means better detail at long ranges.
· Detection Range: Active IR (LED: 10–100m; laser: 200–1000m); Passive IR (LWIR: 500–5000m, depending on sensor resolution and lens focal length).
· Frame Rate: Minimum 15fps (smooth video); 30fps (critical for fast-moving targets, e.g., vehicles, aircraft).
· Temperature Measurement Range: -40°C to +500°C (industrial use); +30°C to +45°C (medical temperature screening).
7. Future Technical Trends
· Miniaturization & Low Power Consumption: Uncooled microbolometers (size for wearable IR cameras (e.g., firefighter helmets, smart glasses) – power consumption AI-Enhanced Thermal Analytics: Deep learning algorithms (e.g., YOLOv8 for thermal images) improve object classification, anomaly detection, and false-alarm reduction (e.g., distinguishing animals from humans).
· Multi-Spectral Fusion: Integration of visible light, IR (NIR/LWIR), and thermal sensors – provides comprehensive imaging (e.g., combining facial recognition with thermal temperature screening).
· 5G & Edge Computing: 5G’s low latency enables real-time remote monitoring of IR footage; edge AI processes data locally (reducing cloud bandwidth usage).
· Quantum Dot Sensors: Emerging technology for SWIR/MWIR cameras – higher sensitivity, lower cost, and broader spectral response compared to traditional sensors.
· Green IR Imaging: Low-power CMOS-based IR sensors and solar-powered illuminators reduce carbon footprint; H.266 compression lowers energy consumption for data transmission.
