PAL (Phase Alternating Line) and NTSC (National Television System Committee) are two classic analog television signal standards developed in different regions during the analog TV era. Although they have gradually been replaced by digital standards (such as HDMI, 4K UHD) in modern times, their differences still affect equipment compatibility, video playback, and even content production. Below is a detailed comparison of their core differences from multiple dimensions:
Basic Definition & Origin
PAL: Short for Phase Alternating Line, it is an analog color TV standard developed by German engineers in 1967. Its core feature is the "phase alternating line" technology, which can automatically correct color phase distortion, ensuring more stable color display. It was mainly promoted and used in Europe, Asia, and Oceania.
NTSC: Named after the National Television System Committee of the United States, it was formulated in 1952 and is the first color TV standard in the world. It adopts orthogonal amplitude modulation for color signals and was initially widely used in North America and some East Asian countries.
Core Technical Parameters (Key Differences)

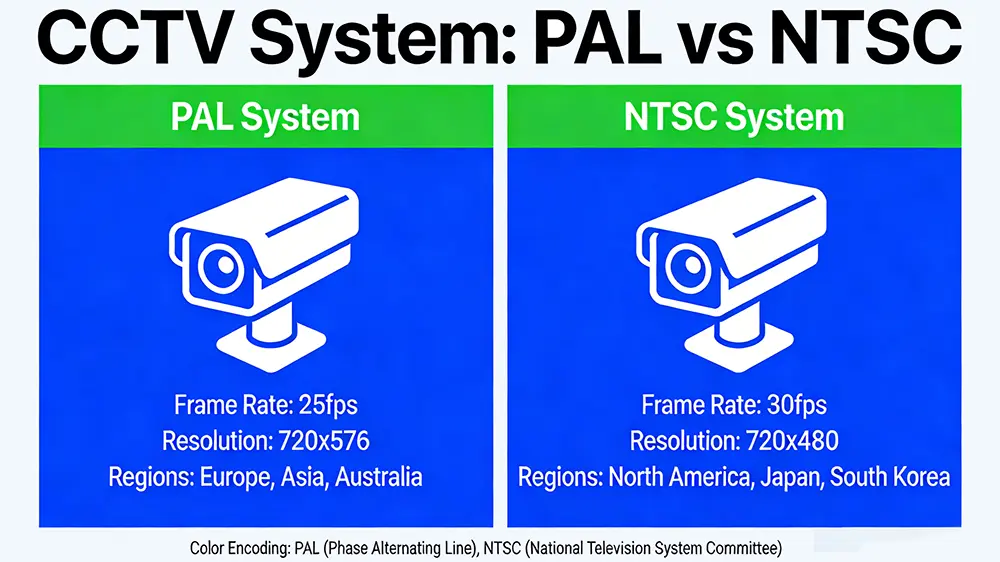

Technical Indicator | PAL | NTSC |
Frame Rate | 25 frames per second (fps). Due to the use of interlaced scanning, it is equivalent to 50 fields per second, which is consistent with the 50Hz power frequency in most regions using PAL. | 29.97 fps (often simplified to 30 fps in daily use), corresponding to 60 fields per second, matching the 60Hz power frequency in North America and Japan. |
Scan Lines & Resolution | 625 scan lines per frame, with an effective resolution of about 720×576 pixels (digital standard: 576i). More scan lines mean slightly clearer static images. | 525 scan lines per frame, with an effective resolution of about 720×480 pixels (digital standard: 480i). Fewer scan lines result in slightly lower static image clarity compared to PAL. |
Color Subcarrier Frequency | 4.43 MHz, using YUV color space, which can better restore the original color of the image and has strong anti-interference ability against color distortion. | 3.58 MHz, using YIQ color space. Its color signal is susceptible to phase distortion, which may cause "hue shift" (color drift) during transmission. |
Adaptation Recommendations for Modern CCTV Systems
Static surveillance scenarios (e.g., office, home security): Prioritize the PAL standard, as its color stability and vertical resolution are more suitable for fixed camera monitoring.
Dynamic surveillance scenarios (e.g., traffic intersections, sports venues): Prioritize NTSC standard, as high frame rates enable smoother capture of fast-moving objects.
Cross-regional deployment: For use in regions with different grid frequencies, it is recommended to select equipment that supports multi-mode switching or employ a digital converter to achieve signal compatibility.
Technological Evolution and Future Trends
With the widespread adoption of 4K ultra-high-definition technology, the resolution differences of traditional PAL/NTSC standards have gradually been replaced by digital standards, but the choice of frame rate (25fps vs 30fps) still affects dynamic monitoring effectiveness.
Modern CCTV systems can further optimize cross-standard compatibility through software algorithms (such as AI frame interpolation).
