Quick Summary SWIR, MWIR, and LWIR are the three infrared bands used in industrial and security thermal imaging, distinguished by wavelength (1.4–3 μm, 3–5 μm, and 8–14 μm respectively). SWIR is a reflected-light technology suited to material inspection and through-glass viewing; MWIR and LWIR are true thermal-radiation technologies used for temperature monitoring and all-weather surveillance. For mining, petrochemical, and power plant procurement teams, band selection depends on whether the application requires precise temperature measurement, long-range detection, or stable performance in fog, smoke, and dust. |

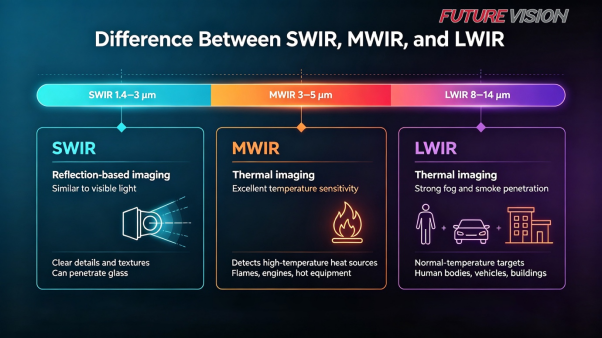

Infrared radiation is invisible to the human eye and is classified into bands by wavelength for industrial and defense use:
• SWIR (Short-Wave Infrared): 1.4–3 μm
• MWIR (Mid-Wave Infrared): 3–5 μm
• LWIR (Long-Wave Infrared): 8–14 μm
Each band uses a different imaging mechanism and is suited to different plant and site conditions.

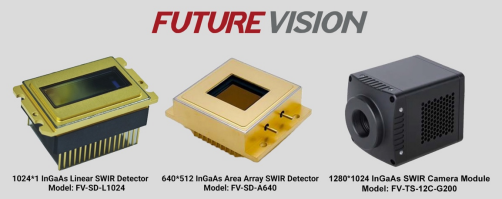

SWIR does not sense heat. It captures reflected infrared light from sunlight, moonlight, starlight, or an active IR illuminator — the imaging logic is closer to a visible-light camera than a thermal camera.
MWIR and LWIR are true thermal-imaging bands. Both detect the passive thermal radiation naturally emitted by any object above absolute zero (-273.15 °C), requiring no external light source.
• High-contrast, texture-rich imaging comparable to visible-light photography
• Poor temperature sensitivity — detects reflection differences, not thermal differences
• Penetrates thin fog and haze better than visible light, but is degraded by heavy fog, thick smoke, and rain
• Unique ability to see through glass, which thermal IR cannot do
• Balanced detail and thermal sensitivity, with moderate image clarity
• Excellent temperature sensitivity — capable of resolving changes as small as 0.02 °C
• Low atmospheric absorption in the 3–5 μm band; stable in clear weather with less humidity sensitivity than LWIR
• Best suited to high-temperature target detection: engines, flames, overheating equipment
• Lower texture detail, producing a pure thermal outline rather than a sharp image
• Good sensitivity to macroscopic temperature differences, less sensitive to minor thermal variation
• Strongest penetration through fog, smoke, and dust of the three bands — stable in harsh weather
• Best suited to normal/ambient-temperature targets: people, vehicles, terrain
Band | Typical Applications |
SWIR | Industrial defect detection, semiconductor inspection, low-light night vision, laser detection, through-glass monitoring, agricultural/vegetation analysis |
MWIR | Aerospace thermal detection, power equipment fault diagnosis, flame and fire monitoring, military target tracking, high-temperature industrial process monitoring |
LWIR | Civil night vision, human/vehicle thermal detection, border and perimeter security, all-weather outdoor surveillance, search and rescue, building heat-loss inspection |
Dimension | SWIR (1.4–3 μm) | MWIR (3–5 μm) | LWIR (8–14 μm) |
Imaging Principle | Passive reflection imaging (non-thermal) | Passive thermal radiation imaging | Passive thermal radiation imaging |
Temperature Sensitivity | Very poor — surface reflection only | Excellent — down to 0.02 °C | Good for macroscopic differences |
Image Quality | Clear, high-contrast, near visible-light quality | Balanced detail and sensitivity | Low detail, thermal outline only |
Glass Penetration | Yes | No | No |
Environmental Adaptability | Penetrates thin fog/haze; degraded in heavy fog, rain, dense smoke | Stable transmission, low humidity impact | Strongest fog/smoke/dust penetration |
Applicable Targets | Materials, textures, low-light scenes | High-temperature sources: flames, engines, overheating equipment | Ambient-temperature targets: people, vehicles, structures |
• Imaging source: SWIR uses reflected IR light; MWIR and LWIR use self-emitted thermal radiation.
• Detail vs. thermal sensitivity: SWIR delivers the best image detail but the weakest thermal sensitivity; MWIR delivers the best fine-temperature detection; LWIR delivers the strongest all-weather adaptability.
• Glass penetration: Only SWIR can image through glass.
• Target focus: MWIR is optimized for high-temperature heat sources; LWIR is optimized for normal-temperature people, vehicles, and terrain.
Q: Which band is best for perimeter security at a mining or power plant site?
LWIR is generally preferred for perimeter and all-weather surveillance because of its strong penetration through fog, smoke, and dust and its ability to detect people and vehicles at ambient temperature.
Q: Which band should be used to monitor overheating electrical equipment?
MWIR is best suited for high-temperature fault detection — such as power equipment, flames, or overheating machinery — due to its superior fine-temperature sensitivity.
Q: Can SWIR replace a standard thermal camera?
No. SWIR is a reflected-light technology, not a heat-sensing technology. It is used for material inspection, low-light imaging, and through-glass viewing rather than temperature measurement.
Q: Does fog affect all three bands equally?
No. LWIR offers the strongest performance in heavy fog, smoke, and dust; SWIR performs well only in thin fog or haze; MWIR performance is stable in clear-to-moderate conditions with low humidity sensitivity.

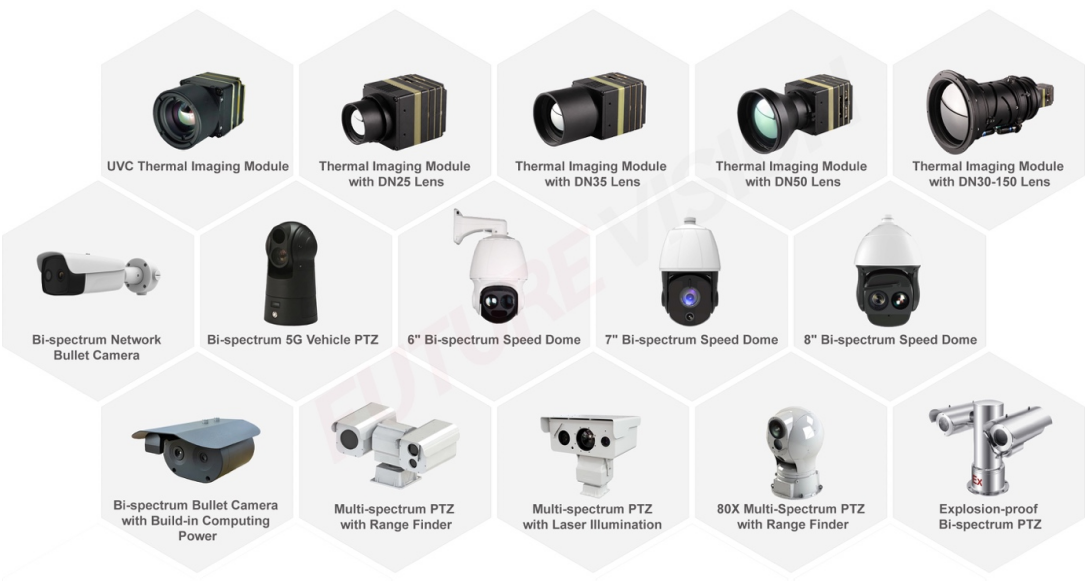

Future Vision Technology is a China-based manufacturer with 18 years of experience in thermal cameras, zoom block cameras, PTZ and speed dome cameras, supporting global partners through OEM/ODM services. View Thermal Camera Range
