Blind spots in expansive environments like parking lots, industrial yards, and perimeter fence lines introduce severe operational and liability risks. Securing outdoor wide-area spaces presents unique difficulties regarding scale, unpredictable weather, and limited mounting points. The core problem lies in balancing comprehensive visual coverage with strict infrastructure budgets. Organizations often fall into common pitfalls, such as deploying an excessive number of fixed cameras or relying on a single, poorly positioned wide-angle lens that fails to capture usable detail. To achieve verifiable, continuous coverage across massive properties, you need a structured technical evaluation framework. This involves selecting the right hardware, optimizing placement geometry, and managing complex network requirements to ensure no event goes unrecorded.
Relying solely on a single wide-angle lens for massive areas sacrifices pixel density, severely reducing the ability to identify subjects at a distance.
A Network PTZ Security Camera offers active tracking and extreme zoom to follow motion across huge swaths of land, but requires either an active operator or advanced edge analytics to prevent missing off-axis events.
Effective large-area coverage requires calculating DORI (Detection, Observation, Recognition, Identification) standards rather than relying on generalized manufacturer marketing claims.
Infrastructure limitations—such as PoE (Power over Ethernet) distance limits, bandwidth constraints, and mounting heights—dictate camera selection just as much as optical hardware.
Evaluating hardware performance across large open spaces requires moving beyond basic megapixel counts and adopting the DORI framework. This standard defines how Pixels Per Foot (PPF) dictates actual utility at varying distances. PPF measures the density of pixels covering a specific physical area. As a subject moves further from the lens, the PPF drops, reducing image clarity. Understanding this mathematical relationship prevents the common mistake of expecting a wide-angle lens to capture readable license plates at the far end of a commercial lot.
Establishing baseline PPF requirements is necessary for matching hardware to security goals. You must calculate the exact pixel density needed for your specific application before pulling a single cable.
DORI Level | Required PPF (Pixels Per Foot) | Practical Application |
|---|---|---|
Detection | 8 PPF | Determining if a human or vehicle is present in the distance. |
Observation | 19 PPF | Noticing clothing color or vehicle type. |
Recognition | 38 PPF | Recognizing a known individual. |
Identification | 76+ PPF | Reading a license plate or identifying an unknown face for legal evidence. |
When monitoring distances of 500 to 1,000 feet, achieving identification-level PPF requires specialized long-range optics rather than standard wide-angle lenses. Field technicians use lens calculators during the design phase to ensure the chosen focal length delivers the required PPF at the target distance.
Physical obstructions dictate hardware placement across large residential estates or commercial lots. Trees, outbuildings, retaining walls, and natural elevation changes create inherent blind spots that a single lens cannot overcome. A comprehensive site assessment must map these physical barriers. For instance, equipment mounted on a high pole might have a clear line of sight in winter but become entirely obstructed by dense foliage during the summer months. Mapping topography ensures that depressions in the landscape do not serve as hidden corridors for unauthorized access.
Environmental variables heavily impact visibility and sensor performance. Extreme lighting variations, such as intense sun glare at dawn or dusk, can blind standard image sensors. Weather conditions like heavy rain, snow, or dense fog scatter light and severely degrade image clarity. Evaluating these factors determines the need for specialized hardware features. You might need Wide Dynamic Range (WDR) to handle glare, or integrated defogging algorithms and physical wipers to maintain visibility during adverse weather. On industrial sites, we frequently deploy heavy-duty housings with built-in heater and blower units to prevent condensation on the lens glass.

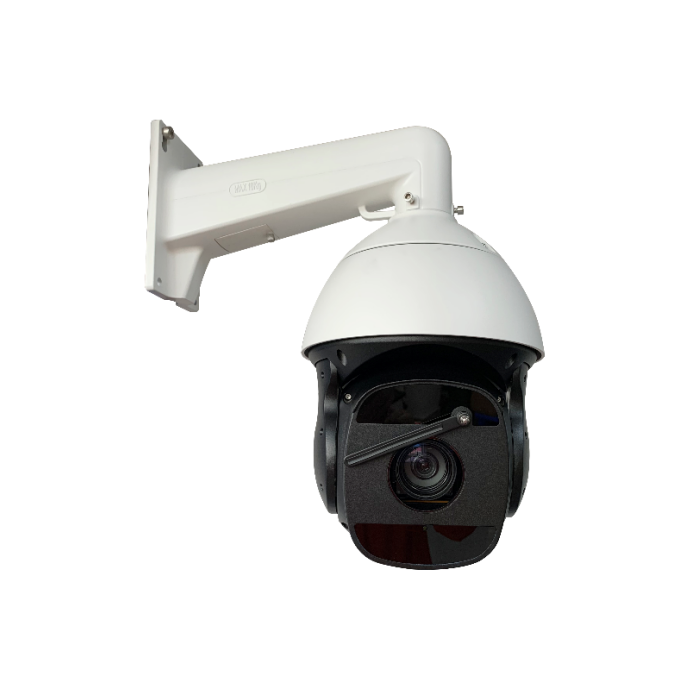

A Network PTZ Security Camera provides dynamic coverage for massive areas by allowing operators to physically move the lens and magnify distant subjects. Modern PTZ units feature powerful optical zoom ranges, often between 22x and 40x, enabling clear identification of individuals hundreds of feet away. You can program these units with automated guard tours, continuously panning across predefined zones to monitor a wide perimeter without manual intervention. Heavy-duty internal slip rings allow continuous 360-degree rotation without tangling internal wires.
Advanced auto-tracking capabilities allow these units to lock onto moving targets. Once motion is detected, the motor automatically pans, tilts, and zooms to follow a vehicle or person across a wide area, keeping the subject centered in the frame. However, this introduces a primary trade-off known as the "looking the wrong way" problem. During unmonitored recording, if the lens is zoomed in on a specific event or executing a guard tour facing north, it will completely miss an incident occurring simultaneously to the south. Therefore, PTZs are most effective when paired with fixed overview lenses.
Multi-sensor units solve the inherent limitations of single-lens wide-angle setups and moving PTZs. These units utilize multiple distinct lenses and image sensors housed within a single physical dome. By stitching the individual video feeds together at the edge, they produce a seamless 180-degree or 360-degree panoramic image. This mechanical design allows operators to monitor vast open spaces, such as parking lots or warehouse floors, from a single vantage point.
The primary benefit of multi-sensor technology is continuous, gapless recording across the entire field of view without any moving parts. Unlike a PTZ that might be facing the wrong direction during an incident, a multi-sensor unit records everything simultaneously. Operators can digitally zoom into specific areas of the recorded footage after an event has occurred, confident that the entire scene was captured in high resolution. Some models feature adjustable gimbals, allowing technicians to point four separate sensors down four different intersecting hallways from one central ceiling mount.
Strategic positioning of fixed wide-angle lenses provides excellent coverage for specific, highly trafficked zones. When carefully positioned at choke points, building perimeters, and parking lot entrances, a standard wide-angle security camera captures a broad overview of daily activities. While they do not offer the extreme distance identification of specialized lenses, their wide field of view ensures that no close-range movement goes unnoticed.
For securing expansive perimeters, deploying a Long Range Security Camera is highly effective. Varifocal bullet or box housings are specifically designed for targeted perimeter lines, such as 800 to 1,000-foot fence lines, and long, narrow corridors. Motorized zoom lenses allow technicians to make precise focal adjustments post-installation. You can dial in the exact field of view required to maximize PPF along a distant fence line without physically climbing a ladder or renting a boom lift to adjust the hardware manually.
Deploying surveillance hardware in harsh, large-scale outdoor environments requires an Industrial Security Camera built to withstand severe conditions. Ruggedized housings are evaluated using standardized ingress protection and impact ratings. An IP67 rating ensures the internal components are completely protected against dust ingress and can survive temporary submersion in water. An IK10 rating guarantees the housing can withstand significant kinetic impacts, protecting the glass from vandalism or flying debris in industrial yards.
Beyond physical durability, industrial sites often require specialized imaging technologies. Thermal imaging capabilities detect the heat signatures of humans or vehicles, providing zero-light perimeter detection that cannot be defeated by camouflage or complete darkness. For hazardous environments like chemical plants, grain elevators, or oil refineries, equipment must carry explosion-proof ratings. These feature heavy-duty stainless steel enclosures designed to contain any internal electrical sparks and prevent the ignition of surrounding flammable gases or combustible dust.
The relationship between focal length and field of view dictates how effectively a lens covers an open area. There is an inverse relationship between capturing a wide area and capturing distant detail. A short focal length produces a wide field of view, spreading the available pixels too thin to identify objects far away. Conversely, a long focal length creates a narrow field of view that acts like a telescope, concentrating the image sensor's pixels on a small, distant area to capture high-detail identification footage.
Focal Length | Approximate Horizontal FOV | Best Use Case for Large Areas |
|---|---|---|
2.8mm | 100° - 110° | Close-range overviews, building entrances, small courtyards. |
4.0mm | 80° - 90° | General parking lot coverage, loading docks. |
12.0mm | 25° - 30° | Perimeter fence lines, gate identification at 100 feet. |
50.0mm+ | Under 10° | Long-range perimeter monitoring, runway observation. |
Deploying high-megapixel sensors, such as 4K (8MP) or 8K models, across large areas significantly improves digital zoom capabilities and overall image clarity. However, this massive influx of visual data requires advanced compression protocols like H.265 or proprietary smart codecs. These algorithms compress the video feed by only recording changes in the scene, drastically reducing the data payload without sacrificing visual quality.
High frame rates and high resolution heavily impact network bandwidth and NVR (Network Video Recorder) storage requirements. Recording a massive parking lot at 30 frames per second in 4K generates an enormous amount of data. Security integrators must balance the need for smooth, high-resolution playback against the physical limits of the local network switches and the hard drive capacity of the recording servers. Often, dropping the frame rate to 15 frames per second provides sufficient evidentiary video while cutting storage requirements in half. Adjusting the bit rate from Constant Bit Rate (CBR) to Variable Bit Rate (VBR) also saves massive amounts of disk space during hours with zero motion.
Monitoring large open areas at night requires powerful illumination strategies. Standard active IR (Infrared) LEDs provide invisible illumination that allows sensors to see in complete darkness, typically effective up to 100 to 300 feet. For extreme distances, laser illuminators are necessary. Laser IR can project a focused beam of invisible light over 1,500 feet, allowing long-range optics to identify subjects along distant fence lines where traditional IR would dissipate.
Capturing full-color footage in ultra-low-light conditions depends heavily on the physical size of the image sensor. Large image sensors, such as 1/1.8" or 1/1.2" formats, have larger individual pixels that gather significantly more ambient light than standard 1/3" sensors. When paired with wide-aperture lenses, these large sensors can produce bright, full-color video using only the ambient light from distant streetlamps or the moon. This provides far more evidentiary value than traditional black-and-white IR footage, allowing investigators to determine the color of a suspect's vehicle or clothing.
Determining optimal mounting heights is a balancing act between protecting the hardware and capturing usable footage. Mounting equipment too low (under 10 feet) makes it highly susceptible to tampering, vandalism, or physical destruction. However, mounting it too high (above 20 feet) creates a steep downward angle. While this provides a great overview of the area, it results in footage that only captures the tops of subjects' heads, rendering facial identification impossible. A height of 12 to 15 feet generally offers the best compromise between physical security and optimal viewing angles.
The geometry of placement dictates the efficiency of the entire surveillance system. Corner placements are highly strategic for maximizing coverage. By mounting a unit on the external corner of a building, you can utilize a 90-degree FOV intersection. This allows a single location to effectively monitor two adjacent walls or intersecting fence lines simultaneously. Proper geometric planning reduces the total number of units required to secure a perimeter.
Large outdoor areas immediately expose the limitations of standard network infrastructure. The standard PoE (Power over Ethernet) cable limit is 328 feet (100 meters). When attempting to secure a massive industrial yard or a sprawling residential estate, cable runs frequently exceed this hard limit, resulting in data loss and insufficient power delivery.
Mitigation strategies for massive areas require specialized networking hardware. We implement several methods to overcome distance limits in the field:
Fiber Optic Cabling: Provides virtually unlimited distance for data transmission. It requires media converters and local power sources at the pole.
Midspan PoE Injectors: Pushes standard ethernet connections further down a fence line by boosting the power mid-run.
Point-to-Point Wireless Bridges: Transmits high-bandwidth video data across miles of open air using 5GHz or 60GHz frequencies, provided there is a clear line of sight.
Solar Power Stations: Powers remote poles where trenching high-voltage lines is physically impossible or cost-prohibitive.
When designing a system for a large open area, decision-makers must compare the upfront cost of premium hardware against the cumulative costs of standard installations. Purchasing a single, high-end multi-sensor or advanced tracking unit requires a larger initial hardware investment. However, this single unit requires only one cable run, one network switch port, and one VMS (Video Management System) software license.
Conversely, attempting to cover the same area with four standard fixed lenses appears cheaper on a hardware spreadsheet but incurs heavy cumulative costs. Installing multiple units requires extensive labor for trenching, laying Schedule 40 PVC conduit, and pulling hundreds of feet of cabling. It also consumes multiple switch ports, requires multiple software licenses, and multiplies the long-term maintenance burden. In many large-area scenarios, investing in fewer, highly capable units provides better overall value and cleaner infrastructure than saturating the property with basic fixed lenses.
The integration of edge-based AI has transformed how large outdoor spaces are monitored. Traditional pixel-based motion detection is nearly useless in expansive outdoor environments. It triggers constant false alarms from moving tree branches, passing wildlife, shadows, and heavy rain. This alarm fatigue quickly leads security personnel to ignore system alerts entirely.
Modern object classification algorithms process video directly on the internal chipset. These analytics differentiate between a human, a vehicle, and irrelevant background motion. By filtering out false alarms caused by wind or animals, edge AI makes large-area monitoring operationally viable. Security teams only receive notifications when a person or vehicle crosses a predefined virtual tripwire, ensuring rapid response to actual security events.
Calculate your exact DORI requirements for each zone to ensure you select lenses with the correct focal length and pixel density.
Map out all physical obstructions, elevation changes, and network limitations during a comprehensive physical site walk.
Deploy a hybrid system combining multi-sensor units for continuous overview recording with active tracking units for detailed incident verification.
Specify ruggedized, weather-rated housings with appropriate IP67 and IK10 ratings for all exterior equipment.
Utilize 3D design software to create a predictive site survey, allowing you to visualize coverage and adjust placements virtually before committing to physical installation.
A: Standard lenses detect motion up to 300 feet away, but identifying a face or license plate typically maxes out around 50 to 100 feet. Specialized long-range optics with powerful optical zoom and laser illuminators can clearly identify subjects at distances exceeding 1,500 feet.
A: They offer superior zoom and tracking capabilities for large areas, but they can only record where they are currently pointing. They are best used in conjunction with fixed lenses, which provide continuous, uninterrupted coverage of the broader scene.
A: The optimal mounting height is typically between 12 and 15 feet. This height protects the hardware from casual vandalism while maintaining a shallow enough viewing angle to capture clear facial details rather than just the tops of subjects' heads.
A: Consumer-grade Wi-Fi units cannot reliably cover that distance. However, professional point-to-point wireless network bridges can easily transmit high-definition video data over 1,000 feet, provided there is a clear line of sight between the transmitter and receiver antennas.
A: A wide-angle lens has a fixed, short focal length designed to capture a broad field of view, ideal for overviews. A varifocal lens allows the installer to manually or electronically adjust the focal length, zooming in to capture a narrower, more detailed field of view.
A: Equipment beyond the 328-foot PoE limit requires alternative power. Solutions include running local high-voltage lines to the installation pole, utilizing solar panel arrays with battery backups, or deploying PoE extenders and midspan injectors along the cable route.
A: The exact number depends on the layout and your DORI requirements. A square, unobstructed one-acre lot might only need one multi-sensor unit or four fixed wide-angle lenses mounted on the corners. Complex layouts with buildings and trees require significantly more units.
