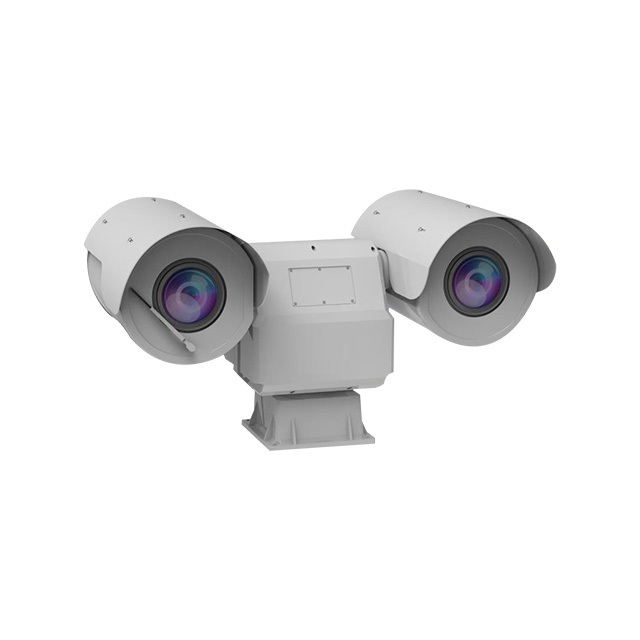

IPTZ-890-Z290-HLB
| Quantity: | |
|---|---|
| PDF Export | |
Double pitch worm gear transmission structure, electronic anti-shake and mechanical anti-loose design
Supports power-off self-locking, strong wind resistance and high stability
Support multiple lens preset functions, zoom adaptive, and the rotation speed can be automatically adjusted according to the zoom of the lens
Max. loading: 90kg
Support smart features: area intrusion, line crossing, optical defog, electronic defog, AWB, super WDR, HLC, BLC, EIS, and 3D DNR, etc.
The built-in FOV synchronous zoom laser lighting system, with long distance and wide range, and can realize 0Lux night vision monitoring
The laser module adopts multi-core fusion mode mixing and uniform light technology, which has no speckle dark ring and high edge definition
Support 3D positioning, and click tracking and amplification through CMS / web browser
Support cruise scanning, linear scanning and other scanning methods
Support power-off memory function, and automatically return to the monitoring scene before power-off after power on
Support watch function, preset point / scan / Cruise can be automatically called after staying in idle state for a specified time (including idle state after power on)
Support angle return, customized query or real-time return
360 ° continuous rotation in horizontal direction and + 90 ° ~ - 90 ° rotation in vertical direction
Max. horizontal speed up to 15°/s. Max. vertical speed up to 7°/S
Housing material with anti-corrosion materials, three prevention treatment, all-weather protection design and IP66 protection grade, which can be applied to salt fog video monitoring environment such as maritime, border and coastal defense
| Model | IPTZ-890-Z290-HLB | ||
| Camera | Sensor | 1/1.8” CMOS sensor | |
| Resolution | 2MP, 1920*1080 | ||
| Low illumination | color: 0.0005Lux@(F2.1,AGC ON)B/W: 0.0001Lux@(F2.1,AGC ON) | ||
| Auto aperture | PIRIS | ||
| Focal length | 90X, 10.5-945mm optical zoom, 16X digital zoom | ||
| FOV | 38.4-0.46° (wide-tele) | ||
| Defog | Optical defog | ||
| Optical defog | Support | ||
| EIS | Support | ||
| Image enhancement | BLC, HLC, 3D DNR | ||
| Smart function | Area intrusion, line crossing, area entry, area leave, face detection, motion detection, video block, people gathering, audio abnormal, scene change | ||
| Laser | Power rate | 20W | |
| Wavelength | 808nm | ||
| Distance | 5km | ||
| Light type | Zooming linkage with camera | ||
| Networks | Video compression | H.265/H.264/MJPEG | |
| Audio compression | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2 )/16-64Kbps(AAC) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | ||
| ONVIF | Support | ||
| Storage | Support Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support) | ||
| PTZ | Rotation range | Horizon: 360° rotation, vertical: +90°～-90° | |
| Rotation speed | Horizon: 0.01～15°/s, vertical: 0.01～7°/s | ||
| Preset accuracy | ±0.1° | ||
| Preset points | 200 | ||
| Others | Support cruise scanning, linear scanning, angle return, real-time return | ||
| General Spec. | Power supply | DC48V±10% | |
| Consumption | 250W | ||
| Input | 1ch 10M/100M self-adaptive, 1ch power input | ||
| Working temp. | -35℃～+65℃ | ||
| Working humidity | <90%RH | ||
| Protection | IP66 | ||
| EMC | Power 4000V, Signal 2000V（cable to grounding 2000V, cable to cable 1000V） | ||
| Salt fog protection | PH 6.5～7.2 or 48hr, no housing surface change | ||
| Weight | ＜43kg | ||
