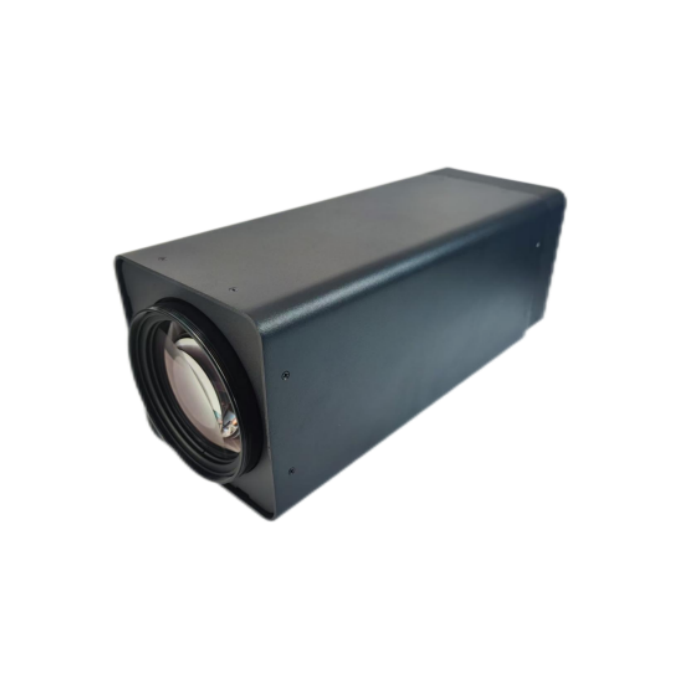

IPZM-82100-WT/DT/MT/HT/ST/CT
| Quantity: | |
|---|---|
| PDF Export | |
The camera features a 12.5–1250mm lens with 100X optical zoom and 16X digital zoom. Its field of view narrows from 34.5° to 0.35°, enabling highly focused observation of distant subjects. The extended focal length is particularly relevant to surveillance systems requiring narrow-angle imaging across large areas.
Equipped with a 1/1.8-inch Progressive Scan CMOS sensor, the camera supports 3840 × 2160 resolution at 25/30fps. The combination of 8MP imaging and 100X optical zoom provides high-resolution video for monitoring selected areas at different viewing distances.
The camera supports automatic back focus adjustment, autofocus, manual focus, and semi-automatic focus. Electronic anti-shake and optional optical anti-shake provide additional image stabilization options. These functions are particularly relevant when configuring long-focal-length imaging equipment.
Super Starlight imaging, 120dB WDR, 3D DNR, and defog functions provide image adjustment capabilities under different lighting and visibility conditions. The module also supports temperature compensation across a specified compensation range of -40°C to 60°C, helping accommodate optical adjustment requirements under temperature changes.
H.265/H.264，H.265+/H.264+, 8MP, 3840x2160, P/ N: 25fps /30fps
100X Optical, 12.5-1250mm optical zoom, 16X digital zoom
Super starlight, 120dB WDR
Support low Illumination, 3D DNR, 3D positioning
Support SD card (256G)
Support three streams
Support Intelligent Black Light, E-defog, Heat-removal, Optical Defog
Support distortion correction
Support shadow correction
Supports automatic back focus
Support temperature compensation (Compensation range -40℃ to 60℃)
Support 255 presets, 8 cruise scan
Support audio 1/1, alarm 2/2
Support VISCA, PeIco-D/P protocol
Support Smart Functions: Motion detection, Video detection, Perimeter detection, Line detection, Items left and lost, Audio detection
Support corridor mode
Easy connect to zooming camera, PTZ and platform
Multiple protocol/interface, Open SDK, Function extension
● Module: Single IP output for dual camera combination
● Main board: Single IP output for camera combination of dual visible lights, or combination of visible light and thermal imaging
● Network interface
● RJ45, RS485, Alarm In/Out, Line In/Out, Power Supply
● LVDS interface
● MIPI interface
● HDMI interface
| Model | IPZM-82100-WT/DT/MT/HT/ST/CT | |
| Camera | ||
| Sensor | 1/1.8 Progressive Scan CMOS | |
| Resolution | 8MP | |
| Low illumination | Color:0.001 Lux @(F2.1, AGC ON); B/W:0.0005Lux @(F2.1,AGC ON) | |
| S/N ratio | ＞55dB | |
| D/N mode | Auto ICR, auto, color, B/W | |
| Lens | ||
| Zoom times | f =12.5-1250mm，100X optical，16X digital | |
| Aperture | F2.1~F10 | |
| Shutter | 1/25-1/100,000s；support slow shutter | |
| FOV | 34.5°-0.35°（wide-tele.） | |
| Encoding | ||
| Video encoding | H.265 / H.264，H.265+/H.264+ | |
| H.265 | BaseLine Profile / Main Profile / High Profile | |
| H.264 | BaseLine Profile / Main Profile / High Profile | |
| Video encoding rate | 32Kbps~32Mbps | |
| Audio encoding standard | G.711A/G.711U/G.726/AAC | |
| Audio encoding rate | 16Kbps (G.711)/ (G.711U)/ (G.726)/(AAC) | |
| Image | ||
| Main stream | 50Hz: 25fps (3840x2160,2560x1440,1920x1080,1280x960, 1280x720)60Hz: 30fps (3840x2160,2560x1440,1920x1080,1280x960, 1280x720) | |
| Second stream | 50Hz: 25fps (1280x720, 640x480, 352x288)60Hz: 30fps (1280x720, 640x480, 352x288) | |
| Third stream | 50Hz: 50fps (704x576, 640x480, 352x288)60Hz: 60fps (704x480, 640x480, 352x240) | |
| Image setting | Brightness, contrast, saturation, sharpness, chroma, adjustable through browser | |
| BLC | Support | |
| HLC | Support | |
| Exposure | Auto Exposure/Manual Exposure/Anti Drag/Low Light Priority/High Light Priority/Aperture Priority/Shutter Priority/Lock Mode | |
| Focus | Auto focus/manual focus/semi-automatic focus | |
| Area focus | Support | |
| Back focus adjustment | Automatic | |
| E-defog | Support | |
| Optical Defog | Optional | |
| Electronic anti-shake | Support | |
| Optical anti-shake | Optional | |
| D/N shift | Automatic, manual, image algorithm, time period setting, serial trigger | |
| 3D DNR | Support | |
| Picture Overlay | Support | |
| Permeability | Auto, area setting | |
| ROI | 4 areas | |
| Internet Functions | ||
| Storage | Micro SD/SDHC /SDXC card(256G), NAS (NFS, SMB/CIFS) | |
| Internet Protocol | TCP/IP, MTU, HTTP, HTTPS, FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
| Protocol | ONVIF/SDK/Third-party protocol | |
| Interface | ||
| Internet Interface | RJ45, RS485, Alarm In/Out, Line In/Out, Power | |
| External interface | LVDS/MIPI/HDMI/SDI/CVBS | |
| General Spec. | ||
| Working Temp. | -30℃~60℃, Humidity<95%(Non-Condensing) | |
| Power supply | DC 9V-36V | |
| Consumption | 2.5W (11.5W MAX) | |

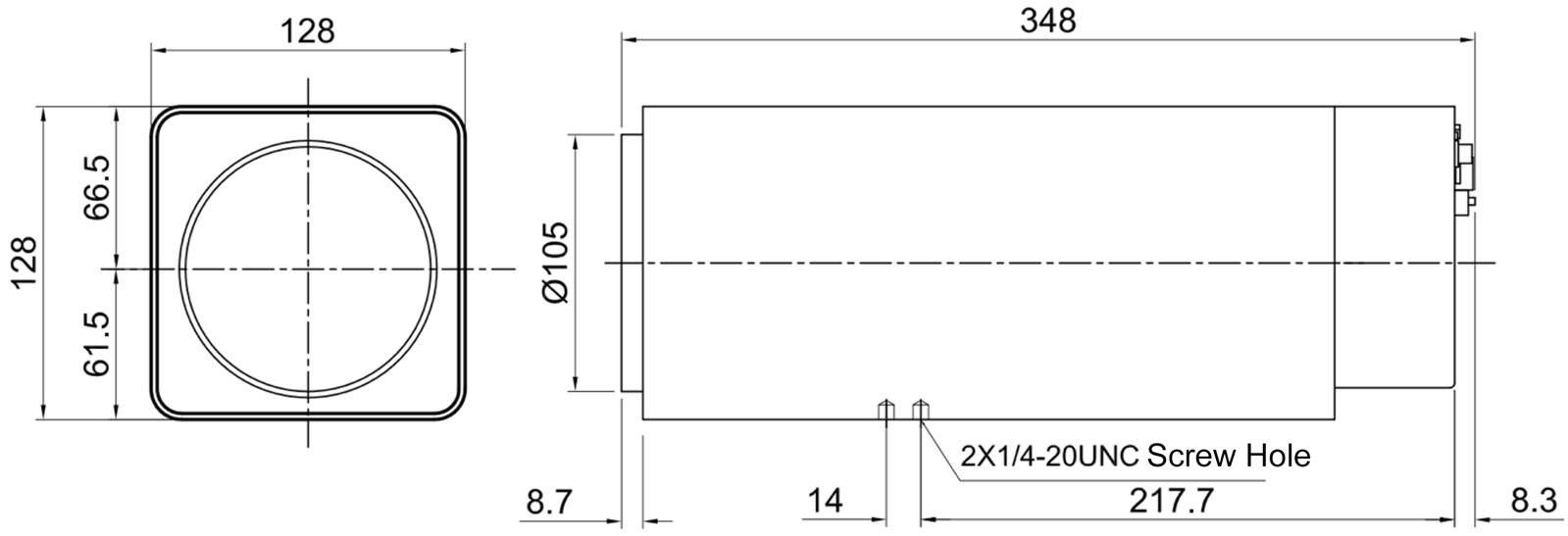

| Size | 348*128*128mm | |
| Weight | 4700g (with shell) | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
