An 8MP zoom block camera combines 4K spatial resolution with motorized optical zoom, giving professional surveillance systems a larger evidence canvas than conventional Full HD platforms. Future Vision offers 8MP modules with 25X, 40X, 55X, 69X, 77X, 80X and 100X optical configurations. This category is designed for projects where distant targets, wide scenes or post-event cropping justify the additional pixels and infrastructure. Typical customers include PTZ camera manufacturers, border and coastal surveillance integrators, transport-security contractors, industrial observation specialists and OEM developers of multi-sensor platforms. The engineering challenge is to preserve genuine optical detail through the lens, focus mechanism, enclosure, encoder and network rather than treating 3840 × 2160 as a stand-alone guarantee of performance.
Representative Future Vision 8MP models provide 3840 × 2160 video at 25/30 fps. The larger frame can retain fine spatial information when an operator electronically enlarges a recorded region or when analytics evaluate several targets in one view. This is useful at airports, harbors, public spaces, energy facilities and large industrial sites. A 4K stream can also reduce the need to keep the camera at maximum optical zoom continuously, because the operator has more crop margin at moderate focal lengths. That operational flexibility can improve scene awareness. Nevertheless, 8MP does not replace optical zoom. If a distant target occupies only a few pixels at the wide end, digital enlargement cannot create identification detail. The lens must first place enough optical information on the sensor, and the 4K frame then preserves more of it.

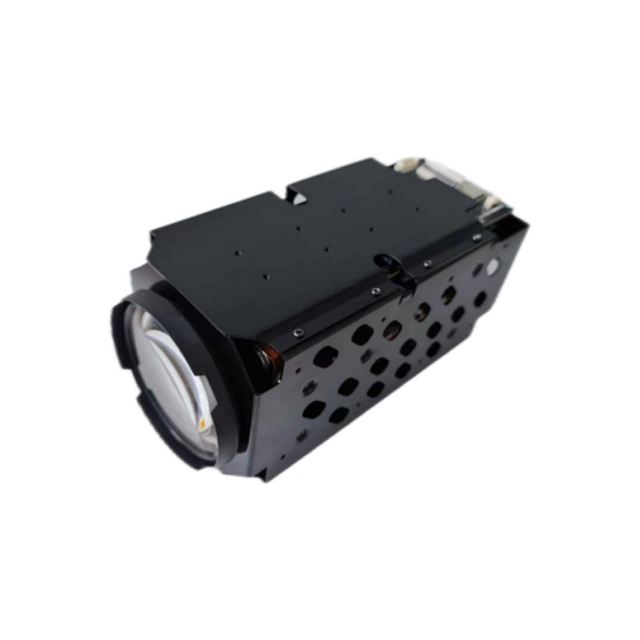

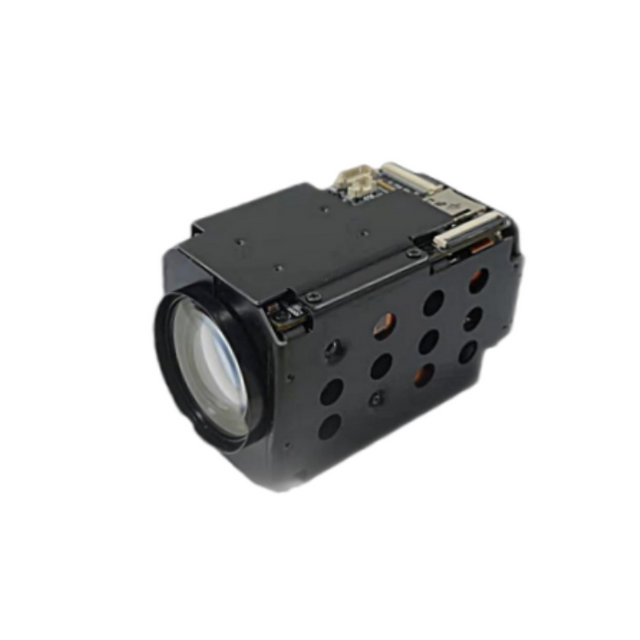

Future Vision covers both general-purpose and ultra-long-range 8MP designs. A representative 25X module uses an optical range around 6.4–160 mm, offering a practical combination of wide acquisition and telephoto inspection. It can fit premium speed domes, vehicle systems and compact positioning platforms. At the opposite end, a 100X module reaches approximately 12.5–1250 mm and is intended for large, stable long-range systems. Intermediate 40X, 55X, 69X, 77X and 80X options allow manufacturers to balance reach, module envelope, mass and cost. The focal endpoint should be chosen from a target-distance calculation. Buyers should also check the starting focal length, because a camera that begins too narrow may make it difficult to find a vessel, vehicle or person before zooming in. Representative choices include the 25X 8MP Super Starlight zoom block camera, the 80X 8MP Super Starlight zoom block camera, and the 100X 8MP Super Starlight zoom block camera.
A high-resolution sensor reveals weaknesses that are less visible at 2MP. Lens aberration, window distortion, focus error, vibration and atmospheric turbulence can all prevent the camera from delivering true 4K information. The protective glass should be flat, coated appropriately and positioned to avoid reflections. The PTZ structure must suppress micro-vibration, especially at 80X or 100X. Autofocus must remain stable across the zoom range and through temperature changes. Heat from electronics should not create air currents in front of the lens. At extreme distances, haze and heat shimmer may set a practical limit that no sensor can overcome. For this reason, Future Vision 8MP modules should be evaluated inside the intended housing and mount, using real targets at the required distance rather than a short indoor chart alone.
The move to 8MP affects the complete video chain. A 4K stream requires more encoder throughput, network bandwidth, recorder capacity and client decoding power than 2MP or 4MP. Scene complexity has a strong effect: trees, water, rain, crowds and image noise are difficult to compress. H.265 can reduce storage demand, but system designers still need to calculate peak bit rate and retention. Multiple streams can separate full-quality recording from lower-bandwidth live preview. Edge analytics may require a dedicated processor capable of decoding 4K while running detection or tracking. Video walls and operator workstations must also display the stream smoothly. Selecting an 8MP module without upgrading the infrastructure can lead to aggressive compression, dropped frames or delayed control, eliminating the intended evidence advantage.
Future Vision 8MP Super Starlight modules are intended to maintain useful imagery under difficult lighting, and representative products include wide dynamic range, noise reduction, day/night operation and defog functions. The project should still recognize the physics of a dense 4K sensor. In very low light, exposure time and gain may need to increase, creating blur or noise. A telephoto scene may also contain bright lamps, reflections and dark background areas that challenge automatic exposure. Illumination should be designed for the longest required focal length, not only the wide view. Where positive identification is required at night, the integrator should test the actual target, distance and illuminator. A thermal channel may be added for detection in complete darkness, leaving the 8MP visible module to supply color and fine detail when lighting permits.
A 25X 4K block camera can be the stronger choice for urban PTZ, campuses, commercial complexes, stadium approaches and mobile observation systems. Its moderate optical range supports rapid scene changes and can keep the camera assembly smaller than an ultra-long lens. Because the sensor provides 8MP, operators retain substantial crop flexibility at the middle of the zoom range. This combination is useful when targets appear at varied distances and the camera must frequently return to a wide overview. It can also reduce the mechanical burden on a lightweight gimbal. The project should choose 25X when field coverage, responsiveness and integration size matter more than maximum telephoto distance. A larger zoom number is not automatically an upgrade if the platform cannot stabilize it or if the scene rarely requires it.
Extreme optical reach is appropriate for coastlines, borders, reservoirs, airports, ports, forest observation and critical-infrastructure perimeters where a camera must verify remote activity from a protected position. A representative Future Vision 100X module combines 4K output with a 12.5–1250 mm optical range. Such capability requires a substantial enclosure, accurate positioning and a stable foundation. Operators may also need a wide-angle locating sensor, radar, thermal camera or geographic cueing system to direct the narrow telephoto view. Long-range design should include visibility statistics for the site; fog, dust and heat shimmer may reduce the number of days when the maximum focal length is useful. When these factors are understood, an 80X or 100X 8MP module can provide exceptional optical inspection without moving personnel closer to the target.
An 8MP zoom block camera is often most effective as the visible channel in a multi-sensor platform. Thermal imaging can detect people, vehicles, animals or hot equipment without relying on visible illumination. The PTZ or positioning system then directs the 4K visible camera toward the same location for color confirmation and detailed evidence. The design must align the sensors mechanically and maintain that alignment through zoom and temperature changes. Software can map fields of view and transfer target coordinates between channels. A laser rangefinder, radar or AIS data source may also cue the visible camera in specialized systems. Future Vision provides both visible zoom and thermal product categories, giving integrators a basis for coordinated electro-optical equipment while still allowing the host system and enclosure to be customized.
An 8MP RFQ should include the required optical range, minimum and maximum target distance, desired frame rate, video interface, codec, protocol, operating temperature, enclosure concept and estimated order volume. The buyer should define whether the project needs wide-area overview, remote identification, digital cropping or analytics, because these objectives may lead to different focal and bit-rate decisions. Mechanical drawings, connector definitions and power limits should be reviewed before tooling. Future Vision supports OEM and ODM customers, including PTZ manufacturers, surveillance distributors and specialized equipment developers. Sample approval should evaluate focus at several zoom positions, stream stability, night performance, power cycling, temperature behavior and compatibility with the real recorder or processing board. For long-range models, outdoor testing is essential.
The strongest 8MP project is one in which the added pixels solve a defined problem. The camera may need to preserve small details across a wide scene, support digital investigation after recording, feed an advanced analytic model or provide high-resolution confirmation at long distance. Future Vision offers multiple optical ranges so that the 4K sensor can be matched to compact PTZ products as well as ultra-long-range observation systems. The result should not be judged by resolution alone. Optical quality, platform stability, lighting, atmosphere, bit rate and operator workflow determine whether the additional information remains visible. When those elements are engineered together, an 8MP zoom block camera can provide a substantial improvement in evidence density and long-range observation capability.
