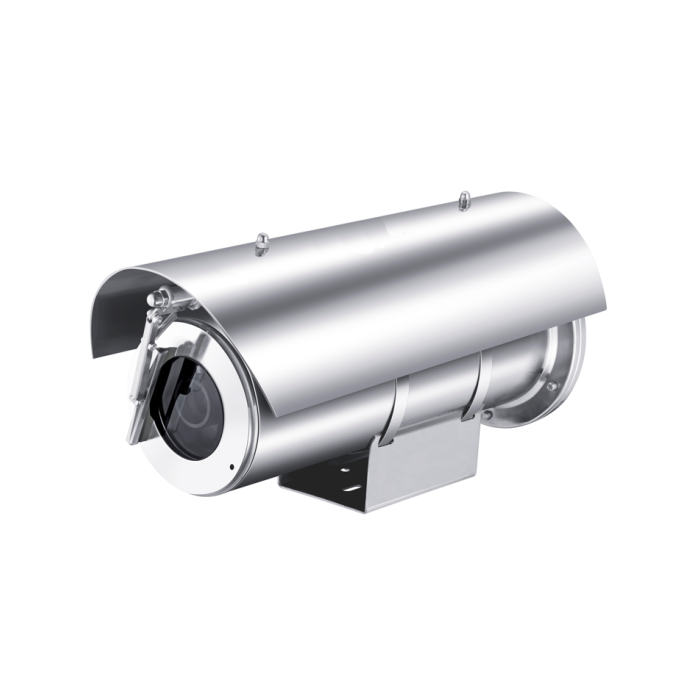

IPC-FB603-SS304
| Quantity: | |
|---|---|
| PDF Export | |
Explosion-proof cert: Ex db IIC T6 Gb (-40 °C ≤ Ta ≤ +60 °C) / Ex tb IIIC T80°C Db (-40 °C ≤ Ta ≤ +60 °C) IP68
Use special explosion-proof glass with nanotechnology, high optical pass rate, non-adhesive water, non-sticky oil and non-dust
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
Applicable to environments of IIA, IIB and IIC with combustible gases, T1-T6 group 1 and 2 zones with combustible gas or explosive mixture of vapor, and T1-T6 groups 21 and 22 zones containing combustible dust mixture. Such as: petroleum, chemical industry, mine, military industry, medicine, oil depot, ship, drilling platform, gas station, gun production, grain processing and storage, etc.
| Model | IPC-FB603-SS304 |
| Housing material | 304/316L Stainless steel |
| Cable hole | G3 / 4 " inlet hole*2 |
| Wiper | Support |
| Installation | Multiple installation type based on the application environment |
| EX Cert. | Ex db IIC T6 Gb (-40 °C ≤ Ta ≤ +60 °C) / Ex tb IIIC T80°C Db (-40 °C ≤ Ta ≤ +60 °C) IP68 |
| IP protection | IP68 |
| Weight | ≤ 7.5kg |
