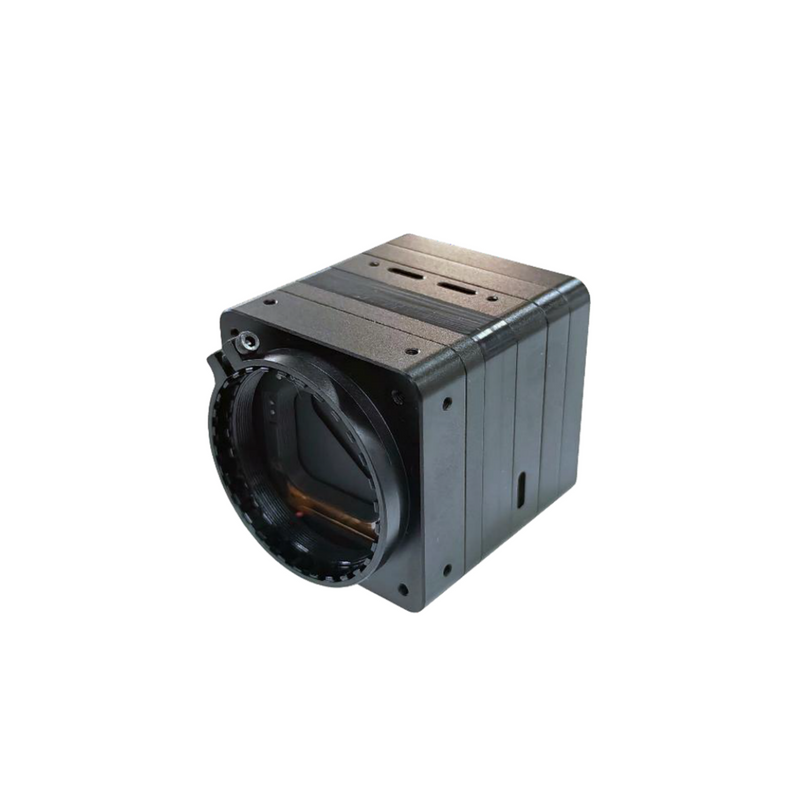

FV-TM12N-IC
| Quantity: | |
|---|---|
| PDF Export | |
12μm VOx Uncooled Infrared Focal Plane Detector
1280*1024@30fps
NETD Sensitivity: < 40mK (@f/1.0, 30Hz, 300K)
Video Output: CVBS Output, PAL
Interface Support: ONVIF
Ethernet Protocol: TCP/IP, HTTP, RTSP
With functiond of Motion and Intrusion detection/Alarm/Solar protection, Lens Driving etc.
Image Adjustment: Brightness, Contrast, DDE, GMMA, etc.
UART for PTZ communication and controlling
Size: 43mm x 43mm x 56mm (without Lens)
Model | FV-TM12IC |
Detector | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 1280*1024 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 30fps |
Sensitivity (NETD) | < 40mK (@f/1.0, 30Hz, 300K) |
Image | |
Digital Zoom | 1~ 8× |
Image Adjustment | Brightness, Contrast, DDE, GMMA, etc. |
Functions | Motion and Intrusion detection/Alarm/Solar protection, Lens Driving etc. |
Pseudo Color | White Hot/Black Hot etc. |
Video | |
Video Output | CVBS Output, PAL |
Network | |
Ethernet Protocol | TCP/IP, HTTP, RTSP |
Interface Support | ONVIF |
Video Coding | H.264, H.265 |
Interfaces | |
Power In | DC connector (5.5×2.1) |
Video Streaming | Ethernet (standard RJ45 connector) |
Communication | TTL (RS485 reserved) |
Environment | |
Working Temperature | -40℃ ~+60 ℃ |
Working Humidity | ≥ 95% (non-condensing) |
Storage Temperature | -50 ℃ ~ +70 ℃ |
Power | |
Power Supply | DC 12V |
Power Consumption | ≤2.5W (steady @25 ℃) |
Working Mode | Power on |
General | |
Weight | < 250 g (without Lens) |

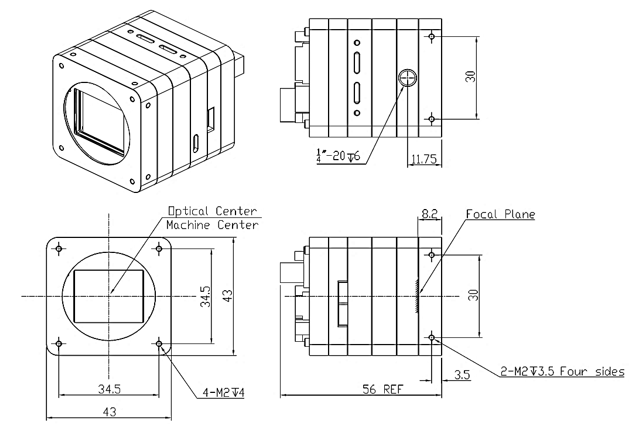

Size | 43mm x 43mm x 56mm (without Lens) |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
