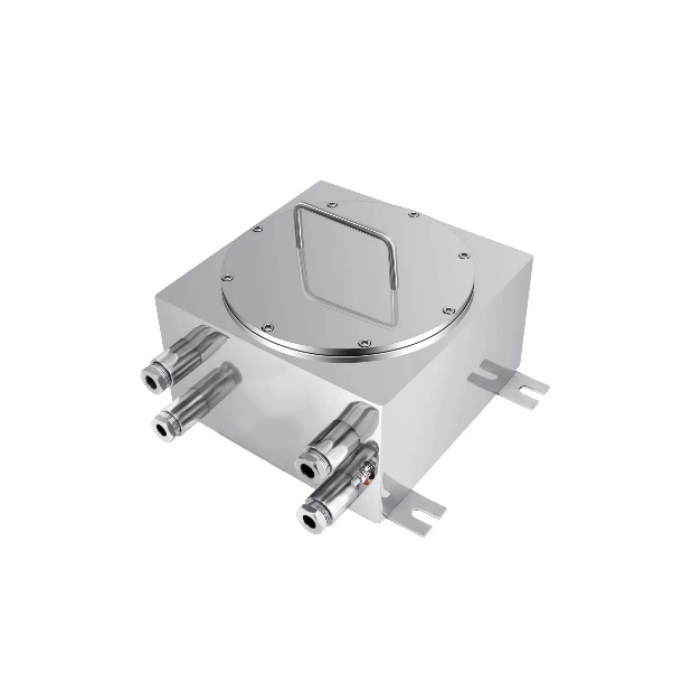

EX08J
| Quantity: | |
|---|---|
| PDF Export | |
Double explosion-proof certification, explosion-proof mark: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
Protection Class IP66
Equipped with 6 G-3/4 "outlet (inlet) ports, all of which are lower outlets
Is made of 304 stainless steel and suitable for highly corrosive environment
Can be installed with power supply, C/B, optical fiber transceiver, lightning protection module, terminal box and other related equipment
Can customize the non-standard explosion-proof control box according to the customer needs
| Model | Explosion-proof control box |
| Explosion-proof sign | Ex d IIB T6 Gb/Ex tD A21 IP66 T80℃ |
| Levels of protection | IP68 |
| Temperature range | -40℃~ 60℃ |
| Product material | 304/316L Stainless steel |
| Built-in accessories | Can be installed with C/B, lightning and surge protection modules, fiber optic transceivers, fiber optic terminal boxes, switch power supplies, plug-in strips, terminal strips, guide rails, etc |

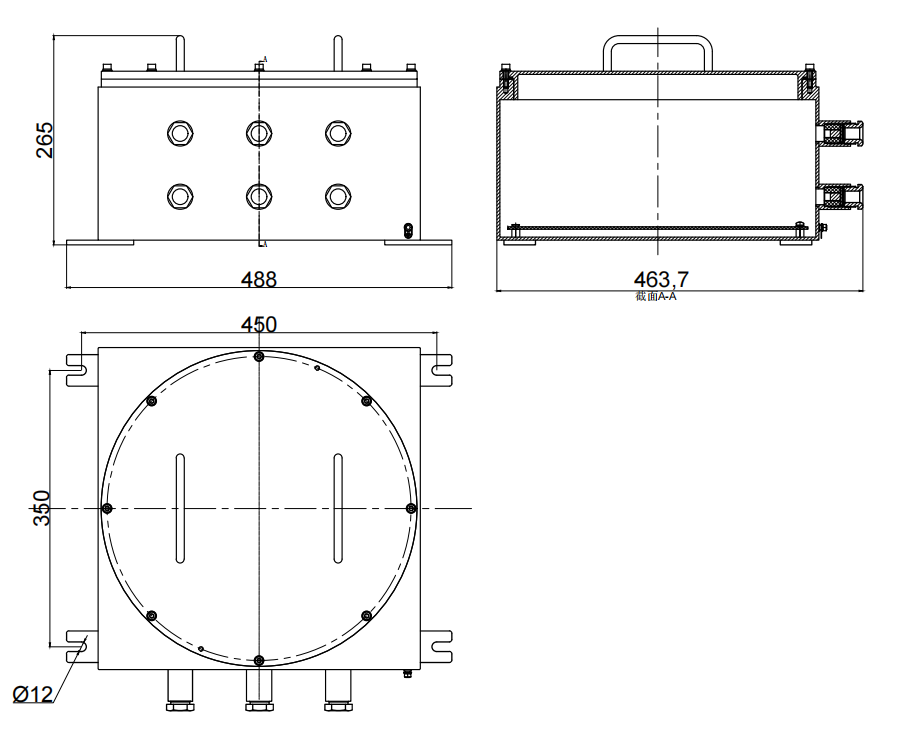

| Routine internal cavitydimensions | 400*400*200mm |
| Number / specification of outlet holes | Equipped with 6 G-3/4 "outlet (inlet) ports, all of which are lower outlets |
| Way to install | Wall-mounted, fixed bracket, column \ platform |
| Product weight | ≤ 18kg |
