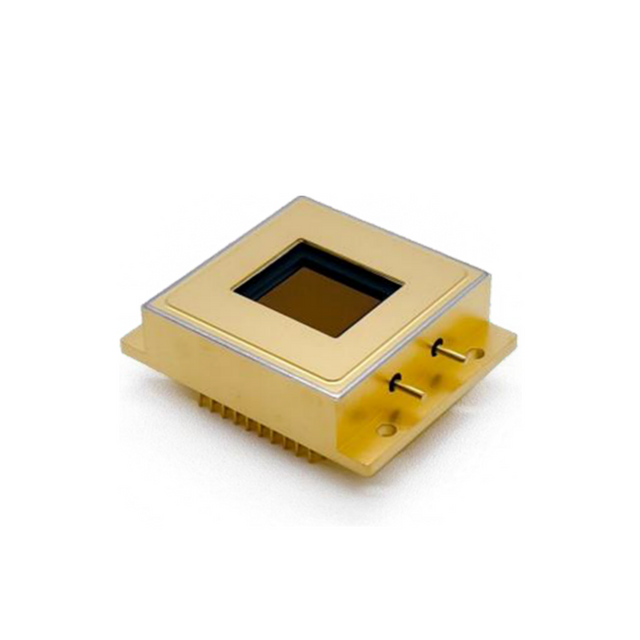

Short-wave infrared imaging covers a spectral region beyond visible light and is commonly implemented with InGaAs sensors. Unlike long-wave thermal cameras, SWIR systems primarily form images from reflected radiation rather than emitted heat. This difference allows SWIR cameras to reveal material, moisture and transmission characteristics that may not appear in visible or thermal images. Future Vision’s SWIR category includes 1280×1024 and 640×512 area-scan cameras, a 1024 × 1 linear detector and a 640 × 512 area-array detector. The portfolio addresses B2B customers developing semiconductor inspection, sorting, spectroscopy, research, high-speed imaging and specialized surveillance equipment.
A thermal camera detects temperature-related long-wave infrared emission and can locate warm targets without external illumination. A SWIR camera responds more like a visible camera in an invisible spectral band. The target often needs sunlight, ambient SWIR radiation or an active SWIR illuminator. This makes SWIR useful for seeing through certain materials, detecting moisture differences, inspecting silicon and identifying spectral signatures. It is not a direct replacement for a perimeter thermal camera. Project teams should first define whether the required contrast comes from temperature or reflected spectral behavior. The answer determines the detector, optics, illumination and calibration strategy.
The 1280×1024 InGaAs SWIR camera provides a higher-resolution area-scan option for applications that need fine spatial detail across a two-dimensional scene. A 1280×1024 format can support wafer inspection, research imaging, remote sensing and material analysis where small features must be separated. Higher resolution also increases data throughput and places stronger requirements on lens quality, interface bandwidth and processing. The customer should confirm pixel size, frame rate, bit depth, spectral response and cooling configuration for the exact model. A high-resolution camera only creates value when the optical system resolves the detector and the host computer can receive and analyze the full data stream without dropping frames.

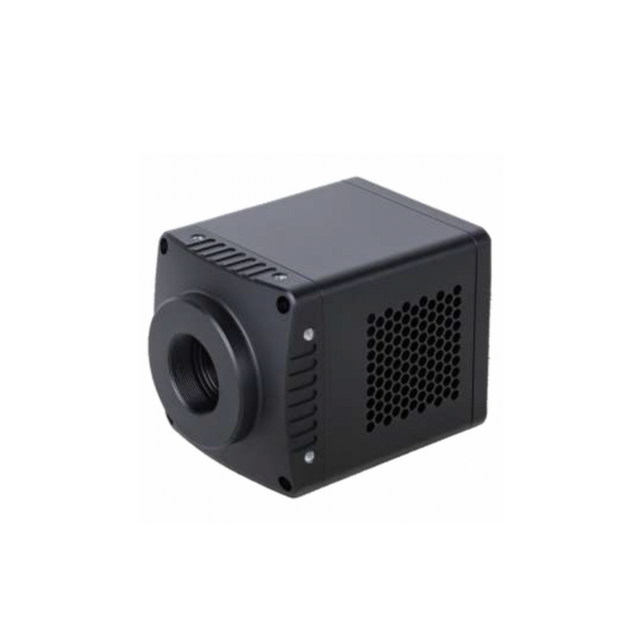

The 640×512 high-speed InGaAs SWIR camera is listed with 640×512 output at up to 550 fps, a 10 GigE interface, a 14-bit ADC, onboard DDR3 cache and an efficient refrigeration system intended to reduce dark current. This architecture is appropriate for high-speed events, production inspection and research where temporal resolution matters as much as spatial resolution. The usable frame rate depends on resolution, bit depth, bandwidth and region-of-interest settings. Buyers should specify whether they need the full frame at maximum speed or a smaller ROI at a higher rate. Trigger timing, exposure control and synchronization with lighting or machinery should also be tested during integration.
The 1024 × 1 InGaAs linear SWIR detector uses a 1024 × 1 InGaAs photosensitive array, readout circuit and thermoelectric cooling in a ceramic package. Its listed pixel dimensions and large light-sensitive area make it suitable for line-scan architectures. A linear detector is not used like a conventional camera. The object or detector moves so that successive lines build a two-dimensional image. This method is widely suited to continuous materials, conveyor sorting, spectroscopy and web inspection because it can provide consistent sampling across a moving process. The system designer must coordinate line rate, transport speed, illumination uniformity and encoder feedback to avoid stretched or compressed images.
An area-array camera captures a complete two-dimensional frame and is easier to deploy for stationary objects, laboratory scenes and general machine vision. A line array is more efficient for continuous moving materials or spectrometer designs. The choice should be made from the motion and geometry of the application. A conveyor inspecting fruit, minerals or packaging may use either architecture, but a high-speed continuous web often benefits from line scanning. Area arrays are better when the object position is irregular or when the operator needs immediate scene context. Future Vision’s category includes both forms, allowing OEM customers to build products around the acquisition method rather than forcing one detector format into every project.
SWIR imaging can highlight differences in moisture, organic content and material composition that are difficult to see in RGB video. Applications include food inspection, agricultural sorting, recycling, mineral separation, plastic identification and pharmaceutical quality control. The camera must be paired with suitable illumination and spectral filtering. A broad-band SWIR image may show useful contrast, while a multi-band or spectroscopic system can provide stronger material discrimination. Customers should test representative samples, including contamination, surface variation and production speed. An algorithm trained on ideal laboratory samples may not perform reliably on a real conveyor unless the optical and lighting environment is controlled.
InGaAs cameras are valuable in semiconductor and photovoltaic inspection because SWIR can interact with silicon differently from visible light. Depending on wavelength, thickness and illumination, the system may reveal internal structures, cracks, defects or alignment features. The camera specification should include spectral response, noise, dynamic range, cooling and lens compatibility. High-resolution area arrays support small defect inspection, while high-speed systems can increase production throughput. The mechanical setup should minimize vibration and maintain a repeatable working distance. Calibration and flat-field correction are important when the application compares subtle intensity differences across the image.
A linear InGaAs detector can be combined with a grating or other dispersive element to measure spectral intensity across wavelength. Scientific buyers should define wavelength range, spectral resolution, integration time, detector cooling and readout noise. A large photosensitive area may improve light collection, but spectral resolution also depends on slit width and optical design. For time-resolved experiments, the data acquisition system must synchronize with the source and event. Future Vision’s detector products can form the sensing element, while the customer is responsible for the spectrometer optics, calibration, electronics and analytical software. The RFQ should therefore describe the complete instrument concept rather than only the number of pixels.
High-speed SWIR cameras generate substantial data. A 10 GigE connection, local cache and efficient host memory pipeline may be necessary to sustain continuous acquisition. The computer should have compatible network hardware, storage speed and processing capacity. Scientific and industrial users may require raw 14-bit data rather than compressed video. The software must handle bad-pixel correction, non-uniformity correction, dark-frame subtraction and temperature-dependent behavior. If real-time classification is required, GPU or FPGA processing may be needed. The customer should test the complete chain from detector exposure to final decision latency before moving into production.
Visible-light lenses and windows may not provide adequate transmission or focus across the SWIR band. The optical design should use materials and coatings appropriate for the intended wavelength range. Chromatic focus shift becomes important when a system combines visible and SWIR channels. Illumination must be stable and safe for the application, with enough power to support the required exposure time. Industrial enclosures should protect the camera from dust and vibration without blocking the spectral band. A controlled lighting tunnel can improve sorting consistency, while outdoor SWIR surveillance may depend on solar conditions or active illumination. Optical validation is as important as detector selection.
A complete inquiry should state detector format, area or line-scan architecture, spectral range, pixel size, frame or line rate, bit depth, exposure time, cooling requirement, interface, lens mount, trigger method, operating temperature and annual quantity. The customer should describe the material, defect or event to be observed and provide sample images or test pieces when possible. Future Vision can then compare a 1280×1024 camera, a high-speed 640×512 camera or a linear detector. Sample testing should include actual illumination, motion speed, host hardware and processing algorithms. This reduces the risk of selecting a sensor that is technically impressive but mismatched to the production task.
SWIR technology is valuable when it reveals information that visible or long-wave thermal imaging cannot provide. Future Vision’s mix of high-resolution area cameras, high-frame-rate cameras and detector components gives OEM customers several development paths. The correct choice depends on whether the application needs spatial detail, temporal speed, line scanning or instrument-level detector integration. Success requires a complete spectral system: detector, optics, illumination, interface, calibration and software. When those elements are designed around the physical property being measured, an InGaAs SWIR camera can deliver reliable industrial and scientific information rather than simply producing another grayscale image.
