IPC-FB6000-7226T-HB(NDAA)
| Quantity: | |
|---|---|
| PDF Export | |
Explosion-proof cert: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
H. 265, 2MP 1/2.8 " CMOS
26X Optical, focal length: 5~130mm
Starlight low illumination: 0.001 Lux @F1.6（color），0.0005 Lux @F1.6（B/W）
Smart detection: Intrusion detection, Line crossing, Region enter/exist, Motion detection, Video mask, etc.
Support BLC, HLC, 3D DNR, 120 dB WDR
Support horizontal 360° continuous rotation, 0-90° in vertical direction (auto flip)
Support 300 preset bits, 8 cruise paths, 3D positioning, scheduled tasks, one-click watch, and one-click cruise
Support 6000V lightning protection, surge prevention and surge wave prevention
Aviation grade high-strength polycarbonate explosion-proof transparent bubble, hardening, anti-fog treatment, penetration, light transmittance of up to 96%
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
| Model | IPC-FB6000-7226T-HB(NDAA) | ||
| Lens | Resolution | 2MP | |
| Sensor | 1/2.8" Progressive Scan CMOS | ||
| Focal length | 26X Optical, 5~130mm, digital zoom 16X | ||
| Focus speed | 3.5s | ||
| Shutter | 1/25~1/100,000 s | ||
| Illuminance | 0.001 Lux @F1.6（color），0.0005 Lux @F1.6（B/W） | ||
| FOV | 56.9-2.9（Wide ~ Tele.） | ||
| WDR | 120dB | ||
| Image | Main Stream | 50Hz: 25fps(1920x1080,1280x960,1280x720); 60Hz: 30fps(1920x1080,1280x960,1280x720) | |
| Second Stream | 50Hz: 25fps(1280x720,640x480,352x288); 60Hz; 30fps(1280x720,640x480,352x288) | ||
| Third Stream | 50Hz: 25fps(704x576,640x480,352x288); 60Hz: 30fps(704x576,640x480,352x288) | ||
| Compression rate | 128Kbps~16Mbps | ||
| Audio compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | ||
| Code rate type | Fixed rate, variable bitrate | ||
| SVC | Support | ||
| ROI | Support | ||
| Image enhancement | BLC, HLC, 3D DNR | ||
| Image Settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance is adjustable via the client or browser | ||
| Alarm trigger | Mobile detection, blocking alarm, abnormal | ||
| Smart functions | Intrusion detection, Line crossing, Region enter/exist, Motion detection, Video mask, etc. | ||
| PTZ control | Rotation | Horizontal 360° continuous rotation, vertical 0° -90° (automatic flip) | |
| Horizontal speed | Horizontal key control speed: 0.1° -250° / s, the speed can be set, horizontal preset point speed: 300° / s | ||
| Vertical speed | Vertical key control speed: 0.1° -150° / s, the speed can be set, vertical preset point speed: 200° / s | ||
| 3D positioning | Support | ||
| Preset point | 300 | ||
| Automatic cruise | 8 lines, 32 preset points for each line | ||
| Pattern scan | 4 | ||
| Power memory | support | ||
| Watch function | Preset point / pattern / scan / cruise scan / automatic scan / vertical scan / random scan / frame scan /panoramic scan | ||
| Azimuth info display | support | ||
| Preset point freeze | support | ||
| Networks | Network, protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | |
| Interface protocol | Open network video interface, API, SDK, Ehome (2.0/4.0), GB28181 (2011 / 2016) | ||
| Network storage | NAS (NFS, SMB / CIFS), Micro SD / Micro SDH C/Micro SDXC card (maximum 256 GB), local video storage and transmission, and SD card encryption with SD card status detection | ||
| Preview channel | Up to 20ch at same time | ||
| User management | Up to 20 users | ||
| Browser | IE10，IE11，Chrome 57.0+，Firefox 52.0+ | ||
| General Spec. | Audio | 1 in /1 out | |
| Alarm | 1 in /1 out | ||
| Lightning protection | 6000 V lightning protection, surge protection and surge protection | ||
| Communication | 1 RJ45 10 M / 100 M Adaptive Ethernet port | ||
| Temperature | -40℃~+60℃ | ||
| Power supply | AC85V ~ 260V / AC 24V / POE (Optional) | ||
| Housing material | 304/316L Stainless steel | ||
| Cable hole | G3 / 4 " inlet hole*1 | ||

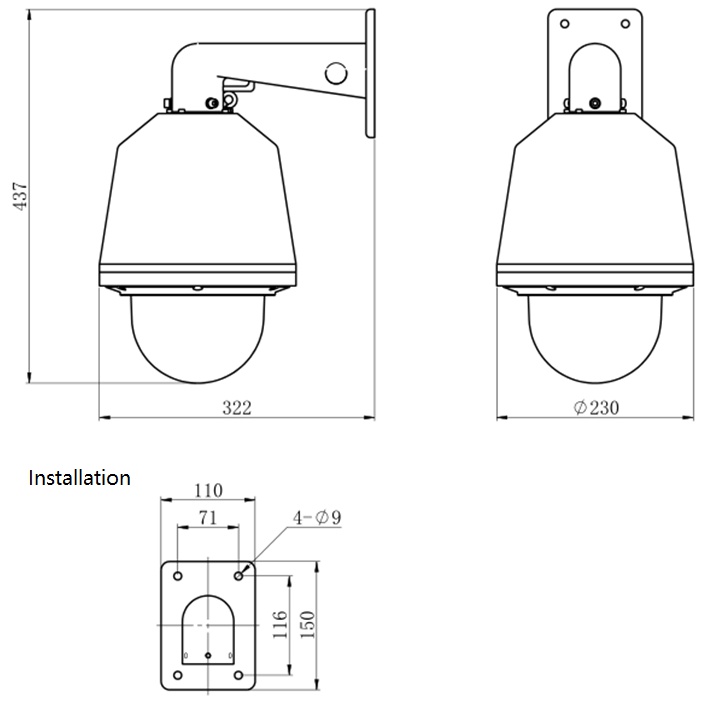

| Installation | Wall/ceiling mount | ||
| EX Cert. | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ | ||
| IP protection | IP68 | ||
| Weight | ≤ 14kg | ||
