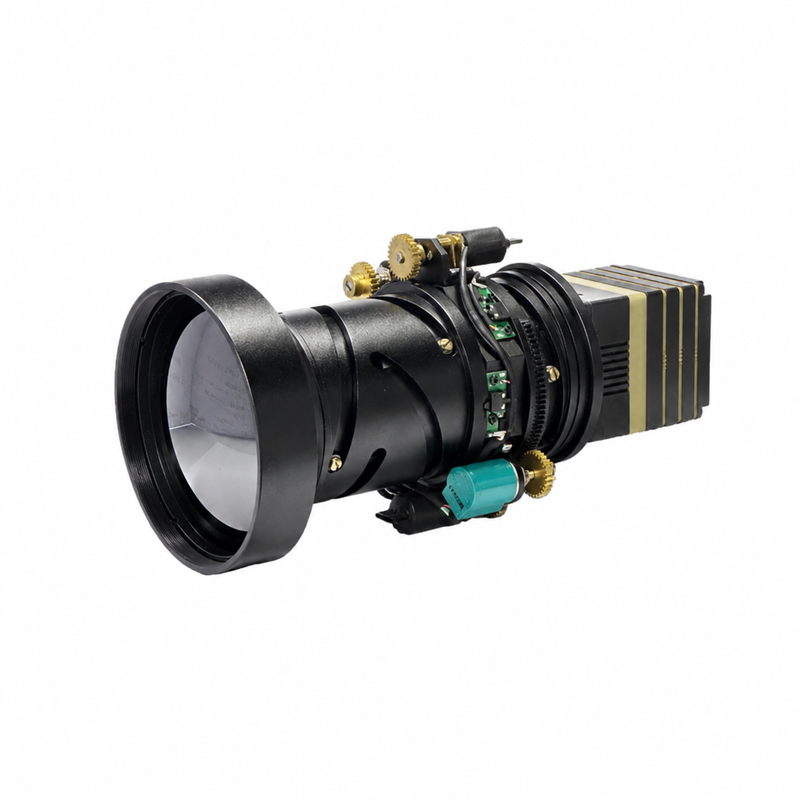

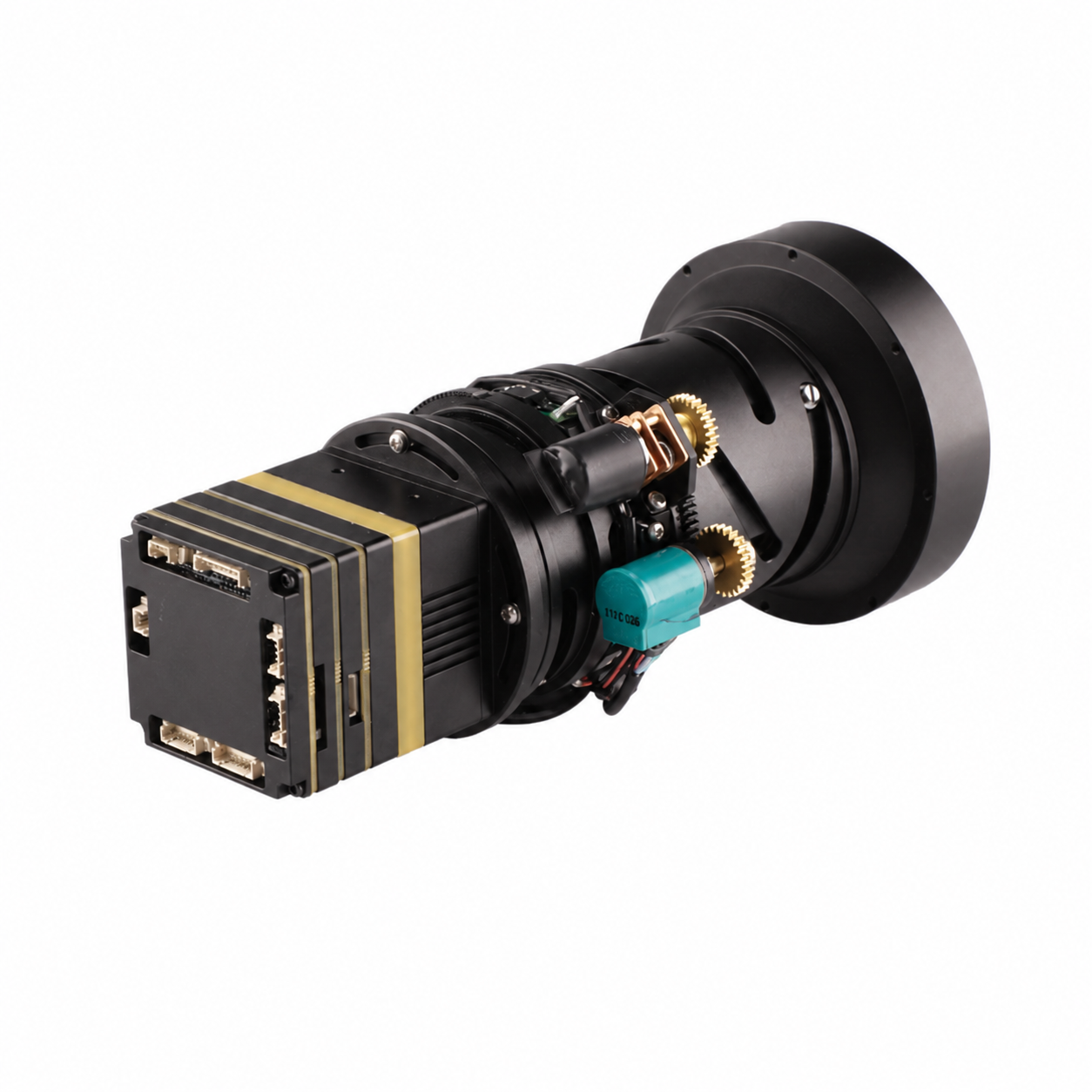

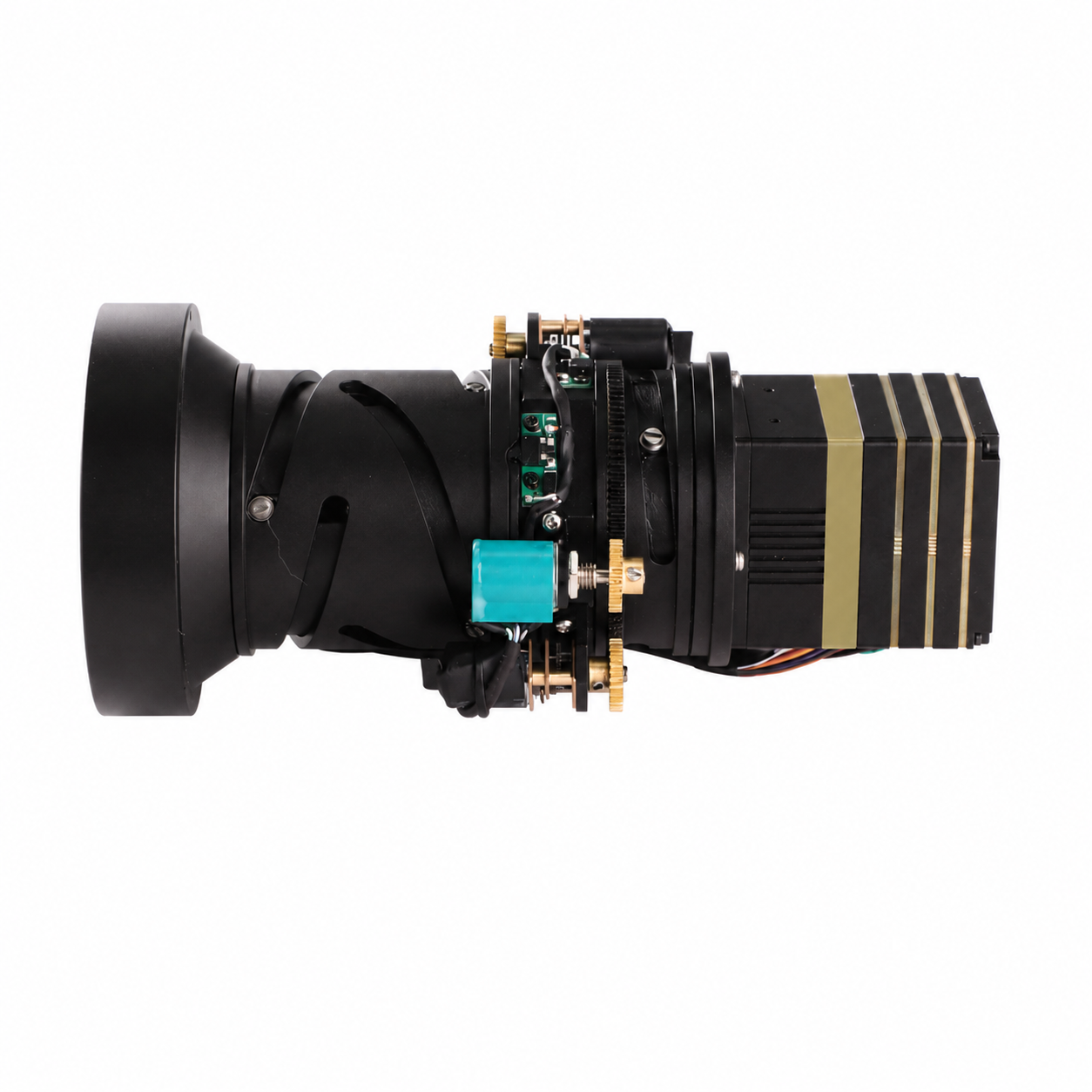

TM65100AW
| Quantity: | |
|---|---|
| PDF Export | |
Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.
The highest resolution can reach 640*512, real-time image output
NETD sensitivity≤35 mK @F1.0, 300K
20~100mm 5x optical zoom
Supports network access and has rich image adjustment functions
Support RS232, 485 serial communication
Support 1 audio input and 1 audio output
Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function
Supports Micro SD/SDHC/SDXC card storage up to 256G
Rich interfaces for easy function expansion
| Model | TM65100AW | |
| Detector | ||
| Detector type | Vox Uncooled Thermal Detector | |
| Effective Pixels | 640x512 | |
| Pixel size | 12μm | |
| Spectral range | 8-14μm | |
| Sensitivity (NETD) | ≤35 mK @F1.0, 300K | |
| Lens | ||

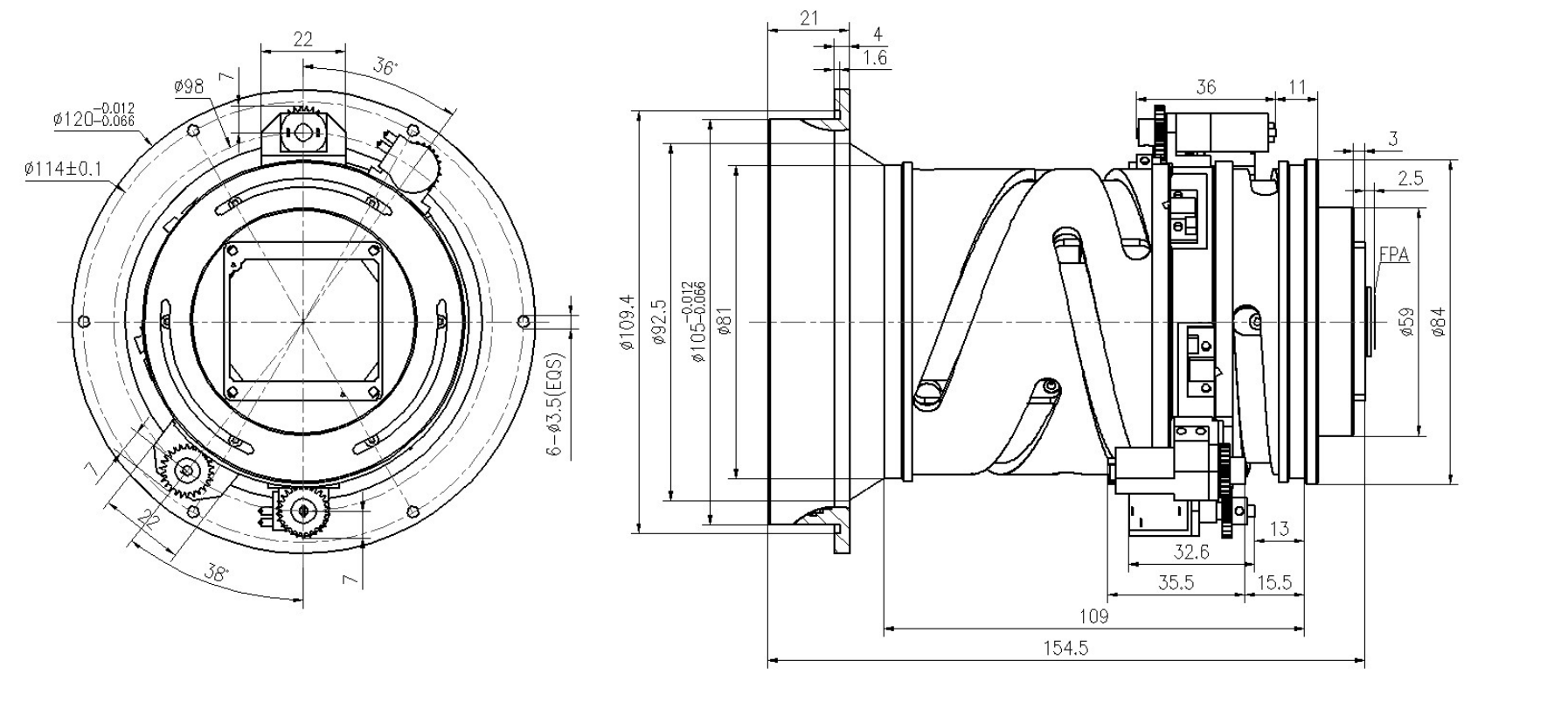

| Lens | 20-100mm 5x Optical Zoom Lens | |
| F Value | 0.85~1.2 | |
| Focusing Type | Auto Focus | |
| FOV | 21.7°X 17.5°~4.4° X 3.5° | |
| Spatial resolution | 20mm：0.8mard / 100mm：0.11mard | |
| Focusing range | 20mm：1M—∞ / 100mm：10M—∞ | |
| Sealing | IP67(front of lens) | |
| Network | ||
| Network protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | |
| Video compression standards | H.265 / H.264 | |
| Interface Protocol | ONVIF(PROFILE S,PROFILE G) , SDK | |
| Image | ||
| Resolution | 25fps(640*512) | |
| Image settings | Brightness, contrast, and gamma are adjustable through the client or browser | |
| Pseudo Color | 10 modes available | |
| Image enhancement | support | |
| Bad pixel correction | support | |
| Image noise reduction | support | |
| Mirror | support | |
| Interface | ||
| Network Interface | 100M network port | |
| Analog output | CVBS | |
| Communication serial port | 1 channel RS232, 1 channel RS485 | |
| Functional interface | 1 alarm input/output, 1 audio input/output, 1 USB port | |
| Storage function | Support Micro SD/SDHC/SDXC card (256G) offline local storage, NAS (NFS, SMB/CIFS are supported) | |
| Environment | ||
| Operating temperature and humidity | -30℃~60℃, humidity less than 90% | |
| Power supply | DC12V±10% | |
| Power consumption | 5W | |
| Size | 211.3*Φ109.4mm | |
| Weight | 1355g | |
