IPTZ-950-Z486L4T10W
| Quantity: | |
|---|---|
| PDF Export | |
Double pitch worm gear transmission structure, electronic anti-shake and mechanical anti-loose design
Supports power-off self-locking, strong wind resistance and high stability
Support multiple lens preset functions, zoom adaptive, and the rotation speed can be automatically adjusted according to the zoom of the lens
Support smart features: area intrusion, line crossing, area leave, motion detection, video block, etc.
Support AWB, DWDR, HLC, BLC, EIS, and 3D DNR, etc.
The built-in FOV synchronous zoom laser lighting system, with long distance and wide range, and can realize 0Lux night vision monitoring
The laser module adopts multi-core fusion mode mixing and uniform light technology, which has no speckle dark ring and high edge definition
Support cruise scanning, linear scanning and other scanning methods
Support power-off memory function, and automatically return to the monitoring scene before power-off after power on
Support watch function, preset point / scan / Cruise can be automatically called after staying in idle state for a specified time (including idle state after power on)
360 ° continuous rotation in horizontal direction and + 90 ° ~ - 90 ° rotation in vertical direction
Housing material with anti-corrosion materials, three prevention treatment, all-weather protection design and IP66 protection grade, which can be applied to salt fog video monitoring environment such as maritime, border and coastal defense
| Model | IPTZ-950-Z486L4T10W | ||
| Optical | Sensor | 1/1.8” CMOS sensor | |
| Resolution | 4MP, 2560*1440 | ||
| Low illumination | Color: 0.0005Lux@(F2.1,AGC ON)B/W: 0.0001Lux@(F2.1,AGC ON) | ||
| Focal length | 86X, 10-860mm optical zoom, 16X digital zoom | ||
| Optical Defog | Support | ||
| EIS | Support | ||
| Image enhancement | BLC, HLC, 3D DNR, DWDR | ||
| Smart function | Area Intrusion, Cross-border, Motion Detection, Privacy Shield, People Hovering, People Gathering, (Optional: Body Detection, Face Detection, Vehicle Detection, etc.) | ||
| Thermal | Image sensor | Uncooled Microbolometer | |
| Resolution | 640(H)x512(V) | ||
| pixel size | 17μm | ||
| Thermal Sensitivity(NETD) | ≤30mK@300K.F1 | ||
| NETD | ≤40 | ||
| Lens Type | Motorized | ||
| Focal Lens | 30mm-300mm | ||
| Zoom type | Manual/Auto | ||
| Laser | Laser Distance | 4KM | |
| wavelength | 808nm | ||
| Angle of Laser Illuminator | 0.3° to 13° adjustable | ||
| Networks | Compression | H.265 / H.264 | |
| Compression rate | 32 Kbps~16Mbps | ||
| Compression standard | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | ||
| Storage | Micro SD/SDHC /SDXC(256G), NAS(NFS,SMB/CIFS) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | ||
| PTZ | Rotation range | Horizon: 360° rotation, vertical: +45°～90° | |
| Rotation speed | Horizon: 0.01～100°/s, vertical: 0.01～100°/s | ||
| Preset accuracy | ±0.1° | ||
| Preset points | 200 (customized available) | ||
| Temp. control | Built-in heater, cooler components, auto power on/off | ||
| Others | Support cruise scanning, linear scanning, angle return, real-time return | ||
| General Spec. | Power supply | AC220V | |
| Consumption | <300W | ||
| Network Output | 1 × RJ-45 | ||
| Analog Output | 1 × CVBS output | ||
| Working temp. | -40℃～+70℃ | ||
| Working humidity | <95%RH | ||
| Protection | IP66 | ||
| EMC | Power 4000V, Signal 2000V | ||

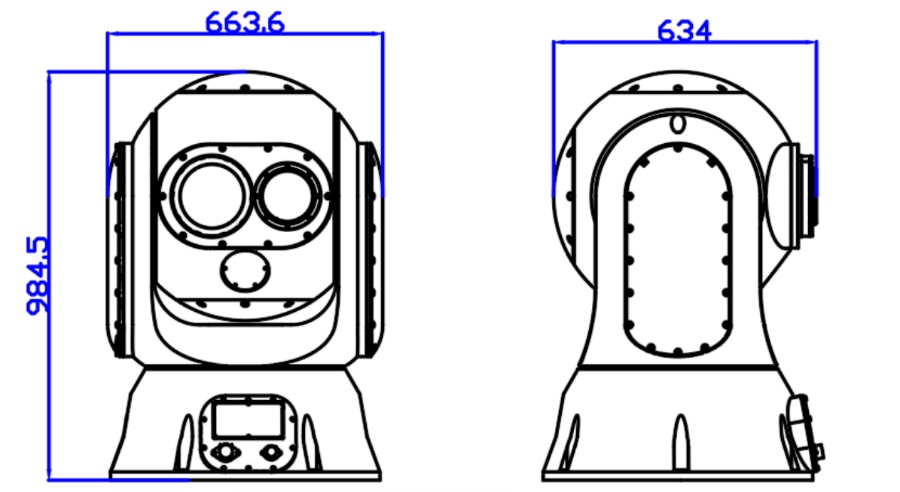

| Dimensions | Ф634mm x 984.5mm | ||
| Weight | 60kg | ||
