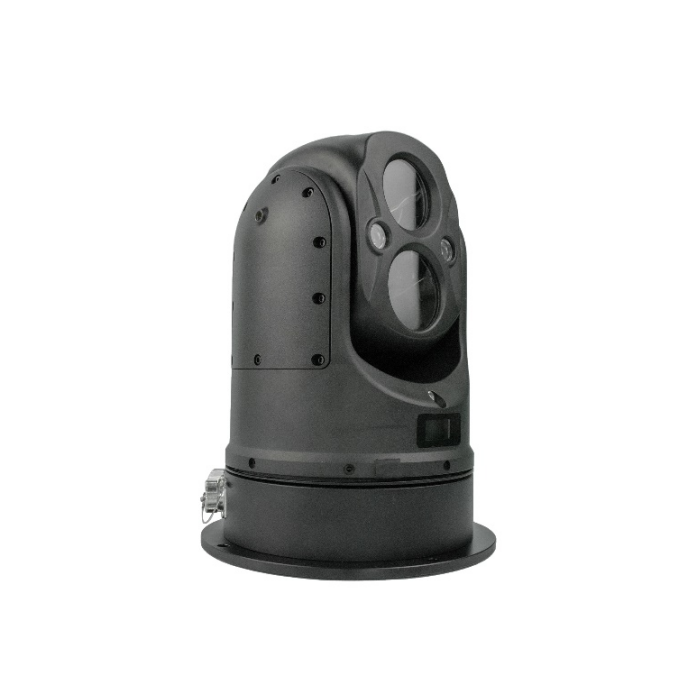

IPTZ-T978-Z248XT75(2MP/4MP)
| Quantity: | |
|---|---|
| PDF Export | |
1/2.8 48x HD visible light, 640×512 pixels 75mm thermal imaging dual spectrum network camera.
1km laser ranging (optional).
Horizontal and tilt dual-axis gyro mechanical image stabilization.
The fire detection algorithm based on deep learning can provide real-time warning and upload pictures.
Continuously rotate 360° horizontally, and rotate -90°～+90° in pitch.
The fastest speed is 400°/sec.
The steady-state accuracy is 0.1°.
Support smart scan of Apple Peel.
Automatic induction wiper (optional).
Remotely power off and restart.
3D positioning zoom.
255 preset positions.
Support H.265/H.264/MJPEG video compression algorithm.
Support ONVIF protocol.
All metal structure, anti-fog, waterproof, anti-salt fog, anti-vibration, protection level: IP67, lightning protection level: 6KV.
The circuit board can be disassembled and assembled, which is convenient for troubleshooting and maintenance.
Stainless steel handle and level meter, easy to install and construct.
| Model | IPTZ-T978-Z248XT75(2MP/4MP) | ||
| Thermal Lens | Sensor | Uncooled Thermal Image Module | |
| Effective Pixels | 640×512 | ||
| Focal Length | f=75mm | ||
| Aperture | F1.0 | ||
| Frame rate | 25fps | ||
| Visible Lens | Sensor | 1/2.8″progressive scan CMOS image sensor | |
| Effective pixels | 1920×1080P 25fps 200MP | ||
| Illumination | Starlight level ultra-low illuminance, no fill light color 0.0005LUX, black and white 0.00001LUX | ||
| Auto-control | automatic white balance, automatic gain, automatic exposure | ||
| SNR | ≥55dB | ||
| WDR | 120dB | ||
| light suppression | ON/OFF | ||
| Backlight compensation | ON/OFF | ||
| Noise reduction | 3D noise reduction | ||
| Electronic shutter | 1/25～1/100000s | ||
| Day and night mode | Filter switching | ||
| Focus mode | automatic/manual | ||
| Focal length | 7-336mm，48x optical | ||
| FOV | 42-0.9° | ||
| Aperture | F1.8~F6.5 | ||
| PTZ | Horizontal range | 360° continuous rotation | |
| Horizontal speed | 0.05°～400°/s | ||
| Pitch range | -90°～90°rotation (without wiper), -60°～90°rotation (with wiper) | ||
| Vertical speed | 0.05°～200°/s | ||
| Proportional zoom | Support | ||
| 255 preset points | 255(expandable to 5000） | ||
| Cruise scan | 6 | ||
| Automatic induction wiper | optional | ||
| Gyro image stabilization | dual axis | ||
| Steady state accuracy | 0.1° | ||
| Maximum carrier following speed | 100°/s | ||
| Network | Video compression | H.264/H.265 | |
| Power-off memory | Support | ||
| Network interface | RJ45 10Base-T/100Base-TX | ||
| Maximum image size | 1920×1080 | ||
| Frame rate | 25fps | ||
| Interface protocol | ONVIF、GB/T 28181 | ||
| Network protocol | IPv4, HTTP, FTP, RTSP,DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP | ||
| Three stream | Support | ||
| Security | Password protection, multi-user access control | ||
| General | Audio | Optional (422 interface does not support audio input and output) | |
| Alarm | 1Way | ||
| External data interface | RS422 | ||
| Laser ranging | Optional | ||
