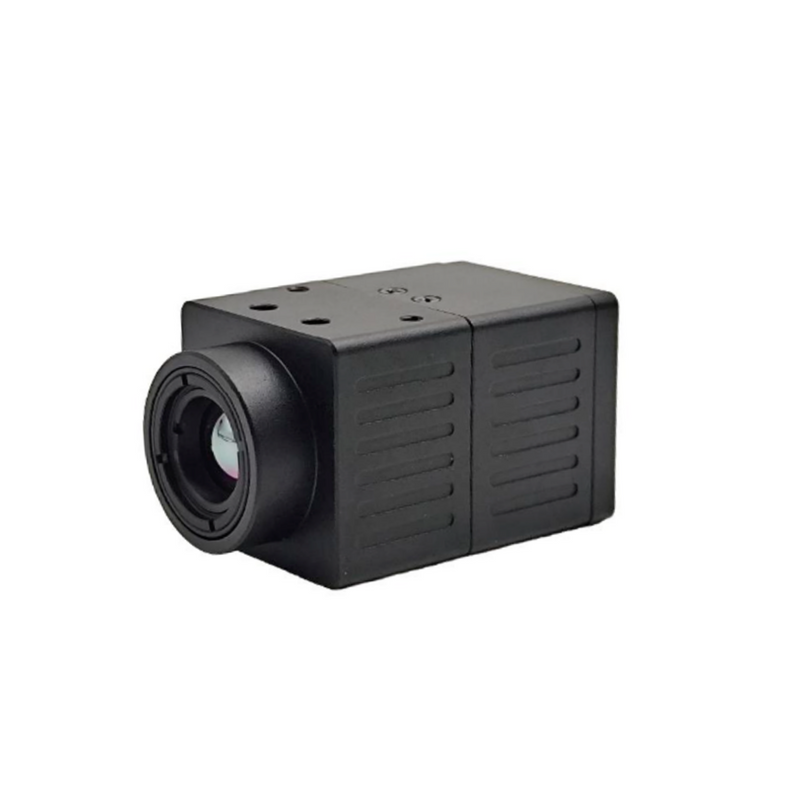

FV-TM21004/6/9ANT-I
| Quantity: | |
|---|---|
| PDF Export | |
12μm high sensitivity VOx Uncooled Infrared Focal Plane Detector
256*192 @25fps
Lens: 4.0mm F1.0 / 6.8mm F1.0 / 9.7mm F1.0
NETD Sensitivity: 40mK @F1.0, 25℃
The smallest network temperature measurement thermal module in the industry
Ultralight: ≤35g (without lens)
Support 10 temperature measurement areas, support full screen maximum and minimum temperature positioning
Support IPV4, HTTP, FTP, RTSP, RTCP, RTP, TCP, UDP protocol
Temperature measurement range: -20℃~150℃, can be extended to 550℃
Temperature measurement accuracy: ± 2 ℃ or ± 2% reading (taking the greater value between the two)
Supports 1 alarm input and 1 alarm output
Independently developed intelligent gain control algorithm, detail mixing enhancement algorithm, 3D noise reduction algorithm, and 10 types of pseudo color
Model | FV-TM21004/6/9ANT-I |
Detector | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 256*192 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 25fps |
Sensitivity (NETD) | 40mK (25°C, F# = 1.0) |
Lens | |
Focal Length | 4.0mm / 6.8mm / 9.7mm |
Aperture | F1.0 |
Focusing Type | Auto Focus |
Min. Focusing Distance | 2m |
FOV | 4.0mm: 45°(H) * 33°(V) 6.8mm: 26°(H) * 20°(V) 9.7mm: 18.1°(H) * 13.6°(V) |
Image | |
Pseudo Color | White heat, black heat, fusion, iron red, fusion |
Temperature Measurement | |
Temperature Measurement Ranges | -20℃~150℃, can be extended to 550℃ |
Temperature measurement accuracy | ± 2 ℃ or ± 2% reading (taking the greater value between the two) |
Network | |
Protocols | IPV4, HTTP, FTP, RTSP, RTCP, RTP, TCP, UDP |
API | ONVIF, 28181 |
Environment | |
Operating Temperature | -40°C~+80°C |
Storage Temperature | -45°C~+85°C |
Humidity | 95% |
Power Supply | DC 12V |
Power Consumption | ≤2 W |

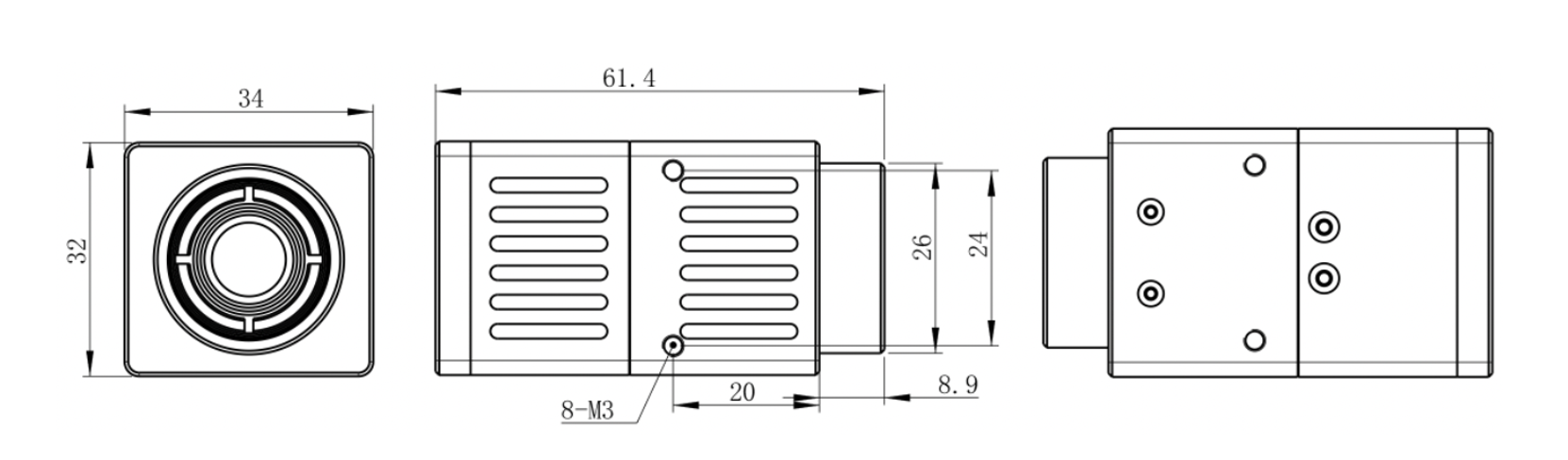

Dimensions (without Lens) | 32mm × 34mm × 52.5mm |
Dimensions (with Lens) | 32mm × 34mm × 61.4mm |
Weight (without lens) | ≤35g |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
