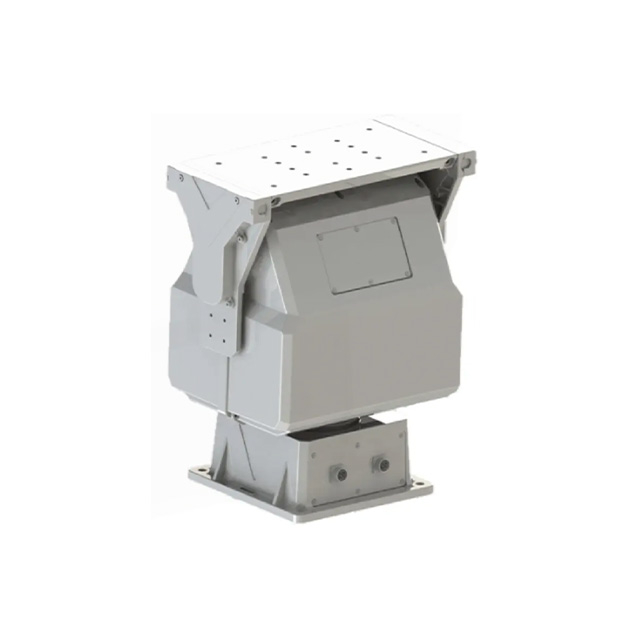

Outdoor intelligent variable speed PTZ, the fuselage selection of high strength aluminum alloy material, exterior design can resist strong winds, smooth operation, high precision.
Products using high-precision stepper motor and precision worm gear drive combination, power can be self-locking.
Support a variety of lens preset function, zoom adaptive function, the rotation speed can be automatically adjusted according to the lens zoom factor.
Powerful, with preset, cruise, line sweep, keep watch and other functions.
Visual pitch angle range, monitoring a wide range of horizontal speed up to 100 °/ s.
Network transmission signal can reach 100Mbps.
Support RS485/RS422 communication port, can update software through long distance, convenient for equipment maintain.
Power failure memory function, accidental power after re-power, the memory of the last running state, can be restored to power before running state.
| Model | PT850 |
| Max. Payload | 50kg |
| Load Mode | Top load |
| Driving | Worm and gear driving |
| Pan Rotation Angle | 360° continuous |
| Tilt Rotation Angle | ﹣45° ~+ 45° |
| Pan Speed | 0.01°/s～30°/s |
| Tilt Speed | 0.01°/s～15°/s |
| Preset Position | 200 |
| Presetting Precision | ±0.1° |
| Lens Preset | Support , adaptive to variety of lenses |
| Lens control speed | Zoom，focus speed is continuously adjustable |
| Speed Self-adaption | Support |
| Auto Scan | support |
| Auto Cruise | support |
| Keep Watch | Support |
| Power Failure Memory | Support |
| Communication Interface | RS485/ RS422 optional |
| Protocol | Pelco D |
| Baud Rate | 2400/4800/9600/19200 bps optional |
| Angle query return | RS485, support angle return by query command/ (Optional RS422, support angle real-time return) |
| System | |
| Input Voltage | AC24V±25% 50/60HZ ; DC24V±10% |
| Consumption Power | ≤150W |
| Interface | 10/100M Ethernet * 1 ； AC24V /DC24V * 1 ；Optional : RS485 / RS422 |
| Working Temperature | ﹣35°C ~﹢65°C |
| Humidity | <90%RH |
| Anti-lighting | Power : 4000V （line to ground 4000 V, line to line 2000V) ,Video signal : 2000V （line to ground 2000 V, line to line 1000V) |
| Salt fog resistance | PH 6.5 〜7 .2, continuous spraying 48 hours |
| Waterproof | IP66 |
| Material | Aluminum alloy |
| Weight | ≤30kg |
