Using vanadium oxide uncooled infrared detector, it has high sensitivity and good image quality.
The highest resolution can reach 640 * 512, real-time image output
Optional lenses of 10mm, 15mm, 19mm, 25mm
Temperature Measurement: Range:-20℃-550℃ Temperature accuracy: ± 2 ℃
Supports network access and has rich image adjustment functions
Support RS232, 485 serial communication
Support 1 audio input and 1 audio output
Built-in 1 alarm input and 1 alarm output, supporting alarm linkage function
Supports Micro SD/SDHC/SDXC card storage up to 256G
Rich interfaces for easy function expansion
| Model | TM16P | |||||
| Detector | ||||||
| Image Sensor | Vanadium oxide Uncooled focal plane array | |||||
| Resolution | 640*512 | |||||
| Pixel Pitch | 12μm | |||||
| NETD | ≦40mK@25℃ | |||||
| Spectral Range | 8~14μm | |||||
| Packaging type | Ceramic packaging | |||||
| Lens | ||||||
| Lens | FOV | Lens | Lens | |||
| 9mm | 46.2°(H)×37.7°(V) | Lens | Lens | |||
| 13mm | 32.9°(H)×26.6°(V) | Lens | Lens | |||
| 19mm | 22.9°(H)×18.4°(V) | |||||
| 25mm | 17.5°(H)×14.0°(V) | |||||
| Network | ||||||
| Ethernet Type | 100Mbps | |||||
| Network protocol | IPV4, HTTP, FTP, RTSP, RTCP, RTP, TCP, UDP | |||||
| Concurrent access | 6 ch | |||||
| Security | User authentication (ID and Password) | |||||
| Access standards | ONVIF | |||||
| Image | ||||||
| Digital video | H264 | |||||
| Main stream image | 1280*1024，1280*720，640*512，25Hz | |||||
| Start-up Time | 10s | |||||
| Image Enhancement | Non uniformity correction, intelligent gain control, digital detail blending enhancement, 3D noise reduction | |||||
| Target Coloration | Supports 10 color palettes including black hot, white hot, iron red, rainbow, etc./customizable | |||||
| Image mirroring | Left and right, up and down, center | |||||
| Function | ||||||
| Fire point detection | Support fire point detection | |||||
| Abnormal temperature alarm | Support | |||||
| Temperature measurement function | Full screen maximum and minimum temperature positioning | |||||
| Full screen maximum and minimum temperature positioning | ||||||
| Full screen maximum and minimum temperature positioning | ||||||
| Full screen maximum and minimum temperature positioning | ||||||
| Full screen maximum and minimum temperature positioning | ||||||
| Alarm | IP conflict, linkage alarm function | |||||
| Data Interface | ||||||
| Compressed data | H264 for video, JPEG for image | |||||
| System Integration | ||||||
| Communication Interface | RJ45，network transmission | |||||
| 1ch RS485 | ||||||
| PTZ control | Pelco-D，RS-485 | |||||
| Alarm Input/Output | 1ch/2out | |||||
| Power | ||||||
| Power Supply | DC/12V | |||||
| Power Consumption | 1.6W | |||||
| General | ||||||

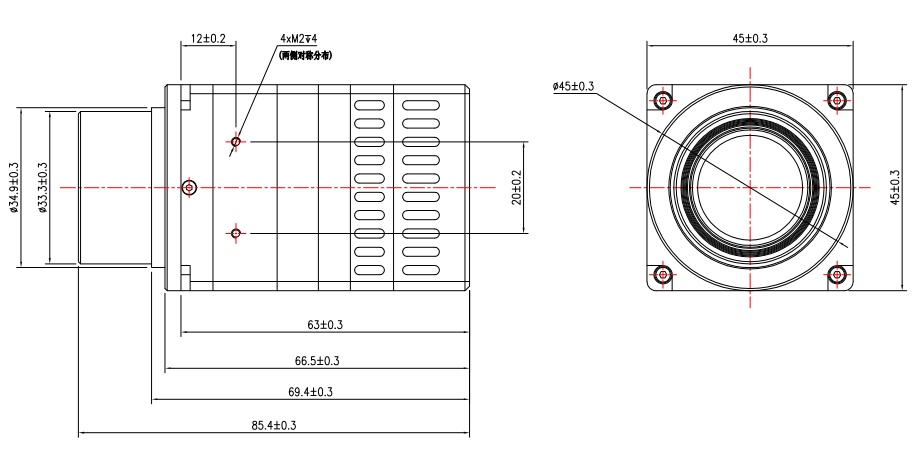

| Product size (without lens) | 45mm*45mm*69.4mm | |||||
| Weight (without accessories) | 156.5g | |||||
| Environmental Adaptability | ||||||
| Working temp./℃ | -30℃～+60℃ | |||||
| Storage temp/℃ | -45℃～+75℃ | |||||
| Humidity/RH | ≤95% | |||||
