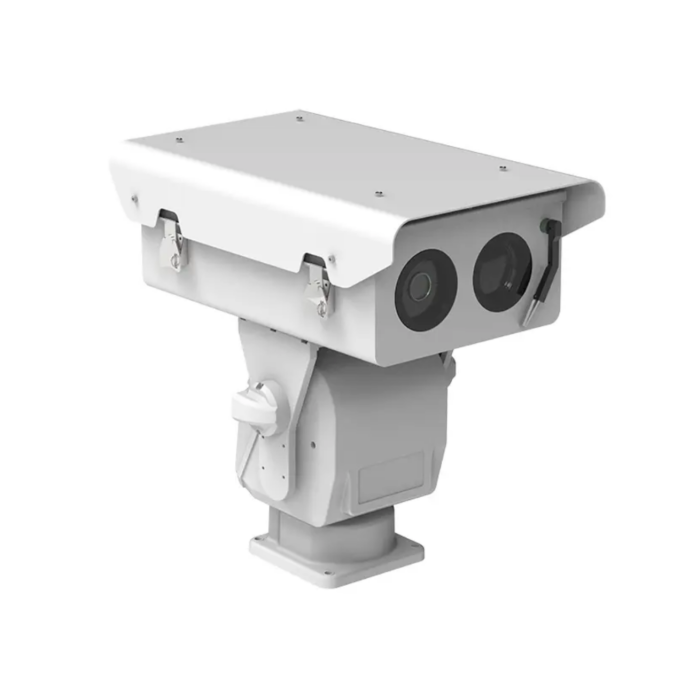

Intelligent Medium-Load Pan Tilt

Model:
PT-2320

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Description

The PTZ is a high-performance upgrade of the PT-2315, which uses a unique and innovative DMD drive technology. It has a larger speed dynamic range and achieves finer low speed control than the PT-2315 head, and the low speed is 10 times lower than the PT-2315 head, which not only enhances the flexibility and adaptability of the head, but also is more accurate and stable. Special for mid-range scene monitoring, optical anti-shake, optical fog transmittance, large resolution, large magnification zoom lens. It can fill light at a distance and supports AR function. Suitable for safe cities, roads, railways, iron towers, ports, bridges, petrochemical, industrial parks and other scenes.

Features

Load weight 15Kg (Extensible)

The structure is designed for use in all-weather environments and strong winds. It has a power failure self-locking function

It belongs to the bearing body, high-strength aluminum alloy shell, and can carry various loads in the form of overhead load

DC brushless motor with gearbox transmission, low power consumption and it can be powered by batteries

Built-in temperature control circuit, can work in a wide range of temperatures

High precision digital absolute position encoder, no power-on self-test, no preset bit accumulation deviation

Fast response speed, no lag feeling, flexible and convenient operation

Multiple preset bits, high precision preset bits, multiple track cruise

Automatic inspection function and scanning function, support for the watch function

The protection level is IP66, and the surface is specially treated to meet the requirements of the three-defense environment

Pan Tilt Hardware Part

Max dimensions: H 300mm* L 292.3mm* W 172mm

Load-supporting form: Top load

Transmission form: Precise spur gear transmission

Self-locking load: 15Kg (Extensible)

Installation method: Upright installation, base fixed at four points

Power supply voltage: 24V±20% (Customizable)

Camera communication interface: Reserved 100Mbps network camera interface (optional 1000Mbps network camera)

Pan slip ring life: 3 million revolutions

Power protection: TVS 6000V anti-lightning and anti-surge, in line with GB/T17626.5 level 4

Rotation range: Pan 360° continuous rotation, tilt -70°~+45°

Speed range: Pan 0.01~37°/s, tilt 0.01~9°/s (Customizable)

Power consumption:≤6W (Standby), ≤30W (Operation)

Angular resolution: ＜ 0.01°

Repeated positioning accuracy:≤ 0.05°

Housing supply voltage: 12V/24V (Customizable)

Body material: Aluminum alloy

Protection level: IP66

Operating temperature and humidity: -40℃~65℃, ＜ 90% RH

Self weight (Excluding housing) : 8Kg

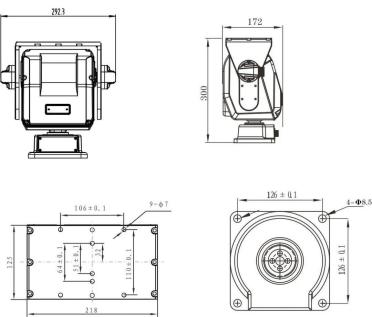

Dimensions

Pan Tilt Software Part

Control communication interface: 485/422

Communication protocol: PELCO-D

Baud rate: 9600bps

Speed control mode: Closed-loop speed control mode

Position control mode: Closed-loop position control mode, power failure position is not lost

Self-test: No self-test is required. It will work within 5 seconds after power-on

Basic motion function: Manual control 64 level speed adjustable, proportional variable speed (It needs to be done with the camera)

Number of preset bits: 199

Positioning function: Absolute angle positioning (adjust positioning speed),3D positioning (It needs to be done with the camera, adjust positioning speed)

Scanning mode: Preset bit by bit scanning (adjust preset bit residence time and scanning speed), pan two-point scanning (adjust scanning residence time and scanning speed)

Watch position: Watch position on or off (adjust back to position time)

Special functions: The PTZ and camera can realize coordinate query or real-time return

Load Part

Load type: Overhead single cabin housing (Optional variety of specifications), overhead double housing (Optional variety of specifications). It can be used with searchlights, laser lights, radar, multispectral detectors and other load types

Housing auxiliary function: Automatic control wiper (automatically adjust the speed of the wiper according to the rainfall), automatic auxiliary lighting (with automatic near and far light switching function) and fog removal function
