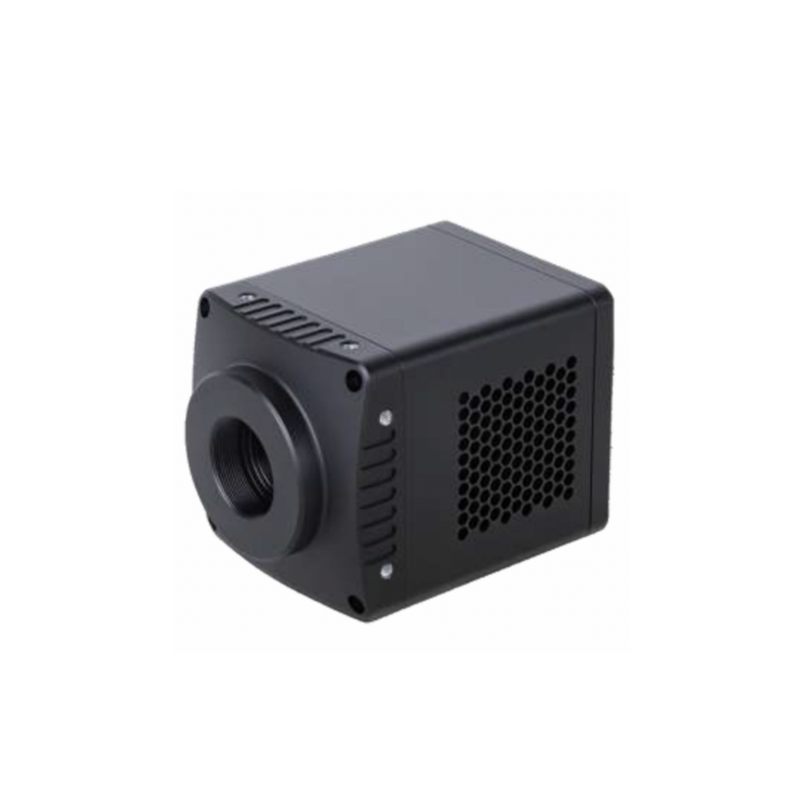

High-Performance SWIR InGaAs Infrared Sensor
640*512 @550fps
10 GigE for an easy integration
Up to 60°C operating temperature
Built-in 512MB (4Gb) DDR3 cache effectively improves USB 3.0 data transfer stability
Built-in 14-bit ADC
Supports precise frame rate control. The frame rate range varies depending on bandwidth, bit depth, resolution, and ROI
The efficient refrigeration system ensures extremely low dark current levels
The TEC system uses PID algorithm control, allowing the TEC to precisely adjust to the target temperature
Model No. | FV-TS-6C-U550 |
Sensor model | A976515M1-G |
Sensor type | InGaAs |
Spectral range | 0.95±0.05~1.65±0.05 µm |
Pixel Size | 15µmx15µm |
Sensor Size | 3/4” |
ADC | 14-bit |
Frame rate & resolution | 550@640×512 |
Memory | 512MByte |

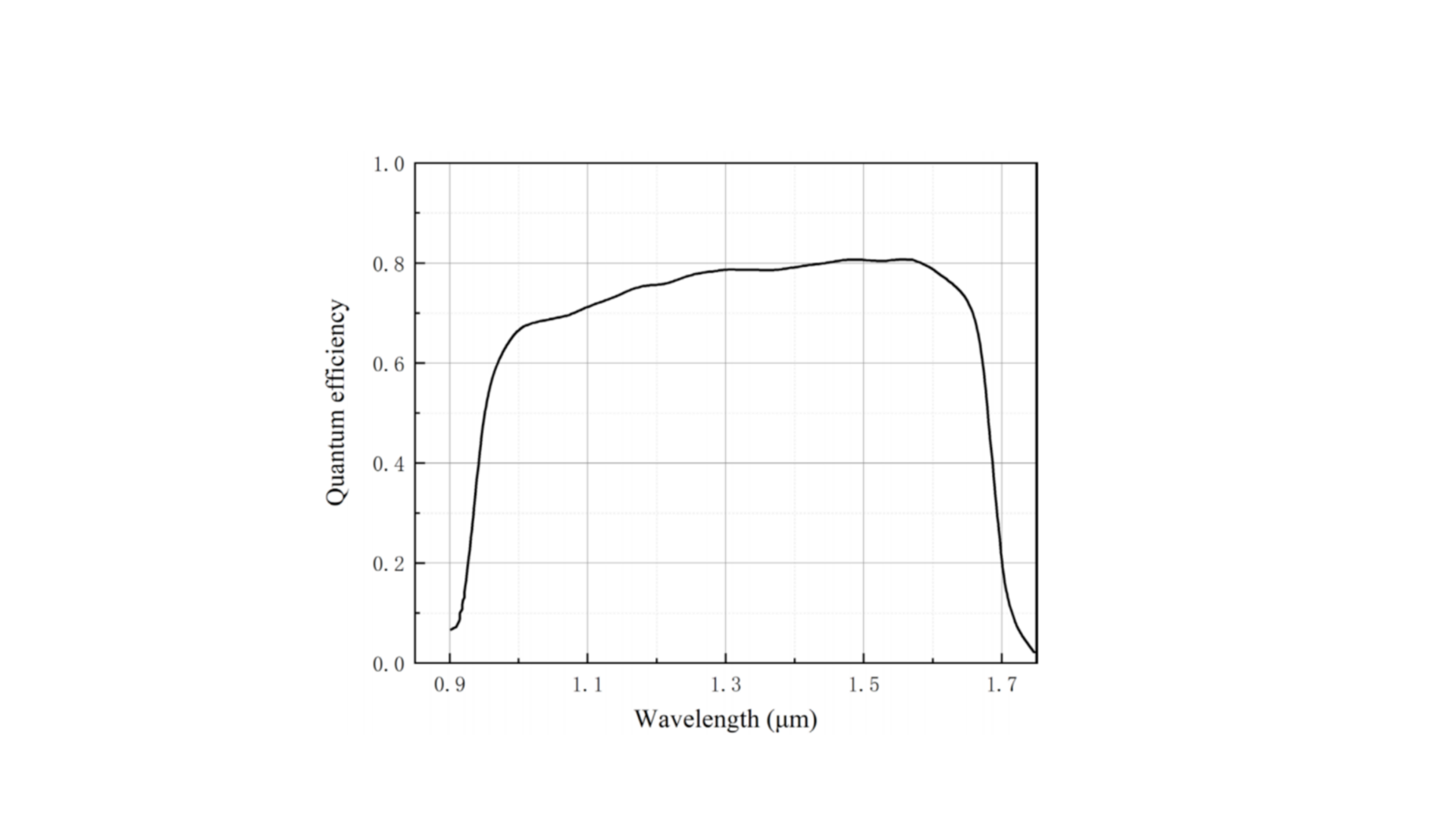

QE | 75%@1350nm |
Conversion gain | 0.9μV/e- (LG)，20μV/e- (MG)，90μV/e- (HG) |
Dynamic range*1 | 70dB(LG)，65dB(MG)，48dB(HG) |
Readout noise | 600e-(LG)，50e-(MG)，79e-(HG) |
Full well capacity *1 | 2Me-(LG)，90Ke-((MG)，20Ke-(HG) |
Dark current | 20fA@0.1V&18℃ |
Exposure time range | 16µs~5s |
Shutter mode | Global shutter |
Data interface | USB3.0 |
Digital IO | One optocoupler isolated input, one optocoupler isolated output, and two non-isolated input/output ports |
Data format | Mono 8 / Mono 14 / Packet12 |
Cooling temperature difference | 40 °C below room temperature |
Power supply | DC12V power supply |
Power consumption | 8.4W（TEC OFF）/<16W（TEC ON） |
Temperature | Operating temperature -30~60°C, storage temperature -40~85°C |
Humidity | 20%-80%, no condensation |

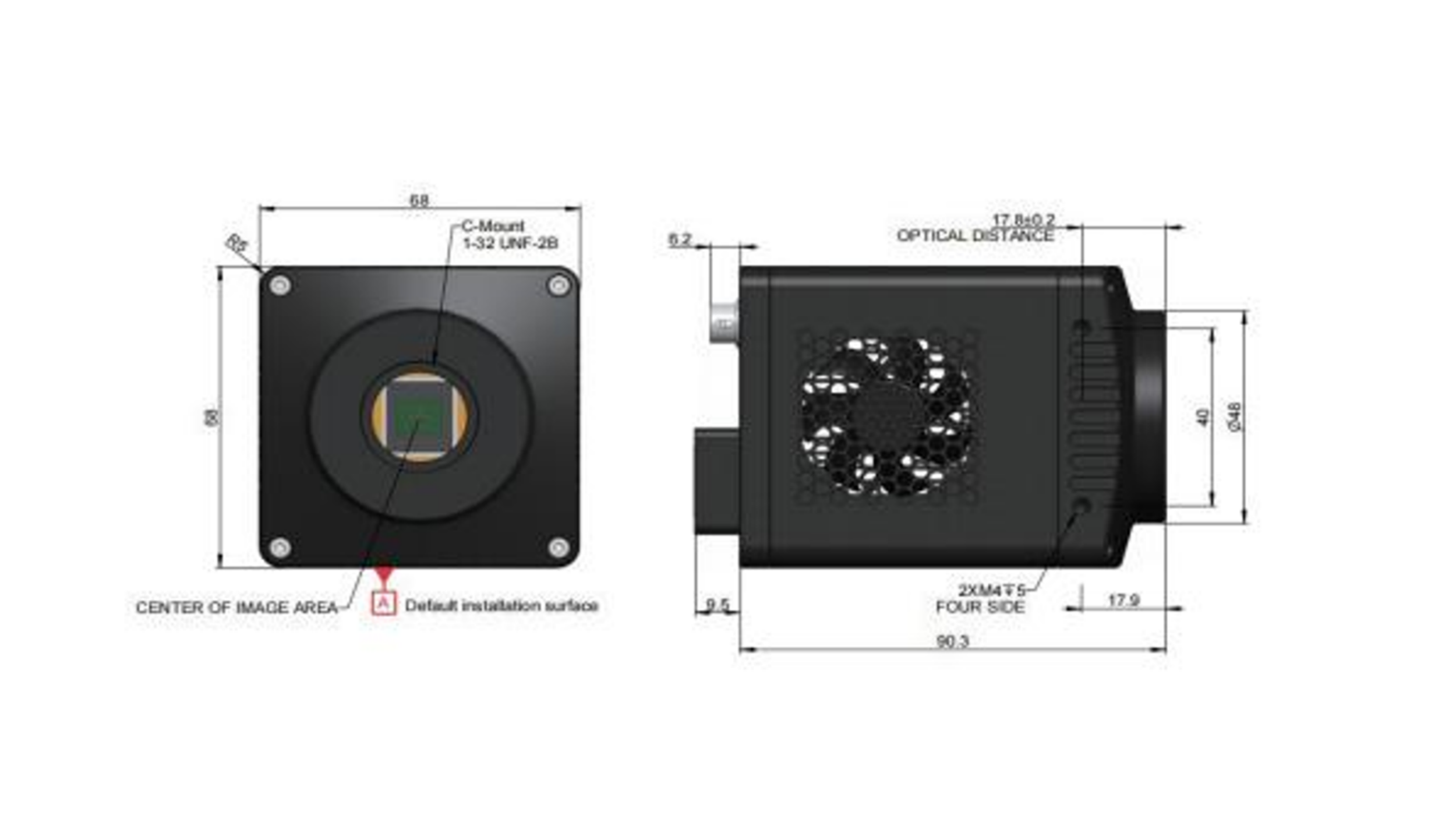

Dimensions | 68mm×68mm×90.3mm |
Weight | 485g |
Lens Mount | C-mount |
Note: 1：LG: CDS-OFF; DeNoise-ON; MG: CDS-ON, DeNoise-OFF; HG: CDS-ON, DeNoise-OFF.
