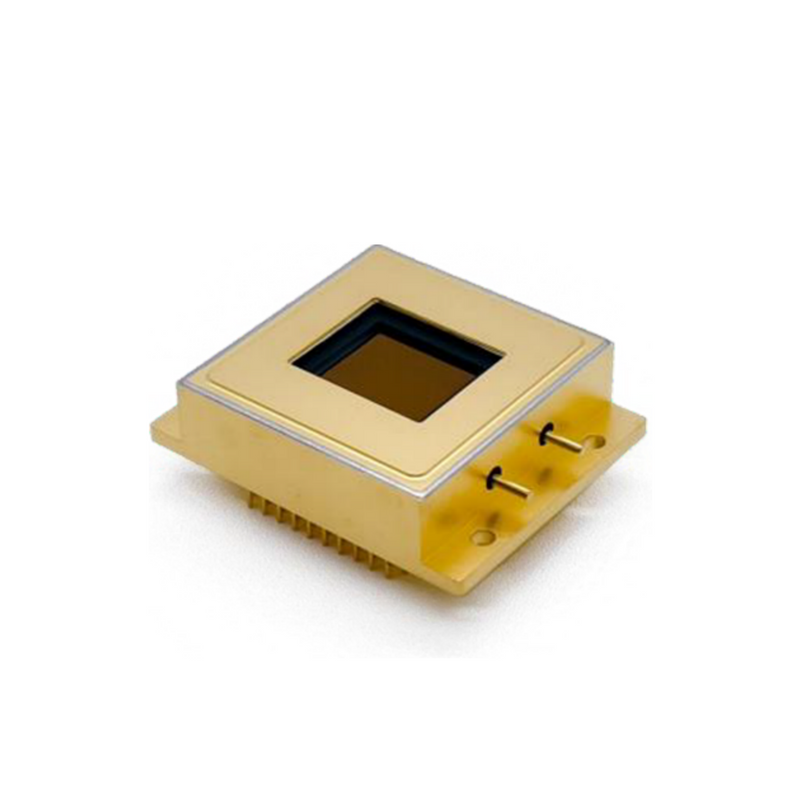

Mainly consists of an InGaAs photosensitive chip with a 640X512 pixel size, a readout circuit (ROIC) and primary thermoelectric cooler (TEC)
Pixel size: 15×15 μm
High frame rate detection: Up to 350Hz
Packaged in metal form, with windows
Suitable for applications such as short-wave infrared imaging, hyperspectral imaging, environmental detection, medical imaging etc.
| Model No. | FV-SD-A640512 | |
| Photoelectric Performance | ||

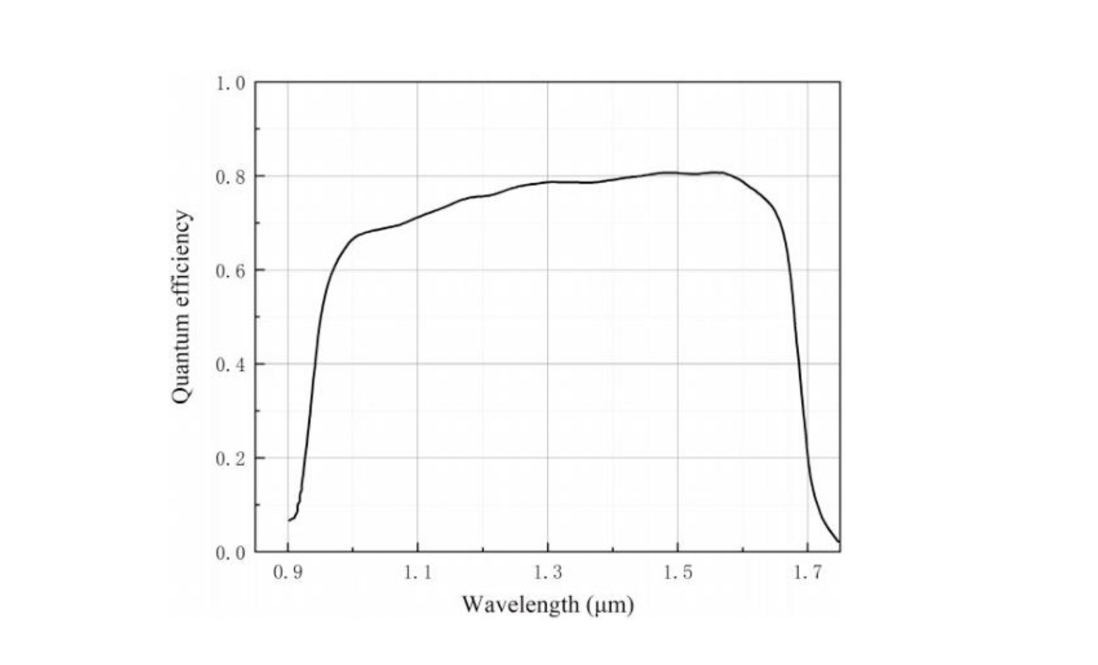

| Spectral response range (μm) | 0.95 ±0.05 ~ 1.7 ±0.05 | |
| Fill factor(%) | 100 | |
| Peak quantum efficiency（%） | ≥70@1.55μm | |
| Peak detectivity (cm./w) | ≥5×1012 | |
| Peak photosensitivity (A/W) | ≥0.8 | |
| Effective pixel rate (%) | >99.5 | |
| Response nonuniformity (%) | ≤5 | |
| Readout way | IWR, ITR, ITR+CDS, NDRO, IMRO | |
| Readout rate (MHz) | Range 2~22, typical 12 | |
| Number of readout channels | 2, 4, 8, optional | |
| Full frame frequency (Hz) | 350 | |
| Gain | 3 | |
| Conversion Gain (μV/e-) | 1 (LG), 25 (MG), 110 (HG) | |
| Dynamic range (dB) | ≥55 (MG) | |
| Mechanical Parameters | ||

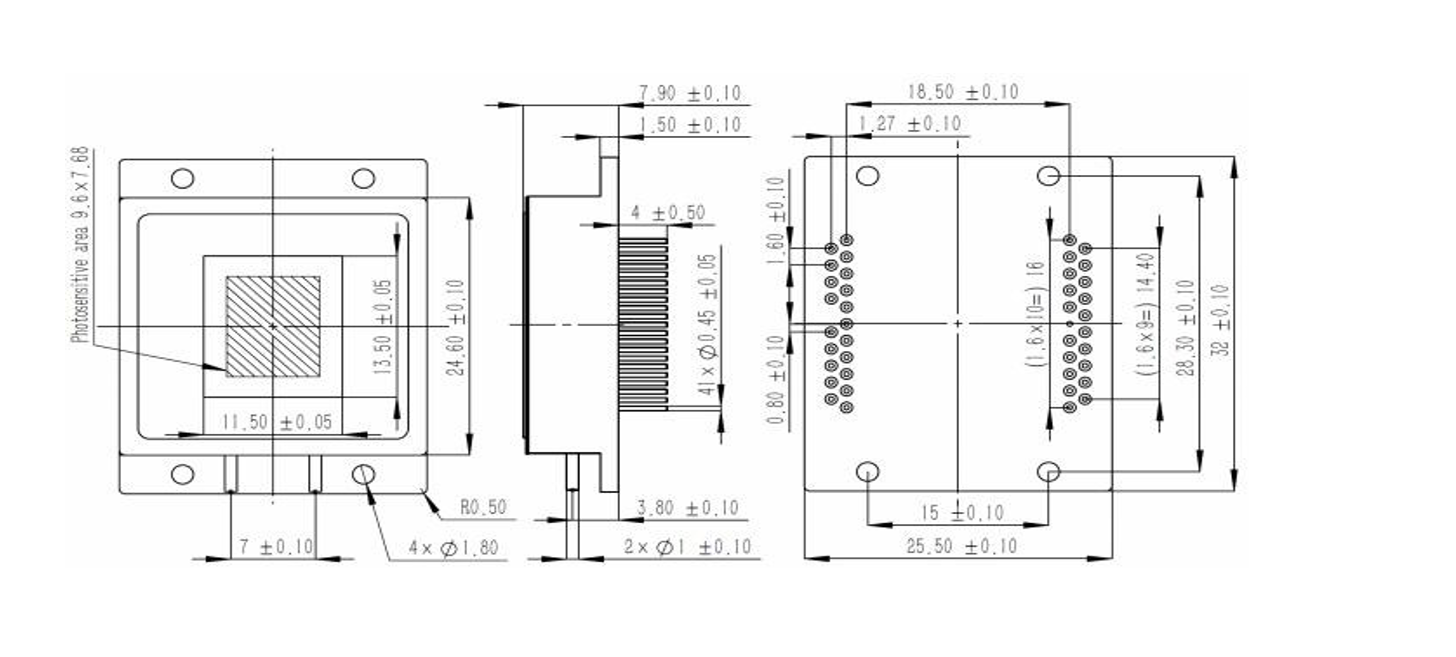

| Length × Width × Height (mm) | 32×25.5×7.9 | |
| Weight (g) | ~21 | |
| Pixel format | 640×512 | |
| Pixel center distance (μm) | 15 | |
| Pixel size (μm) | 15×15 | |
| Photosensitivity area (mm) | 9.6×7.68 | |
| Operation environment and power consumption parameters | ||
| Operating temperature (˚C) | -20~+60 | |
| Storage temperature (˚C) | -40~+70 | |
| Typical power (W) | <0.35 | |
| Temperature cycle, random vibration | Design according with GJB 548B-2005 standard | |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
