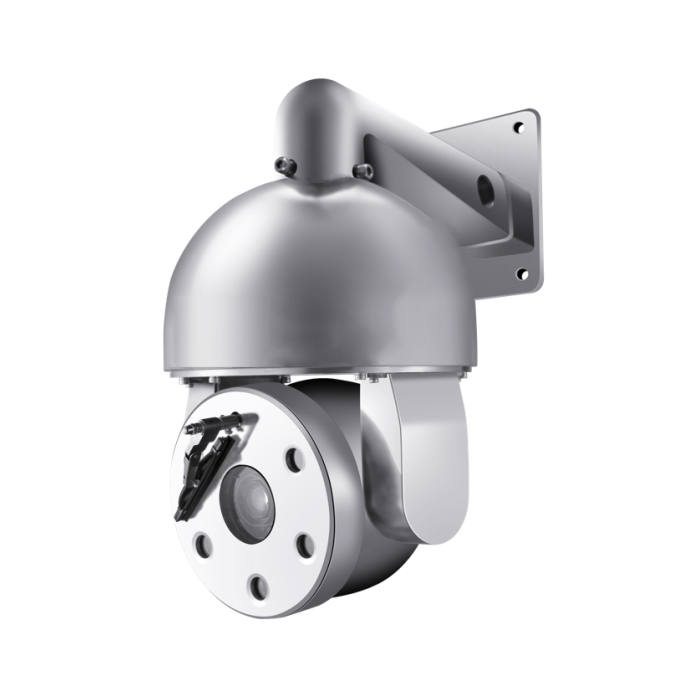

IPSD-FB6005-8225T-HIB
| Quantity: | |
|---|---|
| PDF Export | |
Explosion-proof cert: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
H. 265, 2MP 1/1.8 " CMOS
25X Optical, focal length: 6.4-160mm
Starlight low illumination: 0.005lux (F1.5, AGC ON) color, 0.0001 lux(F1.5, AGC ON) B/W
Smart detection: Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection
Support BLC, HLC, 3D DNR, 120 dB WDR
Support horizontal 360° continuous rotation, 0-90° in vertical direction (auto flip)
Support 300 preset bits, 8 cruise paths, 3D positioning
Supports 255 preset bits, power-off memory, automatic cruise, and other functions
Horizontal direction 360° continuous rotation, 0-90° vertical direction (automatic flip)
Horizontal and vertical rotation speed: 0.1-50° / s with speed can be set
Precision stepping motor to ensure responsive and smooth operation
built-in semiconductor temperature control components for auto heating and heat dissipation power
Supports low code rate, low latency, ROI, and automatically adjust code rate according to the scene situation
304/316L stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
| Model | IPSD-FB6005-8225T-HIB | ||
| Lens | Resolution | 2MP | |
| Sensor | 1/1.8" Progressive Scan CMOS | ||
| Focal length | 25X optical, 6.4-160mm, 16X digital zoom | ||
| Shutter | 1/25~1/100,000 s | ||
| Illuminance | 0.005lux (F1.5, AGC ON) color, 0.0001 lux(F1.5, AGC ON) B/W | ||
| Aperture | F1.5-F4.0 | ||
| FOV | 62°-3.5° | ||
| Min. Work Distance | 100mm(wide)-1500mm(tele) | ||
| Focus speed | 3.5s | ||
| IR Distance | 150 meters | ||
| WDR | 120dB | ||
| Image | Main Stream | 50Hz: 25fps(1920x1080,1280x960,1280x720); 60Hz: 30fps(1920x1080,1280x960,1280x720) | |
| Second Stream | 50Hz: 25fps(1280x720,640x480,352x288); 60Hz; 30fps(1280x720,640x480,352x288) | ||
| Third Stream | 50Hz: 25fps(704x576,640x480,352x288); 60Hz: 30fps(704x576,640x480,352x288) | ||
| Compression rate | 64Kbps~16Mbps | ||
| Audio compression | G.711A/G.711U/G.726/AAC | ||
| Code rate type | Fixed rate, variable bitrate | ||
| ROI | Support 4 areas | ||
| Image enhancement | BLC, HLC, 3D DNR | ||
| Image Settings | Rotation, saturation, brightness, contrast, sharpness, AGC, white balance is adjustable via the client or browser | ||
| Alarm trigger | Mobile detection, blocking alarm, abnormal | ||
| Smart functions | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection | ||
| PTZ control | Rotation | Horizontal 360° continuous rotation, vertical 0° -90° (automatic flip) | |
| Horizontal speed | 0.1° -50° / s | ||
| Vertical speed | 0.1° -50° / s | ||
| Preset accuracy | 0.1° | ||
| 3D positioning | Support | ||
| Preset point | 255 | ||
| Automatic cruise | 8 lines, 32 preset points for each line | ||
| Pattern scan | 4 | ||
| Power memory | support | ||
| Watch function | Preset point / pattern / scan / cruise scan / automatic scan / vertical scan / random scan / frame scan /panoramic scan | ||
| Networks | Network, protocol | TCP/IP,MTU,HTTP,HTTPS,FTP,DHCP,DDNS,UPNP,RTSP,RTMP,NTP,SMTP,PPPOE | |
| Interface protocol | ONVIF(PROFILE S,PROFILE G) | ||
| Network storage | Micro SD/SDHC /SDXC(256G),NAS(NFS,SMB/CIFS | ||
| Preview channel | Up to 20ch at same time | ||
| User management | Up to 20 users | ||
| Browser | Windows XP, Win7, Win8, Win9, Win10, Win11, Microsoft edge | ||
| General Spec. | Audio | 1 in /1 out | |
| Alarm | 1 in /1 out | ||
| Communication | 1 RJ45 10 M / 100 M Adaptive Ethernet port | ||
| Temperature | -40℃~+60℃ | ||
| Power supply | AC85V ~ 260V / AC 24V | ||
| Housing material | 304/316L Stainless steel | ||
| Cable hole | G3 / 4 " inlet hole*1 | ||
| Installation | Wall/ceiling mount | ||
| EX Cert. | Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ | ||
| IP protection | IP68 | ||
| Weight | 22kg | ||
