IPSD-73220T-HB
| Quantity: | |
|---|---|
| PDF Export | |

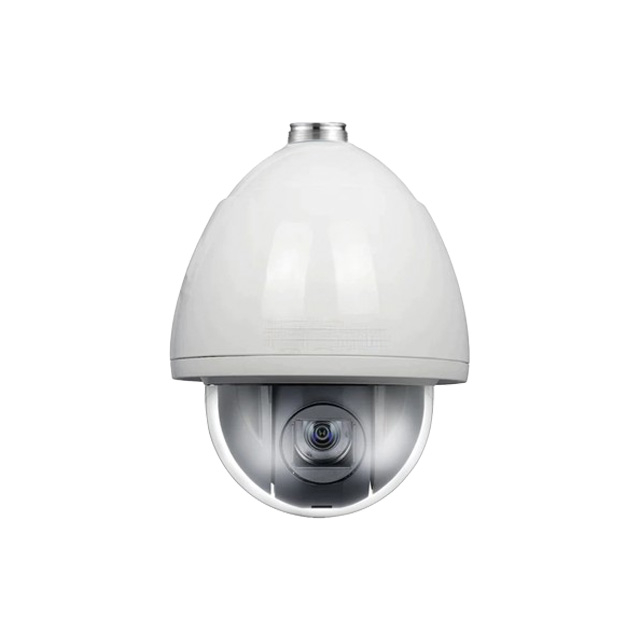

The camera features a vandal-proof speed dome design with IP66 ingress protection, making it relevant to security installations where the camera housing and outdoor environmental protection are important considerations. Wall and ceiling mounting options provide flexibility for different installation locations.
Equipped with a 1/3-inch CMOS sensor, the camera delivers 1920×1080 video with a 5.4–108mm lens and 20X optical zoom. Starlight imaging, 2D/3D noise reduction, BLC, and HLC provide image adjustment options for surveillance under varying lighting conditions.
The camera supports continuous 360° horizontal rotation and -10° to 90° vertical movement. With 256 preset positions, ±0.5° preset accuracy, and four patrol routes supporting 32 points each, operators can configure repeatable monitoring of designated areas.
Supporting DC12V and PoE power options, the camera provides ONVIF compatibility, H.265/H.264 encoding, and three video streams. Motion detection, line-crossing, area intrusion, and TF card storage up to 256GB support integration into compatible network monitoring systems.
H.265, 2MP, 1920x1080
1/3’’ Progressive CMOS, Support 2D/3D DNR
Starlight, 0.005Lux, BLC, HLC
Precision motor, smooth operation, accurate presetting
Low Illumination, starlight
20X Optical zoom, 5.4-108mm
Support Mask, Defog, Mirror, Corridor Mode
Support Motion Detection, Line crossing
Support Three Streams, heartbeat
Support BMP/JPEG Snapshot
IP66
Support ONVIF

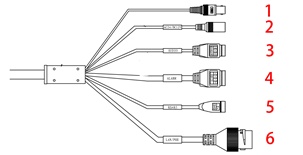

1. CVBS Output
2. Power
3. Audio In/Out
4. Alarm In/Out
5. RS485
6. RJ45
| Model | IPSD-73220T-HB | ||
| Module | Sensor | 1/3" CMOS | |
| Pixel | 1920×1080 | ||
| Zoom Times | 20X, 5.4-108mm | ||
| Shutter | 1/25~1/100000 | ||
| Aperture | F1.5-F2.7 | ||
| Illumination | 0.01Lux @(F1.5,AGC ON)color, 0.005Lux @(F1.5,AGC ON)B/W | ||
| FOV | Horizontal: 59.6-3.5°(wide-tele.) | ||
| Menu | Multi-language optional | ||
| D/N | ICR / Auto / Timing / Threshold Value Control / Rotation | ||
| BLC | Off/BLC/HLC/WDR/Defog | ||
| DNR | 2D/3D | ||
| White Balance | Auto1/Auto2/Indoor/Outdoor/Sodium lamp /Fluorescent lamp | ||
| Camera | Rotation | Horizontal 360°Continuous rotation, Vertical -10~90°, auto rotation | |
| Horizontal Key Control speed | Horizontal: 0.1°~180°/s, vertical: :0.1°~120°/s | ||
| Preset Point | 256 points, accuracy: ±0.5° | ||
| PTZ Line | 4 lines (32 points each line) | ||
| Linear Scan | 1 | ||
| IR Angle | Multi-lens combination | ||
| General | Alarm | 1/1 | |
| Audio | 1/1 | ||
| RS485 | Support | ||
| TF card | 256G | ||
| Protocols | TCP, UPNP, IP, HTTP, DHCP, PPPoE, RTSP,FTP,DDNS,NTP | ||
| System Compatibility | ONVIF, Auto Registration | ||
| Internet Interface | RJ45 10/100 self-adaptive | ||
| Info Display | Lens zoom info, date, time | ||
| General Function | Password Protection, Heartbeat, Multi account access in | ||
| Smart Function | Motion detection, video mask, line-crossing, area intrusion, video mask, off-line, HDD error, HDD full, IP conflict | ||
| Compression | Video Compression | H.265/H.264 | |
| Output Bitrate | 64Kbps~16Mbps | ||
| Others | Temperature Humidity | -20℃~+55℃ <95% (Non-condensing) | |
| Power Supply | DC12V, POE | ||
| Power Consumption | <12W | ||
| Weight | 6kg | ||
| Ingress Protection | IP66 | ||

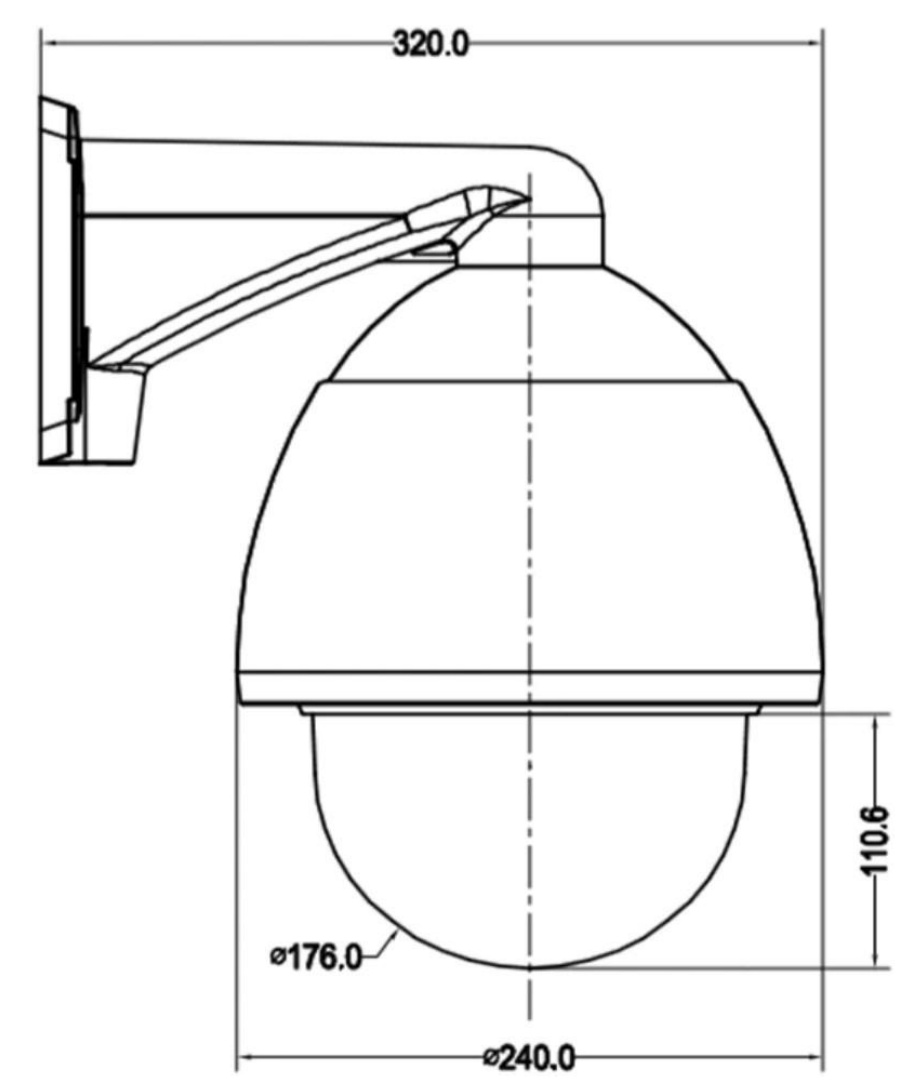

| Mount Option | Wall Mount/Ceiling Mount | ||
