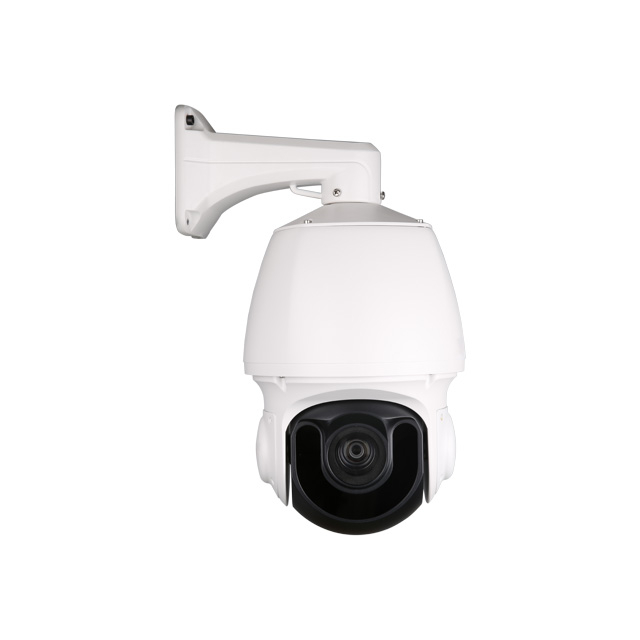

Equipped with a 1/1.8-inch Sony Progressive CMOS sensor, the camera delivers 3840×2160 video at 25/30fps. Its 6.7–154mm lens provides 23X optical zoom and 16X digital zoom, with a field of view from 59.6° to 3.5°. This combination supports high-resolution observation across different viewing angles.
The camera supports IR illumination with a specified distance of 200m, together with starlight imaging and automatic day/night switching. Super WDR, 2D/3D DNR, BLC, and HLC provide image adjustment options for monitoring environments with varying illumination.
The camera supports continuous 360° horizontal rotation and -20° to 93° vertical movement, with rotation speeds from 0.05°/s to 300°/s. It provides 255 preset positions and eight patrol routes, enabling configurable observation of designated monitoring areas.
With H.265/H.264 encoding, three video streams, and ONVIF 2.4 support, the camera can be integrated into compatible network surveillance systems. It also supports Micro SD storage up to 256GB, IP66 weather protection, and IK10 impact resistance for outdoor installation.
H.265/H.264, 8MP, 1/1.8'' CMOS sensor
23X Optical, 6.7-154mm, Auto Focus, 16X Digital
Super WDR, Auto WDR, 0-100 Digital Adjustment
Support Starlight, 3D DNR, three stream
Support SD/TF card (256G)
Support IR distance: 200m
Precision stepper motor drive, Smooth operation, sensitive response, accurate positioning
Support Smart Functions: Motion Detection, Video Mask, Area Intrusion, Line Crossing, etc.
Multiple protocol/ interfaces, Open SDK, Function extension
Support OEM/ODM and Customization service
Support ONVIF, Excellent Compatibility
Support BMP, JPG snapshot
Support IP66, IK10
1. RJ45 (POE)
2. AC24V
3. Alarm in 4ch
4. RS485
5. Alarm 1 in/1 out
6. Audio 1 in/1 out
7. Reset
| Model | IPSD-88823T-HIB | ||
| Camera | Resolution | 8MP, 3840×2160 | |
| Sensor | 1/1.8” Sony Progressive CMOS | ||
| Optical Zoom | 6.7-154mm, 23X Optical | ||
| Digital Zoom | 16X | ||
| Aperture Range | F1.58~F3.95 | ||
| Shutter Speed | 1/25~1/100000 | ||
| Illumination | 0.0002Lux @ (F1.5, AGC ON) Color,0.0002Lux @ (F1.5, AGC ON) B/W | ||
| FOV | 59.6-3.5 (Wide-Tele.) | ||
| Min. Distance | 10mm-2000mm (Wide-Tele) | ||
| AF Speed | 3s (Optical, Wide-Tele) | ||
| D/N Shift | ICR, Auto, Color, White/Black | ||
| Night Vision | IR Distance | 200m | |
| Image | Resolution | Main Stream: 50Hz: 25fps (3840x2160, 1920x1080,1280x720)60Hz: 30fps (3840x2160, 1920x1080,1280x720) | |
| Sub Stream: 50Hz: 25fps (720x576，352x288)60Hz: 30fps (720x576，352x288) | |||
| Third Stream: 50Hz: 25fps(1280x720，720x576，352x288)60Hz: 30fps(1280x720，720x576，352x288) | |||
| Video Output | Network Coding | ||
| Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment | ||
| Image Setting | Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Watch Mode, Power Off Memory, EIS,3D Positioning, | ||
| ROI | 4 Areas | ||
| Focus Mode | Auto/Manual/Semi Auto/One Time Focus (Auto Mode) | ||
| Exposure Mode | Auto/Manual/Shutter Priority/Low Light Priority/High Light Priority/Aperture Priority | ||
| White Balance | Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/White Lamp/One Time Tracking/Auto Tracking | ||
| WDR | Super WDR, Digital WDR, 0-100 Digital Adjustment | ||
| DNR | 2D/3D | ||
| Lens Initialization | Built-In Shutter Priority | ||
| System Mode | PAL/NTSC | ||
| PTZ Para | Rotation Scope | Level: 0°-360° Vertical: -20~93° Auto rotation | |
| Cruising PTZ | 8 lines (18 presetting points in each line) | ||
| Rotation Speed | Horizontal 0.05°~300°/s, Vertical:0.05°~300°/s | ||
| Presetting | 255 points | ||
| Others | Automatic flip, return function, boot action and so on | ||
| Function | Smart Function | Motion Detection, Tampering, Area Intrusion, Line Crossing, Off-Line, IP Conflict, HDD Full | |
| Support Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,IGMP,QoSRTMP,IPV6,MTU | ||
| Protocol | ONVIF, Active registration | ||
| Network | General | Heartbeat, Password Protection, Black/White List | |
| Video Compatibility | ONVIF2.4, Active Register | ||
| Video Bit Rate | 64 Kbps~16Mbps | ||
| Audio Compression | G.711A, G.711U, G.726, AAC | ||
| Video Compression | H.265 / H.264 | ||
| Interface | On-Board Storage | Built-In Micro SD, Up To 256GB (Class 10) | |
| 36pin FPC | RJ 45 10M/100M LAN Self-Adaptive, 1ch | ||
| Network Light,1ch | |||
| RS485,1ch | |||
| RS232,1ch | |||
| Alarm In,1ch | |||
| Alarm Out,1ch | |||
| Audio In,1ch | |||
| Audio Out, 1ch | |||
| Power, 1ch | |||
| SD Card Data, 1 Set | |||
| Reset, 1ch | |||
| Expansion | USB 1ch, URAT 1ch, GPIO 1ch | ||
| Others | Working Temp. | -30℃~ +60℃ Humidity≤95% (Non-Condensing) | |
| Power Supply | AC24V/POE | ||
| Power Cons. | <30W | ||
| Dimension | Φ227.8*362.3mm | ||
| Remark | IP66 IK10 | ||
| Installation | Wall mount (option: ceiling mount) | ||
| Weight | 6.5kg | ||
