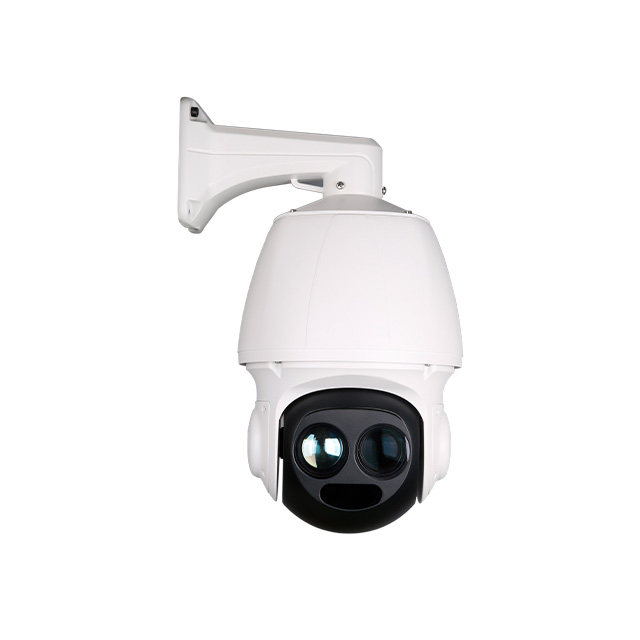

IPSD-88232FT-HLB
| Quantity: | |
|---|---|
| PDF Export | |
The camera supports laser illumination with a specified distance of 500m, providing an additional lighting option for nighttime observation. Combined with starlight imaging and automatic day/night switching, it is designed for surveillance environments with limited visible light.
Equipped with a 1/1.8-inch Sony Progressive CMOS sensor, the camera delivers 1920×1080 video at 25/30fps. Its 6–192mm lens provides 32X optical zoom and 16X digital zoom, with a field of view from 61.2° to 2.32° for adjustable scene observation.
A precision stepper motor provides 360° horizontal rotation and -20° to 93° vertical movement, with speeds ranging from 0.05°/s to 300°/s. The camera supports 255 preset positions and eight patrol routes, allowing operators to configure repeatable monitoring movements.
The camera features IP66 and IK10 protection ratings and supports ONVIF, RTSP, H.265/H.264 encoding, and local Micro SD storage up to 256GB. Motion detection, area intrusion, and line-crossing functions provide additional options for compatible network security systems.
H.265/H.264, 2MP, 1/1.8'' CMOS sensor
32X Optical, 6-192mm, Auto Focus, 16X Digital
Super WDR, Auto WDR, 0-100 Digital Adjustment
Support Starlight, 3D DNR, three stream
Support SD/TF card (256G)
Support laser distance: 500m
Precision stepper motor drive, Smooth operation, sensitive response, accurate positioning
Support Smart Functions: Motion Detection, Video Mask, Area Intrusion, Line Crossing, etc.
Multiple protocol/ interfaces, Open SDK, Function extension
Support OEM/ODM and Customization service
Support ONVIF, Excellent Compatibility
Support BMP, JPG snapshot
Support IP66, IK10

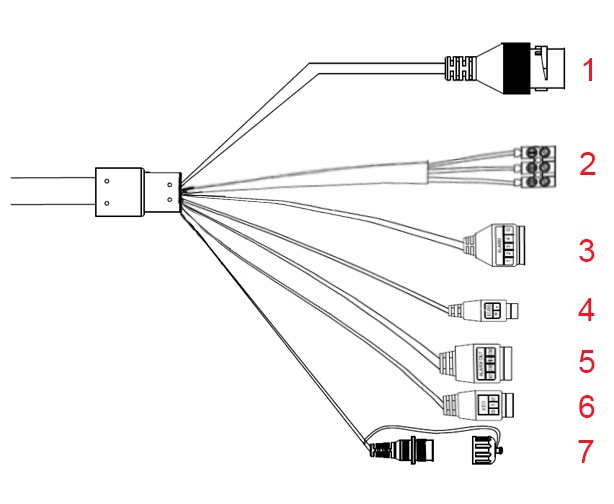

1. RJ45 (POE)
2. AC24V
3. Alarm in 4ch
4. RS485
5. Alarm 1 in/1 out
6. Audio 1 in/1 out
7. Reset
| Model | IPSD-88232FT-HLB | ||
| Camera | Resolution | 2MP, 1920×1080 | |
| Sensor | 1/1.8” Sony Progressive CMOS | ||
| Optical Zoom | 6-192mm, 32X Optical | ||
| Digital Zoom | 16X | ||
| Aperture Range | F1.5~F4.3 | ||
| Shutter Speed | 1/25~1/100000 | ||
| Illumination | 0.002Lux @ (F1.5, AGC ON) Color,0.0002Lux @ (F1.5, AGC ON) B/W | ||
| FOV | 61.2~2.32° (Wide-Tele.) | ||
| Min. Distance | 10mm-1500mm (Wide-Tele) | ||
| AF Speed | 3s (Optical, Wide-Tele) | ||
| D/N Shift | ICR, Auto, Color, White/Black | ||
| Night Vision | Laser Distance | 500m | |
| Image | Resolution | Main Stream: 50Hz: 25fps (1920×1080, 1280×720); 60Hz: 30fps (1920×1080, 1280×720) | |
| Sub Stream: 50Hz: 25fps (720×576, 352×288); 60Hz: 30fps (720×480, 352×240) | |||
| Third Stream: 50Hz: 25fps(720×576, 352×288); 60Hz: 30fps(720×480, 352×240) | |||
| Video Output | Network Coding | ||
| Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment | ||
| Image Setting | Privacy Mask, Anti Flicker, Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Watch Mode, Power Off Memory, EIS,3D Positioning, | ||
| ROI | 4 Areas | ||
| Focus Mode | Auto/Manual/Semi Auto/One Time Focus (Auto Mode) | ||
| Exposure Mode | Auto/Manual/Shutter Priority/Low Light Priority/High Light Priority/Aperture Priority | ||
| White Balance | Auto 1/Auto 2/Indoor/Outdoor/Manual/Sodium Lamp/White Lamp/One Time Tracking/Auto Tracking | ||
| WDR | Super WDR, Digital WDR, 0-100 Digital Adjustment | ||
| DNR | 2D/3D | ||
| Lens Initialization | Built-In Shutter Priority | ||
| System Mode | PAL/NTSC | ||
| PTZ Para | Rotation Scope | Level: 0°-360° Vertical: -20~93° Auto rotation | |
| Cruising PTZ | 8 lines (18 presetting points in each line) | ||
| Rotation Speed | Horizontal 0.05°~300°/s, Vertical:0.05°~300°/s | ||
| Presetting | 255 points | ||
| Others | Automatic flip, return function, boot action and so on | ||
| Function | Smart Function | Motion Detection, Tampering, Area Intrusion, Line Crossing, Off-Line, IP Conflict, HDD Full | |
| Support Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, Pppoe, NTP, Upnp, SMTP, SNMP, IGMP, Qos, RTMP, IPV6, MTU | ||
| Protocol | ONVIF, Active registration | ||
| Network | General | Heartbeat, Password Protection, Black/White List | |
| Video Compatibility | ONVIF2.4, Active Register | ||
| Video Bit Rate | 64 Kbps~16Mbps | ||
| Audio Compression | G.711A, G.711U, G.726, AAC | ||
| Video Compression | H.265 / H.264 | ||
| Interface | On-Board Storage | Built-In Micro SD, Up To 256GB (Class 10) | |
| 36pin FPC | RJ 45 10M/100M LAN Self-Adaptive, 1ch | ||
| Network Light,1ch | |||
| RS485,1ch | |||
| RS232,1ch | |||
| Alarm In,1ch | |||
| Alarm Out,1ch | |||
| Audio In,1ch | |||
| Audio Out, 1ch | |||
| Power, 1ch | |||
| SD Card Data, 1 Set | |||
| Reset, 1ch | |||
| Expansion | USB 1ch, URAT 1ch, GPIO 1ch | ||
| Others | Working Temp. | -30℃~ +60℃ Humidity≤95% (Non-Condensing) | |
| Power Supply | DC12V±10% | ||
| Power Cons. | 2.5W~4.5W | ||

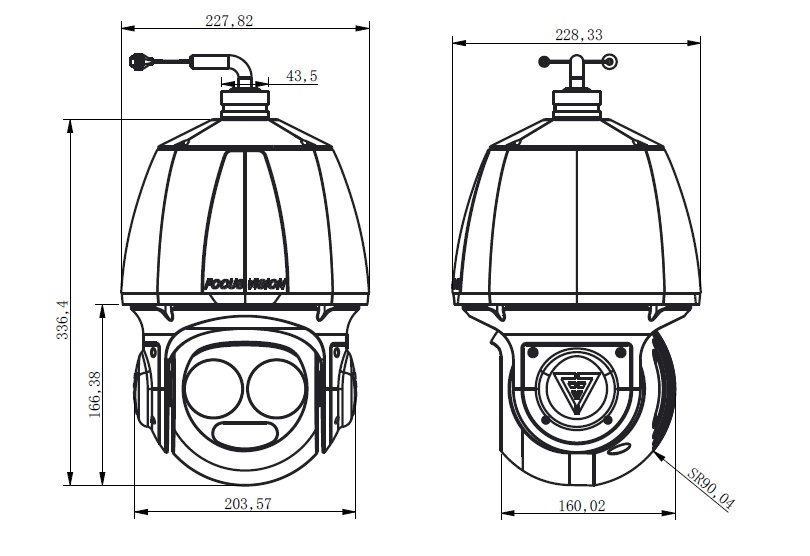

| Dimension | Φ227.8*362.5mm | ||
| Remark | IP66 IK10 | ||
| Installation | Wall mount (option: ceiling mount) | ||
| Weight | 6.5kg | ||
