FV-TM61050AN-C
| Quantity: | |
|---|---|
| PDF Export | |
12μm VOx Uncooled Infrared Focal Plane Detector
640*512 @50fps
Lens: 50mm F1.0
NETD Sensitivity: 40mK @F1.0, 25℃
CVBS Analog Output
Analog Video: PAL
Mini Size: 20mm×20mm×83.4mm
Ultralight: ≤200g
With UART communication interface
Model | FV-TM61050AN-C |
Detector | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 640*512 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 50fps |
Sensitivity (NETD) | 40mK (25°C, F# = 1.0) |
Lens | |
Focal Length | 50mm |
Aperture | F1.0 |
Focusing Type | Manual focus |
Min. Focusing Distance | 8m |
FOV | 50mm: 11.25° (D) x 8.78° (H) x 7.02° (V) |
Image | |
Pseudo Color | White heat, black heat, fusion, iron red, fusion |
Analog Video | PAL |
Interface | |
Analog Output | CVBS |
Communication Interface | UART |
Environment | |
Operating Temperature | -20°C~+60°C |
Storage Temperature | -30°C~+65°C |
Humidity | ≤95% |
Power Supply | DC 5V-16V |
Power Consumption | ≤0.8 W |

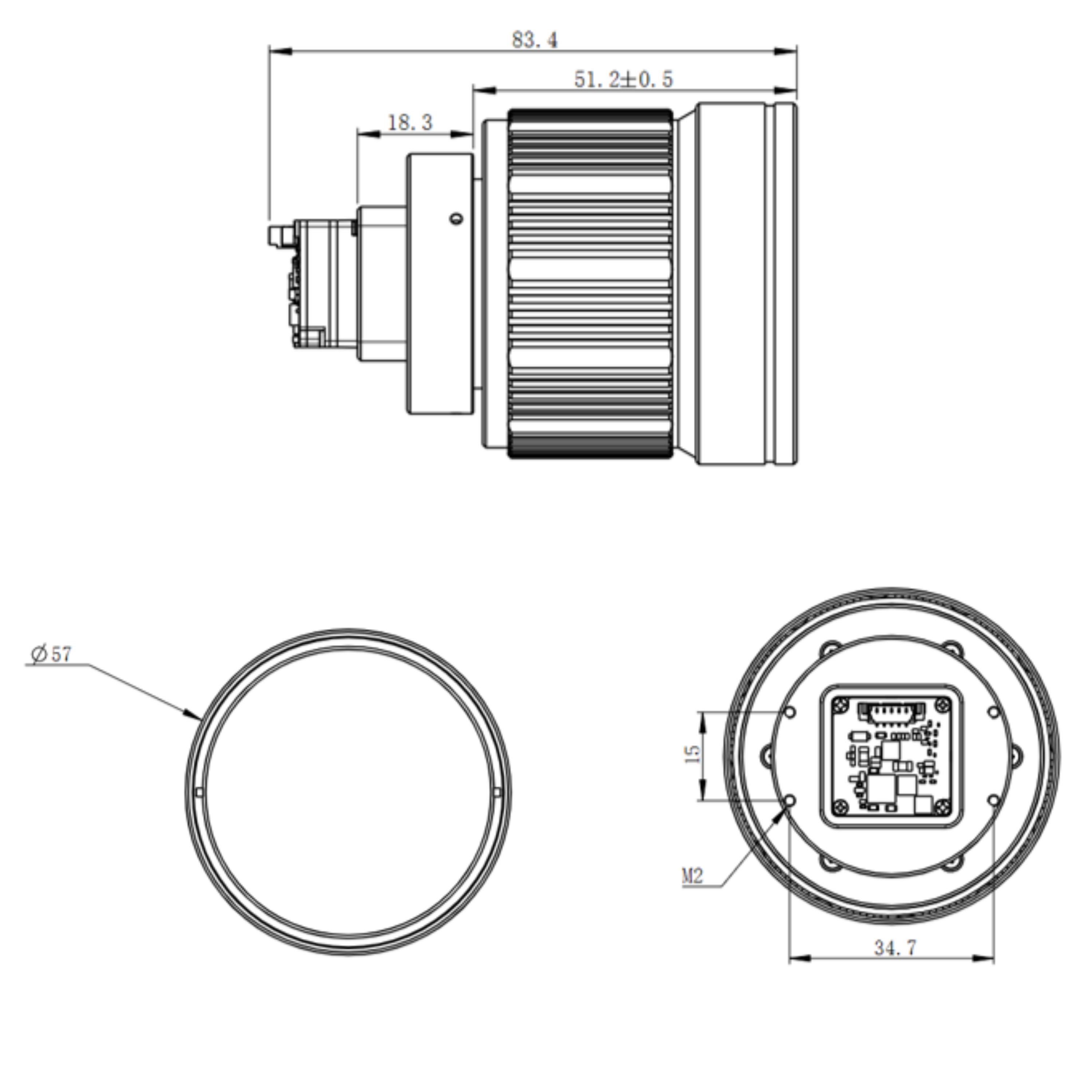

Dimensions with Lens | 20mm × 20mm x 83.4mm |
Weight with Lens | ≤90g |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
