IPSD-88238T-HTB
| Quantity: | |
|---|---|
| PDF Export | |

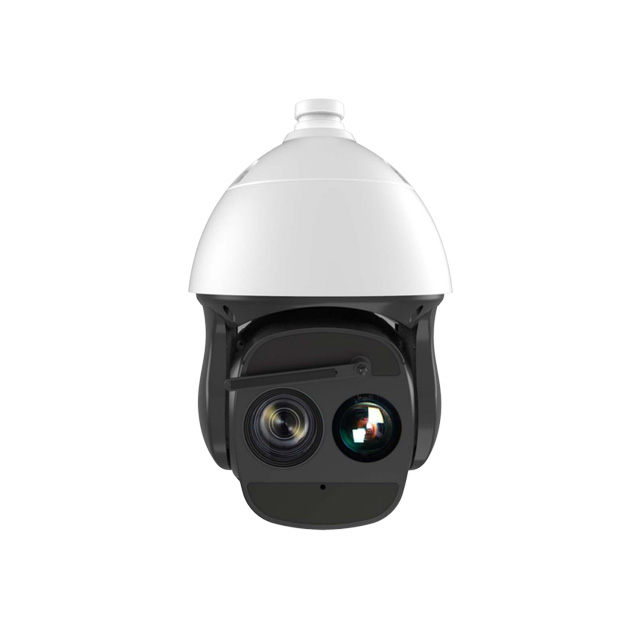

The PTZ camera combines a 2MP starlight visible-light camera with a 384×288 thermal imaging channel and a 50mm thermal lens. The two imaging technologies provide complementary observation options for surveillance environments with changing lighting conditions.
The visible-light camera features a 6.5–247mm lens with 38X optical zoom and 16X digital zoom. Combined with low-light imaging and IR illumination, it provides flexible observation options for monitoring selected areas at different distances.
A precision stepper motor supports smooth pan-and-tilt movement, with 360° horizontal rotation, -10° to 90° vertical movement, and 255 preset positions. The built-in heater and adjustable wiper provide additional functions for outdoor surveillance equipment.
The camera supports H.265/H.264 encoding, ONVIF connectivity, three video streams, and TF card storage up to 256GB. Motion detection, perimeter detection, line detection, and alarm interfaces support integration into compatible network surveillance systems.
Support H.265/H.264, 2MP
Support 38X optical zoom, 16X digital zoom
Thermal: 384x288, lens: 50mm
Precision stepper motor drive, Smooth operation, sensitive response, accurate positioning
IR 300m, thermal: 800m
Support WDR, 3D DNR, BLC, HLC, area mask, defog
Support TF card (256G)
Support three Stream, heartbeat
Smart functions: Video Detection, Motion Detection, etc.
Support ONVIF, connect to main VMS platforms
Support BMP, JPG snapshot
Support IP66

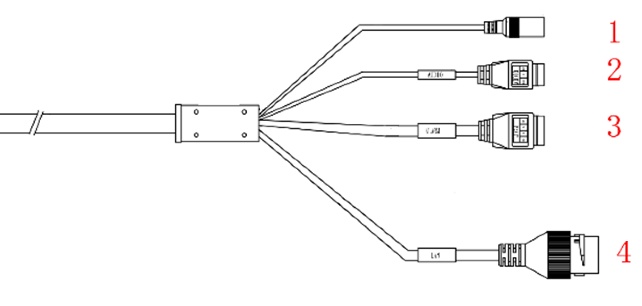

1. Power supply: AC24V/POE
2. Audio in/out
3. Alarm in/out
4. RJ45 10M/100M self-adaptive
| Model | IPSD-88238T-HTB | ||
| Optical | Resolution | 2MP, 1920×1080 | |
| Sensor | 1/1.8’’ COMS | ||
| Optical Zoom | 38X Optical zoom (6.5-247mm) | ||
| Digital Zoom | 16X | ||
| Low Illumination | 0.0005Lux @(F1.5,AGC ON)color, 0.0001Lux @(F1.5,AGC ON)B/W | ||
| WDR | ＞120dB | ||
| Zoom Speed | ≈5S | ||
| Compression | H.264/H.265 | ||
| D/N Shift | IR-CUT, Auto, Color, B/W, Timing, Threshold Control, Rotate | ||
| BLC | Off/ BLC / HLC /WDR/Defog | ||
| Shutter | 1/25 - 1/100,000s | ||
| Aperture | F1.5-F4.8 | ||
| DNR | 2D / 3D | ||
| White Balance | Auto/Manual/Outdoor/Indoor/Sodium Lamp/White Lamp/One time Tracking | ||
| MOD | 10mm-1500mm (Wide-Tele.) | ||
| View Angle | Horizontal: 64.8-1.8 (Wide-Tele)) | ||
| Thermal | Resolution | 384×288 | |
| Lens | 50mm | ||
| Spectral Range | 8～14μm | ||
| Night distance | 800m | ||
| Image | Main Stream | 50Hz: 25fps(1920x1080,1280x720) 50Hz: 50fps(1920x1080, 1280x720) | |
| Second Stream | 50Hz: 25fps(720×576，352×288) 50Hz: 50fps(720×576，352×288) | ||
| Third Stream | 50Hz: 25fps(1280 × 720，720×576，352×288) 50Hz: 50fps(1280 × 720，720×576，352×288) | ||
| Image Adjustment | Saturation, Brightness, Contrast, Sharpness, Hue Adjustment | ||
| Stabilisation | electrically image stabilization | ||
| Image Setting | Privacy Mask, Anti Flicker, Optical Defog, Corridor Mode, Mirror, Rotate, BLC, HLC, Defect Point Compensation, Exposure Compensation, Power off Memory | ||
| Smart Function | Video Detection, Motion Detection, Perimeter Detection, Line Detection, Items Left and Lost, Audio Detection | ||
| Privacy mask | 4 zones | ||
| IR distance | 500m | ||
| General | Defect point compensation, synchronized scanning, 3D Position, 4*ROI setting | ||
| PTZ Para. | Rotation Scope | Level: 0°-360° Vertical:-10~90° | |
| Presetting Speed | 210°/S | ||
| Manual | 0.1°~131°/S | ||
| Scanning | 1.4°~131°/S | ||
| Presetting | 255 points | ||
| Wiper | 30°~60°/s adjustable | ||
| Heater | Built-in heater | ||
| Others | Automatic flip, return function, boot action and so on | ||
| External Port | Alarm In | 1ch | |
| Alarm Out | 1ch | ||
| Audio In | 1ch | ||
| Audio Out | 1ch | ||
| Network | 10/100Mself-adaptive RJ45 | ||
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, UPnP and PPPoE, SIP, IPv6 | ||
| Access Protocol | ONVIF, Active registration | ||
| Display | Lens zooming times, date/time display | ||
| General | Password protection, heartbeat, muti-user access control | ||
| Output Bitrate | 32 Kbps~16Mbps | ||
| Audio Compr. | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | ||
| General | Storage | Local storage TF card 256G (class10) | |
| IP | IP68/IK10 | ||
| Temperature | -40℃~+70℃ | ||
| Power Supply | AC24V/POE | ||
| Consumption | 8W-45W | ||
| Weight | 8kg | ||
