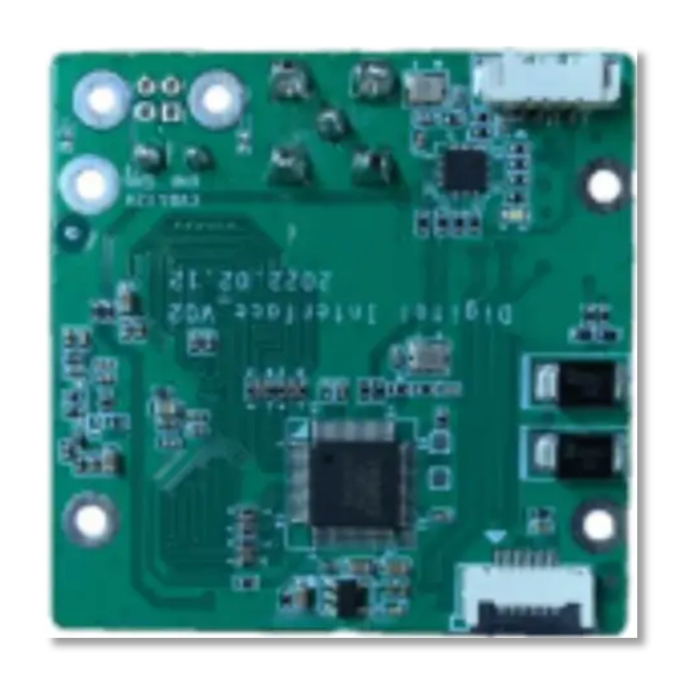

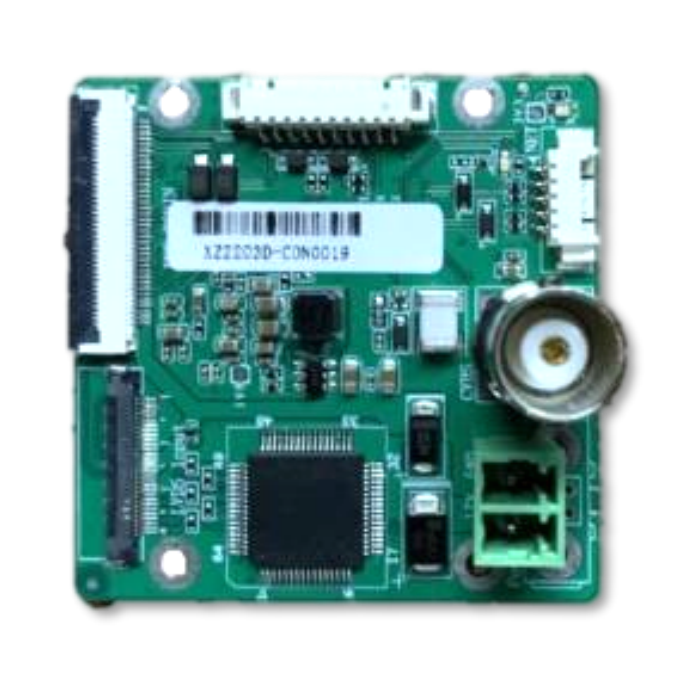

1.Connect the camera module through the LVDS interface, automatically identify the high-definition video format of the camera, and output CVBS video signals 720×576 (PAL) or 720X480 (NTSC)
2. Support 232/485 serial communication
3. Support network 1 channel alarm input and output, 1 channel audio output and output

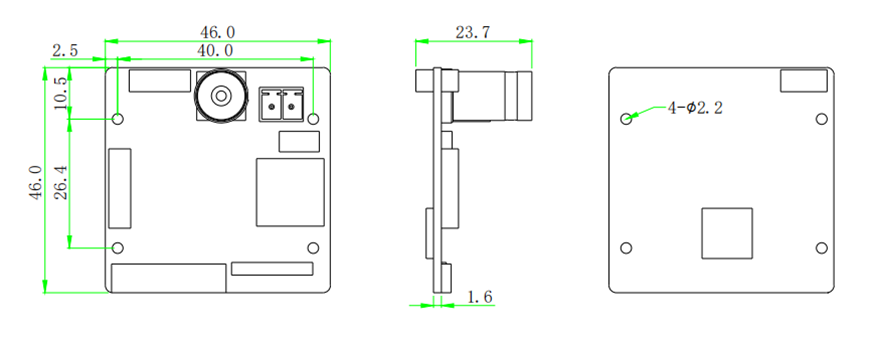

4. Size: 46mm×46mm×23.7mm
Universally used in various security camera application scenarios that require analog signals
| Video | CVBS 720×576 (PAL) or 720X480 (NTSC) | |
| Interface | ||
| RS232 | Support | |
| RS485 | Support | |
| BNC | Support | |
| Alarm In/Out | 1 way Support | |
| Audio In/Out | 1 way Support | |
| General | ||
| Enviroment | -30℃~60℃, humidity less than 95% (no condensation) | |
| Power Suply | DC12V±10% | |
| Power Consumption | 2W | |
| Size | 46mmX46mm×23.7mm | |
| Weight | 15g | |
