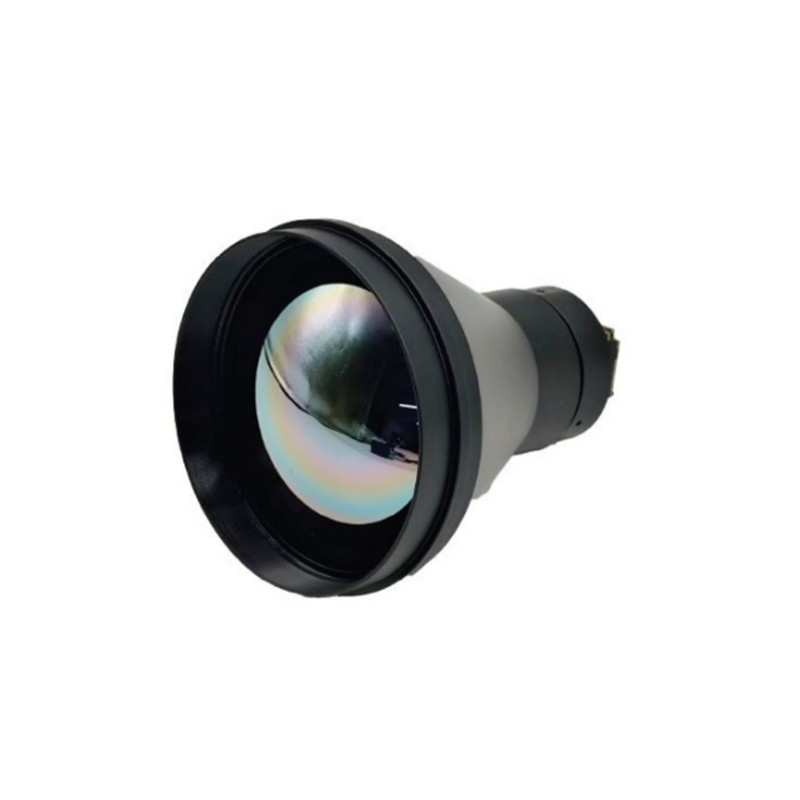

FV-TM61075AN-C
| Quantity: | |
|---|---|
| PDF Export | |
12μm VOx Uncooled Infrared Focal Plane Detector
640*512 @50fps
Lens: 75mm F1.0
NETD Sensitivity: 40mK @F1.0, 25℃
CVBS Analog Output
Analog Video: PAL
Mini Size: 20mm×20mm×116.1mm
Ultralight: ≤399g
With UART communication interface
Model | FV-TM61075AN-C |
Detector | |
Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
Effective Pixels | 640*512 |
Pixel Pitch | 12μm |
Spectral Range | 8-14μm |
Effective Frame Rate | 50fps |
Sensitivity (NETD) | 40mK (25°C, F# = 1.0) |
Lens | |
Focal Length | 75mm |
Aperture | F1.0 |
Focusing Type | Manual Focus |
Min. Focusing Distance | 10m |
FOV | 75mm 7.5° (D) x 5.9° (H) x 4.7° (V) |
Image | |
Pseudo Color | White heat, black heat, fusion, iron red, fusion |
Analog Video | PAL |
Interface | |
Analog Output | CVBS |
Communication Interface | UART |
Environment | |
Operating Temperature | -20°C~+60°C |
Storage Temperature | -30°C~+65°C |
Humidity | ≤95% |
Power Supply | DC 5V-16V |
Power Consumption | ≤0.8 W |
Dimensions | 20mm × 20mm x116.1mm |
Weight | ≤399g |
Note: Details are subject to change without prior notice. Please refer to latest product datasheet.
