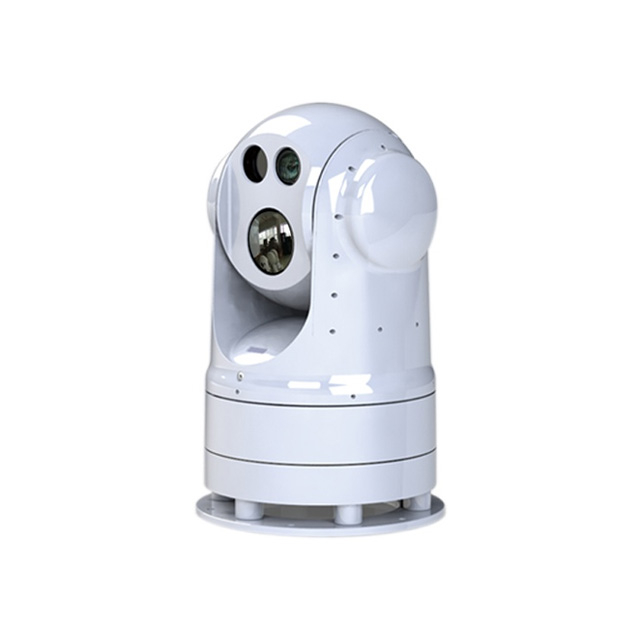

IPTZ-M600-Z248-HTB
| Quantity: | |
|---|---|
| PDF Export | |
Multi-spectral laser tracking, use A380 aluminum alloy that high resistance to sea water corrosion, with gyroscope stabilization, target tracking, infrared temperature measurement, Anti-fog, laser assisted lighting, laser ranging,
High precision and Respond fast. BEIDOU and GPS apply to guide and navigation. 3-5 miles of the target early scanning and warning to prevent approaching. Temperature measurement is effective about 5 km on electricity station, forest, oilfield, gas lane, and chemical industry to provide real-time temperature. 5G wireless high-definition monitor can recognize high-risk target with face identification and license plate. Integrate BEIDOU and GPS Location, electronic fence, patrol path set, 1 km laser night vision, remote Start-Up RS422 data two-way transmission, radar fire control system, vehicle shock absorption design.
| Model | IPTZ-M600-Z248-HTB | ||
| Optical | Image device | 1 / 2.8’’ CMOS, 2 million in HD | |
| Resolution | 2MP | ||
| Starlight-level | 0.002Lux / F1.5 (color), 0.0002Lux / F1.5 (black and white) | ||
| D/N | ICR dual-filter switch | ||
| Focal length | 45X, 6.7~300mm anti-shake function lens, auto focus | ||
| Noise-signal ratio | ＞52dB | ||
| HD distance | 3-5 Km | ||
| Laser | Power rate | 10~35W | |
| Wavelength | 805-980nm | ||
| Focus | Synchronous zoom between laser and lens | ||
| Laser distance | 3~6KM | ||
| Thermal | Detector | Uncooled Focus plane array | |
| Resolution | 384*288/640*480 | ||
| Wavelength | 8-14μm | ||
| Heat sensitivity | ≤30mK@300K | ||
| Thermal imaging lens | 4.5X, 20-90mm zoom | ||
| Zoom mode | Electric focus, auto focus | ||
| Automatically focus | Near and far targets can be automatically focused | ||
| Color plate control | Black hot, white hot and other 11 color plate switch | ||
| Thermal imaging distance | 2~6Km | ||
| PTZ | Tracking | Optional | |
| Speed | The maximum azimuthal rotation speed is not less than 45° / s, and the minimum speed is not higher than 0.1° / s; | ||
| Accuracy | Positioning accuracy: 0.1 degrees | ||
| Rotation range | Horizontal 360° continuous, vertical-45° - + 95° | ||
| Preset | 255 | ||
| Patrol function | Support 8 points | ||
| Control Protocol | RS485 / 422, PelcoD / P (optional, port rate 9600 / 4800 / 2400 | ||
| Image | Coded format | H.265/H.264 / ONVIF protocol | |
| Code check | 64Kbp~32Mbps | ||
| Product frame rate | PAL/NTSC | ||
| OSD | mark, date, time, and alarm | ||
| Image superposition | Brightness, contrast, and saturation | ||
| Audio rate | 32KBPS | ||
| Network interface | 110Base-T / 100Base-TX, RJ45 Interface | ||
| Audio interface | 1×Line in；1×Line Out | ||
| Alarm interface | 1 switch quantity; 1 switch quantity | ||
| Custom function | Not optional | ||
| additional function | Regional intrusion detection, cross-border detection, motion detection | ||
| Night vision mode | ICR infrared filter type automatic switch | ||
| General Spec. | Application | Outdoor (above the see horizontal level) | |
| Method to install | Plane base installation | ||
| Power supply | AC220V or 24V DC | ||
| Power Rate | Normal 140W, with a peak power consumption of 290W | ||
| working temp | -40℃~+70℃ | ||
| Working humidity | 35%~90% (Relative humidity) | ||
| Dust and waterproof | Protection grade IP67, anti-corrosion | ||
| Equipment heavy | 36Kg | ||

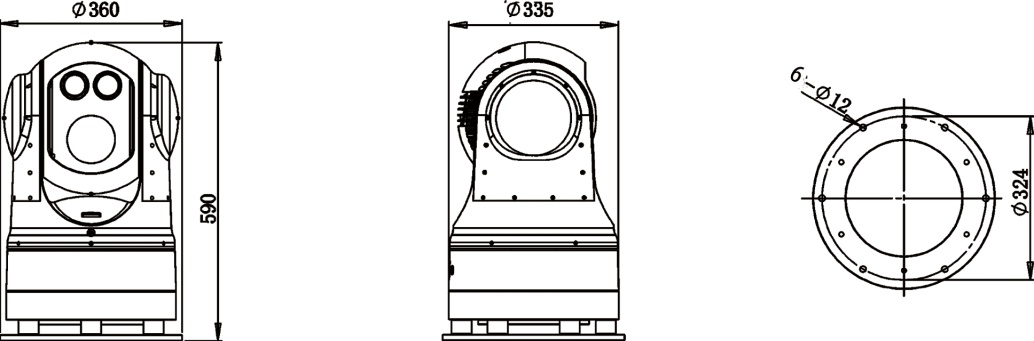

| Size (mm) | 360(L)x360(W)x590(H)mm | ||
