Intelligent Mid-Load Pan Tilt

Model:
PT-2140

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Description

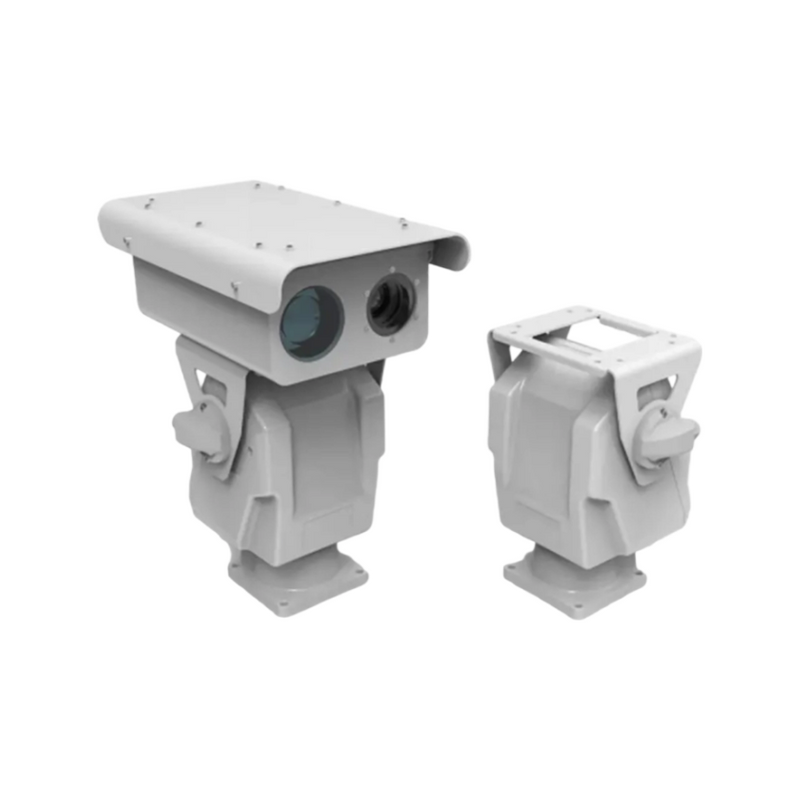

PT-2140 is a small medium load PTZ that can be widely used in medium and short distance dual optical monitoring. The use of DC brushless motor position closed-loop control avoids the problem of position loss caused by the traditional stepper motor position opening loop and stepping, and the power on it can be immediately put into work without self-check. Top load and quick disassembly plate can be flexibly configured in a variety of load forms, it can be widely used in road, factory monitoring, indoor closed environment monitoring, traffic hub crowded area monitoring.

Features

Solid and reliable all-metal shell in line with IP66 standards for all-weather outdoor use

Low noise will not interfere with audio recording, will not disturb the surrounding

The use of stepper motor position closed-loop control, to avoid the traditional stepper motor position after the opening of the loop out of the problem of position loss

Customizable conversion board for quick installation of various loads

Matching small double housing can be used for medium and short distance dual light monitoring

Pan Tilt Hardware Part

Max dimensions: H 270mm* L 168mm* W 220mm

Load bearing form top: Top load

Transmission form: Precise spur gear drive

Self-locking load: 10Kg

Installation method: Upright installation, base fixed at four points （94mm*94mm）

Supply voltage: 24V

Camera communication port: Reserved 100Mbps( 1000Mbps is optional)

Pan slip ring life:3 million revolutions

Power protection: TVS 6000V lightning-proof, surge proof, in line with GB/T17626.5 Level 4

Rotation range: Pan 360° continuous rotation, tilt -70°~+45°

Speed range: Pan 0.01° ~90° /s, tilt 0.01° ~18° /s

Power consumption:≤5W (Standby), ≤50W (Operation)

Repeated positioning accuracy:±0.05°

Angular resolution: ＜ 0.01°

Body material: Aluminum alloy

Operating temperature and humidity: -25℃~65℃, ＜ 90% RH

Protection level: IP66

Self weight: 6kg

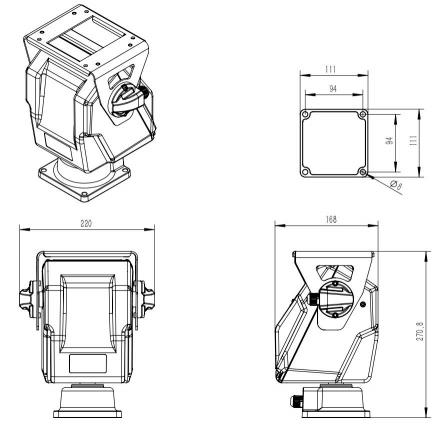

Dimensions

Pan Tilt Software Part

Control communication interface: 485/422

Communication protocol: PELCO-D

Baud rate: 9600bps

Self-check: No self-check is required. It will start working within 5 seconds after power-on

Basic motion function: Manual control 64 level speed adjustable, proportional variable speed (camera support required)

Number of preset bits: 199 (Standard) +255 (Extendable)

Positioning function: Absolute angle positioning (adjustable positioning speed) 3D positioning (It needs to be done with the camera)

Pan Scanning mode: Preset bit point by point scanning (adjustable preset bit dwell time, preset bit scan speed) Pan two-point scanning(adjustable scanning speed and scanning dwell time)

Watch position: Watch position on or off (can be adjusted back to position time)

Special functions: Pan-tilt and camera coordinate query or real-time return. With position holding function, abnormal external force caused by the offset can be quickly restored. Vertical jitter suppression is optional

Load Part

Load type: Overhead single cabin housing (Optional variety of specifications), overhead double housing (Optional variety of specifications). It can be used with searchlights, laser lights, radar, multispectral detectors and other load types

Housing auxiliary function: Automatic control wiper (automatically adjust the speed of the wiper according to the rainfall), automatic auxiliary lighting (with automatic near and far light switching function) and fog removal function
