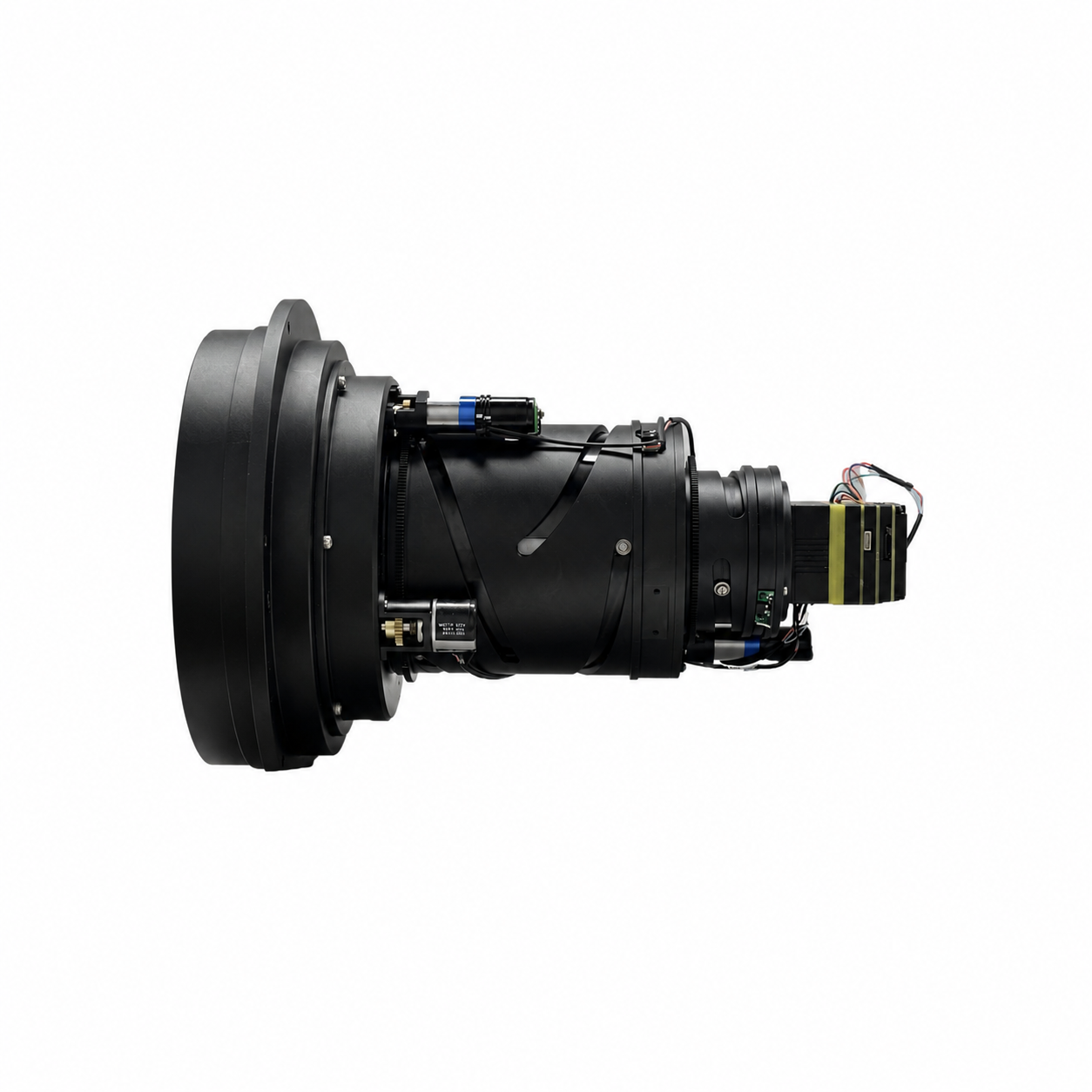

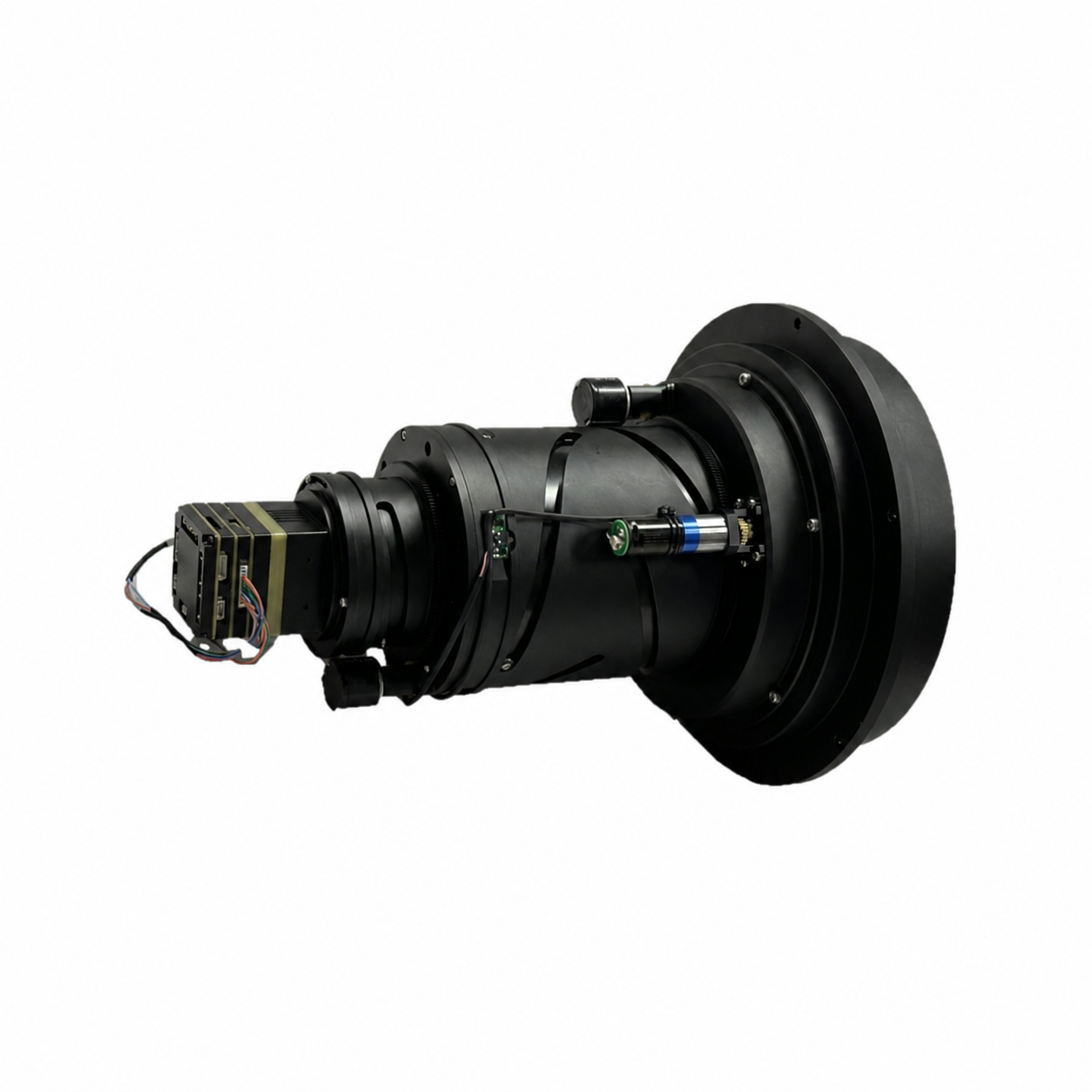

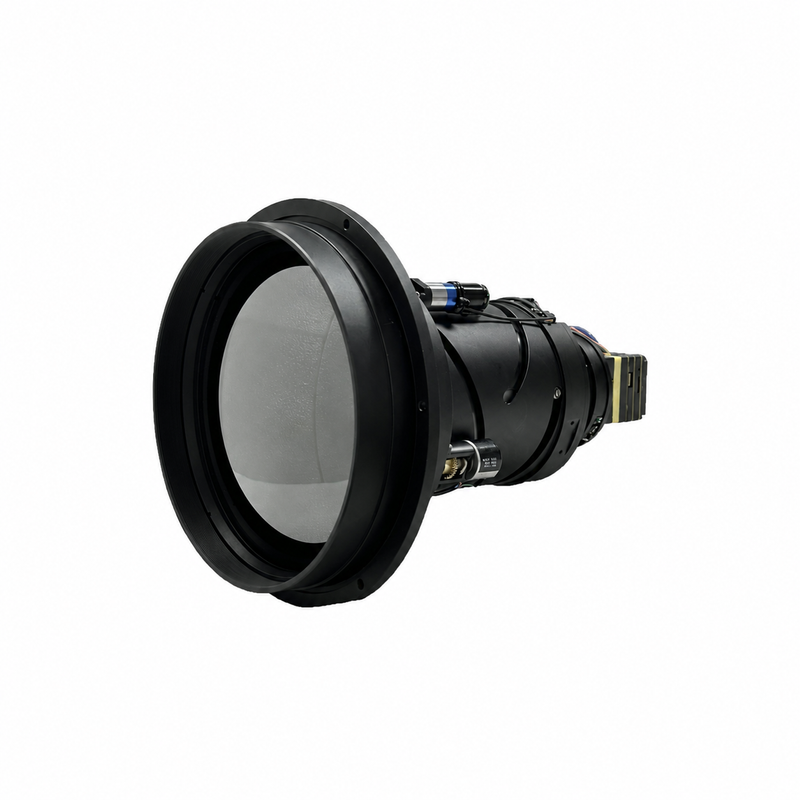

1280×1024 Uncooled UVC Thermal Imaging Camera with 25-225 mm Lens

Introduction

The USB infrared movement is a core component designed specifically for various devices that require infrared thermal imaging function. It supports HDMI and USB high-definition digital video output, center point temperature measurement, and outputs the maximum temperature, minimum temperature, and average temperature of the output area. It is also equipped with UART communication interface. This movement integrates advanced infrared detection technology and image processing algorithms, which can be widely used in many fields such as medical health, smart furniture, industrial temperature measurement, etc. It helps users quickly and accurately obtain the thermal information of target objects, so as to perform state monitoring, fault diagnosis, target recognition and other operations.

Features

 1280×1024 High-Resolution Thermal Imaging

Equipped with a 12μm uncooled VOx infrared detector, the camera delivers 1280×1024 thermal imaging with a frame rate of up to 50Hz. Compared with 640×512 thermal modules, its higher detector pixel count provides more thermal image sampling points for observing scene details.

25–225mm 9X Optical Zoom for Adjustable Observation

The camera features a 25–225mm optical zoom lens with a field of view ranging from 17.4° × 14.0° to 1.9° × 1.5°. Its 9X optical zoom enables equipment operators to adjust between wider thermal scene coverage and focused observation without changing the lens.

Autofocus and Thermal Image Processing

The module supports autofocus, with a focusing range of 5m to infinity at 25mm and 15m to infinity at 225mm. Shutterless image processing, digital noise filtering, and non-uniformity correction provide additional thermal image adjustment capabilities.

HDMI/UVC Output with Temperature Measurement

The camera provides HDMI and UVC video output, a USB 3.0 interface board, and UART communication at TTL 3.3V. It supports center-point temperature measurement over a specified range of -20°C to 100°C, with an accuracy of ±3°C or ±3%, supporting integration into compatible thermal monitoring equipment.

Multi-channel HD Video Output

 Supports HDMI & USB dual high-definition digital video output for flexible display and data access.

 Comprehensive Temperature Measurement Function

 Built-in center point temperature measurement; real-time output of maximum, minimum and average temperature within the detection area.

 Reserved UART Communication Port

 Equipped with standard UART serial interface for secondary development, data transmission and external device linkage.

 Integrated Core Imaging Technology

 Adopts high-precision infrared detection sensors and optimized professional image processing algorithms for stable, clear thermal imaging.

 Wide Application Compatibility

 Applicable to medical health monitoring, smart home, industrial non-contact temperature measurement and other thermal detection scenarios.

 Efficient Thermal Data Acquisition

 Enables fast, accurate acquisition of target thermal data to support equipment status monitoring, mechanical fault diagnosis and target identification.

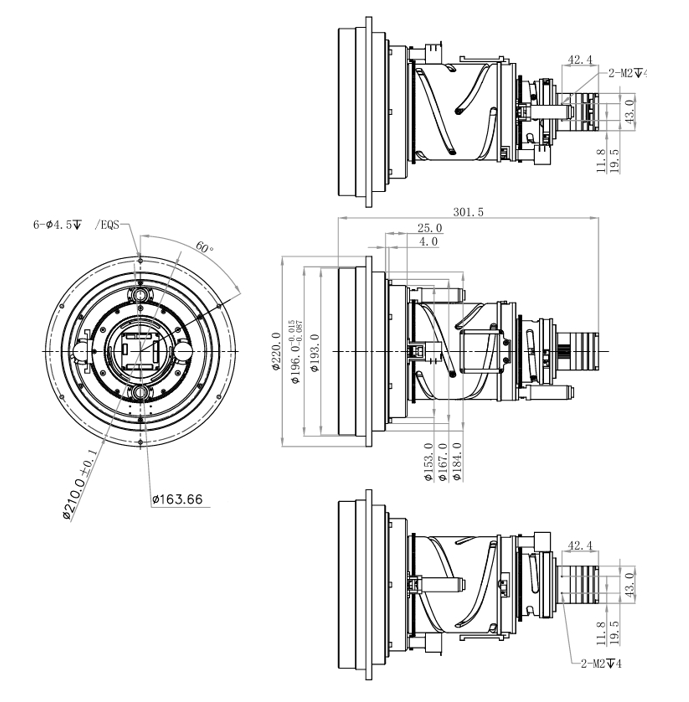

Dimensions(mm)
